- Very high quality and lifetime in workshop environment
Ultimate productivity - vehicle after vehicle

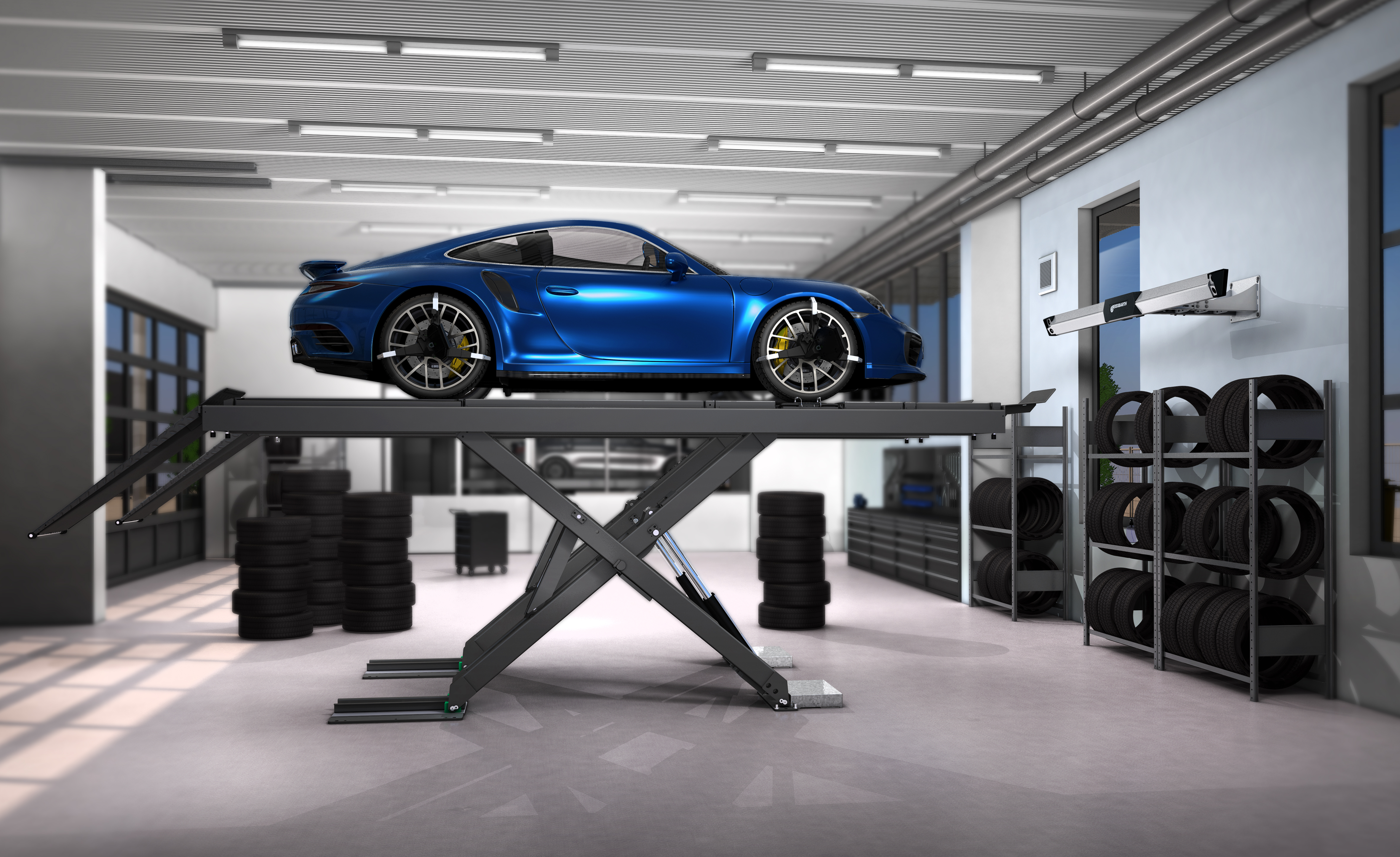

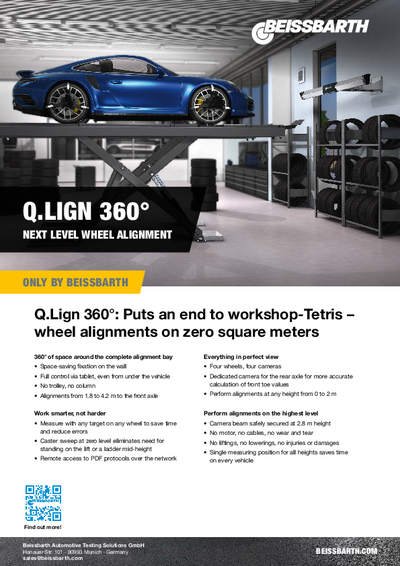

The Q.Lign 360 builds on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign 360, workshops raise the bar even higher to exploit their full service potential.
Measuring at the highest level

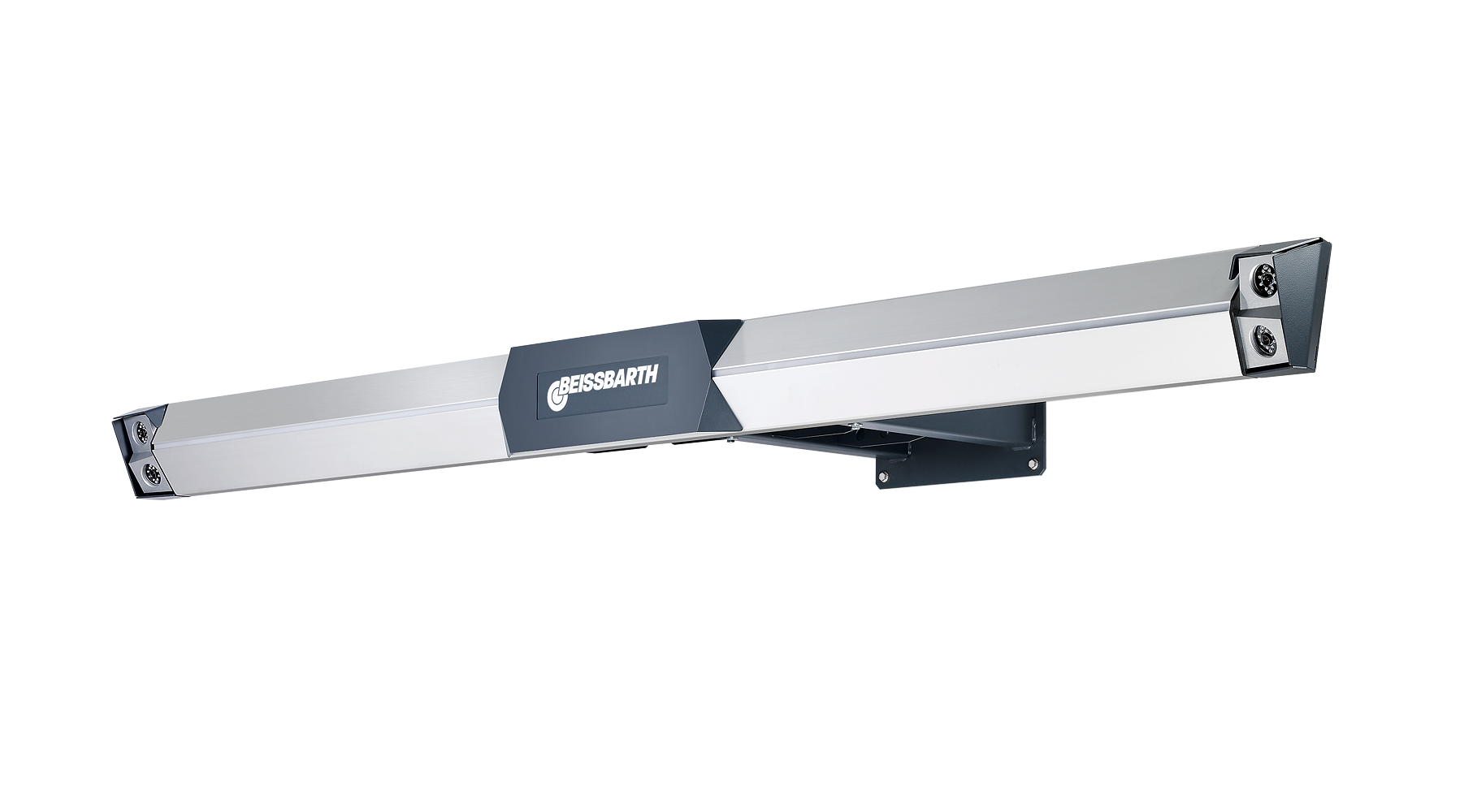

- Camera beam measures permanently from a height of 2.8 meters
- No motor, no winch, no wear and tear
- No up, no down, no injuries or damage
- No movement, no matter if short or long wheelbases
Everything perfectly in sight
- Four wheels, four cameras
- Separate camera for the rear axle for more accurate toe values on the front axle
- Install anywhere within 1.8 to 4,2 meters of the front axle
- Measure and adjust from 0 to 2 meters platform height at any time
Never run out of space again
- Fixation on the wall and direct tablet operation
- No trolley, no post that take up space
- Measure from 1,8 to 4,2m distance to the front axle
- Frees up space around the complete alignment bay
Work smarter, not harder
- Measurement starts directly with attachment of the targets to quickly determine accident vehicles
- All targets work on any wheel reduces setup times and setup errors
- Active MEMS Technology: Constant measurement against gravity for uncompromising accuracy
- Caster sweep at floor level without the need for a stool or ladder
- Access to clear and easy-to-understand PDF reports from anywhere inside your shop
The world's first web-based wheel aligner
- Eliminates need for trolley and PC and creates more space
- Incredibly efficient with up to 95% power savings compared to PC-based systems
- Stream-to-X: Access software on any TV, PC, laptop, tablet or smartphone
- Intuitive software, streamlined operations, more productivity
- Easy integration of Q.Lign into your shop's daily processes and systems
Full speed, without compromising on precision
- Powerful software with optimized workflow for the entire wheel alignment process
- Reduced runout process for more productivity
- 3D camera technology produces highly accurate realtime measurements
Space requirement
- Minimum height of 2800mm
- Minimum clearance of 2800mm on four-post lifts
- Camera beam with 4 cameras
- Q.Lign display module
- 4x Q.Grip wheel clamps
- Wall storage for Q.Grips
- 4x targets with AutoID
- Tablet
- Brake lock and steering wheel lock
- Front turntables and filling bars
- Powerbox for power supply
- Extendable wall fixation
- Key Card for international vehicle specs
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
|---|---|
| Measuring system | 3D mit Messbalken (fixiert) |
| Packaging unit | 1 Palette(n) |
| Space requirement width | 2595 mm |
| Data transmission type | kabellos |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
| Display size | 10 " |
| Power consumption | 45 W |
| Sensor count | 4 Stück |
| Wheel base | 1750 - 4600 mm |
| Set-up height | 2800 mm |
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
|---|---|
| Measuring system | 3D mit Messbalken (fixiert) |
| Packaging unit | 1 Palette(n) |
| Space requirement width | 2595 mm |
| Data transmission type | kabellos |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
| Display size | 10 " |
|---|---|
| Power consumption | 45 W |
| Sensor count | 4 Stück |
| Wheel base | 1750 - 4600 mm |
| Set-up height | 2800 mm |
- Mechanical aluminum turntable Standard16905010011690501001
- Magnetic clamps for wheel bolts | 75mm16907015081690701508
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Magnetic clamps for wheel bolts | 100mm16907015211690701521
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Storage kit | for 4x Q.Grip16908010481690801048
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 Q.Grip clamps. Can be positioned on each side of the vehicle for maximum efficiency.
- Storage kit | for 4x MultiFit16908010471690801047
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 MultiFit clamps. Can be positioned on each side of the vehicle for maximum efficiency.
- Wall mount | Q.Lign T-Series | 515-880mm16908010531690801053
Extendable wall bracket for mounting the Q.Lign T-series camera beam. Enables distances of up to 4170 mm from the center of the turntable to the wall.
- Filling piece (1x) for aluminum turntable16901022111690102211
- Mounting set for MultiFit (4x) | for wall installation16901010941690101094
- Mounting set for OE quick clamps (4x) | for wall installation16901010901690101090
- Mounting set for brake and steering wheel lock (2x) | for wall installation16901010891690101089
- Accessory cart | for OE quick clamps16901011271690101127
For storing 4x OE quick clamps, brake locks, and steering wheel locks
- Accessory cart | MultiFit clamps16901011291690101129
For storing 4x MultiFit clamps, brake locks, and steering wheel locks
- Vehicle database update Q.Lign | Key Card16900020221690002022
- Access to the newest vehicles specs directly from the OEM
- Authorises the licensing of all IAM vehicle databases for the calender year in which the Key Card has been activated
- Accessory Cart | for Magnetic Clamps16901011281690101128
For storing 4x magnetic clamps, brake lock, and steering wheel lock
- Bracket set for magnetic clamps (4x) | for wall installation16901010921690101092
- ProClamp wheel clamp | 13 - 23" | 1 pc16901000011690100001
- Rim clamping range: 12 - 23"
- Wheel clamping range: 490 - 884mm
- Self-centering quick clamp | for Lamborghini89003800168900380016
- Attaches to the center bolt of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Mechanical aluminum turntable Precision16904010281690401028
- Very high quality and lifetime in workshop environment
- Steel balls for minimal friction and maximum precision
- Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.16903111121690311112
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
- Extension set for Multi-fit clamps | 23 - 28"16903111131690311113
- Electronic aluminum turntable without connecting cable | Standard16904010111690401011
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Standard turntable without connecting cable
- Electronic aluminum turntable without connecting cable | Precision16904010131690401013
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
- Central clamp Porsche Carrera GT16903010021690301002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
- Central clamp Porsche 911 GT3 and Turbo16903800021690380002
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
- Self-centering quick clamp for Porsche16903800101690380010
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
- Self-centering quick clamp for Tesla16903801611690380161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Self-centering quick clamp for Ferrari16903812991690381299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
- Quick clamp Mercedes-Benz | OEM16908010021690801002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
- Quick clamp BMW | OEM16908010011690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
- Adapter set Q.Grip | for Q.Lign | 4 pcs.16901010101690101010
Q.Grip: The closest you will get to Touchless.
- Mounting of targets in under 5 seconds
- No rim contact, no scratches or damages!
- Instantaneously change between different tyre diameters with our new patented clamping mechanism
- Three arms guarantee safe and precise grip during the complete alignment
- No removal of hubcaps!
- No knob twisting!
- No fixed wheel assignment, position on any wheel!
- Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)
- Self-centering quick clamp for Porsche16903010031690301003
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6829
- Not suited for Porsche vehicles with center wheel bolt!
- Filling piece for aluminum precision turntable16901020411690102041
1x Precision filling piece for one precision turntable.
Required quantity per turntable: 2
