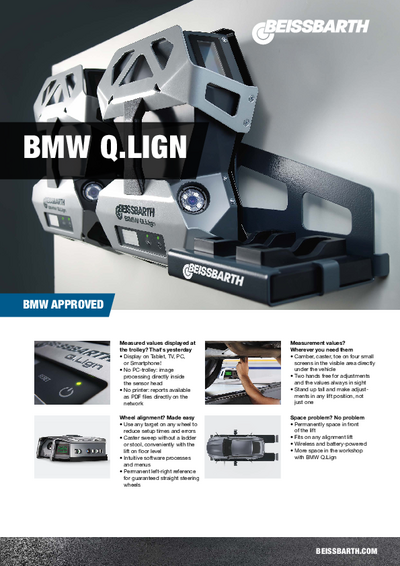

The World’s most innovative Wheel aligner
The BMW Q.Lign is our answer to an increasingly digital and fast-paced world: ultra-fast, compact, connected
Measured values displayed on a trolley? That's yesterday
- Display on Tablet, TV, PC, or Smartphone!
- No PC-trolley: image processing directly inside the sensor head
- No printer: reports available as PDF files directly on the network
Measurement values? Wherever you need them
- Camber, caster, toe on four small screens in the visible area directly under the vehicle
- Two hands free for adjustments and the values always in sight
- Stand up tall and make adjust-ments in any lift position, not just one
Wheel alignment? Made easy
- Use any target on any wheel to reduce setup times and errors
- Caster sweep without a ladder or stool, conveniently with the lift on floor level
- Intuitive software processes and menus
- Permanent left-right reference for guaranteed straight steering wheels
Space problem? No problem
- Permanently space in front of the lift
- Fits on any alignment lift
- Wireless and battery-powered
- More space in the workshop with BMW Q.Lign
Eletronic steering wheel level integration directly into the software
- The steering wheel position is measured digitally, for clear results – measurable and fully traceable.
- The steering wheel position is continuously monitored digitally, even when the vehicle is lifted.
- The measured steering wheel position is automatically recorded in the printout. More transparency, less guesswork.
Automatic ride height measurement
- No manual measurement of ride heights
- No typing each height value
- No time-consuming loading and unloading of the vehicle with weights
Work smarter, not harder
- Get values the second the targets are recognized to immediately spot vehicles involved in accidents
- Measure with any target on any wheel position to save time and eliminate user error
- Active lift control: Our recipe for success for straight steering wheels
- Have the values always in sight from under the vehicle with the four OLED screens on the sensor heads
- 2x BMW Q.Lign sensor heads with OLED displays
- Display module for direct streaming to TV, PC, laptop or tablet
- Tablet
- 2x Li-Ion batteries with charging station
- 4x Magnetic clamps | 100mm
- Wall-brackets for magnetic clamps
- 4 targets
- Lift adapter
- Wall board for storage of sensor heads and battery charger
- Steering wheel and brake pedal lock
- 2x electronic turntables
- 2x turntable covers
- 4x turntable fillers
- 2x connecting cable for turntable
- BMW Group vehicle specs
- IAM vehicle specs
- Electronic steering wheel level
- Ride height markers with transport case
Note: The delivery scope includes turntables for the front axle only. For alignment lifts without installed slip plates for the rear axle, two additional turntables (1 690 401 028) are required for the rear axle. When using the magnetic clamps, each turntable must be equipped with two filler pieces for rolling rim runout compensation.
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
|---|---|
| Packaging length | 1080 mm |
| Packaging width | 960 mm |
| Packaging height | 900 mm |
| Gross weight | 100 kg |
| Measuring system | 3D |
| Weight | 80 kg |
| Packaging unit | 1 Palette(n) |
| Data transmission type | kabellos |
| Power consumption | 45 W |
| 99 Wh | |
| Load capacity per turntable | 2000 kg |
| Wheel base | 1800 - 5000 mm |
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
|---|---|
| Packaging length | 1080 mm |
| Packaging width | 960 mm |
| Packaging height | 900 mm |
| Gross weight | 100 kg |
| Measuring system | 3D |
| Weight | 80 kg |
| Packaging unit | 1 Palette(n) |
|---|---|
| Data transmission type | kabellos |
| Power consumption | 45 W |
| 99 Wh | |
| Load capacity per turntable | 2000 kg |
| Wheel base | 1800 - 5000 mm |
- Mechanical aluminum turntable Precision16904010281690401028
- Steering wheel level gauge with | Bluetooth16937706191693770619
Steering level gauge with electronic inclinometer for checking the steering level position during the wheel alignment. Save valuable time for every alignment as the steering level position is permanently monitored, especially when the vehicle is raised on the lift. Prevents crooked steering wheels and time-consuming comebacks.
Completely wireless and powered with integrated Li-Ion batteries. Alternatively, the USB used for charging the device can also be used for the data transmission.
- Measuring range: +/- 30° with accuracy of +/- 0,1°
- Max. Steering level position: 15°
- Operating time: 20 hrs
- Charging time: 4 hrs
Compatible with wheel aligners: BMW Q.Lign, BMW KDS 3D
- Vehicle database update Q.Lign | Key Card16900020221690002022
- Access to the newest vehicles specs directly from the OEM
- Authorises the licensing of all IAM vehicle databases for the calender year in which the Key Card has been activated
- Filling piece (1x) for aluminum turntable16901022111690102211
- Magnetic clamps for wheel bolts | 100mm16907015211690701521
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Printer for Beissbarth trolleys16937704151693770415
- Battery for Q.Lign | Li-Ion | 99 Wh16902030531690203053
- Distance bolts for quick clamp BMW | 120 mm16908010031690801003
- For one quick clamp
- Quick clamp BMW | OEM16908010011690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
- Protective rubber cover for aluminum turntable16904020011690402001
- Additional protection from dirt and liquids
- Trolley with 27"monitor | for BMW Q.Lign16902011521690201152
