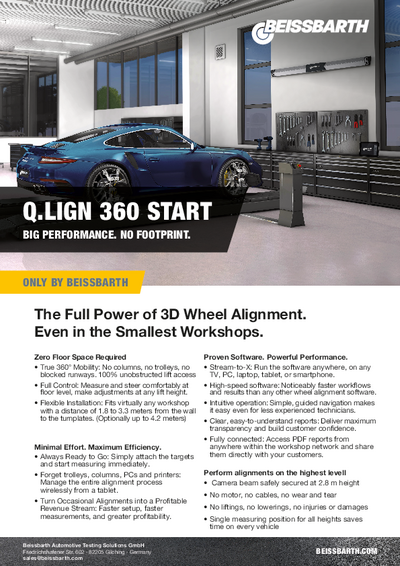

Big Power for Small Spaces: Q.Lign 360 START
Upgrade your workshop without compromise on space, budget, or technology. The Q.LIGN 360 START bridges the gap between compact, space-saving CCD systems and full-scale 3D aligners by delivering true 3D performance in a footprint that fits smaller workshops.The Q.LIGN 360 START: wall-mount the technology, run it from a tablet, and turn any standard service bay into an advanced 3D alignment zone instantly.
Wall-Mounted Design: Zero Floor Space Required
- True 360-Degree Mobility: Without metal beams boxing in your service bay, technicians have unobstructed, safe access all the way around the lift and the vehicle
- Absolute Lift Versatility: Runout compensation can be completed at floor level, and mechanical adjustments can be done with the lift fully raised. The tracking is optical, not mechanical
- Flexible Installation: The system easily fits setups where the lift sits 1.8 to 3.3 meters from the wall, with an optional extendable wall mount reaching up to 4.2 meters
Low Overhead, High Efficiency
- Always ready for action: Mount the targets and start measuring immediately. In any lift position
- Tablet-Controlled Workflows: Ditch the trolley, column, PC, and printer! No extra maintenance, no wasted space. Run the entire alignment process from a mobile tablet, whether you’re in the driver’s seat or working underneath the vehicle
- Universal MultiFit Clamps: Fast, self-centering setup that effortlessly fits 13" to 22" rims without extra accessories
- Fast ROI through maximum performance: Faster setup, faster results, higher earnings. Stop wasting time and turn wheel alignment into a highly profitable, effortless add-on service in your daily workshop routine
Proven Software. Trusted Performance.
- Stream-to-X: Access software on any TV, PC, laptop, tablet or smartphone
- Accelerated Workflow: High-performance software that speeds up the entire alignment process
- Intuitive Operation: User-friendly, guided workflows make it easy for even less experienced technicians to deliver professional results
- Clear, Professional Reports: Generate concise, easy-to-understand printouts that enhance customer transparency and trust
- Connected Reports: Access PDF reports from anywhere within your network and share them instantly with your customers
- Camera beam with 4 cameras
- Q.Lign display module
- 4x MultiFit wheel clamps incl. wall storage
- 4x targets with AutoID
- Tablet
- Brake lock and steering wheel lock
- Powerbox for power supply
- Key Card for international vehicle specs
Note: Turntables not included in the scope of delivery.
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
|---|---|
| Measuring system | 3D mit Messbalken (fixiert) |
| Packaging unit | 1 Palette(n) |
| Space requirement width | 2595 mm |
| Data transmission type | kabellos |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
| Display size | 10 " |
| Power consumption | 45 W |
| Sensor count | 4 Stück |
| Wheel base | 1750 - 4600 mm |
| Set-up height | 2800 mm |
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
|---|---|
| Measuring system | 3D mit Messbalken (fixiert) |
| Packaging unit | 1 Palette(n) |
| Space requirement width | 2595 mm |
| Data transmission type | kabellos |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
| Display size | 10 " |
|---|---|
| Power consumption | 45 W |
| Sensor count | 4 Stück |
| Wheel base | 1750 - 4600 mm |
| Set-up height | 2800 mm |
- Mechanical aluminum turntable Standard16905010011690501001
- Magnetic clamps for wheel bolts | 75mm16907015081690701508
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Magnetic clamps for wheel bolts | 100mm16907015211690701521
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Storage kit | for 4x Q.Grip16908010481690801048
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 Q.Grip clamps. Can be positioned on each side of the vehicle for maximum efficiency.
- Storage kit | for 4x MultiFit16908010471690801047
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 MultiFit clamps. Can be positioned on each side of the vehicle for maximum efficiency.
- Wall mount | Q.Lign T-Series | 515-880mm16908010531690801053
Extendable wall bracket for mounting the Q.Lign T-series camera beam. Enables distances of up to 4170 mm from the center of the turntable to the wall.
- Filling piece (1x) for aluminum turntable16901022111690102211
- Mounting set for MultiFit (4x) | for wall installation16901010941690101094
- Mounting set for OE quick clamps (4x) | for wall installation16901010901690101090
- Mounting set for brake and steering wheel lock (2x) | for wall installation16901010891690101089
- Accessory cart | for OE quick clamps16901011271690101127
For storing 4x OE quick clamps, brake locks, and steering wheel locks
- Accessory cart | MultiFit clamps16901011291690101129
For storing 4x MultiFit clamps, brake locks, and steering wheel locks
- Vehicle database update Q.Lign | Key Card16900020221690002022
- Access to the newest vehicles specs directly from the OEM
- Authorises the licensing of all IAM vehicle databases for the calender year in which the Key Card has been activated
- Accessory Cart | for Magnetic Clamps16901011281690101128
For storing 4x magnetic clamps, brake lock, and steering wheel lock
- Bracket set for magnetic clamps (4x) | for wall installation16901010921690101092
- ProClamp wheel clamp | 13 - 23" | 1 pc16901000011690100001
- Rim clamping range: 12 - 23"
- Wheel clamping range: 490 - 884mm
- Self-centering quick clamp | for Lamborghini89003800168900380016
- Attaches to the center bolt of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Mechanical aluminum turntable Precision16904010281690401028
- Very high quality and lifetime in workshop environment
- Steel balls for minimal friction and maximum precision
- Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.16903111121690311112
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
- Extension set for Multi-fit clamps | 23 - 28"16903111131690311113
- Electronic aluminum turntable without connecting cable | Standard16904010111690401011
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Standard turntable without connecting cable
- Electronic aluminum turntable without connecting cable | Precision16904010131690401013
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
- Central clamp Porsche Carrera GT16903010021690301002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
- Central clamp VAS 6830 Porsche 911 GT3 and TurboASE 485 233 00 000ASE 485 233 00 000
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
- Self-centering quick clamp VAS 6918 for PorscheASE 485 237 00 000ASE 485 237 00 000
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
- Self-centering quick clamp for Tesla16903801611690380161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Self-centering quick clamp for Ferrari16903812991690381299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
- Quick clamp Mercedes-Benz | OEM16908010021690801002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
- Quick clamp BMW | OEM16908010011690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
- Adapter set Q.Grip | for Q.Lign | 4 pcs.16901010101690101010
Q.Grip: The closest you will get to Touchless.
- Mounting of targets in under 5 seconds
- No rim contact, no scratches or damages!
- Instantaneously change between different tyre diameters with our new patented clamping mechanism
- Three arms guarantee safe and precise grip during the complete alignment
- No removal of hubcaps!
- No knob twisting!
- No fixed wheel assignment, position on any wheel!
- Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)
- Self-centering quick clamp VAS 6829 for PorscheASE 485 232 00 000ASE 485 232 00 000
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6829
- Not suited for Porsche vehicles with center wheel bolt!
- Filling piece for aluminum precision turntable16901020411690102041
1x Precision filling piece for one precision turntable.
Required quantity per turntable: 2
