Scope of delivery: - Trolley - Monitor arm - 27" monitor
The World’s most innovative Wheel aligner
The MB Q.Lign is our answer to an increasingly digital and fast-paced world: ultra-fast, compact, connected
World’s First Web-based wheel aligner
- Compact web-based technology creates more space by replacing the need for trolley with PC
- Stream-to-X: Directly display the software on any TV, PC, laptop or smartphone
- Unleash the full power of connectivity by integrating the MB Q.Lign into your daily workshop processes and systems
Online Vehicle Specs
- 24/7 online access to the latest vehicle specs
- Directly from Mercedes-Benz
- Automatic recognition of model and equipment codes easily via VIN
Scan VIN & Select Vehicle
- Scan VIN with the tablet camera
- From the windshield, driver’s door, or vehicle registration
- Vehicle is automatically selected
Get all the speed you want without compromising on accuracy
- Ultra-fast software with optimized workflow of the complete alignment process
- Magnetic wheel clamps mounted in seconds, without any rim contact
Full mobility, infinite possibilities
- Completely wireless thanks to high performance Li-Ion batteries
- Installation on any alignment lift type, above and inground
- Runout compensation in any lift height, from zero to top position
- Permanently use the space in front of the lift for headlight testing and ADAS calibration
Work smarter, not harder
- Get values the second the targets are recognized to immediately spot vehicles involved in accidents
- Measure with any target on any wheel position to save time and eliminate user error
- Active lift control: Our recipe for success for straight steering wheels
- Have the values always in sight from under the vehicle with the four OLED screens on the sensor heads
Putting the customer first
- Easy to understand printouts
- Theme-based printouts (e.g. accident report) instead of one size fits all
- Measurement of all common wheel alignment angles, including vehicle dimensions for easy detection of vehicles involved in accidents
- 2x MB Q.Lign sensor heads with OLED displays
- Display module for direct streaming to TV, PC, laptop or tablet
- Tablet
- 2x Li-Ion batteries with charging station
- 4x Magnetic clamps | 75mm
- 4 targets
- Lift adapter

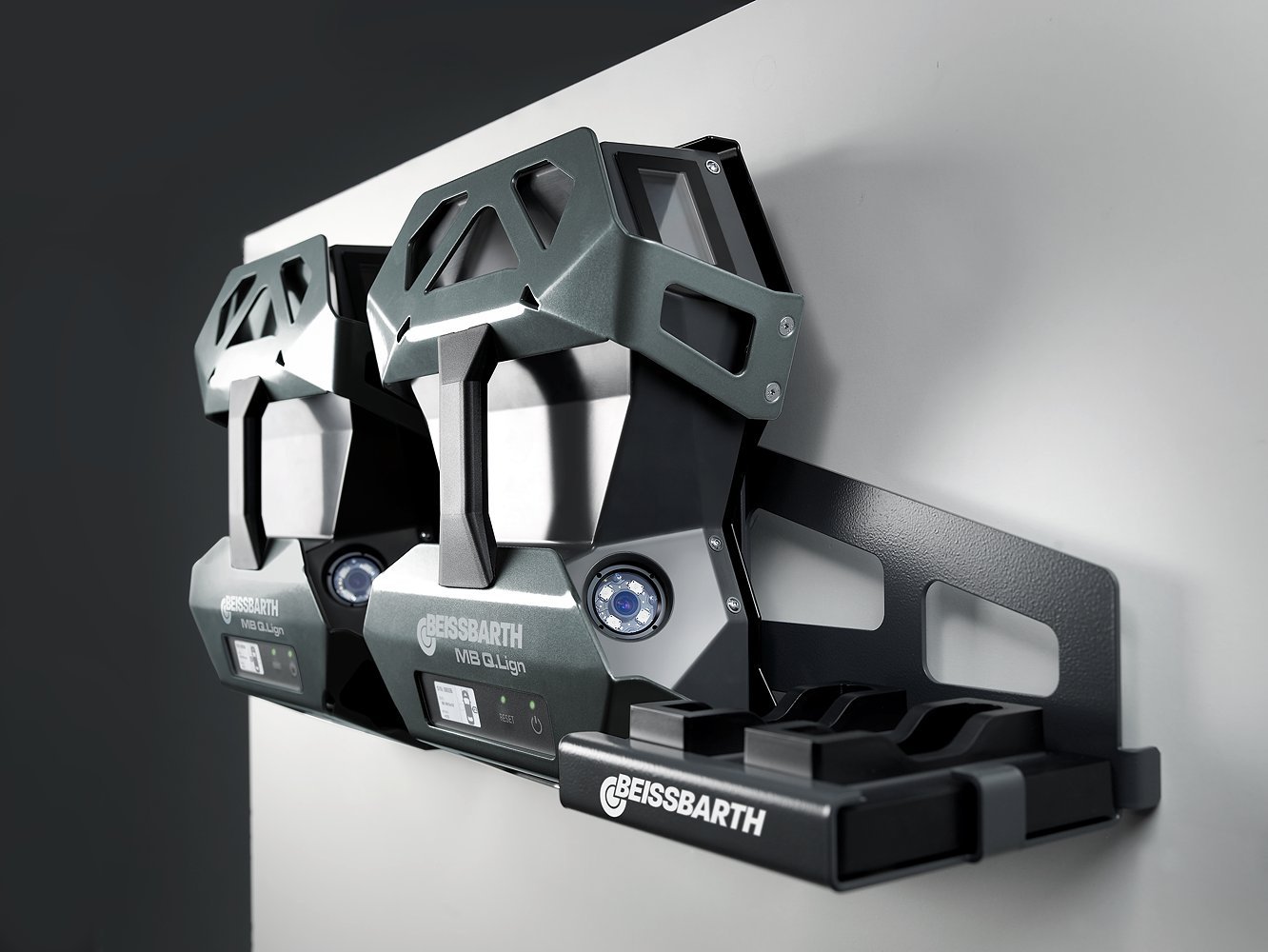

- Wall board for storage of sensor heads and battery charger
- Steering wheel and brake pedal lock
- 2x electronic turntables
- 4x filling pieces for turntables
- 2x connecting cable for turntable
- IAM vehicle specs
- RS232-USB Adapter for Romess inclinometer
The Mercedes-Benz process for warranty and guarantee work requires the use of the original MB quick clamps W 124 589 01 31 00 (4 pieces). These are not included in the scope of delivery and can be ordered directly from Mercedes-Benz.
| Weight | 80 kg |
|---|---|
| Packaging unit | 1 Pallet(s) |
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
| Individual toe front/rear axle | Ja |
| Total toe | Ja |
| Toe-out on turns | Ja |
| Camber front/rear axle | Ja |
| Caster | Ja |
| SAI | Ja |
| Set-back | Ja |
| Thrust angle | Ja |
| Data transmission type | kabellos |
| Measuring system | 3D |
| Power consumption | 45 W |
| Accumulator power (electric charge) | 99 Wh |
| Wheel base | 1800 - 4500 mm |
| Run-out compensation | Ja |
| Individual toe front axle | Ja |
| Individual toe rear axle | Ja |
| Camber front | Ja |
| Camber rear | Ja |
| Set-back front axle | Ja |
| Set-back rear axle | Ja |
| Geometric centre line | Ja |
| Vehicle dimensions live | Ja |
| Min. tyre size | 525 mm |
| Max. tyre size | 835 mm |
| Packaging length | 1080 mm |
| Packaging width | 960 mm |
| Packaging height | 900 mm |
| Gross weight | 100 kg |
| Country of Origin, customs | DE |
| Workshop-Net | Standard |
| Load capacity per turntable | 2000 kg |
| Weight | 80 kg |
|---|---|
| Packaging unit | 1 Pallet(s) |
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
| Individual toe front/rear axle | Ja |
| Total toe | Ja |
| Toe-out on turns | Ja |
| Camber front/rear axle | Ja |
| Caster | Ja |
| SAI | Ja |
| Set-back | Ja |
| Thrust angle | Ja |
| Data transmission type | kabellos |
| Measuring system | 3D |
| Power consumption | 45 W |
| Accumulator power (electric charge) | 99 Wh |
| Wheel base | 1800 - 4500 mm |
| Run-out compensation | Ja |
| Individual toe front axle | Ja |
| Individual toe rear axle | Ja |
|---|---|
| Camber front | Ja |
| Camber rear | Ja |
| Set-back front axle | Ja |
| Set-back rear axle | Ja |
| Geometric centre line | Ja |
| Vehicle dimensions live | Ja |
| Min. tyre size | 525 mm |
| Max. tyre size | 835 mm |
| Packaging length | 1080 mm |
| Packaging width | 960 mm |
| Packaging height | 900 mm |
| Gross weight | 100 kg |
| Country of Origin, customs | DE |
| Workshop-Net | Standard |
| Load capacity per turntable | 2000 kg |
- Trolley with 27"monitor | for MB Q.Lign16902011421690201142
- Accessory cart | for OE quick clamps16901011271690101127
For storing 4x OE quick clamps, brake locks, and steering wheel locks
- Mounting set for OE quick clamps (4x) | for wall installation16901010901690101090
- Mounting set for brake and steering wheel lock (2x) | for wall installation16901010891690101089
- Romess inclinometer with standard adapter | 230V 16937700021693770002
For measuring the level of Mercedes-Benz vehicles on the front and rear axle
- Measuring range: +/-15° with accuracy of +/- 0.1°
- Interface: RS-232, USB
- Data transfer: manual (automatic data transfer requires the Romess data transfer and charging unit 1693770003)
The included standard adapter plate is only required for types 170, 202, 208 and 210.
- Romess data transfer and charging unit | 230V 16937700031693770003
Accessory for Romess inclinometer 1693770002.
Charges inclinometer when inserted into charging station. Automatic data transfer between Romess inclinometer and wheel aligner.
Automatic data transfer only on wheel aligners EasyCCD, Easy3D+ and Touchless.
- Romess adapter set for Vaneo type W414 16937700041693770004
- Accessory for Romess Inclinometer 1693770002
Original part: Romess 09606-62
- Romess adapter set for M-Class type W163 16901022161690102216
Accessories for Romess Inclinometer 1693770002
Scope of Delivery:
- Intermediate adapter for front axle level measurement for W163 (M-Class)
- Intermediate adapter for rear axle caster measurement for W163 (M-Class)
Original part: 09606-65
- Romess steering wheel level gauge with Bluetooth | 230V 16937706191693770619
Steering level gauge with electronic inclinometer for checking the steering level position during the wheel alignment. Save valuable time for every alignment as the steering level position is permanently monitored, especially when the vehicle is raised on the lift. Prevents crooked steering wheels and time-consuming comebacks.
Completely wireless and powered with integrated Li-Ion batteries. Alternatively, the USB used for charging the device can also be used for the data transmission.
- Measuring range: +/- 30° with accuracy of +/- 0,1°
- Max. Steering level position: 15°
- Operating time: 20 hrs
- Charging time: 4 hrs
- Set 4x Magnetic clamp for light trucks and RVs | 6x130mm & 6x205mm bolt circles16901010831690101083
Set of 4 magnetic clamps for light trucks and RVs. Only for bolt circle diameters 6x130mm and 6x205mm. Magnet length: 55mm
- Toe press bar for Mercedes Benz16936000011693600001
- Battery for Q.Lign | Li-Ion | 99 Wh16902030531690203053
- Emergency power box for Q.Lign16902010301690201030
- Power supply of sensor heads in case of battery failure
- Mobile use without fixed installation
- Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)
Note: Operation additionally requires the 19 V power supply (1693770648) which is included in the battery-powered Q.Lign scope of deliveries.
- Power connection cable 10 m16902030251690203025
- Power connection cable 15 m16902030411690203041
- Printer for Beissbarth trolleys16937704151693770415
- Dust cover target board | Q.Lign16902021551690202155
Scope of delivery: 1x protective cover
