Wheel aligner KDS II | for BMW

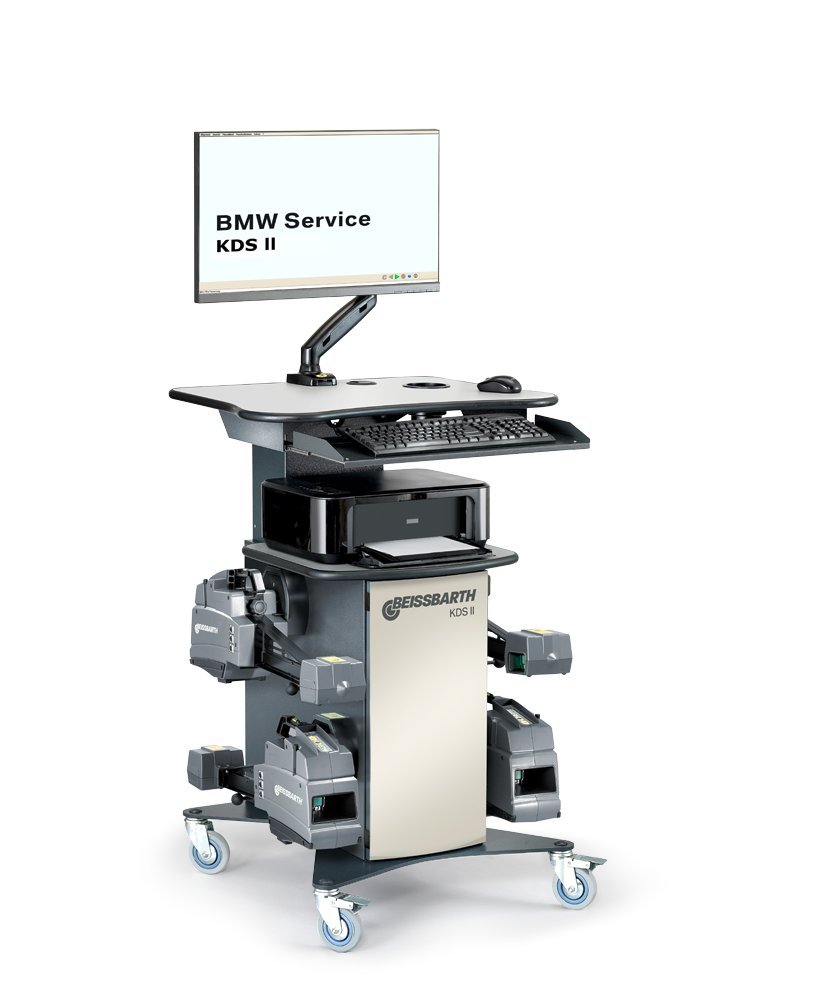

BMW KDS II - for precise vehicle measurement | with CCD-Technology and wireless data transfer (433 Mhz) | with cabinet, HighPerformance PC, 27" monitor and printer | incl. emergency cable set for sensor heads, 4 turntables Precision, spoiler adapter Precision and quick clamps

Article number: 1 690 500 010

Perfectly integrated into ADAS calibration and head light testing:

  • The space in front of the lift can be used for ADAS calibration boards and head light tester

Best in class: Highest measurement accuracy

  • 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
  • No calibration to a specific lift allows a measurement on any wheel alignment bay
  • Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or laptops
  • Intelligent and space-saving charging solution that can be mounted on any wall
  • Quality made in Germany

Sophisticated software for maximum measurement and adjustment efficiency

  • Real-time display of measured values combined with vehicle specs
  • Visually animated adjustment instructions for third-party vehicles
  • Several languages as standard for staff from all over the world
  • Toe indicator in full-lock state as well as track- and camber display in raised state for comfortable toe rod adjustment
  • ASA network ready
  • Live readings without having to lift or move the vehicle
  • Data transmission: 433 Mhz

Scope of delivery:

  • Sensor head with encoder and battery power (433 Mhz frequency)
  • Software with quick check for direct reception
  • Vehicle specs database with additional BMW Professional data
  • Cabinet with HighPerformance PC
  • 27" monitor
  • Printer

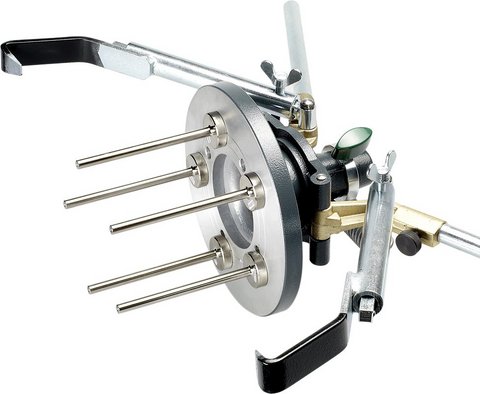

  • BMW quick clamps with distance pins
  • Precision spoiler adapter 50mm
  • Precision turntables with electronics (for maximum steer) for front axle
  • Precision turntables without electronics for rear axle
  • Remote control
  • Brake pedal depressor and steering wheel holder
  • Emergency cable set for sensor heads

The KDS II only allows the use of BMW quick clamps. The use of other wheel clamp solutions in combination with the KDS II is not approved by the BMW Group.

Operating temperature5 - 40 °C
Electrical connection120 - 220 V | 50 - 60 Hz
Data transmission type- cordless
Measuring system- CCD
Power0,5 kW
Frequency433 MHz
Storage temperature-20 - 60 °C
Relative humidity, use(40 °C) 10 - 90 %
Height cabinet1520 mm
Width cabinet880 mm
Depth cabinet770 mm
Weight cabinet110 kg
Vehicle database update Cars & Vans Europe | Key Card1 690 002 015
Mechanical aluminum turntable Precision1 690 401 028
Electronic aluminum turntable without connecting cable | Precision1 690 401 013
Connecting cable for electronic turntables1 690 403 001
Protective rubber cover for aluminum turntable1 690 402 001
Drive-on ramps for two aluminum turntables1 690 701 052
Drive-on ramps for turntables and sliding plates1 690 401 008
Quick clamp BMW | OEM1 690 801 001
Distance bolts for quick clamp BMW | 120 mm1 690 801 003
Spoiler adapter 50 mm | Precision1 690 401 014
Wallboard for sensor heads1 690 311 146
Cable set 1 690 401 012
Brake pedal depressor 1 690 401 006
Steering wheel holder 1 690 401 007
