Beissbarth

BBFAS 415

8900380008

Without wheel aligner Q.DAS Q.mApp Software

Front camera calibration with BBFAS 415 calibration device: Flexible, easy and precise

  • static calibration of cameras e.g. Lane departure cameras, multifunction cameras
  • Wide vehicle coverage through optional calibration Targets

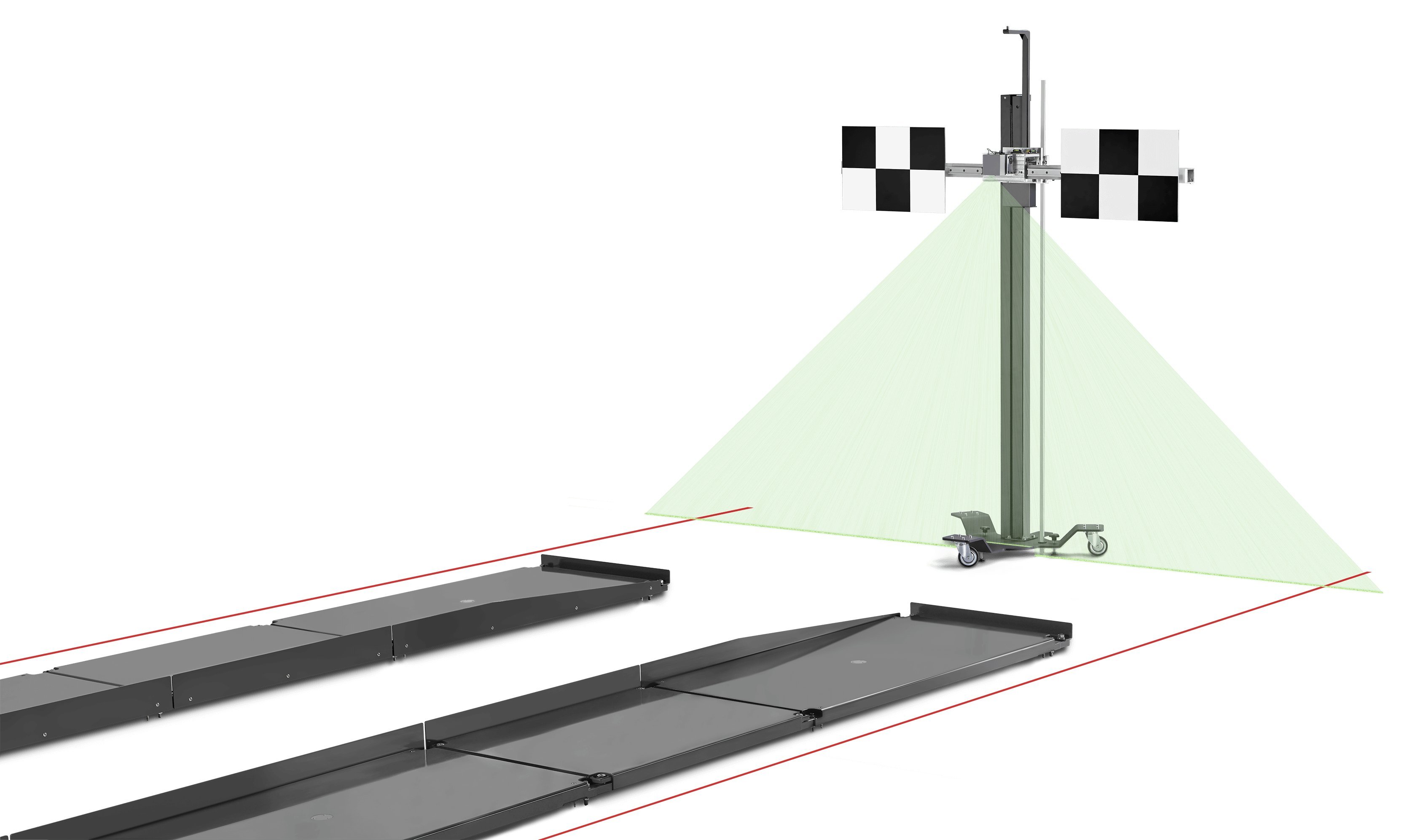

  • Fast, easy alignment to the vehicle's symmetrical axis or on to ground markings
  • Alignment on to the vehicles track-width with optional accessories possible at any time
  • Horizontal levelling according to precision spirit levels via three height-adjustable feet
  • Precision crossbeam with slidingplate and fine adjusting screw
  • Magnetic holding fixture for multi-brand calibration plates

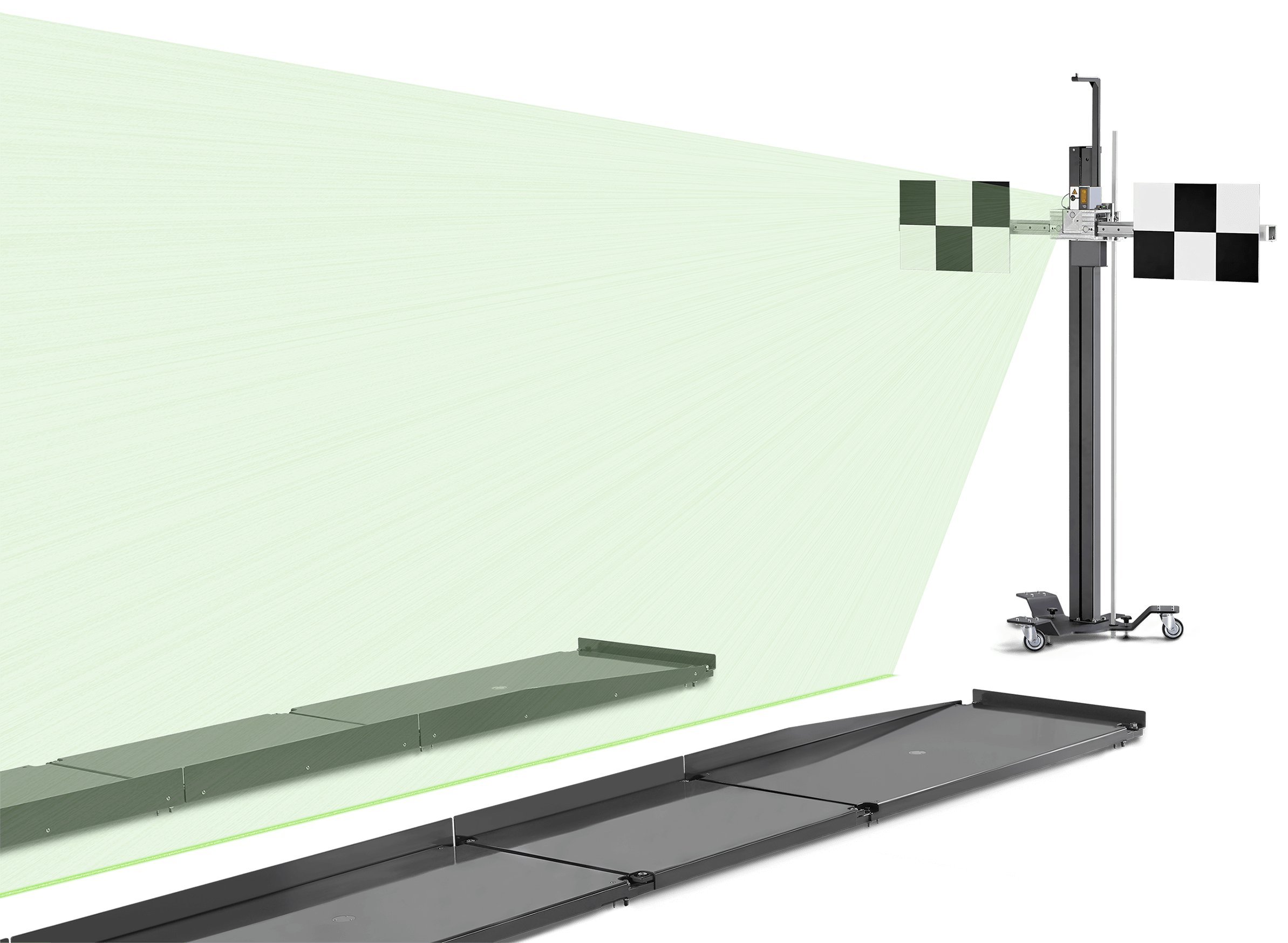

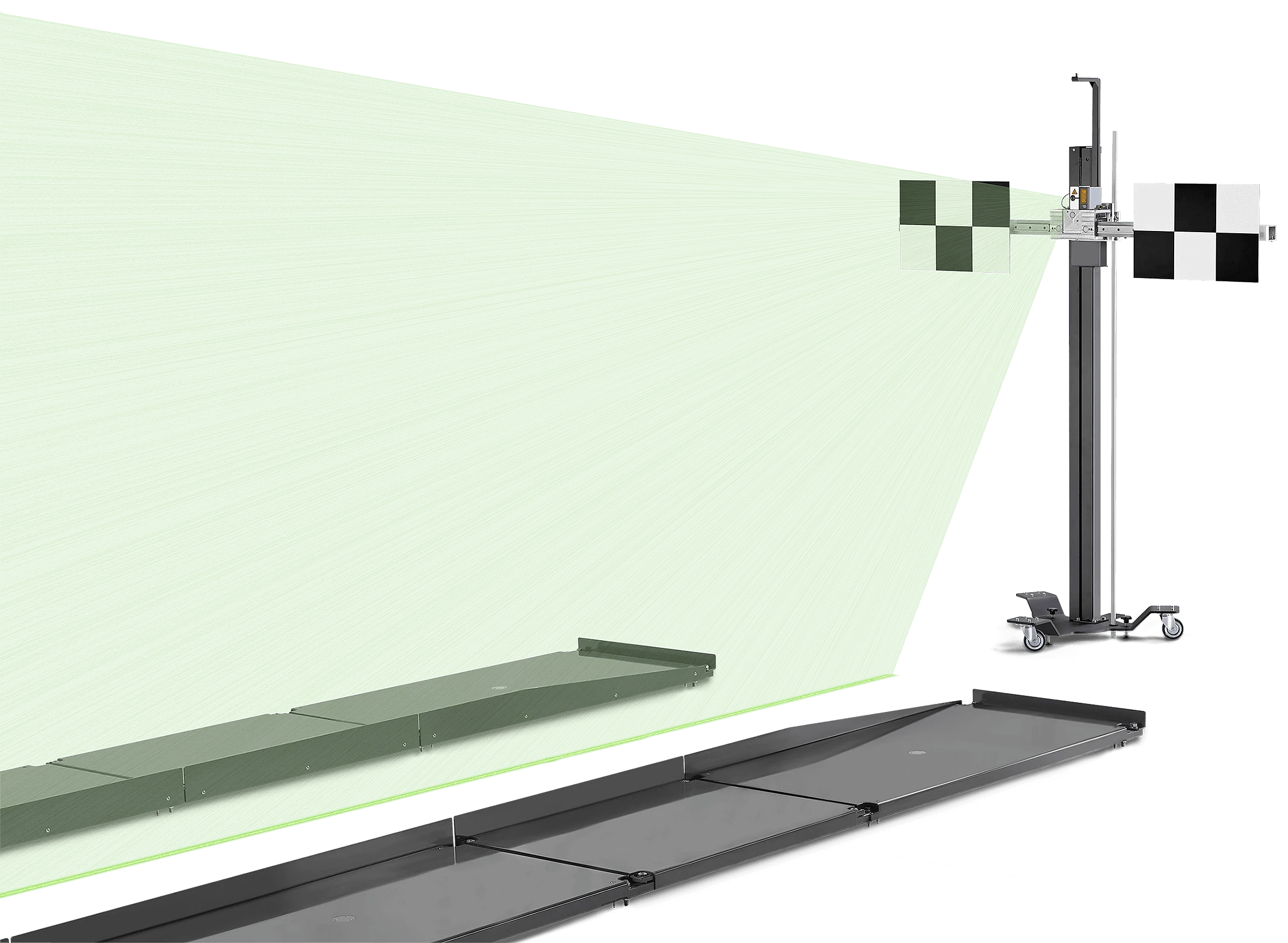

  • High power line laser module with low laser class (1M). Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range.
  • Optional: Compact storage box for modular calibration boards



Note: For adjusting the driver assistance systems, an OBD diagnostic device is also required

Get advice now

Find a dealer now

BBFAS 415 | 8900380008

Downloads

  • Product data sheet

  • Broschüren

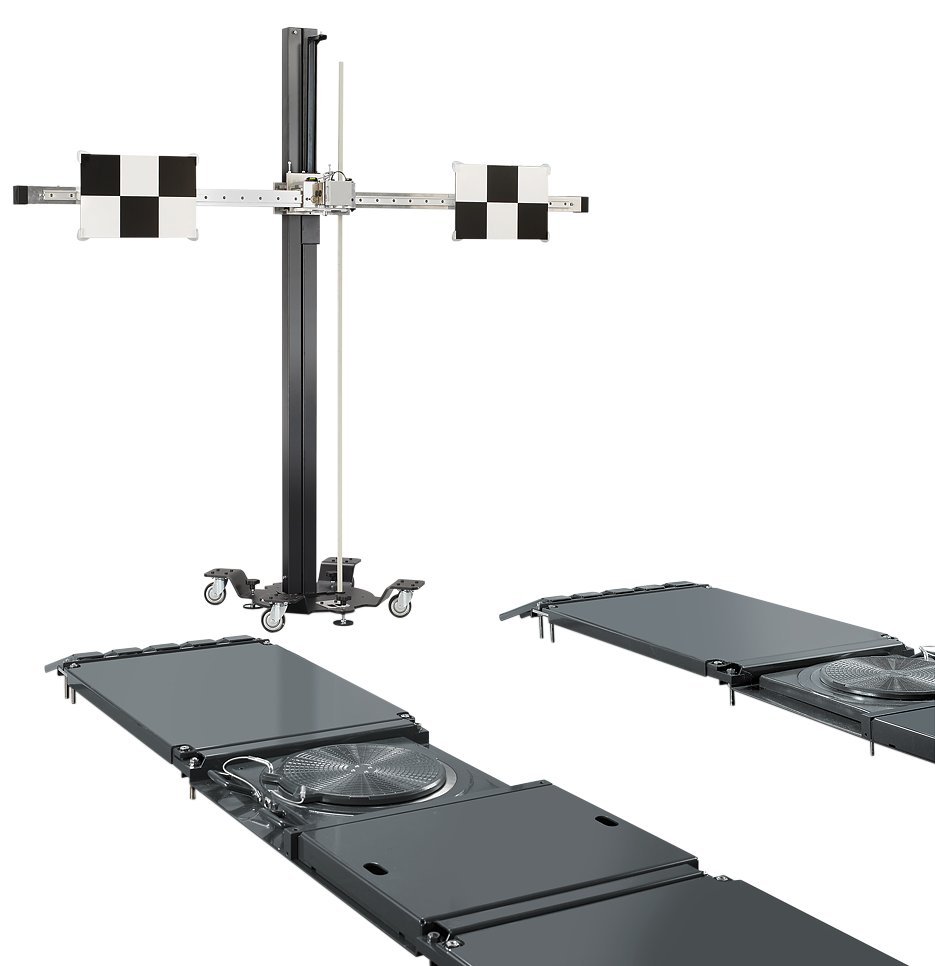

  • Precision crossbar with 2 magnetic sliding-plates for mounting of calibration Targets

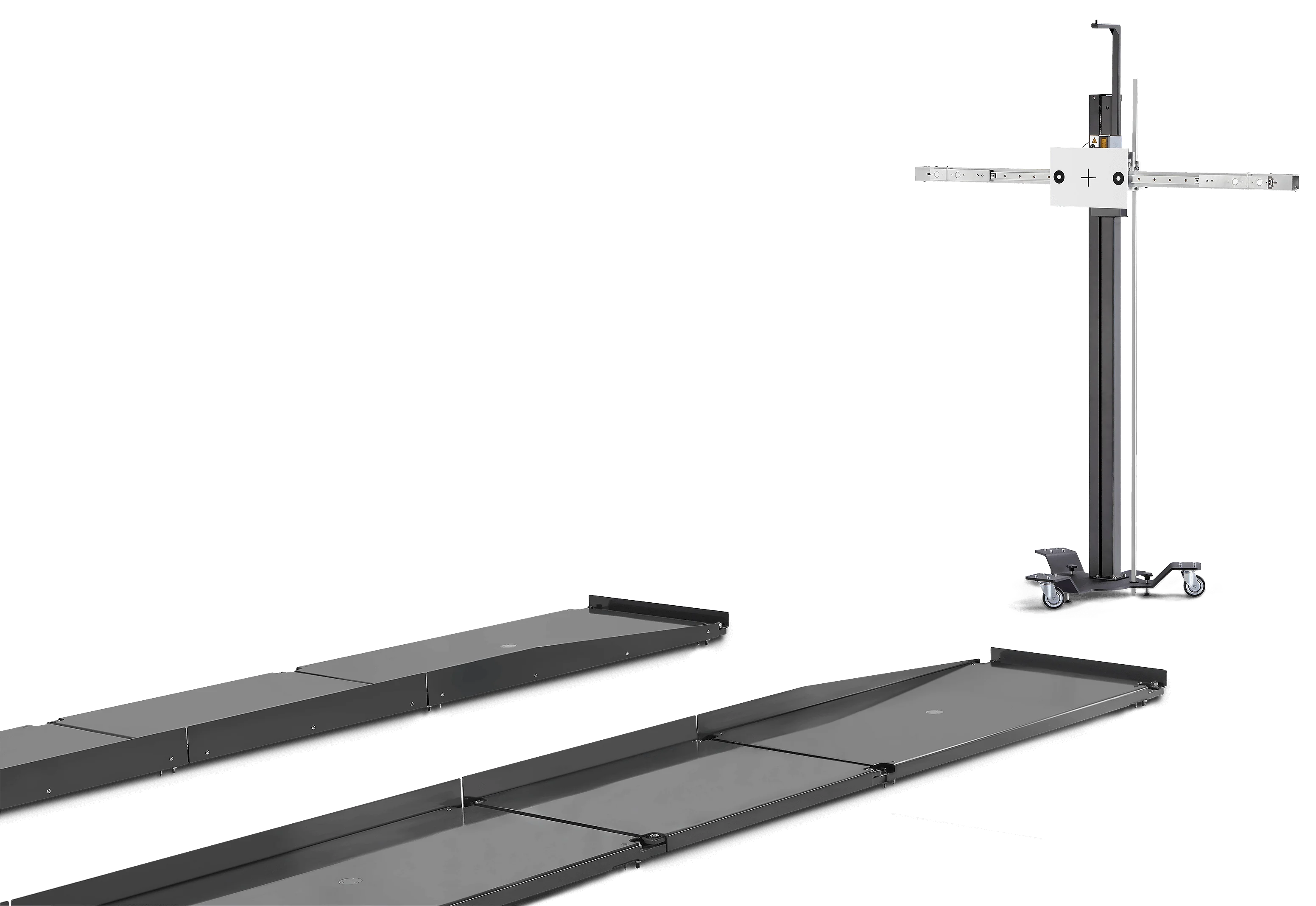

  • 4-wheel trolley with stable column for holding the crossbar

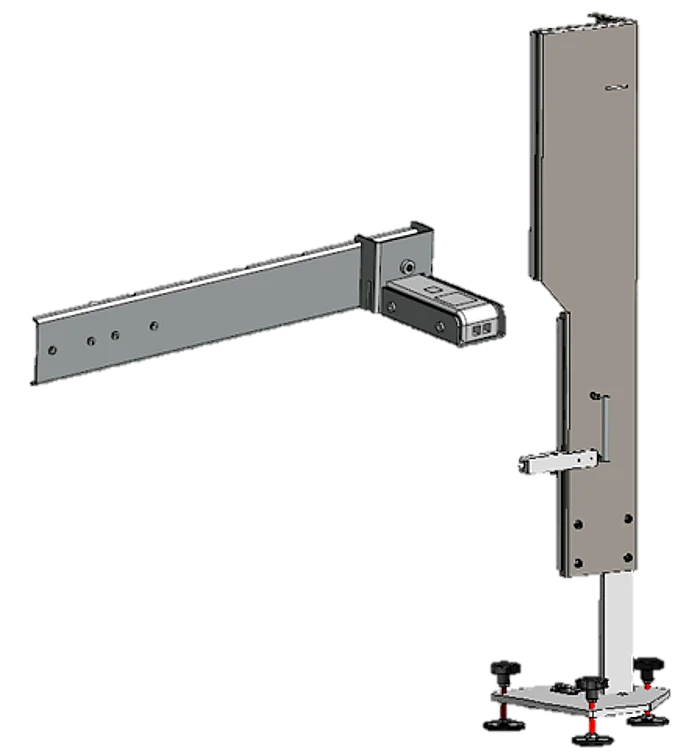

  • Line laser module for aligning the calibration device
  • Ruler for height adjustment



Note: Necessary calibration targets are not included

Weight51 kg
Packaging length2120 mm
Packaging width620 mm
Packaging height580 mm
Gross weight51 kg

  • Target storage box empty1690381217
  • Multi-Target starter kit 1 8900381001
  • Multi-Target starter kit 2 8900381002
  • Distance measurement laser for BB FAS 4158900381005
  • P-Assist 8900381138
  • Positioning target 8900381292
  • Calibration target set Nissan type 18900381139
  • Calibration target set Nissan type 28900381140
  • Calibration target set Universal type 28900381142
  • Calibration target set Honda type 18900381143
  • Calibration target set Mitsubishi type 18900381218
  • Calibration target set Mazda type 28900381234
  • Calibration target Toyota type 18900382287
  • Calibration target Honda type 28900382297
  • Calibration target Mercedes/Infinity type 18900382312
  • Calibration target Kia / Hyundai type 38900382316
  • Calibration target Mazda type 18900382318
  • Calibration target Mercedes / Infinity type 28900382319
  • Calibration target Kia / Hyundai type 28900382320
  • Calibration target Toyota type 28900382328
  • Calibration target Honda type 38900382349
  • Calibration target Toyota type 38900382355
  • Calibration target Universal type 6S8900382571
  • Calibration target Subaru type 3S8900382590
  • Calibration target Subaru type 2S8900382608
