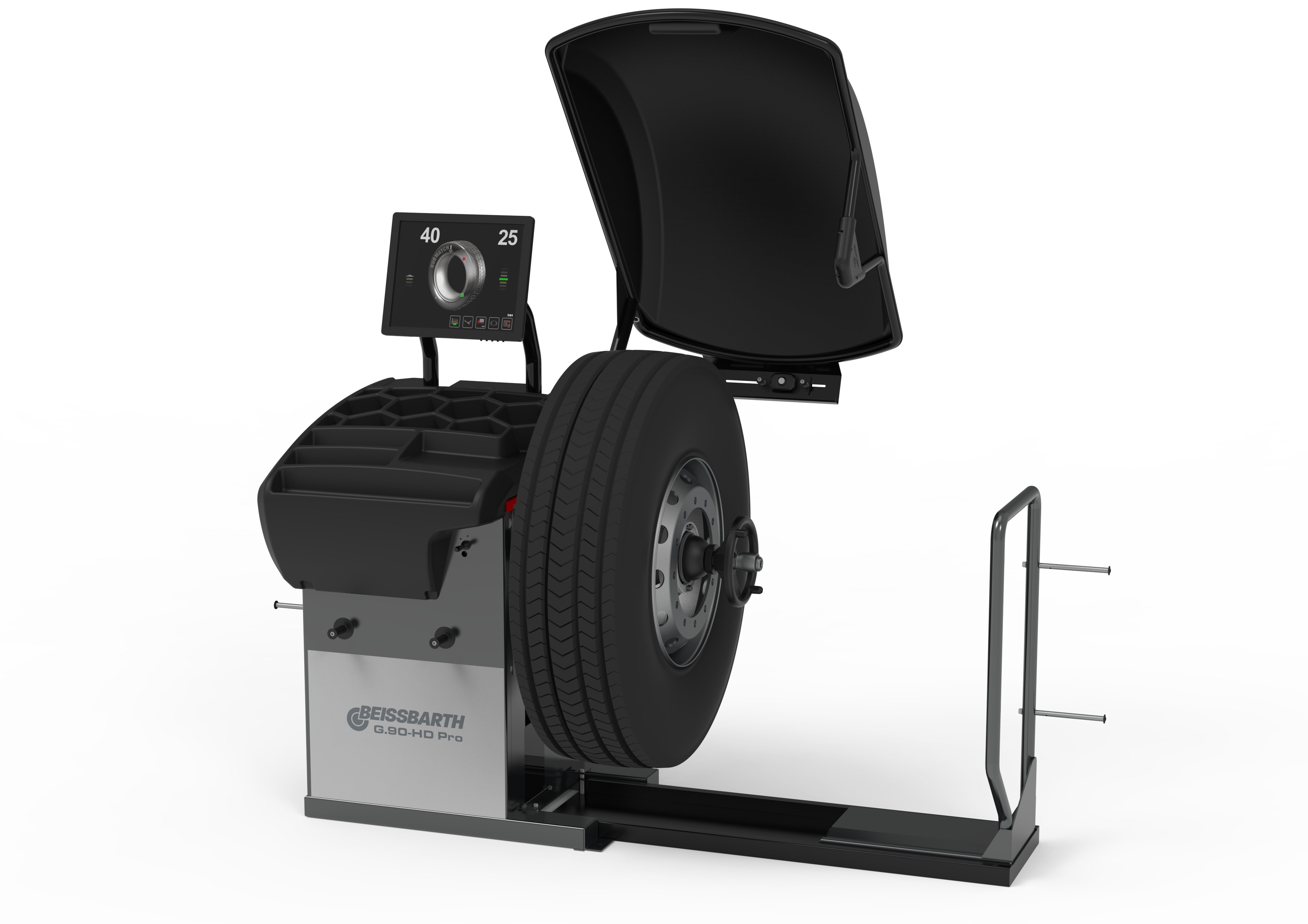

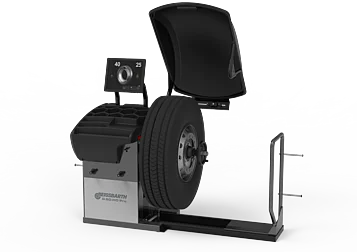

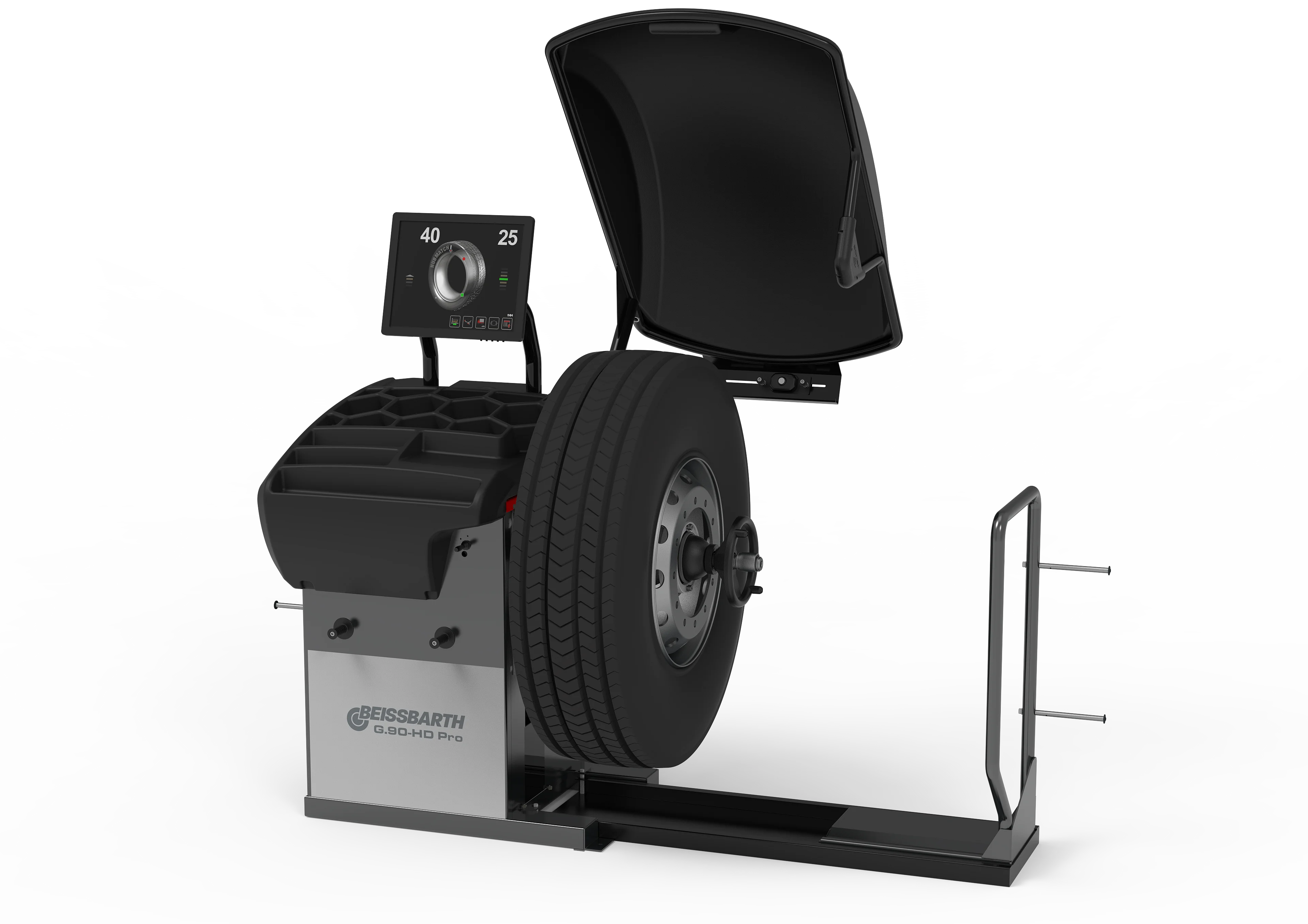

Wheel balancer G.90 HD Pro | Diagnostic

Truck wheel balancing machine with diagnostic function | Mechanical clamping | Automatic measuring arm | 19" touchscreen | Inner line laser | Wheel guard with sonar for steel and aluminum wheels | Height-adjustable flange | Height deviation sonar | Hub matching

Article number: 1 692 501 006

Diagnostic wheel balancing machine for buses and trucks with height-adjustable flange

Height-adjustable flange:

  • Easy clamping with the wheel on the ground instead of mid-air
  • No separate wheel lift required
  • Slide with only 59mm build height enables easier lateral movement

Measurement and balancing:

  • Balancing of truck wheels in 8 seconds
  • Wheel stopping in exact position via electromagnetic brake
  • LED for enhanced visibility when placing weights
  • Inner line laser for precise weight positioning
  • Split program for dividing and hidden attachment of weights behind the spokes

Detection of wheel data:

  • Automatic measuring arm for distance and diameter measurement and weight placement
  • Extended measuring arm up to 32" rim diameter
  • Automatic selection of clip-on or adhesive weight program
  • Highest measurement accuracy ±0.5g

Wheel guard with integrated sonar:

  • Automatic detection of wheel width for steel and aluminum wheels
  • No manual input required with measuring gauge
  • Balancing program starts automatically upon closing the wheel guard

19" touchscreen monitor:

  • Graphical representation of all processes
  • Simplifies correct balancing with guided workflows
  • Operable even with gloves

Quick clamping:

  • Mechanical clamping with quick clamping nut
  • Stable 40mm shaft
  • Handles wheel weights up to 200kg

Pro version with diagnostic function:

  • Automatic runout measurement during each balancing operation
  • Hub matching: eliminates vibrations by rotating the tire on the wheel
  • Eliminates even the finest vibrations without the need for expensive load rollers

Included in the delivery:

  • Quick lock nut
  • Clamping sleeve
  • Spacer
  • 300g counterweight
  • Weight pliers
  • Measuring gauge

Max. wheel diameter54.3" | 1380mm
Weight210 kg
Shaft diameter40 mm
Measuring speed130 rpm
Measuring time8s Car / 20s Truck
Display19" Industrial Touchscreen
Max. rim width20 "
Rim diameter max.30 "
Wheel weight max.200 kg
Length2300 mm
Height2195 mm
Power supply230 V | 50 - 60 Hz | 1 ph
Width1760 mm
Motor power1,1 kW
Rim diameter min.10 "
Balancing accuracy +/-1 g
Packaging length1800 mm
Packaging width1130 mm
Packaging height1827 mm
Country of Origin, customsIT
Min. rim width1,5 "
Balancing accuracy truck +/-10 g
Wheel data recordingsemi-automatic
Stackable1 Piece(s)
Units per 20ft container4 Piece(s)
Units per 40ft container9 Piece(s)
Cones and clamping kit Truck | Ø 202 / 221 / 281 mm1 692 502 025
Centering kit 4-arm and 5-arm centering kit | for truck1 692 502 026
Cones and clamping kit Passenger car | Ø 45 - 194 mm1 692 502 027
Spacer | in combination with light truck cone 16925020471 692 502 031
Cone | for truck | 7.9" / 201 - 8.7" / 221 mm1 692 502 032
Cone | for truck | 11" / 281 mm1 692 502 033
Special cone | for truck | for central hole 8.5" / 215.9 mm1 692 502 034
Universal 3-4-5-6-hole adapter | Ø 95 - 120 mm1 692 502 037
3-arm star adapter SR3 | for light trucks | Ø 161 / 170 / 184.15 / 205 / 222.25 / 245 mm1 692 502 038
Centering disc Ø 142 mm | for 3-arm star adapter SR31 692 502 039
Centering disc Ø 161 mm | for 3-arm star adapter SR31 692 502 040
Centering disc Ø 130 mm | for 3-arm star adapter SR31 692 502 041
