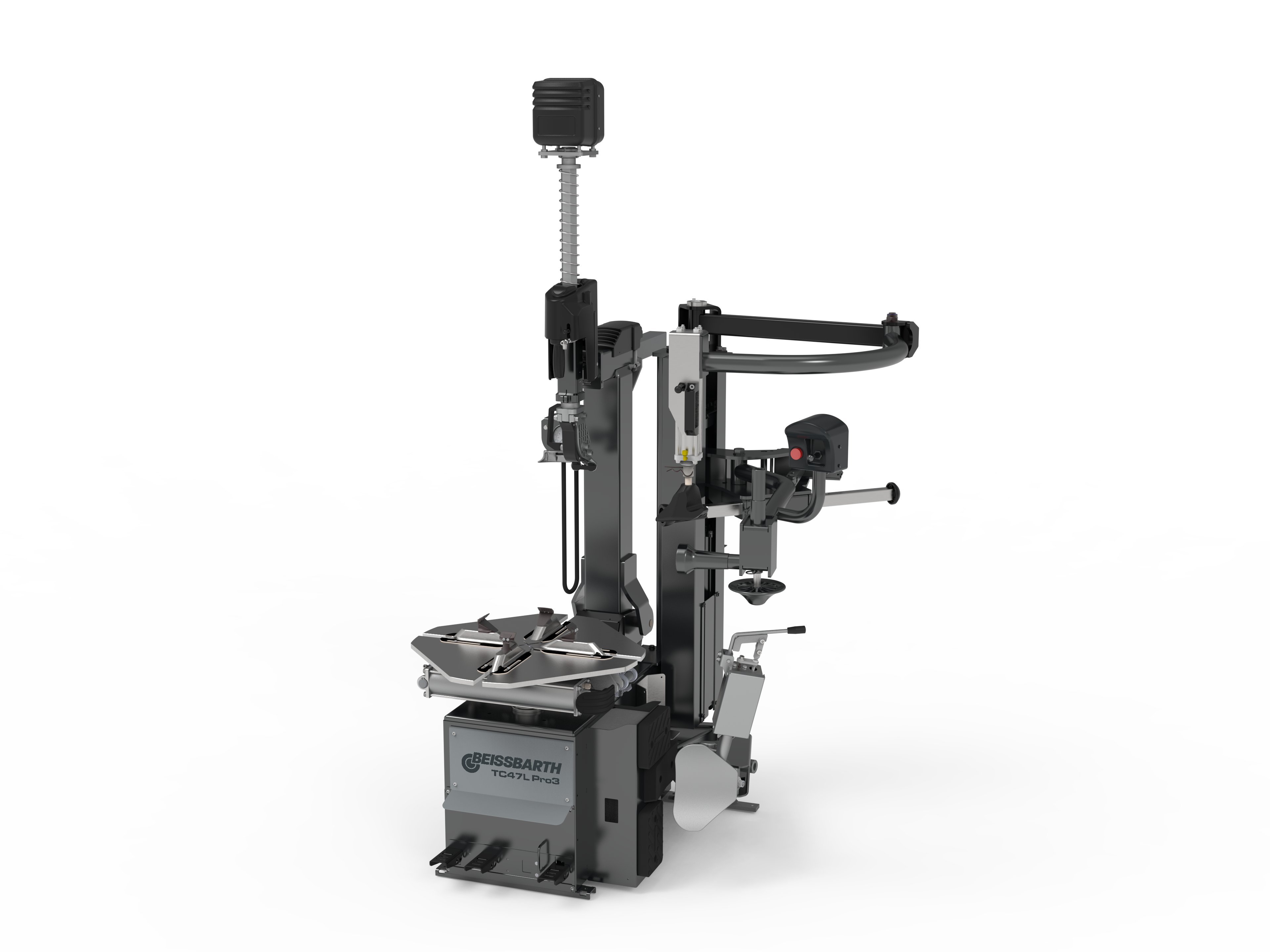

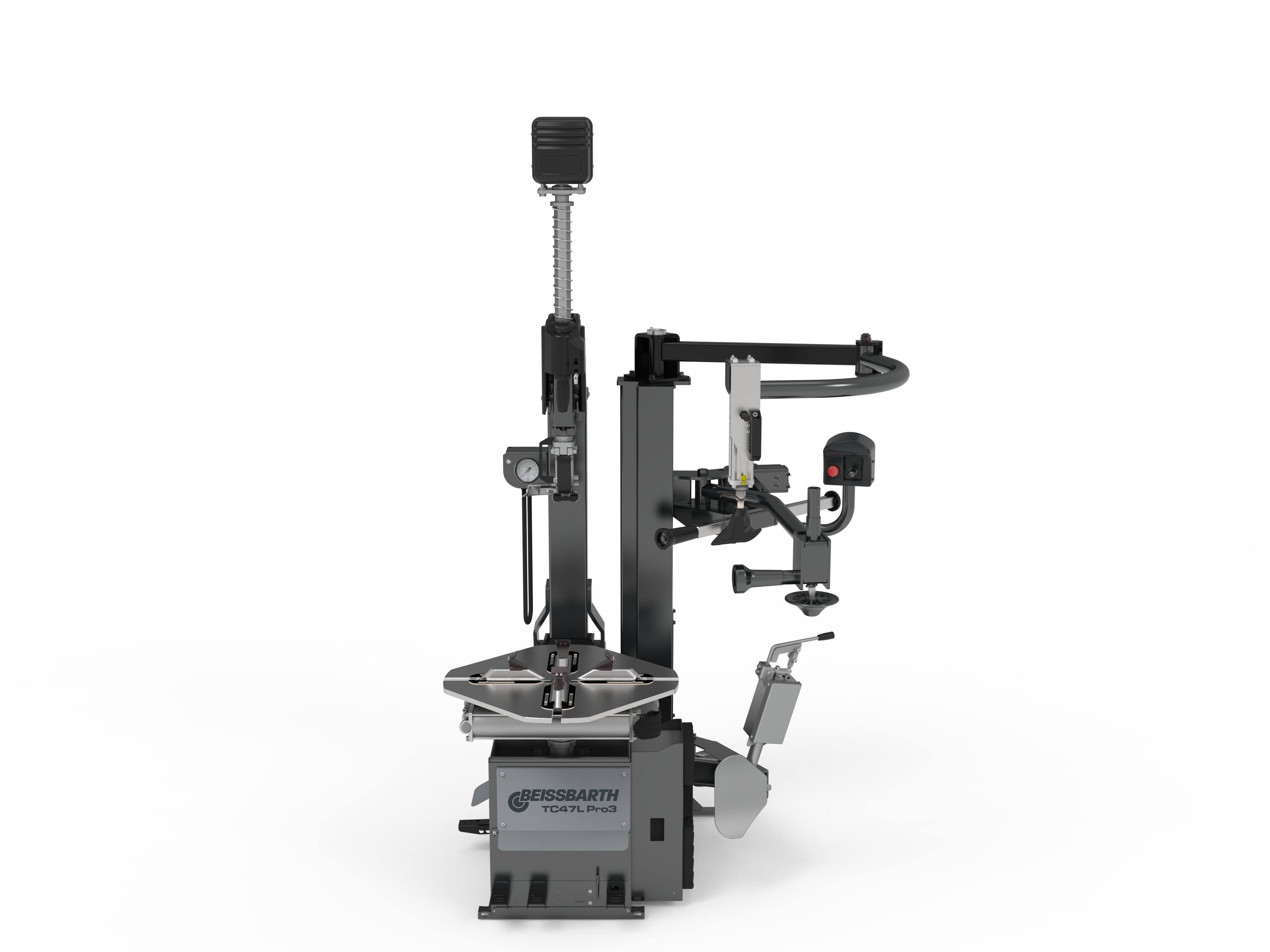

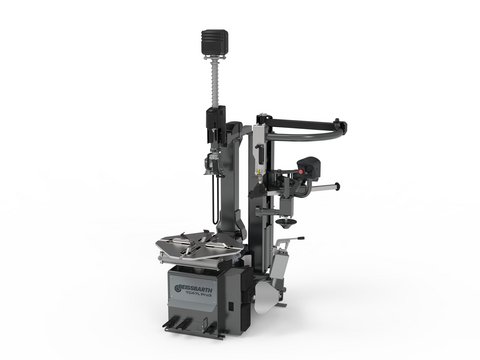

TC47L Pro3 | WDK

Leverless table-top tyre changer | 10-27" working range | 17" premium bead breaker | pedal inflation | TCX.PRO3 assistance column | WDK | Leverless | 230V

Article number: 1 692 401 006

Square turntable with automatic centering jaws

  • Clamping range from 10-27"
  • Double 80mm cylinders for maximum clamping power
  • Infinitely variable speed from 0 to 16 rpms

Leverless demounting group

  • No need for lever
  • Reduced stress on tyre
  • Safe demounting of difficult tyres
  • Secured with strong spring-loaded 41mm hexagonal arm

Robust mounting column and leverless tool

  • Easy tilting via pedal
  • Quick vertical and horizontal movement of arm
  • Pneumatic locking

Powerful bead breaker side shovel

  • Activated via lever instead of pedal
  • Ergonomic control without sidesteps
  • Quick and effective loosening of the bead
  • Up to 17" tyre width
  • Three-way adjustable blade
  • Anti-skid rubber pad protects tyre and rim

Full control with three pedals and side inflation pedal

  • Pedal control for rotation, column tilting, and clamping
  • Removable pedal unit for easier maintenance
  • Safety separator for rotation pedal
  • Side inflation pedal

High rigidity by design

  • Full metal pedals
  • Powerful 60x60mm horizontal arm
  • Metal front cover
  • Reinforced pole

TCX.PRO3: Reinforced assistance column with multiple tools to handle hard UHP, run flat and larger tyres

  • Premium bead roller to push bead in drop center
  • Premium travelling bead pusher arm to keep bead in drop center during rotation
  • Premium rim pressing cone to simplify external clamping on low-profile tyres
  • Secondary 90┬░ bead pressing roller for additional support on upper or lower bead
  • Pneumatic locking to keep tools in place
  • Independent height adjustment of all tools for more flexibility and control

WDK-approvedSecure mounting and demounting of UHP and runflat tyres

Upgrade options:

  • Side lift
  • Tubeless inflation kit
  • Roller board

Scope of deliveries:

  • 5x front protection (leverless)
  • 2x rear protection (leverless)
  • 4x Clamping jaw protection
  • WDK mounting clamp RFT/UHP
  • WDK rim protector
  • Bead breaker blade protection
  • Brush
  • Plastic lever
  • 230V plug

Note: unit comes fully assembled

Max. wheel diameter46" | 1170mm
Bead breaker force4900 N
Operating pressure8 - 12 bar
Wheel width max.17" | 423mm
Length1450 mm
Height2300 mm
Width1030 mm
Power supply230V | 1Ph | 50-60Hz
Motor power1,5 kW
Max. clamping capacity27 "
Max. torque1200 Nm
Space requirement width1450 mm
Space requirement length1850 mm
Rotation speed0 - 16 rpm
Packaging length1260 mm
Packaging width1260 mm
Packaging height2100 mm
Country of Origin, customsIT
Min. clamping capacity10 "
Number of mounting speedsstufenlos
Clamping device designClamping plate
Min. inner clamping range12 "
Max. inner clamping range27 "
Min. outer clamping range10 "
Max. outer clamping range24 "
Mounting head designwithout tire lever
Mounting arm designmoveable
Mounting column designtiltable
Bead breaker cylinder force25000N @ 10bar
Beda breaker force on shovel13000N @ 10bar
Tyre inflationfoot control
Turntable height670 mm
Bead breaker operationmanual control
Units per 20ft container4 Piece(s)
Units per 40ft container9 Piece(s)
Storage kit | for TC22, TC45 and TC47L1 692 402 014
Rim protector 1 692 402 027
Roller bed | for TC22, TC45 and TC47L1 692 402 036
Quick inflation system | for tubeless tires1 692 402 029
Bead breaker shovel protection 1 692 402 023
Rear protection leverless mounting tool | 10 pcs. 1 692 402 002
Front protection leverless mounting tool | 10 pcs. 1 692 402 001
Protection kit clamping jaws | 4 pcs | for TC22, TC45 and TC47L1 692 402 021
WIKA inflating gun with pressure gauge 1 692 402 028
BeadLock Pro | with extension 1 692 402 003
Bead clamp 1 692 402 031
  • Brochure

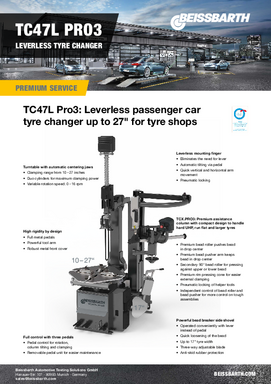

TC47L Pro3 brochure
