Q.Lign T.41 | with MultiFit wheel clamps

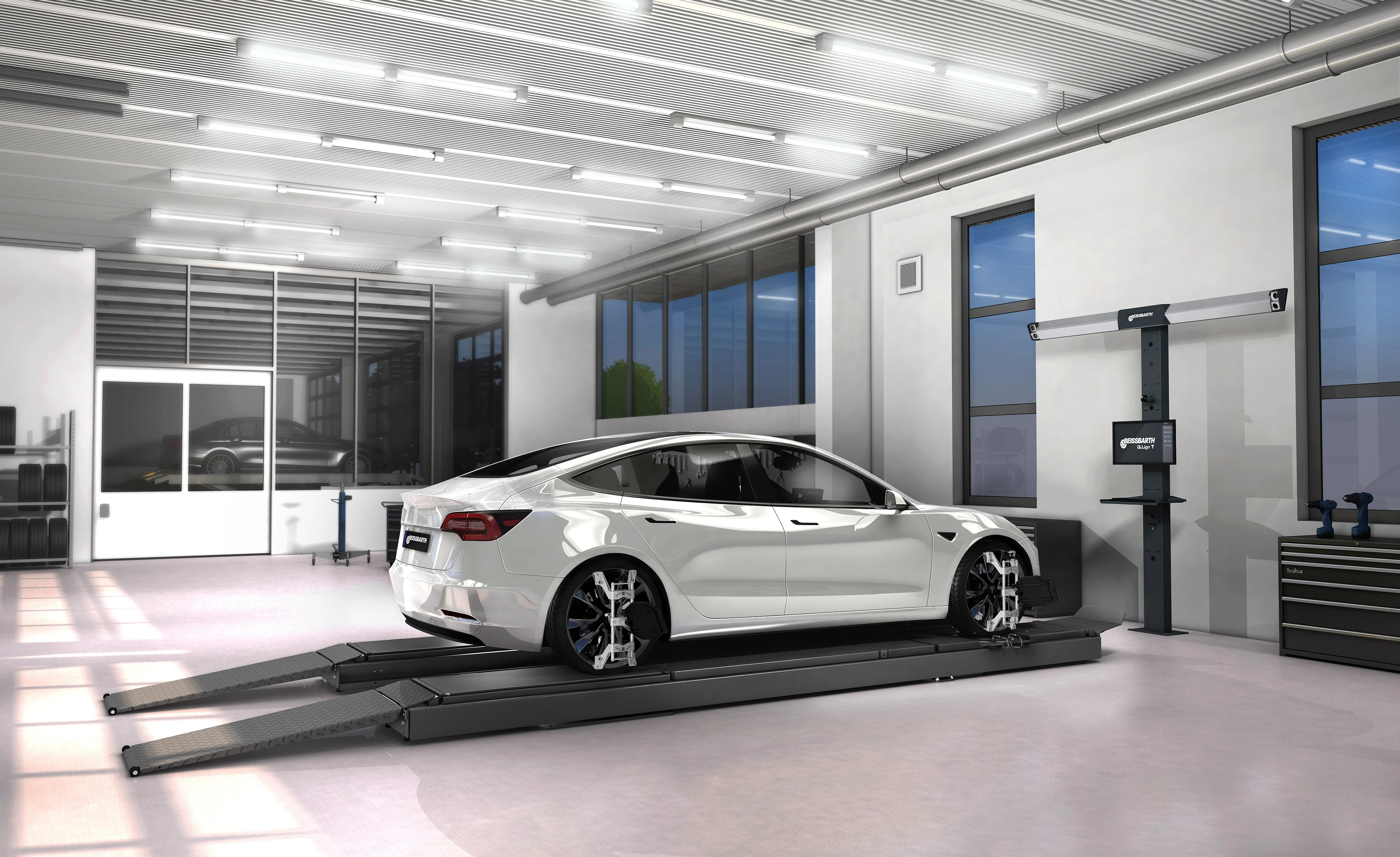

Q.Lign T.41 with floor mounted support column, turnplates and MultiFit wheel clamps. Operation via 27" monitor. Perfect for independent workshops and tire shops.

Article number: 1 690 800 001

Ultimate productivity - vehicle after vehicle

The T-Series builds on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign T.41, workshops raise the bar even higher and can thus exploit their full service potential.

Measuring at the highest level

  • Camera beam measures permanently from a height of 2.8 meters
  • No motor, no winch, no wear and tear
  • No up, no down, no injuries or damage
  • No movement, no matter if short or long wheelbases

Everything perfectly in sight

  • Four wheels, four cameras
  • Separate camera for the rear axle for more accurate toe values on the front axle
  • Install anywhere within 1.8 to 3.3 meters of the front axle
  • Measure and adjust from 0 to 2 meters platform height at any time

Work smarter, not harder

  • All targets work on any wheel reduces setup times and setup errors
  • Active MEMS Technology: Constant measurement against gravity for uncompromising accuracy
  • Caster sweep at floor level without the need for a stool or ladder
  • Access to clear and easy-to-understand PDF reports from anywhere inside your shop

The world's first web-based wheel aligner

  • Eliminates need for trolley and PC and creates more space
  • Incredibly efficient with up to 95% power savings compared to PC-based systems
  • Stream-to-X: Access software on any TV, PC, laptop, tablet or smartphone
  • Intuitive software, streamlined operations, more productivity
  • Easy integration of Q.Lign into your shop's daily processes and system

Space requirement

  • Minimum height of 2800mm
  • Minimum clearance of 2800mm on four-post lifts

Scope of delivery

  • Camera beam with 4 cameras
  • Column with tray
  • Q.Lign display module
  • 4x targets with AutoID
  • 27" monitor, keyboard, mouse
  • Brake lock and steering wheel lock
  • Front turnplates and filling pieces
  • MultiFit wheel clamp (13"-22". optionally up to 27")
  • Storage for MultiFit
Weight119 kg
Packaging unit1 Piece(s)
Electrical connection90-264V | 1Ph | 47-63Hz
Individual toe front/rear axleJa
Total toeJa
Toe-out on turnsJa
Camber front/rear axleJa
CasterJa
SAIJa
Set-backJa
Thrust angleJa
Sensor count4 Piece(s)
Data transmission typekabellos
Measuring system3D mit Messbalken (fixiert)
Max. clamping capacity22 "
Display size10 "
Power consumption65 W
Set-up width2595 mm
Wheel base1750 - 4600 mm
Run-out compensationJa
Individual toe front axleJa
Individual toe rear axleJa
Camber frontJa
Camber rearJa
Set-back front axleJa
Set-back rear axleJa
Geometric centre lineJa
Included angleJa
Ride height modified vehicle specsYes
Vehicle dimensions liveJa
Set-up height2745 mm
Packaging length2950 mm
Packaging width820 mm
Packaging height540 mm
Gross weight170 kg
Country of Origin, customsDE
Min. clamping capacity13 "
Number of languages (software)30
Distance camera - center of turntable1800 - 3300 mm
Clearance front posts of lift min.2800 mm
Vehicle database update Q.Lign | Key Card 3651 690 002 019
Magnetic clamps for wheel bolts | 100mm1 690 701 521
Magnetic clamps for wheel bolts | 75mm1 690 701 508
Self-centering quick clamp for Tesla1 690 380 161
Self-centering quick clamp for Porsche1 690 380 010
Self-centering quick clamp for Porsche1 690 301 003
Central clamp Porsche Carrera GT1 690 301 002
Central clamp Porsche 911 GT3 and Turbo1 690 380 002
Self-centering quick clamp for Ferrari1 690 381 299
Self-centering quick clamp | for Lamborghini8 900 380 016
Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.1 690 311 112
Adapter set Q.Grip | for Q.Lign | 4 pcs.1 690 101 010
ProClamp wheel clamp | 13 - 23" | 1 pc1 690 100 001
Quick clamp Mercedes-Benz | OEM1 690 801 002
Quick clamp BMW | OEM1 690 801 001
Extension set for Multi-fit clamps | 23 - 28"1 690 311 113
Mechanical aluminum turntable Standard1 690 501 001
Mechanical aluminum turntable Precision1 690 401 028
Electronic aluminum turntable without connecting cable | Standard1 690 401 011
Electronic aluminum turntable without connecting cable | Precision1 690 401 013
Filling piece for aluminum turntable1 690 702 082
Filling piece for aluminum precision turntable1 690 102 041
Storage tray | Q.Lign T-Series1 690 802 049
