- Incl. battery
Alternatively, operation via tablet app is possible.
BD 7000: The all-rounder for axle loads up to 13 tons
Combo brake tester BD 7000: the best of both worlds
- For cars and trucks with an axle load of up to 13 tons
- Fully galvanized
- Electromagnetic engine brake
- Quartz-coated premium rollers with a length of 1000 mm
Fully equipped without compromise
- 8-point scale for measuring axle weight and deceleration
- 2 rotation speeds
- 4x4 Automatic all-wheel drive detection
- ASA livestream
- Speed sensor
- 32mm roller elevation for precise and safe testing
- Including ICperform software
- Including ICperform tablet app
Hydraulic load simulation: testing without stopping
- Lifting device for load simulation with 200 mm stroke
- Saves manual lashing with tensioning straps or chains on each individual axle
- Convenient operation from the driver's cab, without getting out
- Suitable for trucks, trailers and semi-trailers
- Particularly recommended for empty or light trucks
- Compact integration into the roller housing
Choice of display: analog, digital or mobile
- Analog: classic display via analog display
- Digital: full control with ICperform software on the PC
- Mobile: measured values directly on the tablet in the driver's seat
ICperform software – analog was yesterday
- Clarity at first glance: intuitive and quick to use
- Targeted control of any axle
- Clear display of axle weight, brake force difference, minimum braking rate, brake pressure per axle, runout, rolling resistance, etc.
- Print and database function
- Networking with other test devices in the test lane
ICperform via tablet app: Test and control without getting out
- No constant getting in and out
- Measured values directly in the driver's seat
- Convenient control of the entire test procedure
Modularly expandable at any time
- APS3 wireless pressure sensors: wireless measurement of pressure values in truck or trailer braking systems
- BPF 200 wireless pedal force meter: wireless measurement of pedal pressure for accurately repeatable braking
- MSS 8400 quick-track tester: measures axle play and straight-line stability for axle alignment recommendations
- GST8508 and GST8600 joint play testers: quick detection of defects and wear in the wheel suspension
- 2x roller set with weighing function
- Control cabinet incl. ASA livestream
- 30 m cable set
- ICperform software
- ICperform tablet app
Minimum PC requirements: Windows 11 Professional, CPU 3GHz (Intel Pentium Gen 12), 8GB DDR5, 512GB SSD, 6x USB, 1x RS232 (for infrared remote control), 1x LAN. The additional use of a tablet requires a PC with ICperform software and a Wi-Fi network with router.
| Electrical connection | 400 V |
|---|---|
| Length | 1300 mm |
| Height | 680 mm |
| Width | 1140 mm |
| Max. wheel diameter | 1000 mm |
| Measuring system | - DMS |
| Roller length | 1000 mm |
| Roller elevation | 32 mm |
| Roller diameter | 205 mm |
| Min. test width | 900 mm |
| Max. test width | 2900 mm |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 398 mm |
| 700 kg | |
| Motor connection cable | 7 x 4 mm² |
| Test speed (low) | 2 km/h |
| Test speed (high) | 4 km/h |
| Motor revolution speed (low) | 1435 U/min |
| Motor revolution speed (high) | 2915 U/min |
| 57 U/min | |
| 117 U/min | |
| 2 x 6,5 kW | |
| 2 x 8,5 kW | |
| Max. axle load testable | 13 t |
| ASA livestream | ja Serienmäßig |
| Electrical connection | 400 V |
|---|---|
| Length | 1300 mm |
| Height | 680 mm |
| Width | 1140 mm |
| Max. wheel diameter | 1000 mm |
| Measuring system | - DMS |
| Roller length | 1000 mm |
| Roller elevation | 32 mm |
| Roller diameter | 205 mm |
| Min. test width | 900 mm |
| Max. test width | 2900 mm |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 398 mm |
| 700 kg | |
| Motor connection cable | 7 x 4 mm² |
| Test speed (low) | 2 km/h |
| Test speed (high) | 4 km/h |
| Motor revolution speed (low) | 1435 U/min |
| Motor revolution speed (high) | 2915 U/min |
| 57 U/min | |
| 117 U/min | |
| 2 x 6,5 kW | |
| 2 x 8,5 kW | |
| Max. axle load testable | 13 t |
| ASA livestream | ja Serienmäßig |
- IR remote control Truck16918107041691810704
- Adaptation kit for Semmler Tachocontrol BD7xxx | 13 to16918807061691880706
1 x sensoring roller support for Semmler rolls, 1 x fixing light barrier
- Swivel bracket PSC116921001021692100102
Additional swivel bracket for pit protection
- PC cabinet Standard | empty16918112501691811250
Moving trolly enables the best arrangement and positioning of all PC components | Empty trolly! To add PC component you can additionally order 1 691 810 743.
- Monitor holder 17 - 27"16937408841693740884
Includes only the monitor holder (Monitor not included)
- Monitor holder 22 - 35"16937409111693740911
Includes only the monitor holder (Monitor not included)
- Digital calibration kit for brake tester16916013921691601392
Digital calibration kit with transport suitcase, digital sensor and calibration manual
- Air pressure sensors | Truck | APS 316937706581693770658
APS 3: Truck air pressure sensores
- Measurement of pneumatic and hydraulic pressure values in truck or trailer braking systems
- Measurement of pedal forces on actuation of service or parking brake
- Radio transmission of the measured values to the brake tester control system
Compact and robust design for mobility uses
- Compact and robust design for daily use in the underbody of trucks
- Pneumatic quick-release coupling system for a simplified use
- Immediate sensor activation by removing it from the charging station
- Capable of using up to 10 sensors (PM, PX, Pedal)
- ICperform garage Truck Software can manage up to 6 axles (6 PX, 1 PM)
- All axles of a vehicle can be tested in one test cycle
- The receiver constantly requests the measured values of all the connected air pressure sensors
- RF receiver with USB connection for wireless data transfer to the brake tester control system
- Pneumatic 20 bar
- Display RAL 7016 | analog, rectangular | LCD, svivel arm, IR receiver16918107501691810750
Scope of delivery: Analog display incl. 30 m B-Net cable
- ASA/APS3 wireless connection kit | Truck | 433Mhz16937706731693770673
For integrating APS3 wireless pressure sensors directly into ASA livestream. Also allows the use of wireless APS3 pressure sensors and pedal force meters with older models of the MB 8815, MB 8100 or STL 9000 generation. Installed in the control cabinet to establish a wireless connection at 433 MHz.
- Kit 4x drive-over plates | BD7xxx16918807041691880704
- Warn-System for air pressure sensors16918107351691810735
- Wired pedal force tester APS1 | PD16918107341691810734
- IR Kit Truck16918107021691810702
Receiver RS232, Remote Control, battery
- PC For Test Lanes16918107031691810703
System requirements when using your separate PC:
- Operating System: Windows 10, Windows 11 Professional
- Processor: Minimum Intel Pentium, 12th generation, 3 GHz
- Memory (RAM): Minimum 8 GB DDR5
- Storage: Minimum 512 GB SSD
- USB Ports: Minimum 6x
- Serial Port: Optional 1x (when using the infrared remote control)
- LAN Port: Minimum 1x
- PC gear pack for PC cabinet Standard16918107431691810743
Full PC equipment | incl. PC, monitor, monitor holder, mouse, keyboard and printer
- Stand column aluminium | RAL 7016 | for TV Monitor / rectangular analog display16918107221691810722
Alternative to wall mounting, mounting solution for TV monitors or square analogue displays | TV adapter for stand column / swivel arm (item no. 1 691 810 722) is also required to attach a TV monitor!

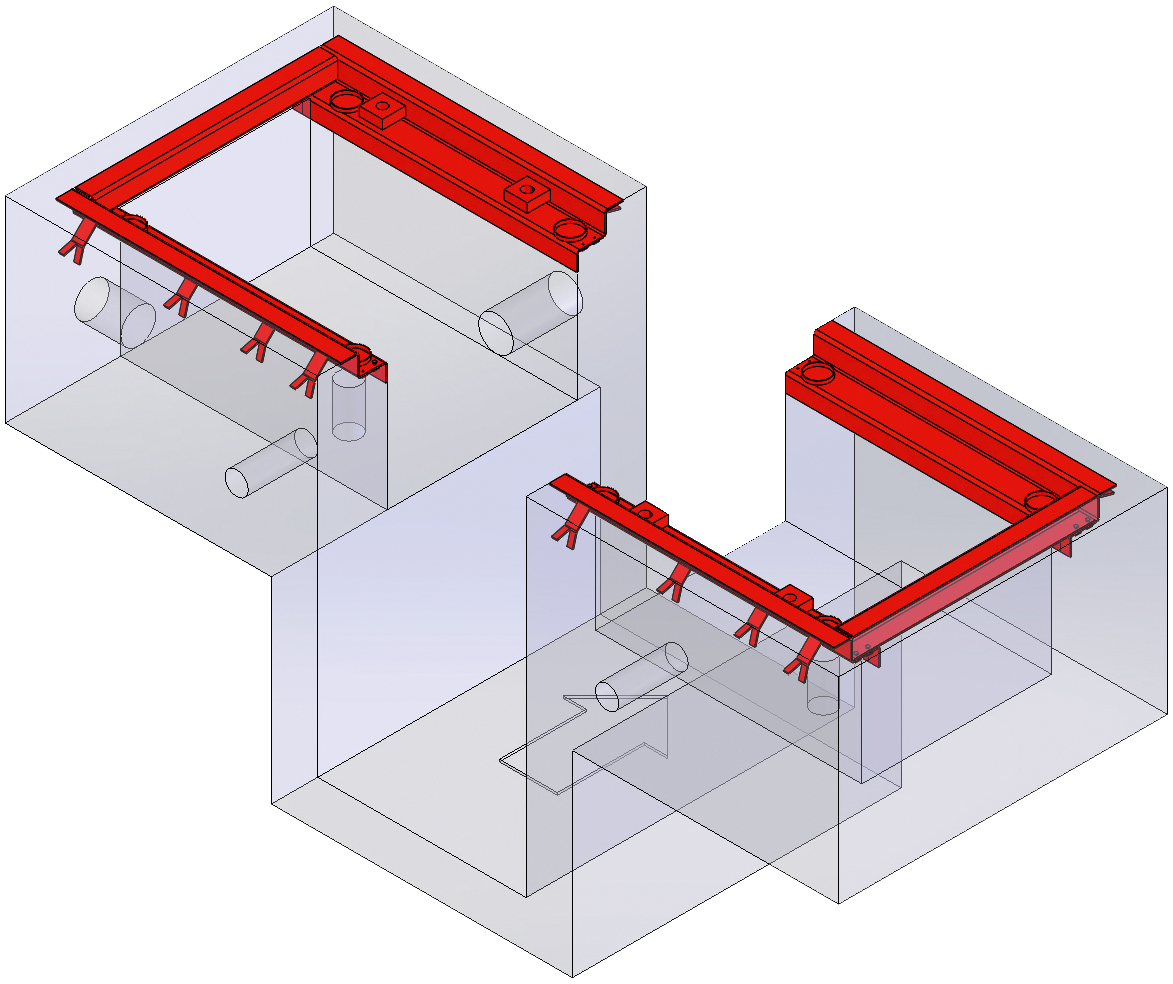

- Built-in frame BD 7xxx / 1000 mm / 13 to | separated, with pit16918807001691880700
- Built-in frame BD 7xxx / 1000 mm / 13 to | track width 2800 mm | non-separated (w/o pit)16918807021691880702
For track width 2800 mm
- Built-in frame BD 7xxx / 1000 mm / 13 to | track width 2900 mm | non-separated (w/o pit)16918807031691880703
For track width 2900 mm
- Pit safety PSC2 | cross | 1,5/2,5m16918107241691810724
1.5 m safety area front roll sets and 2.5 m safety area behind roll sets
- Pit safety PSC2 | cross | 2,5/2,5m16918107251691810725
2.5 m safety area front and behind roll sets
- Pit safety PSC1 | long | 15m16918107261691810726
15 m safety area
- Air pressure sensor Px universal | for APS316937706591693770659
Single wireless air pressure sensor for expanding the APS3 to axles 3 to 6 or for replacing existing air pressure sensors PM, P1, or P2.
