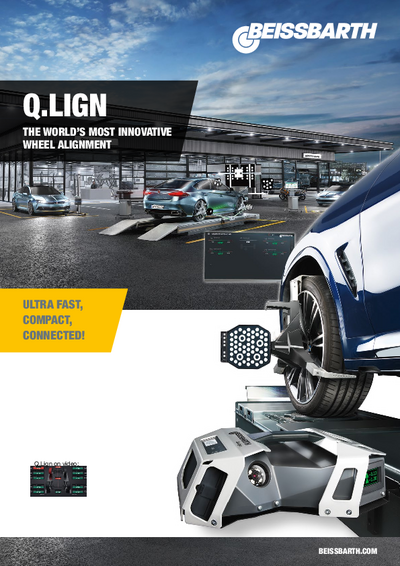

The World’s most innovative Wheel aligner
Q.Lign is our answer to an increasingly digital and fast-paced world: ultra fast, compact, connected
World’s First Web-based wheel aligner
- Compact web-based technology creates more space by replacing the need for trolley with PC
- Stream-to-X: Directly display the software on any TV, PC, laptop or smartphone
- Unleash the full power of connectivity by integrating Q.Lign into your daily workshop processes and systems
Get all the speed you want without compromising on accuracy
- Ultra fast software with optimized workflow of the complete alignment process
- Q.Grip wheel clamps mounted in seconds, without any rim contact
Full mobility, infinite possibilities
- Completely wireless thanks to high performance Li-Ion batteries
- Installation on any alignment lift type, above and inground
- Runout compensation in any lift height, from zero to top position
- Permanently use the space in front of the lift for headlight testing and ADAS calibration
Work smarter, not harder
- Get values the second the targets are recognized to immediately spot vehicles involved in accidents
- Measure with any target on any wheel position to save time and eliminate user error
- Active lift control: Our recipe for success for straight steering wheels
- Have the values always in sight from under the vehicle with the four OLED screens on the sensor heads
Putting the customer first
- Easy to understand printouts
- Theme-based printouts (e.g. accident report) instead of one size fits all
- Measurement of all common wheel alignment angles, including vehicle dimensions for easy detection of vehicles involved in accidents
Scope of delivery:
- 2 compact Q.Lign sensor heads with OLED displays
- Display module for direct streaming to TV, PC, laptop or tablet
- Tablet
- 2 Li-Ion batteries with charging station
- 4 Q.Grips without rim contact
- 4 targets with auto-identification
- New Generation Software
- Key Card 365 for international vehicle specs
- Lift adaption
- Wall board for storage of sensor heads and battery charger
- Wall brackets for Q.Grips and targets
- Steering wheel and brake pedal lock
- Front turnplates
| Electrical connection | 100 - 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1080 mm |
| Packaging width | 960 mm |
| Packaging height | 900 mm |
| Gross weight | 100 kg |
| Measuring system | 3D |
| Weight | 80 kg |
| Packaging unit | 1 Palette(n) |
| Data transmission type | kabellos |
| Power consumption | 45 W |
| 99 Wh | |
| Min. tyre size | 525 mm |
| Max. tyre size | 835 mm |
| Max. wheel base | 5000 mm |
| Load capacity per turntable | 1000 kg |
| Electrical connection | 100 - 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1080 mm |
| Packaging width | 960 mm |
| Packaging height | 900 mm |
| Gross weight | 100 kg |
| Measuring system | 3D |
| Weight | 80 kg |
| Packaging unit | 1 Palette(n) |
| Data transmission type | kabellos |
|---|---|
| Power consumption | 45 W |
| 99 Wh | |
| Min. tyre size | 525 mm |
| Max. tyre size | 835 mm |
| Max. wheel base | 5000 mm |
| Load capacity per turntable | 1000 kg |
- Vehicle database update Q.Lign | Key Card16900020221690002022
- Inground lift adaptation | for Q.Lign16902011221690201122
2x required for Q.Lign
- ADAS target boards | for Q.Lign16902000131690200013
For ADAS calibration in combination with Q.Lign. Target boards can be permanently installed on the ADAS calibration tool.
Scope of delivery:- 2x ADAS target boards (Coding ID #5 and #6)
- 2x target covers
Compatible with BBFAS1000 and most third-party ADAS calibration tool solutions.
- Power connection cable 10 m16902030251690203025
- Power connection cable 15 m16902030411690203041
- Duo-battery charging station for Q.Lign | incl. accessories16902010691690201069
- Battery for Q.Lign | Li-Ion | 99 Wh16902030531690203053
- Power supply for Q.Lign Accessories | 19 V RRC16937706481693770648
For battery charging station and emergency power supply box of Q.Lign
- Emergency power box for Q.Lign16902010301690201030
- Power supply of sensor heads in case of battery failure
- Mobile use without fixed installation
- Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)
Note: Operation additionally requires the 19 V power supply (1693770648) which is included in the battery-powered Q.Lign scope of deliveries.
- Lift adaptation for Q.Lign16902010351690201035
2x required for Q.Lign
- Tablet | Android | 10.1"16937706441693770644
Incl. protection case
- Wall board for Q.Lign16902010541690201054
- Printer for Beissbarth trolleys16937704151693770415
- Trolley with 27"monitor | for Q.Lign16902010551690201055
Scope of delivery: - Trolley - Monitor arm - 27" monitor
- Adapter set Q.Grip | for Q.Lign | 4 pcs.16901010101690101010
Q.Grip: The closest you will get to Touchless.
- Mounting of targets in under 5 seconds
- No rim contact, no scratches or damages!
- Instantaneously change between different tyre diameters with our new patented clamping mechanism
- Three arms guarantee safe and precise grip during the complete alignment
- No removal of hubcaps!
- No knob twisting!
- No fixed wheel assignment, position on any wheel!
- Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)
- Mechanical aluminum turntable Standard16905010011690501001
- Very high quality and lifetime in workshop environment
- RaceScales | VAS 701009 | Precision turntable with load cells | 433Mhz16904001001690400100
Electronic corner weight scales: Optimal adjustment of the chassis in connection with the wheel alignment
The electronic corner weight scales carry out high-precision weight distribution on the vehicle. In connection with the wheel alignment, the chassis can be optimally adjusted. This provides maximum levels of grip and better overall handling of the vehicle.
By the help of the corner weight scales the static weight distribution as well as the center of gravity optimization are integrated into to wheel alignment process. This not only ensures a stable and levelled working surface for optimal measurement results but also allows the immediate re-adjustment of camber, caster, and toe settings after the change in ride height. In motorsports the RaceScales ensure best race settings of the vehicle for faster lap times.
Digital corner balance scales:
- High precision for best measurement results
- High performance lithium polymer battery, wireless
- Seamless integration in all common wheel alignment lifts
- Compatible with all Beissbarth wheel aligners and third-party systems
- Intuitive software with clear display of measured values
- Always-on-top mini screen with live values of the four wheel weights
Software functions for optimal weight distribution:
- Weight distribution per wheel
- Weight distribution per axle
- Difference between front and rear
- Weight distribution per side
- Difference between left and right
- Cross Weight
- Cross Weight in %
- Total weight
- Live center of gravity
- Weighing protocol with company and customer information
Features wheel alignment turntables:
- With steering sensor for maximum steer measurement with CCD, Touchless, and Q.Lign wheel aligner
- Very high quality and durability
- Steel balls for reduced friction and higher accuracy
- Compatible with all common wheel alignment lifts
- Seamless integration in wheel alignment lifts without fixed rear sliding base
- Electronic aluminum turntable without connecting cable | Standard16904010111690401011
- Enables full steering lock on CCD, Touchless and Q.Lign wheel aligner
- Very high quality and lifetime in workshop environment
- Standard turntable without connecting cable
- Electronic aluminum turntable without connecting cable | Precision16904010131690401013
- Enables full steering lock on CCD, Touchless and Q.Lign wheel aligners
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
- Set of Drive-on ramps | for RaceScales16920002211692000221
- Set of Drive-on ramps for turntables and sliding plates
- Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
- Made from recycled rubber granulate
- Withstands snow, water, salt, oil under normal workshop conditions
- Temperature stable between -30°C to 80°C
- Produced free from pollutants according to REACH
Dimensions:
- Height: 50mm
- Width: 495mm
- Length: 500mm
- Length rolling surface: 200mm
- Length slope: 300mm
- Slope: 8°
- Protective rubber cover for aluminum turntable16904020011690402001
- Additional protection from dirt and liquids
- Connecting cable for electronic turntables16904030011690403001
- Connecting cable between electronic turntables and sensor head
- Enables full steering lock on CCD and Touchless aligner
- Drive-on ramps for two aluminum turntables16907010521690701052
- Drive-on ramps for turntables including connecting piece and drive off protection
- Enables rolling compensation on lifts without embedded turntables
- Drive-on ramps for turntables and sliding plates16904010081690401008
- Set of Drive-on ramps for turntables and sliding plates
- Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
- Filling piece for aluminum turntable16901022111690102211
- Magnetic clamps for wheel bolts | 75mm16907015081690701508
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Magnetic clamps for wheel bolts | 100mm16907015211690701521
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Self-centering quick clamp for Porsche16903800101690380010
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
- Self-centering quick clamp for Tesla16903801611690380161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Self-centering quick clamp for Ferrari16903812991690381299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
- Central clamp Porsche Carrera GT16903010021690301002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
- Central clamp Porsche 911 GT3 and Turbo16903800021690380002
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
- Quick clamp Mercedes-Benz | OEM16908010021690801002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
- Quick clamp BMW | OEM16908010011690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
- Distance bolts for quick clamp Mercedes Benz | 100 mm16908010071690801007
- For one quick clamp
- Distance bolts for quick clamp BMW | 120 mm16908010031690801003
- For one quick clamp
- Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm16904010191690401019
- For one quick clamp
- Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.16903111121690311112
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
- Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc.16903110891690311089
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
- Set softline claws for 1 x Multi-fit clamp | Softline rims16903111641690311164
- Set truck claws for 1 x Multi-fit clamp | Truck16903111151690311115
For convex wheels mounted to a double-bearing hub and dually wheels.
Length: 10cm
- Extension set for Multi-fit clamps | 23 - 28"16903111131690311113
- Dust cover target board | Q.Lign16902021551690202155
Scope of delivery: 1x protective cover
- Storage kit | for 4x Q.Grip16908010481690801048
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 Q.Grip clamps. Can be positioned on each side of the vehicle for maximum efficiency.
- Set 4x Magnetic clamp for light trucks and RVs | 6x130mm & 6x205mm bolt circles16901010831690101083
Set of 4 magnetic clamps for light trucks and RVs. Only for bolt circle diameters 6x130mm and 6x205mm. Magnet length: 55mm
- Set 4x wall bracket | Q.Grip16901010771690101077
Set of 4 wall brackets for storing Q.Grips.
- Brake lock 16901022121690102212
- Steering wheel holder 16901022131690102213
- Extension for vehicles with narrow track width or RVs16907011271690701127
Extension of the measuring boards:
- When used with a very narrow vehicle: use 4x extension
- For motorhomes with a wide body: use 2x extension on rear axle
