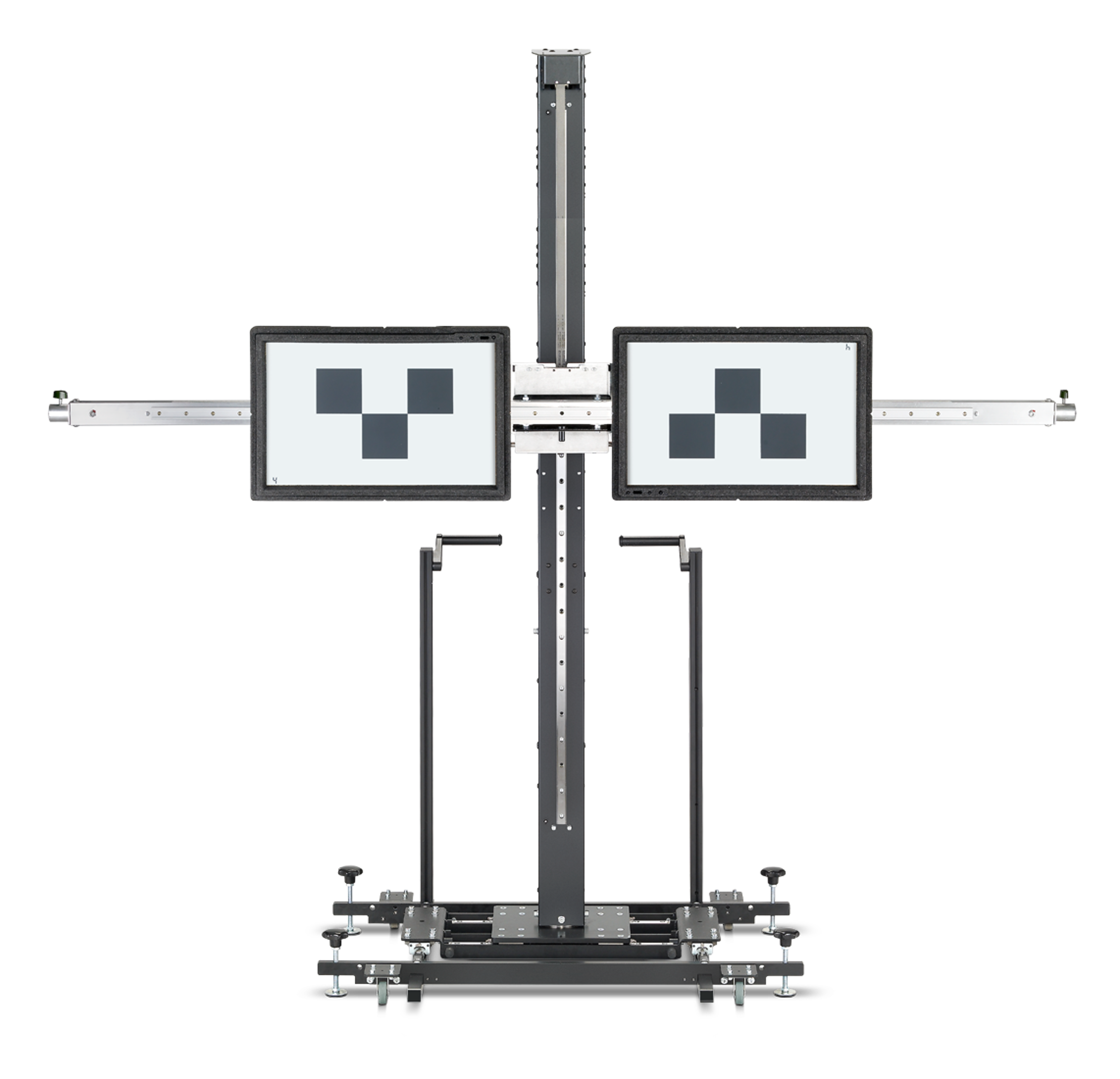

Q.DAS

| Forward-Facing ADAS Calibration

8900380023

Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment

Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.

Q.DAS:

Safety-relevant driver assistance systems: Radar and camera
Vehicle class: Cars and light commercial vehicles
Calibration volume in the workshop: high
Height adjustment: Motorized up to 2050 mm
Works with all camera calibration targets: Yes
Supports eTargets: Yes
Distance adjustment without re-leveling: 200 mm
Center offset adjustment without re-leveling: 200 mm

Advantages of the Q.DAS system:

1. Digital instead of analog:

Camera-based positioning via live display
No Plumb Bobs or measuring tapes
Full control over entire calibration
Direct specs instead of manual value transfer*

2. Wheel alignment and ADAS calibration as one process

No retooling
No moving of measuring devices
Permanently ready for use
Guided instructions for setup and positioning
Automatic compensation of different installation heights
Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

Free choice of calibration targets and radar mirrors
Configuration according to calibration volume, budget and space conditions
No fixed commitment to only one diagnostic tester
Integrated X-Y slider minimizes leveling
Motorized height adjustment

Just a few steps to the right system for ADAS calibration

Scope of deliveries:

1x Modular Q.DAS frame, without targets or radar mirrors
1x Q.mApp software (Android) and license for activation (1 year)
1x Digital Bluetooth laser distance gauge

*Costs apply: Requires active Q.mApp license in combination with Q.Lign wheel aligner

Get advice now

Find a dealer now

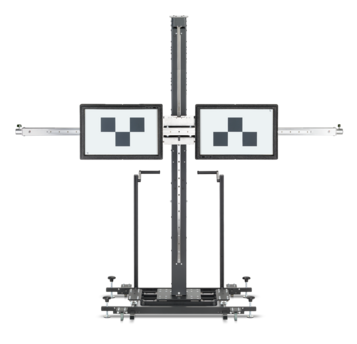

Q.DAS | Forward-Facing ADAS Calibration | 8900380023

Download all pictures

Downloads

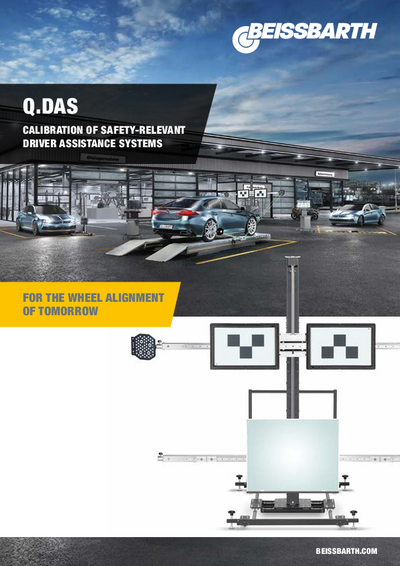

Product data sheet

1x Modular Q.DAS base frame, without panels or mirrors
1x Q.mApp (Android) software including license for activation (1 year)
1x Digital Bluetooth distance meter

*Chargeable: Requires an active Q.mApp license in combination with our Q.Lign wheel aligner

Packaging length	2350 mm
Packaging width	450 mm
Packaging height	530 mm
Gross weight	187 kg
Weight	157 kg

Packaging length	2350 mm
Packaging width	450 mm
Packaging height	530 mm

Gross weight	187 kg
Weight	157 kg

Calibration target Honda type 2 8900382297 8900382297
Calibration target set Nissan type 1 8900381139 8900381139
Nissan
- Qashqai [J11] year from 2013 to 2017-09
- Qashqai Facelift [J11] year from 2017-10
- X-Trail / Rouge [T32] Facelift year from 2017
Calibration target set Nissan type 2 8900381140 8900381140
Infiniti
- QX60 formerJX [L50]
- QX70 [Y51] = FX_Serie year from 2013
MERCEDES-BENZ
- X-Klasse [470, 471) year from 2017
Nissan
- Altima [L34] year from 2019
- Leaf [ZE1] year from 2018
- Maxima [A36] year from 2016
- Maxima [A36] year from 2015 to 2016
- Micra [K14] year from 2017
- X-Trail / Rouge [T32] year from 2013 to 2016
Calibration target set Universal type 2 8900381142 8900381142
NISSAN
- Cima; Fuga [Y51] = Infinity Q70
- NV400 [X62]
- Patrol [Y62] year from 2010
OPEL
- Movano-B
RENAULT
- (Grand) Espace V [xFC] year from 2015
- (Grand) Scenic III [J95] year from 2012
- Kadjar [HL/ HZH, HFE] year from 2015 to 2018
- Koleos II [HZG, HZJ] year from 2016
- Master III [x62] year from 2010
- Megane III [x95] year from 2008
- Megane IV [xFB] year from 2016
- Talisman [xFD] year from 2015
- Twingo III [B07] year from 2014
SMART
- ForFour [543.0] year from 2014
- ForTwo [543-3-4] year from 2014
Multi-Target starter kit 1 8900381001 8900381001
- Multi-Target starter kit 1 with storagebox
Targets included:
- Nissan Set 1 (8 900 381 139)
- Toyota (8 900 382 287)
- Mercedes 1 / Infiniti 2 (8 900 382 312)
- Mazda 1 (8 900 382 318)
- Honda 3 (8 900 382 349)
- Toyota 3 (8 900 382 355)
- Universal Target 1 (8 900 382 570)
Multi-Target starter kit 2 8900381002 8900381002
- Multi-Target starter kit 2 with storagebox
Targets included:
- Mercedes 1 / Infiniti 2 (8 900 382 312)
- Mercedes 2 (8 900 382 319)
- Universal Target 1 (8 900 382 570)
ACC reflector mirror | for radar calibration 8900381150 8900381150

ACC reflector mirror for adjusting the ACC sensor.
2-in-1 XXL calibration board | for VW front camera and multi-brand radar | Q.DAS 8900381056 8900381056
2-in-1 XXL calibration board with the pattern for calibrating front camera systems on VW Group vehicles. The newly reworked version in combination with Q.DAS allows users to also calibrate radar systems on all vehicles that require an even reflective service in front of the radar sensor. This enables radar calibration also on vehicles outside the VW Group.
Single and double radar systems can be calibrated in the lowest height position, without any setup times or rotation of the target board. The height is infinitely adjustable to cover both low positioned radar systems as well as high positioned camera systems with only one calibration board.
The purchase of the XXL calibration board does not require any further ACC reflector mirrors (8 900 381 150) for radar calibration! The required tilting positions are also possible with the XXL calibration board.
Advantages:
- Camera calibration for VW Group vehicles and multi-brand OEM radar calibration in one
- No setup times, no rotation
- For single and double radars
- For passenger cars and transporter (very high transporters may only work in combination with Q.DAS Pro)
- Integrated tilting mechanism with 3 positions
- High quality materials and finishing with flat surface guarantee
Note: Only in combination with the Q.DAS frame.
eTarget Kit | Digital 15-in-1 solution 8900380011 8900380011
eTarget: fast and space-saving solution for workshops – broad manufacturer coverage included
eTarget is an innovative digital calibration target based on e-paper technology - unlike conventional monitors, beamers or other screen solutions.
OEM-compliant calibration targets for precise and fast ADAS calibration with Q.DAS:
- Faster setup times, more space: 15 patterns in one eTarget
- Automatic pattern selection minimizes user errors
- Extremely high contrast, even from different viewing angles
- Reflective technology for all lighting conditions
- Integrated Bluetooth module for app communication
- Lightweight and robust housing
- Downward compatible with previous Beissbarth calibration solutions (BBFAS 1xxx, BBFAS 415)
- Battery operated and power saving – display is maintained even without power
Discover the full etarget coverage here!

Scope of deliveries:
- 2x eTarget with charging cable
- 1x Universal Type 4S (8 900 382 570)
Note: Automatic target selection requires active license for Q.mApp software.
Q.mApp | License Key 365 8900388001 8900388001
Q.mApp: Safe and Fast ADAS Calibration

ADAS calibration can be time-consuming and complex, especially when procedures, equipment, and positions vary greatly among different OEMs. At the same time, safe and successful ADAS calibration requires thorough attention to detail. But who can keep track of it all?

ADAS calibration positioning made simple

Q.mApp guides the user through the setup and positioning sequence for every OEM, regardless of static of dynamic calibration. Selecting a vehicle and model immediately provides you with:
- Necessary equipment for ADAS calibration
- Step-by-step instructions to correctly position ADAS fixture and targets
- Height, distance, and center offsets for target placement
One ecosystem: Q.mApp fully integrates wheel alignment and ADAS calibration

By integrating wheel alignment and ADAS calibration, Q.mApp ensures systems are performing as set out by OEMs. In combination with Q.Lign, ADAS calibration becomes simpler than ever:
- Automatic compensation of height offsets
- Realtime positioning of ADAS fixture to OEM specs (Height, distance, offset, yaw angle)
- Compensation of runout and clamping errors
- Ensuring straight-ahead mode during calibration
- Rear axle readings and ADAS positions in one printout
Easy installation of Q.mApp

Q.mApp can be installed on any Android-based tablet or directly on the one delivered with your Q.Lign system! To use the full potential of Q.mApp, a registration & activation is required:
- Download the .apk file of Q.mApp: Download Link Q.mApp
- Install on the Android tablet of your choice
- Order a license key card through your local dealer (supplied with all Q.DAS systems)
- Enter your license key on base-licensecenter.com
- Unlock all features of Q.mApp with activation key received from the License Center
Find detailed installation instructions here: Q.mApp Installation Guide
Holder for laser distance meter | for VW calibration board 8900381056 8900381092 8900381092

Only in combination with laser distance meter PLR 40C and UD 40C
Calibration target set Mitsubishi type 1 8900381218 8900381218
MITSUBISHI
- ASX / Outlander Sport [GA] year from 2018
- Eclipse Cross [GK] year from 2018
- Outlander III Facelift / PHEV year from 2017
Calibration target set Mazda type 2 8900381234 8900381234
MAZDA
- CX 5 [KF] year from 2017
- Series-3[BN] year from 2016-06
- Series-6 [GL] year from 2017
Calibration target set Honda type 1 8900381143 8900381143
Honda [EU]
- Jazz / Fit [GK] year from 2015
- Civic (9) year from 2012 to 2016
- Civic Typ KG : year from 2016 to 2017
- HR-V [RU] year from 2015
Honda [US]
- Accord US year from 2013 to 2015
- Civic (5 door) year from 2016 to 2017
- Civic (Hybrid) year from 2012 to 2015
- CR-V year from 2017
- HR-V year from 2016 to 2017
Calibration target Honda type 3 8900382349 8900382349
Honda [EU]
- Accord (9) [CR] year from 2014
- Civic Non KG: year from 2016 to 2017
- CR-V (4) [RM] year from 2012 to 2015
- CR-V (4) [RM] year from 2015 to 2017
Calibration target Kia / Hyundai type 2 8900382320 8900382320
Hyundai
- H350 [EU] year from 2015
Calibration target Kia / Hyundai type 3 8900382316 8900382316
Hyundai
- Equus [VI] year from 2016
- Genesis [BH] year from 2011 to 2014
- SantaFe [DM] Grand-SantaFe [NC] Sport-SantaFe MaxCruise [NC] year from 2015
KIA
- Cadenza / K7 [VG] year from 2009 to 2016
- Sorento [XM] year from 2009 to 2015
Calibration target Mazda type 1 8900382318 8900382318
MAZDA
- CX 3 [DK] year from 2015
- CX 5 [KE] year from 2012 to 2016
- CX 9 [TB]
- MX5 [ND]
- Serie-2 [DJ, DL]
- Series-3 [BM] year from 2013 to 2016-05
- Series-6 [GJ] year to 2016
Calibration target Mercedes / Infinity type 2 8900382319 8900382319
MERCEDES-BENZ
- Sprinter [W909] year from 2013 to 2019
- Sprinter 2500 / 3500 [W906] year from 2006 to 2013
VOLKSWAGEN
- Crafter [2E,2F] year from 2016 to 2017
Calibration target Mercedes/Infinity type 1 8900382312 8900382312
MERCEDES-BENZ
- A-Klasse [176] year from 2012 to 2018
- B-Klasse [246] year from 2011-11 to 2018-11
- C-Klasse [204] +Facelift year from 2007 to 2014
- C-Klasse [205] year from 2014
- CL [216] year from 2006 to 2013
- CLA [117] year from 2013 to 2019
- CLS [218] year from 2011 to 2018
- E-Klasse [212] year from 2012 to 2016
- E-Klasse [213] year from 2016
- E-Klasse Coupe [207] year from 2009 to 2016
- E-Klasse Coupe [238] year from 2016
- GLA [156] year from 2013 to 156]
- GLC [253] year from 2015
- GLE [292] year from 2015 to 2019
- GLK [204] + Facelift year from 2008 to 2015
- M-Klasse (GL-Klasse) GLE, GLS [166] Camera system 4.0.1 year from 2011 to 2015
- M-Klasse (GL-Klasse) GLE, GLS [166] Camera system 4.0 year from 2011 to 2015
- M-Klasse [GL-Klasse) [164] year from 2006 to 2012
- S-Klasse [221] year from 2005 to 2013
- S-Klasse [222] year from 2013
- S-Klasse Coupe [217] year from 2014 to 217]
- SLK, SLC [172] year from 2011
- SL-Klasse [231] year from 2012
- SLR [190] year from 2014 to 2016
- V-Klasse[447] / Vito [448] year from 2014
Calibration target Toyota type 1 8900382287 8900382287
LEXUS
- ES300h ES450h [V6#] year from 2012 to 2015
- GS-F, GS200t, GS250, GS300h GS350 GS450h [L1#] year from 2012
- LS460, LS600h [F4#] year from 2007
- NX200 NX300h [Z1#]
- RC-F, RC200t, RC350 [C1#] year from 2014
TOYOTA
- Auris / Corolla [E18#] with SafetySense 3-Step year from 2015 to 2018
- Avensis [T27#] with SafetySense 3-Step year from 2015
- Aygo [B4#] with SafetySense 3-Step year from 2015
- Camry [V5#] year from 2014
- C-HR X10/X50 year from 2017
- Highlander, Kluger [U5] year from 2013
- Mirai [JPD10] year from 2015
- Prius [W30] Prius [W40] year from 2009 to 2015
- RAV4 [A4] year from 2012 to 2015
- Verso [R2#] with SafetySense 3-Step year from 2016
- Yaris [P13#] with SafetySense 3-Step year from 2015 to 2017
- Yaris [P13#] with SafetySense 3-Step year from 2017
Calibration target Toyota type 2 8900382328 8900382328
CITROEN
- C1 [B4] year from 2014
PEUGEOT [EU]
- 108 [B3]
TOYOTA
- Auris / Corolla [E18#] with SafetySense 1-Step year from 2015 to 2018
- Avensis [T27#] with SafetySense 1 -Step year from 2015
- Aygo [B4#] with SafetySense 1-Step year from 2015
- Verso [R2#] with SafetySense 1-Step year from 2016
- Yaris [P13#] with SafetySense 1-Step year from 2015 to 2017
- Yaris [P13#] with SafetySense 1-Step year from 2017
Calibration target Toyota type 3 8900382355 8900382355
LEXUS
- ES300h ES450h [V6#] year from 2015
- IS200t IS300h IS350 [E3#]
- LS500h LS600h [F5#] w Mono-Front-Camera year from 2017
- LS500h LS600h [F5#] w Stereo-Front-Camera year from 2017
- LX570 [J20] year from 2007
- RX200t, RX350, RX450h, [L2#] year from 2015-09
TOYOTA
- Hilux_[N12, N13] year from 2015
- Prius [W50] year from 2015
- RAV4 [A4] year from 2015 to 2018
Calibration target Universal type 6S 8900382571 8900382571
CITROEN
- C3 Aircross [A88] year from 2017
- DS3 Crossback [D34] year from 2019
- DS7 Crossback [X74] year from 2017
- Jumper 3 / Relay 3 [U9] year from 2014
FIAT
- 500X [334] year from 2015
- Ducato year from 2014
Hyundai
- Elantra [ADA] year from 2017
- Genesis [DH] year from 2014
- i10 [IA] year from 2017
- i20, i20 Active [GB] year from 2015
- i30 [GD] year from 2015
- i30 [PDE] year from 2017
- i40 [VF] year from 2012
- IONIQ [AE-HEV] year from 2017
- SantaFe[DM] year from 2016
- Sonata [LFA] year from 2016
- Tucson [TL] year from 2016
Jeep
- Renegade [BU] year from 2015
KIA
- Cadenza / K7 [YG] year from 2016
- Carens / Rondo [RP] year from 2014
- Ceed / Pro Ceed [JD] year from 2013
- Niro [DE] E-Niro year from 2017
- Optima [JF] year from 2016
- Optima [TF] year from 2015
- Rio (YB) year from 2017
- Sorento [UM] year from 2015
- Soul [PS] E-Soul year from 2015
OPEL
- Crossland X year from 2017
- Grandland X year from 2018
PEUGEOT [EU]
- 3008 II year from 2018
- 508 II year from 2018
- Boxer-3 / Manager [U9]
TESLA
- Model S year from 2016-10
- Model X year from 2016-10
Tablet Holder | for Q.DAS 1693741077 1693741077
