Tyre diagnosis system | Ford | Above ground

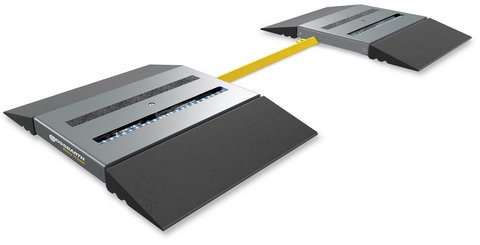

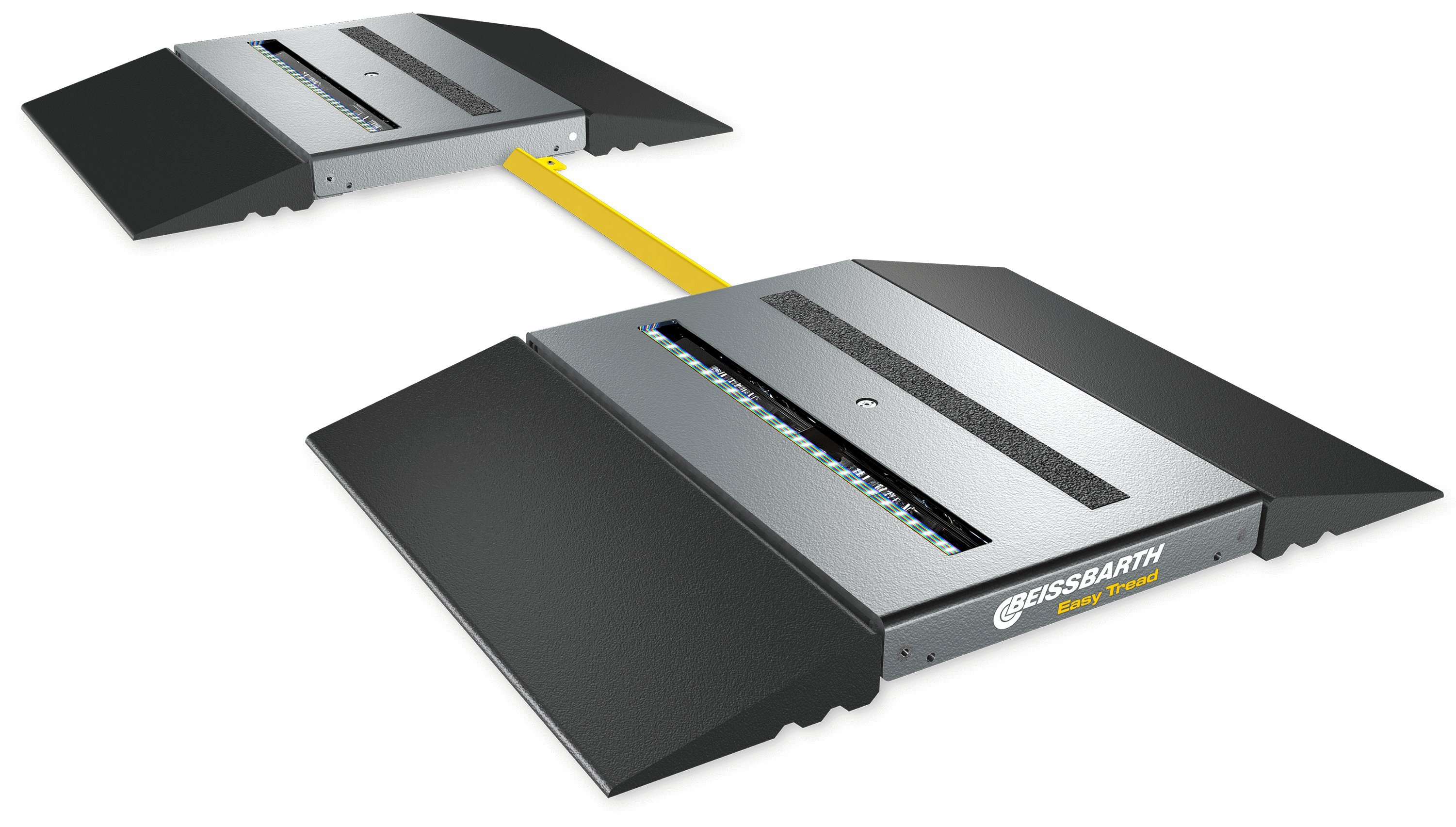

Automatic tyre tread measurement system with crossing speed up to 8 km/h | Easy Tread for above ground installation

Article number: 1 691 200 037

The tyres are the only contact points between a vehicle and the road. The quality of this bonds decides how safely the vehicle can be accelerated and braked. Especially aquaplaning can only be avoided by sufficient tread depth. This is why checking tread wear is a mandatory item of all statutory safety inspection. At the same time, uneven tread wear is a clear indication for a workshop that a wheel alignment should be considered - and that a wheel alignment check should be proposed to the customer.

  • The Easy Tread needs only few seconds to calculate the tyre’s tread depths of a vehicle
  • Clear display of tyre tread depth and wear information, within short time
  • Recommended action are displayed (for the vehicle and/or the tyre)
  • Crossing speed up to 8 km/h
  • Can be integrated above ground in the workshop
  • High precision thanks to the larger wheel contact area
  • Browser-based measurement results on smart TV, PC or tablet computer
  • No PC needed (can be however used to manage Customer-data, measuring data and statistics)
  • Interface to connect the device in a customer owner system, where the data can be transferred for further processing (option)
  • No moving parts (low maintenance)
  • Quality from Germany

Scope of delivery:

  • Easy Tread modules incl. Drive-on ramps for above ground installation (measurement modules, drive-on ramps, LAN cables, main switch box, glass cleaner) (item no. 1 691 200 037)
Tyre width max.450 mm
Protection classIP 65
Depth1040 mm
Height85 mm
Electrical connection100 - 230 V | 50 - 60 Hz | 1 ph
Width2245 mm
Maximum load per axle4 t
Operating temperature0 - 40 °C
Track width1080 - 1820 mm
Max. speed8 km/h
Number of languages (software)18
PC trolley for Easy Tread1 691 200 023
License plate recognition Easy Cam | Above ground1 691 200 008
Cable tunnel | for onground installations of Easy Tread1 691 201 023
