- Levelable rail system for above and inground installation
- Length: 3.3 meters. 2.5 meters length rail and 0.8 meters length extension
- Complies with the latest requirements placed on test areas in workshops: meets the requirements of vehicle manufacturers as well as the requirements of the general-inspection headlight-test directive
- Height differences of up to 30 mm can be compensated together with the headlight aiming device trolley
- Long lifetime
- High-quality, robust processing
- Precisely guided steel wheels: for precise measurements and adjustments, a one-time alignment with the vehicle is sufficient (time saving!)
- Steel wheels are included in scope of delivery
- Optional expandable (see accessories list)
German Road Traffic Type-Approval Law StVZO § 29 general-inspection headlight-test directive: MLD 110 can be calibrated according to the legal requirements
- TÜV certificate in line with StVZO § 50 - TPN 2023-05-2208483: MLD 110 is TÜV-certified by prototype technical release examination in accordance with the directives for testing headlight adjustment/test equipment (German Road Traffic Type-Approval Law StVZO §50 paragraph 5).
- The alignment (leveling) of the MLD 110 on the testing bay corresponds to the latest requirements
- Two-dimensional spirit level for horizontal leveling of the optical box
- Levelable rail system for above- and inground installation is a mandatory accessory

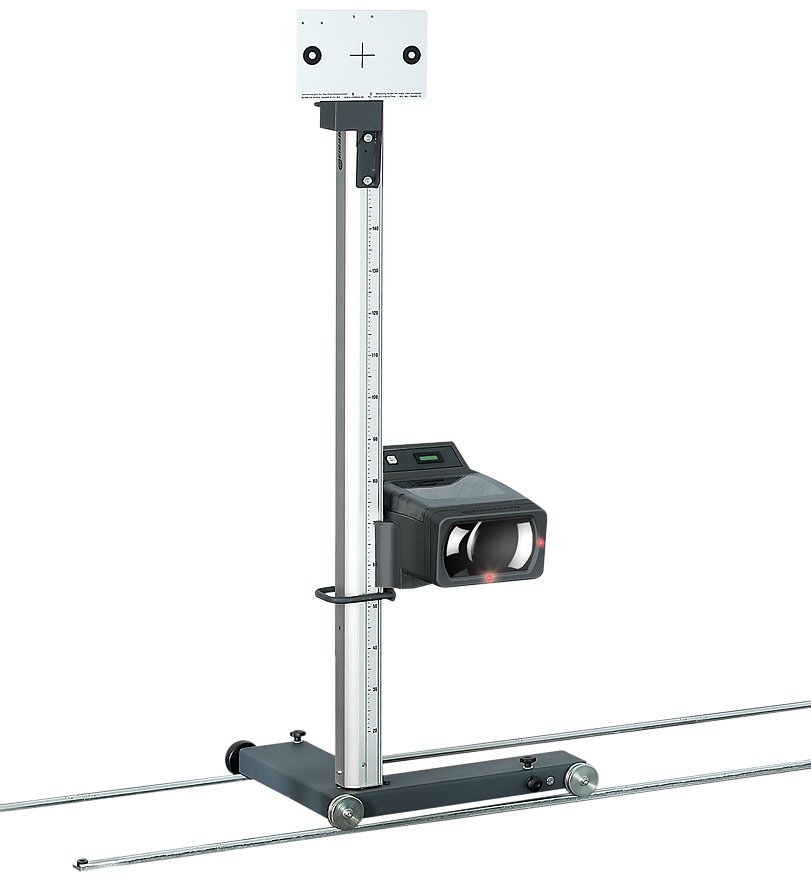

- Levelable 3-Wheel base system
Headlight testing with MLD 110 Mercedes-Benz: for Mercedes-Benz workshops
- Crosslaser for precise positioning
- Analogue system for all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen)
- All types of vehicles (passenger cars, trucks, motorcycles)
- All types of headlights (main headlights, fog lamps, auxiliary lamps)
- On required rail system. Rail system must be ordered separately

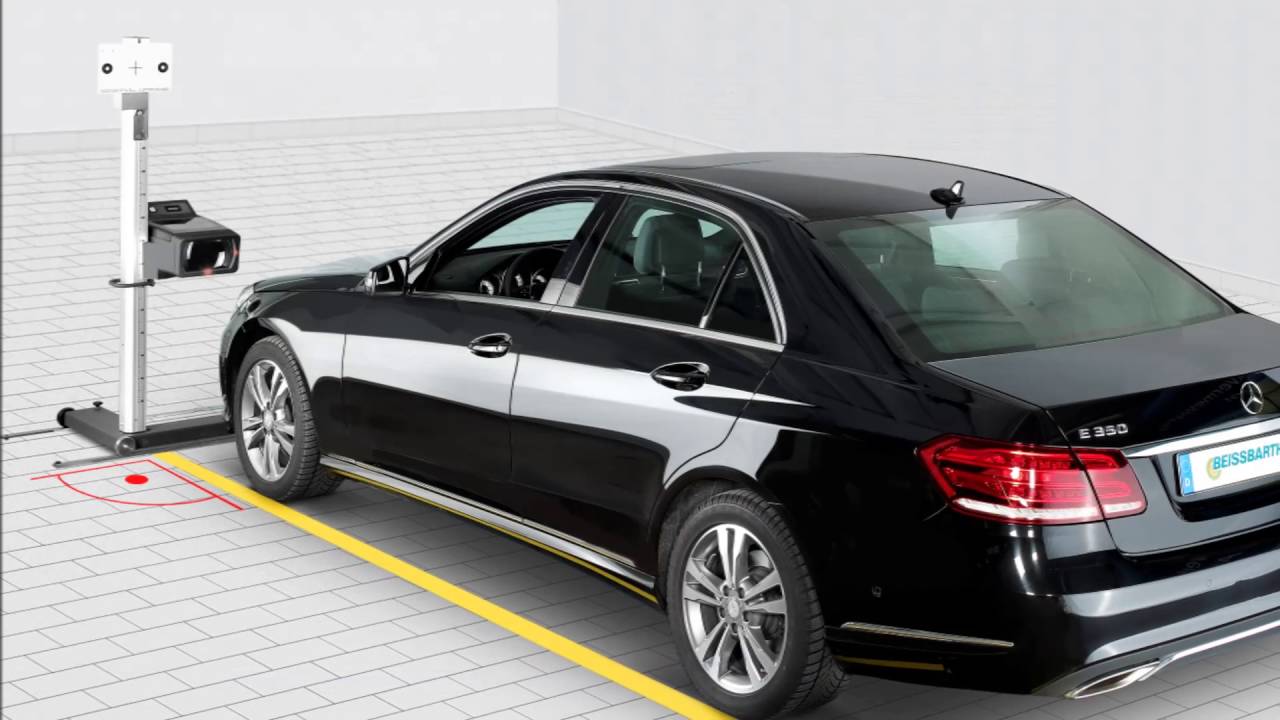

- Column and optical box constantly oriented 90° towards the roll-on markers
- Digital Luxmeter: 3 photo diodes within the test screen measure the intensity of the illumination, which is then displayed on the digital lux meter. This makes for easy identification of outdated or low-quality light sources.
- Universal aiming screen: MLD 110 test screen for both right-hand and left-hand traffic
- Two-dimensional spirit level for exact levelling
Mercedes-Benz homologated alignment system

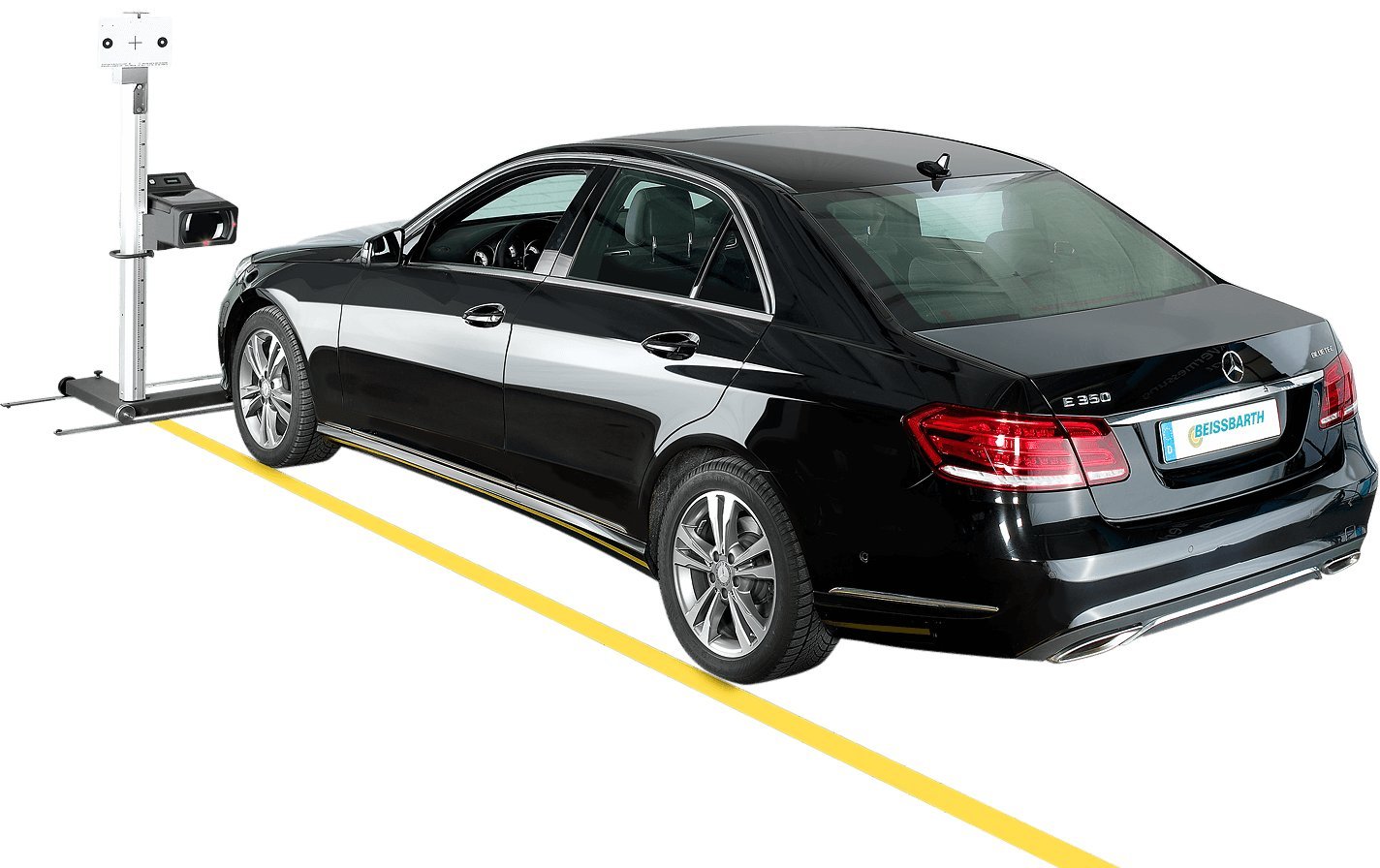

- Vehicle alignment by means of yellow 7-metre roll-on markers (for trucks: 9 m)
- Permanent fixation and precise alignment to the roll-on markers of the optical box
- Target column adapter for night vision assistants. Practical board fixture by means of a magnet. The target board itself is not included in scope of delivery.
- With colour filter attachment: LED1 color filter for LED headlights filters out the disrupting blue fringe in the area of the cut-off line and thus simplifies the visual assessment by the workshop technician.
Certificate: CE, TÜV
| Operating temperature | 5 - 45 °C |
|---|---|
| Battery voltage (DC) | 9 V |
| Height of light center | 250 - 1500 mm |
| Measuring range lowest stand/highest stand | 0 - -400 mm |
| Illumination | (25m) 0 - 240 lx |
| Humidity | 20 - 80 % |
| Storage temperature | -25 - 45 °C |
| Version | - Analogue |
| Packaging length | 650 mm |
| Packaging width | 1790 mm |
| Packaging height | 700 mm |
| Gross weight | 40 kg |
| Measuring range low beam left/right | 300 - -300 mm |
| Measuring range high beam left/right | 50 - -300 mm |
| Relative humidity storage | 20 - 80 % |
| Relative humidity, use | 30 - 60 % |
| Laser class cross laser | 2 |
| Projection cross laser | 90° x 0,4 mrad |
| Laser diode cross laser | 635 nm |
| Radiant power cross laser | 5 mW |
| Operating voltage cross laser | 3 - 5 V (DC) |
| Operating temperature | 5 - 45 °C |
|---|---|
| Battery voltage (DC) | 9 V |
| Height of light center | 250 - 1500 mm |
| Measuring range lowest stand/highest stand | 0 - -400 mm |
| Illumination | (25m) 0 - 240 lx |
| Humidity | 20 - 80 % |
| Storage temperature | -25 - 45 °C |
| Version | - Analogue |
| Packaging length | 650 mm |
| Packaging width | 1790 mm |
| Packaging height | 700 mm |
| Gross weight | 40 kg |
|---|---|
| Measuring range low beam left/right | 300 - -300 mm |
| Measuring range high beam left/right | 50 - -300 mm |
| Relative humidity storage | 20 - 80 % |
| Relative humidity, use | 30 - 60 % |
| Laser class cross laser | 2 |
| Projection cross laser | 90° x 0,4 mrad |
| Laser diode cross laser | 635 nm |
| Radiant power cross laser | 5 mW |
| Operating voltage cross laser | 3 - 5 V (DC) |
- Rail kit 3.3 m16921051341692105134
- Extension kit for rail kit | 1.5 m16921051121692105112
Extension kit for rail base kit (3 m)
- Cover for headlight testing devices16921050791692105079
- Dust protection
- Protection against direct sunlight
