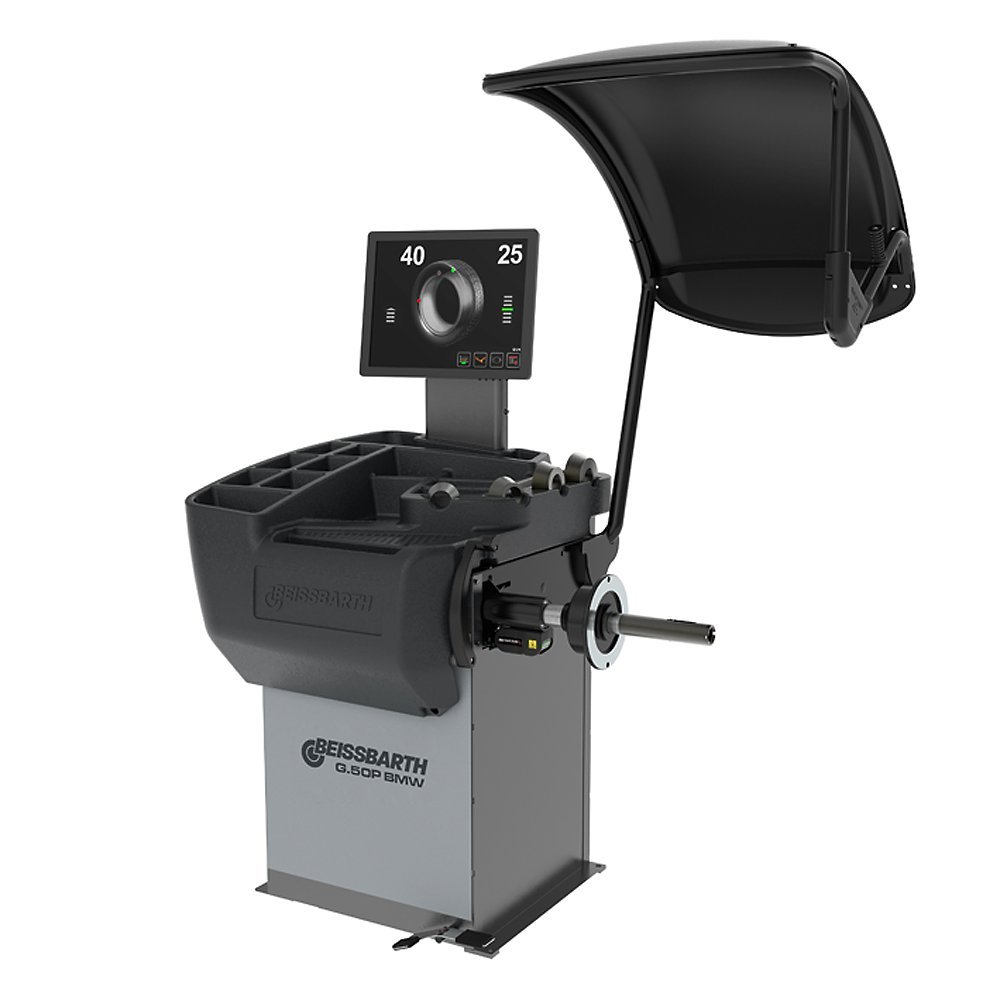

Wheel balancer G.50P BMW
High-volume workshop wheel balancer | pneumatic clamping | automatic data arm | 19" touchscreen | spot laser | wheel guard with sonar for steel and alluminum wheels | auto stop function | One Plane Balancing
Article number: 1 692 501 017
Eliminates vibrations day-in day-out: Wheel balancer for intensive us
Measurement and balancing
- Balancing in 4.7 seconds
- Automatic stop of the wheel in exact correction position
- LED for better visibility when placing weights
- Internal line laser for precise positioning of weights
- Split program for hiding weights behind different spokes
Wheel data recognition
- Automatic data arm for measuring distance and diameter and weight placement
- Automatic selection of clip-on and adhesive weight program
- Highest measurement accuracy +/- 0.5g
Wheel guard with integrated sonar
- Automatic recognition of rim width in steel and aluminium rims
- Without manual input with measuring gauge
- Closing of wheel guard automatically starts balancing program
19" touchscreen monitor
- Graphical step-by-step illustrations
- Simplifies correct balancing with guided processes
- Touchscreen usbale with gloves on
Secure pneumatic clamping
- Pneumatic clamping with 250kg clamping force
- Ensures consistent clamping for all four wheel
- Wheel weights up to 75kg
- Optional with wheel lift
One Plane Balancing
- Eliminates dynamic imbalance with only one weight instead of two
- Fewer correction positions on the rim
- Less consumption of weights
Upgrade to Pro version (optional): Upgradable with sonar for runout measurement and Hubmatch function.
Scope of delivery
- 4 cones Ø43-112,5mm
- Pneumatic quick-lock sleeve
- Clamping cap Ø130mm for aluminum rims
- Rubber ring for clamping cap
- Pressure ring
- 60g counterweight
- Weight pliers
- 1x Centering sleeve ø66,5mm
- 1x Centering sleeve ø56-57/72,5-74mm
- 5x Centering bolt, spring-loaded, length 100mm, long taper
- 1x Flange plate adaptor 5x120/132
- 1x Flange plate adaptor 4x100/5x120
- 1x Flange plate adaptor 5x112/120
- 3x Pneumatic sleeve with thread for flange plate
BMW 13 503 083
| Max. wheel diameter | 44" | 1117mm |
|---|---|
| Weight | 130 kg |
| Shaft diameter | 40 mm |
| Measuring speed | 100 rpm |
| Measuring time | 4,7 s |
| Display | 19" Industrial Touchscreen |
| Max. rim diameter | 30 " |
| Max. wheel weight | 75 kg |
| Length | 1300 mm |
| Height | 1770 mm |
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
| Width | 1300 mm |
| Motor power | 0,15 kW |
| Min. rim diameter | 10 " |
| Balancing accuracy +/- | 0,5 g |
| Packaging length | 1480 mm |
| Packaging width | 1130 mm |
| Packaging height | 1165 mm |
| Air supply | 7 - 10 bar |
| Wheel data recording | Semi-automatic |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 13 Piece(s) |
| Units per 40ft container | 30 Piece(s) |
| G.Zero Wheel lift | with memory function | 1 692 502 000 |
|---|---|
| Wheel lift | for wheel balancers | 1 695 601 012 |
| Eccentricity Diagnostic Upgrade | for G.50 with touch monitor | 1 692 502 165 |
| Flange extension Off-Road | 40 mm | 1 695 901 667 |
| Collet | Ø 80 – 83,7/81,5 mm | for BMW special purpose vehicles | 1 692 500 217 |
