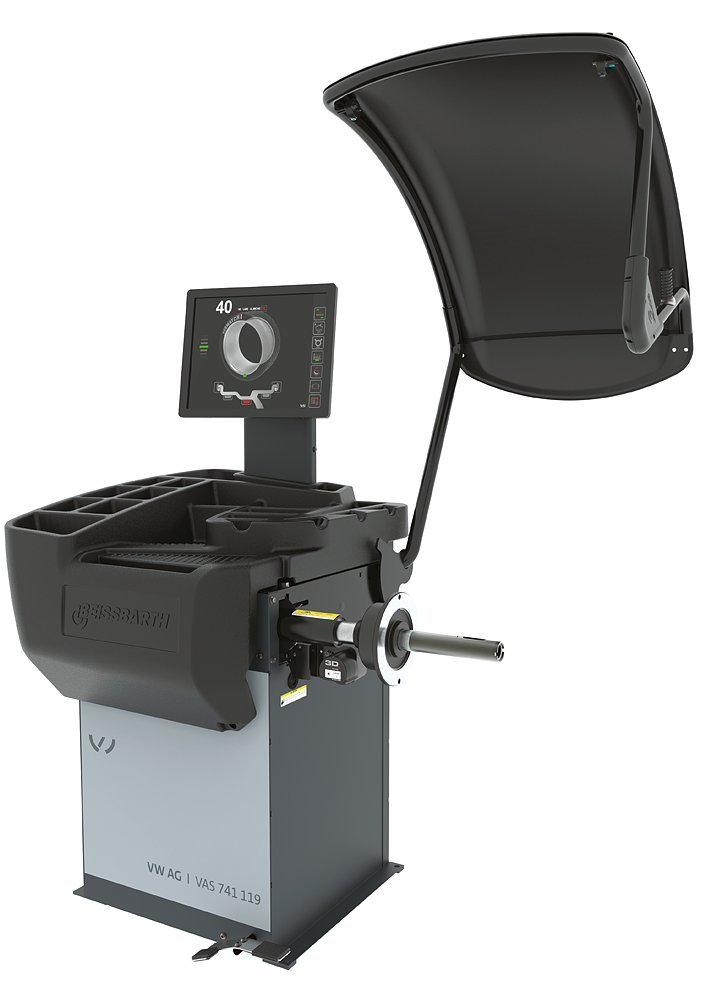

Wheel balancer VAS 741 119 | Non-contact

Wheel balancer for professionals | pneumatic clamping system | automatic wheel recognition | 19" touchscreen | 3D laser scanner + outer line laser | wheel guard with sonar for steel and aluminum wheels | auto stop function | One-Plane Balancing

Article number: 1 692 501 016

Wheel balancer for passenger cars, designed by professionals for professionals, with fully automatic wheel detection:

Measuring and Balancing

  • Balancing in 4.7 seconds
  • Stops wheel automatically in exact correction position
  • LED for increased visibility when placing weights
  • Internal laser point for precise weight positioning
  • External line laser for clip-on weights
  • Split program for hiding weights behind spokes

3D Laser Scanner

  • Contactless measurement of distance, rim width, and rim diameter
  • Optimized for black and glossy rims
  • No data arm or measuring gauge, everything fully automatic

Wheel Data Detection

  • Fully automatic wheel data detection
  • Automatic selection of clip-on and adhesive weights program
  • Highest measurement accuracy of +/- 0.5g
  • Balancing program starts automatically when closing the wheel guard

Auto Adaptive Mode

  • Dynamic tolerance adjustment based on weight and size
  • Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver

Wheel guard with integrated sonar

  • Automatic recognition of rim width in steel and aluminium rims
  • Without manual input with measuring gauge
  • Closing of wheel guard automatically starts balancing program

19" touchscreen monitor

  • Graphical step-by-step illustrations
  • Simplifies correct balancing with guided processes
  • Touchscreen usbale with gloves on

Secure pneumatic clamping

  • Pneumatic clamping with 250kg clamping force
  • Ensures consistent clamping for all four wheel
  • Wheel weights up to 75kg
  • Optional with wheel lift

One Plane Balancing

  • Eliminates dynamic imbalance with only one weight instead of two
  • Fewer correction positions on the rim
  • Less consumption of weights

Optional upgrade: Diagnostic function with VAS 741 119/2

  • Automatic height deviation measurement with every balancing operation (4.7 seconds)
  • Hubmatch: eliminates vibrations by rotating the tire on the wheel
  • Eliminates even the slightest vibrations without the need for an expensive roller

Lieferumfang

  • 4 cones Ø43-112,5mm
  • Pneumatic quick lock sleeve
  • Clamping cap for aluminum rims
  • Pressure ring
  • Rubber ring
  • 60g counterweight
  • Weight pliers
Max. wheel diameter44" | 1117mm
Weight130 kg
Shaft diameter40 mm
Measuring speed100 rpm
Measuring time4,7 s
Display19" Industrial Touchscreen
Max. rim width20 "
Max. rim diameter30 "
Max. wheel weight75 kg
Length1300 mm
Height1770 mm
Electrical connection230 V | 50 - 60 Hz | 1 ph
Width1300 mm
Motor power0,15 kW
Min. rim diameter10 "
Number of cones4
Balancing accuracy +/-0,5 g
Packaging length1480 mm
Packaging width1130 mm
Packaging height1165 mm
Min. rim width1,5 "
Air supply7 - 10 bar
Wheel data recordingFully automatic
Stackable2 Piece(s)
Units per 20ft container13 Piece(s)
Units per 40ft container30 Piece(s)
Wheel lift VAS 741 119/1 | with memory function1 692 502 191
Eccentricity Diagnostic Upgrade VAS 741 119/2 | for VAS 741 115 and VAS 741 1191 692 502 207
Large clamping cap | for aluminium rims1 692 502 044
Flange extension Off-Road | 40 mm1 695 901 667
Centering system DuoExpert | 3 collets | 54 - 78 mm1 695 656 698
Specific clamping plate set QuickPlate | variable | for 3-, 4-, 5-hole rims | 3 pcs.1 695 655 294
