We measure where others are just guessing.
Precision at the highest level.

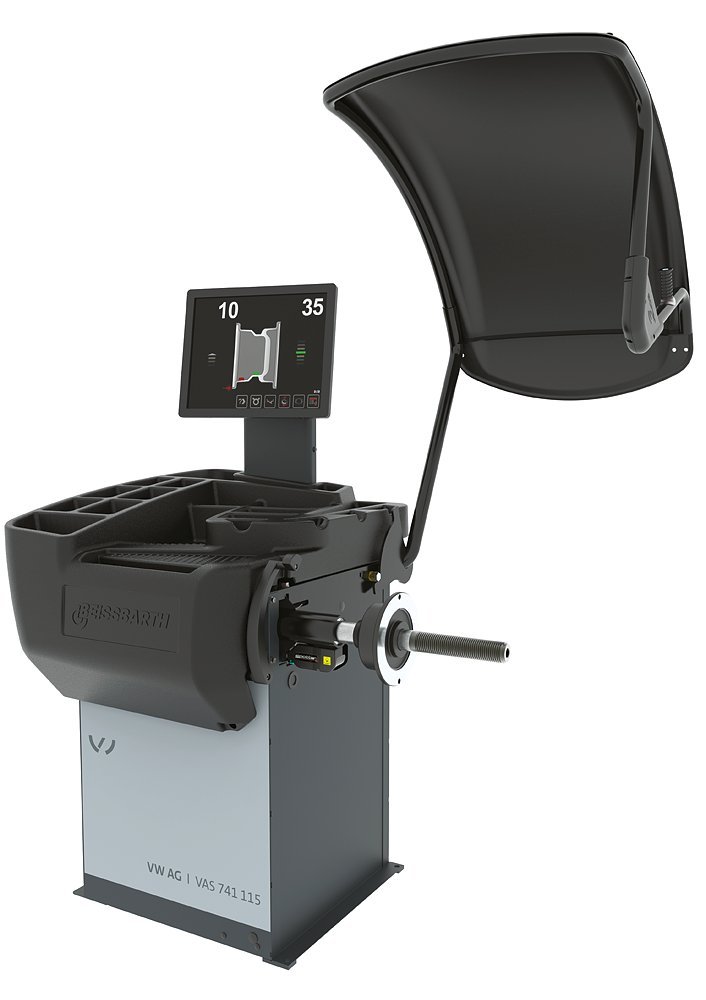

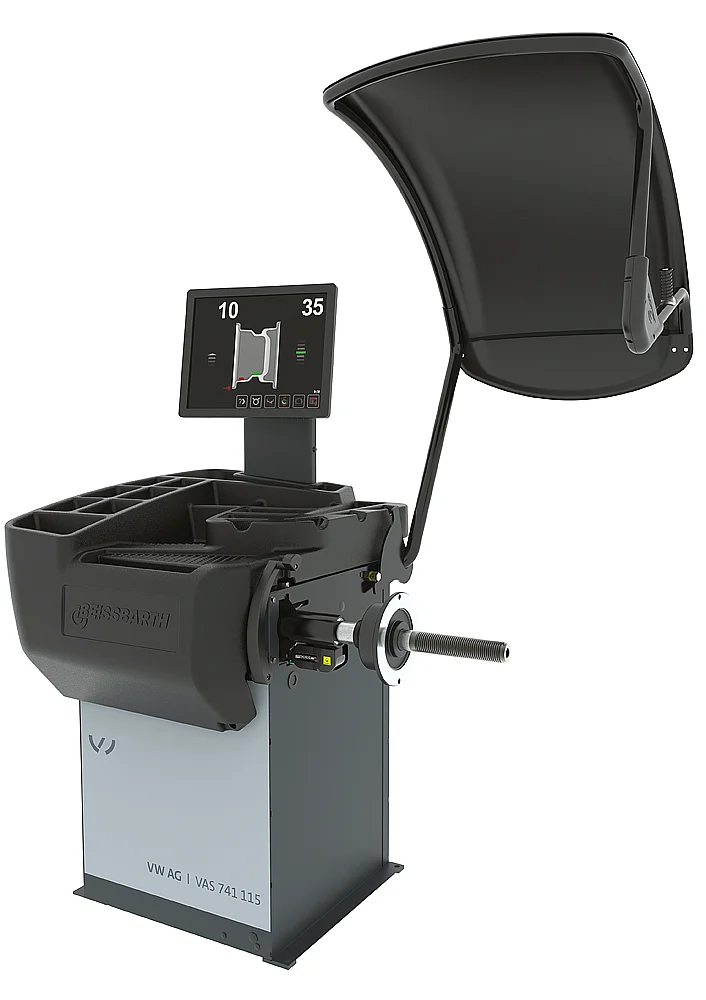

High-volume workshop wheel balancer | mechanical clamping | automatic data arm | 19" touchscreen | spot laser | wheel guard with sonar for steel and alluminum wheels | auto stop function | One Plane Balancing
Article number: 1 692 501 015
Upgrade to Pro version (optional): Upgradable with sonar for runout measurement and Hubmatch function.
Max. wheel diameter | 44" | 1117mm " |
---|---|
Weight | 120 kg |
Shaft diameter | 40 mm |
Measuring speed | 100 rpm |
Measuring time | 4,7 s |
Display | 19" Industrial Touchscreen |
Max. rim width | 20 " |
Max. rim diameter | 30 " |
Max. wheel weight | 75 kg |
Length | 1300 mm |
Height | 1770 mm |
Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
Width | 1300 mm |
Motor power | 0,15 kW |
Min. rim diameter | 10 " |
Number of cones | 4 |
Balancing accuracy +/- | 0,5 g |
Packaging length | 1480 mm |
Packaging width | 1130 mm |
Packaging height | 1165 mm |
Min. rim width | 1,5 " |
Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
Wheel data recording | Semi-automatic |
Stackable | 2 Piece(s) |
Units per 20ft container | 13 Piece(s) |
Units per 40ft container | 30 Piece(s) |

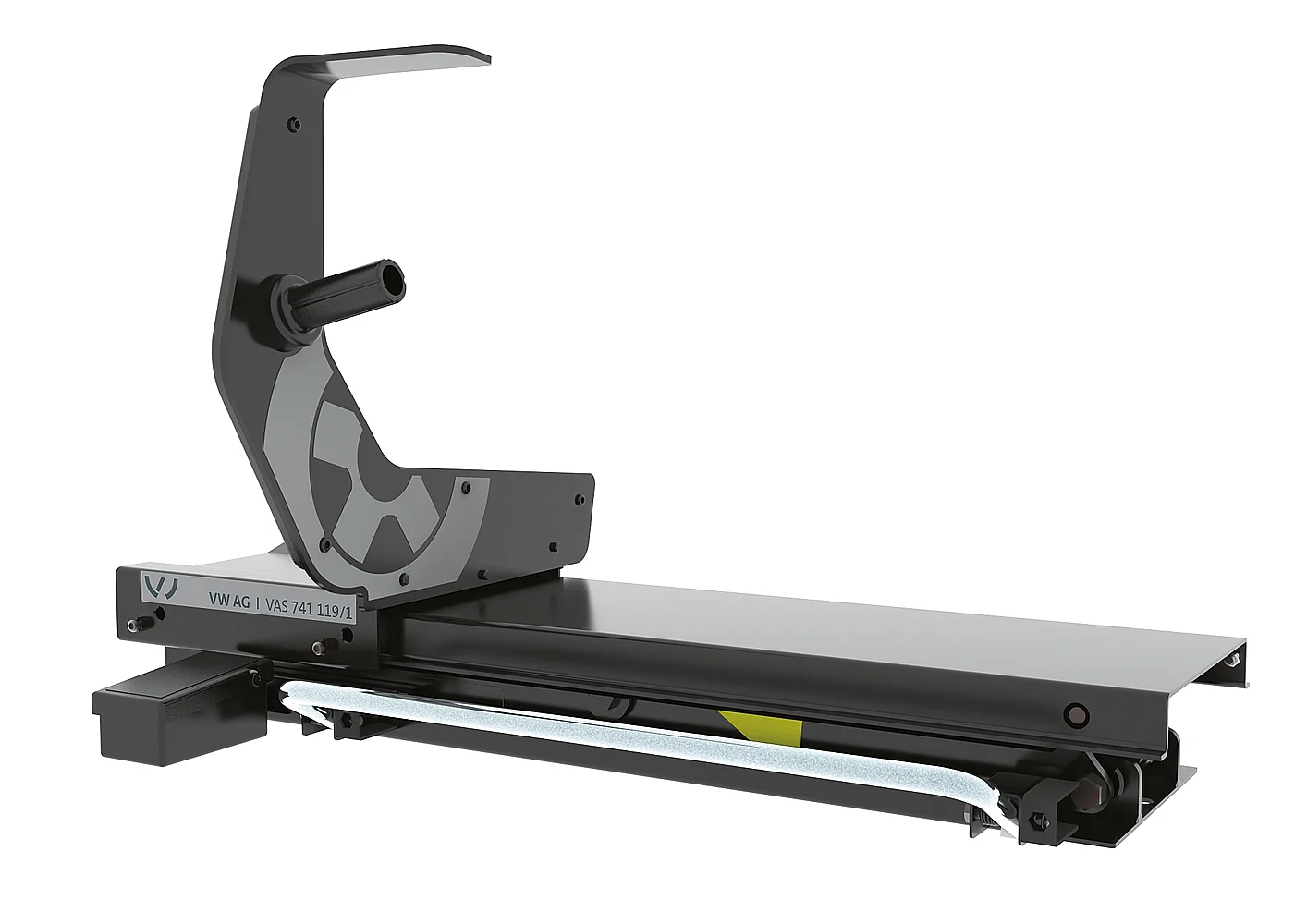

Wheel lift VAS 741 119/1 | with memory function | 1 692 502 191 |
---|---|
Eccentricity Diagnostic Upgrade VAS 741 119/2 | for VAS 741 115 and VAS 741 119 | 1 692 502 207 |
Large clamping cap | for aluminium rims | 1 692 502 044 |
Specific clamping plate set QuickPlate | variable | for 3-, 4-, 5-hole rims | 3 pcs. | 1 695 655 294 |

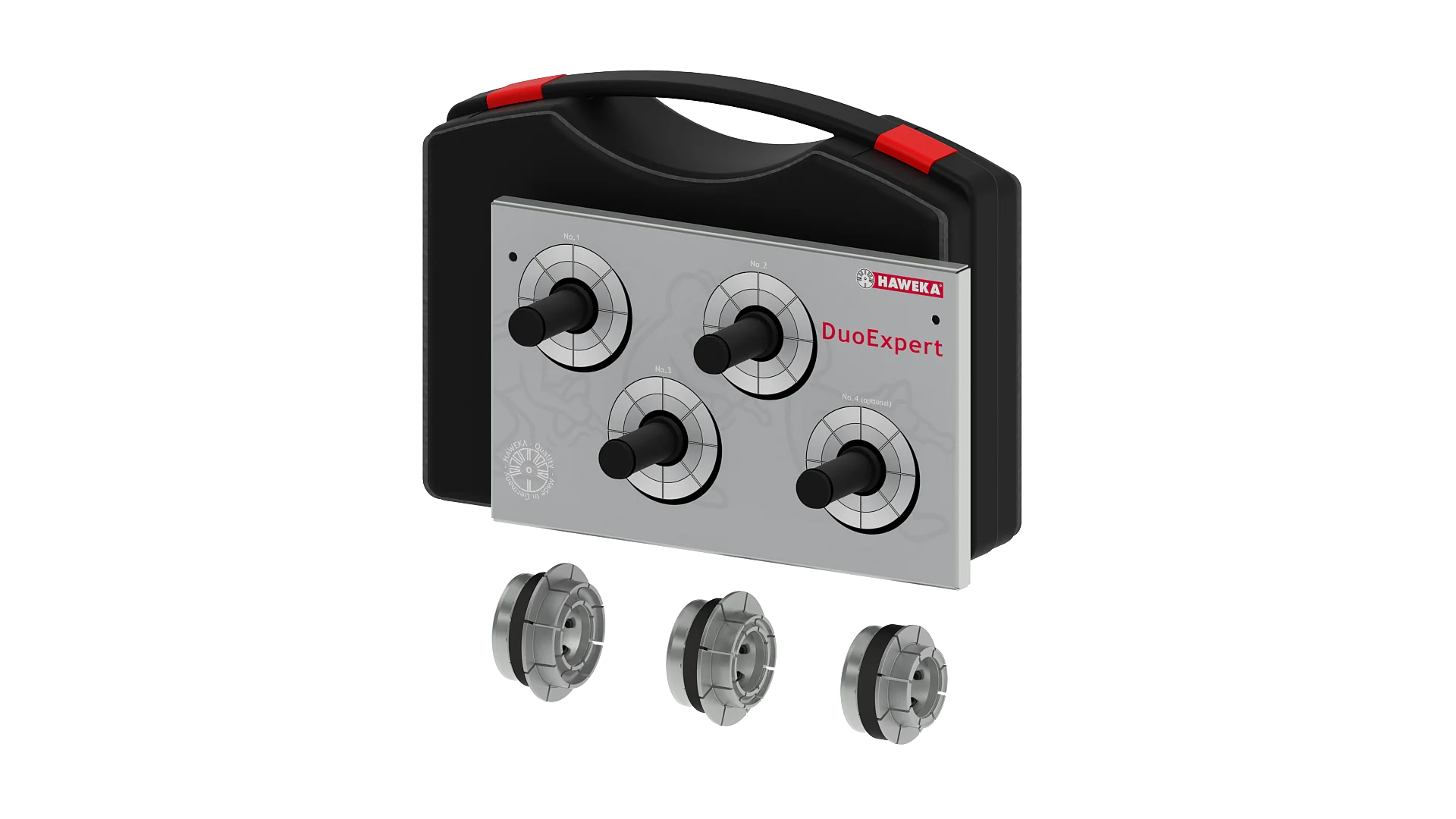

Centering system DuoExpert | 3 collets | 54 - 78 mm | 1 695 656 698 |
Flange extension Off-Road | 40 mm | 1 695 901 667 |
