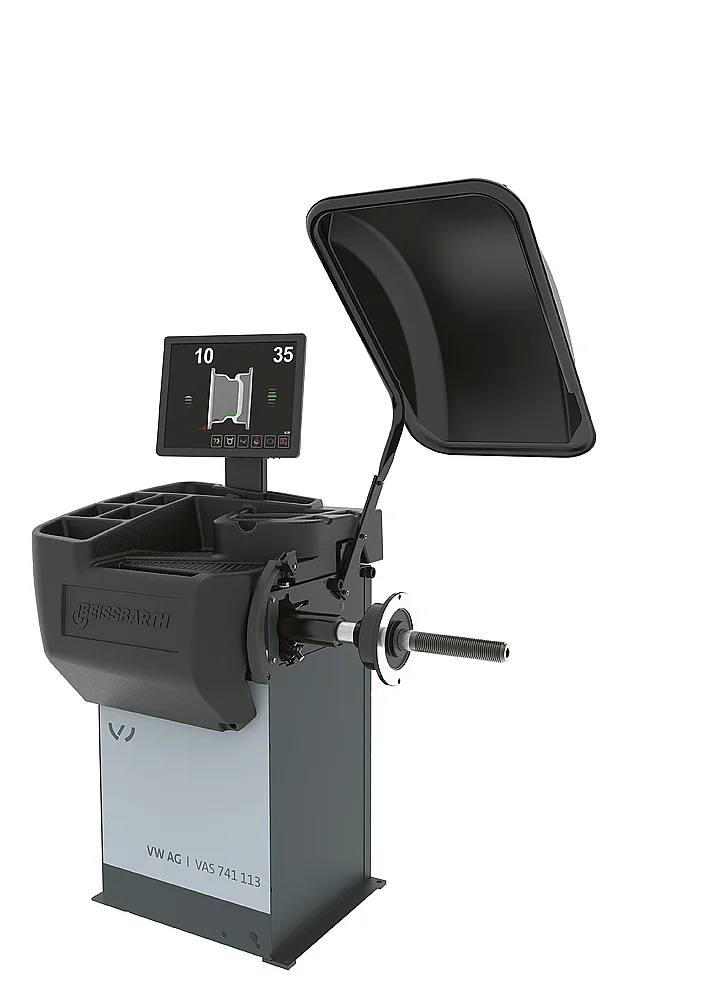

Wheel balancer VAS 741 113
Entry-level wheel balancer | mechanical clamping | automatic data arm | 17" touchscreen | Inside line laser | wheel guard with virtual sonar for steel rims
Article number: 1 692 501 014
Precise balancing in tight spaces: Compact car wheel balancer
Measurement and balancing:
- Balancing in 4.7 seconds
- Automatic stop of the wheel 15° before correction position
- LED for better visibility when placing weights
- Internal line laser for precise positioning of weights
- Split program for hiding weights behind different spokes
Wheel data recognition:
- Automatic data arm for measuring distance and diameter and weight placement
- Automatic selection ofclip-on and adhesive weight program
- Highest measurement accuracy +/- 0.5g
Auto Adaptive Mode:
- Dynamic tolerance adjustment based on weight and size
- Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver
Wheel guard with virtual sonar:
- Automatic recognition of rim width in steel rims
- Without manual input with measuring gauge or sonar
- Closing of wheel guard automatically starts balancing program
17" touchscreen monitor:
- Graphical step-by-step illustrations
- Simplifies correct balancing with guided processes
- Touchscreen usbale with gloves on
Quick clamping:
- Mechanical clamping with quick-lock nut
- Stable 40mm shaft
- Wheel weights up to 75kg
- Optional with wheel lift
Scope of delivery:
- 4 cones Ø43-112,5mm
- Quick-lock nut ProGrip 40x4
- Clamping cap
- Pressure ring
- Rubber ring
- 60g counterweight
- Weight pliers
| Max. wheel diameter | 36" | 914mm " |
|---|---|
| Weight | 110 kg |
| Shaft diameter | 40 mm |
| Measuring speed | 100 rpm |
| Measuring time | 4,7 s |
| Display | 17" Industrial Touchscreen |
| Max. rim width | 20 " |
| Max. rim diameter | 30 " |
| Max. wheel weight | 75 kg |
| Length | 1100 mm |
| Height | 1550 mm |
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
| Width | 960 mm |
| Motor power | 0,15 kW |
| Min. rim diameter | 10 " |
| Number of cones | 4 |
| Balancing accuracy +/- | 0,5 g |
| Packaging length | 1100 mm |
| Packaging width | 700 mm |
| Packaging height | 1165 mm |
| Min. rim width | 1,5 " |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Wheel data recording | Semi-automatic |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 30 Piece(s) |
| Units per 40ft container | 66 Piece(s) |
| Wheel lift VAS 741 119/1 | with memory function | 1 692 502 191 |
|---|---|
| Large clamping cap | for aluminium rims | 1 692 502 044 |
| Flange extension Off-Road | 40 mm | 1 695 901 667 |
| Centering system DuoExpert | 3 collets | 54 - 78 mm | 1 695 656 698 |
| Specific clamping plate set QuickPlate | variable | for 3-, 4-, 5-hole rims | 3 pcs. | 1 695 655 294 |
