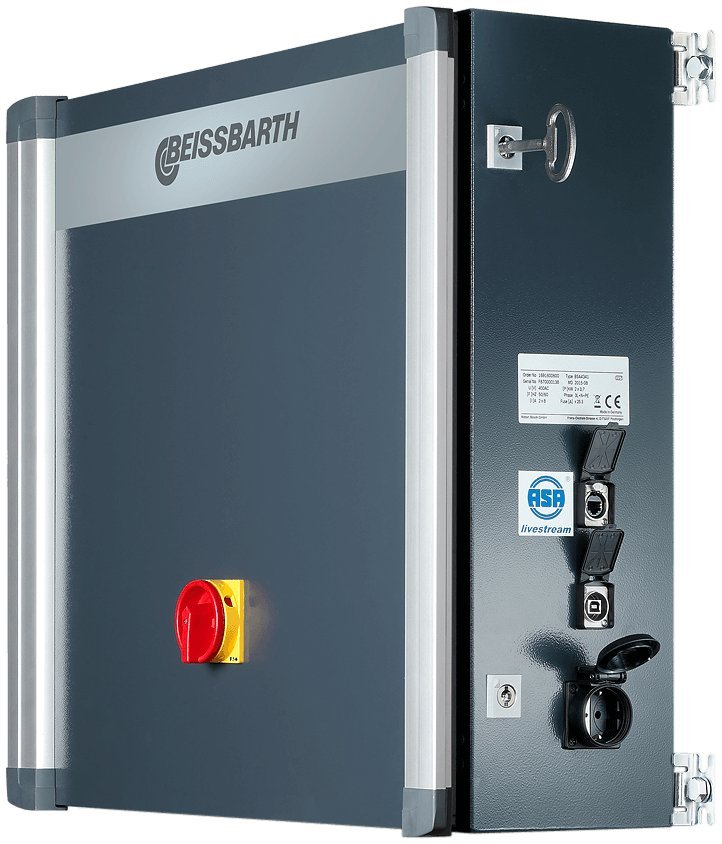

Maximum test weight/axle 3.5 t, Test Speed 5.2 km/h, Speed sensors | with ASA livestream interface | with trolley and PC | electromagnetic brake, 4x4, 700 mm rollers | Extension possibility to test lanes | New! Power-Box inclusive!
Article number: 1 691 600 019
The VAS 6360A brake tester handles all VW and Audi vehicles and is designed from high quality components to ensure robustness and long product life even under the harshest environments. The new version of the VAS 6360A additionally provides the user with an intuitive and fast software. The modular approach further allows easy extensions to complete test lanes at any time. Next to the classical noise detectors, side slip plates and suspension tester, the VAS 6360A brake tester can now also integrates seamlessly into the VAS 741 083 automatic tyre diagnosis system. This not only increase your tyre sales but also generates more wheel alignment service opportunities.
Please note: this configuration does not include an analog display!
|Max. wheel diameter||1000 mm|
|Rim diameter max.||32 "|
|Protection class||IP 54 IP|
|Test speed||5,2 km/h|
|Coefficient of friction dry/wet||0,8 / 0,7|
|Roller length||700 mm|
|Roller elevation||25 mm|
|Rim diameter min.||10 "|
|Axle weight max.||3,5 t|
|Roller diameter||205 mm|
|Test width min.||800 mm|
|Test width max.||2200 mm|
|Min. wheel diameter||320 mm|
|Roller axle distance||381 mm|
|Max. drive-over load||4,0 t|
|Height difference upper edge of roller to workshop floor||-10 mm|
|Edge protection for car brake tester BD 4xxx, 700 mm||1 691 602 000|
|Drive-over plate pluggable | 700 mm||1 691 601 010|
|Drive-over plate swiveling | 700 mm||1 691 601 011|
|Installation frame for car brake tester BD 4xxx, 700 mm||1 691 602 115|
|Digital calibration kit for brake tester||1 691 601 392|
