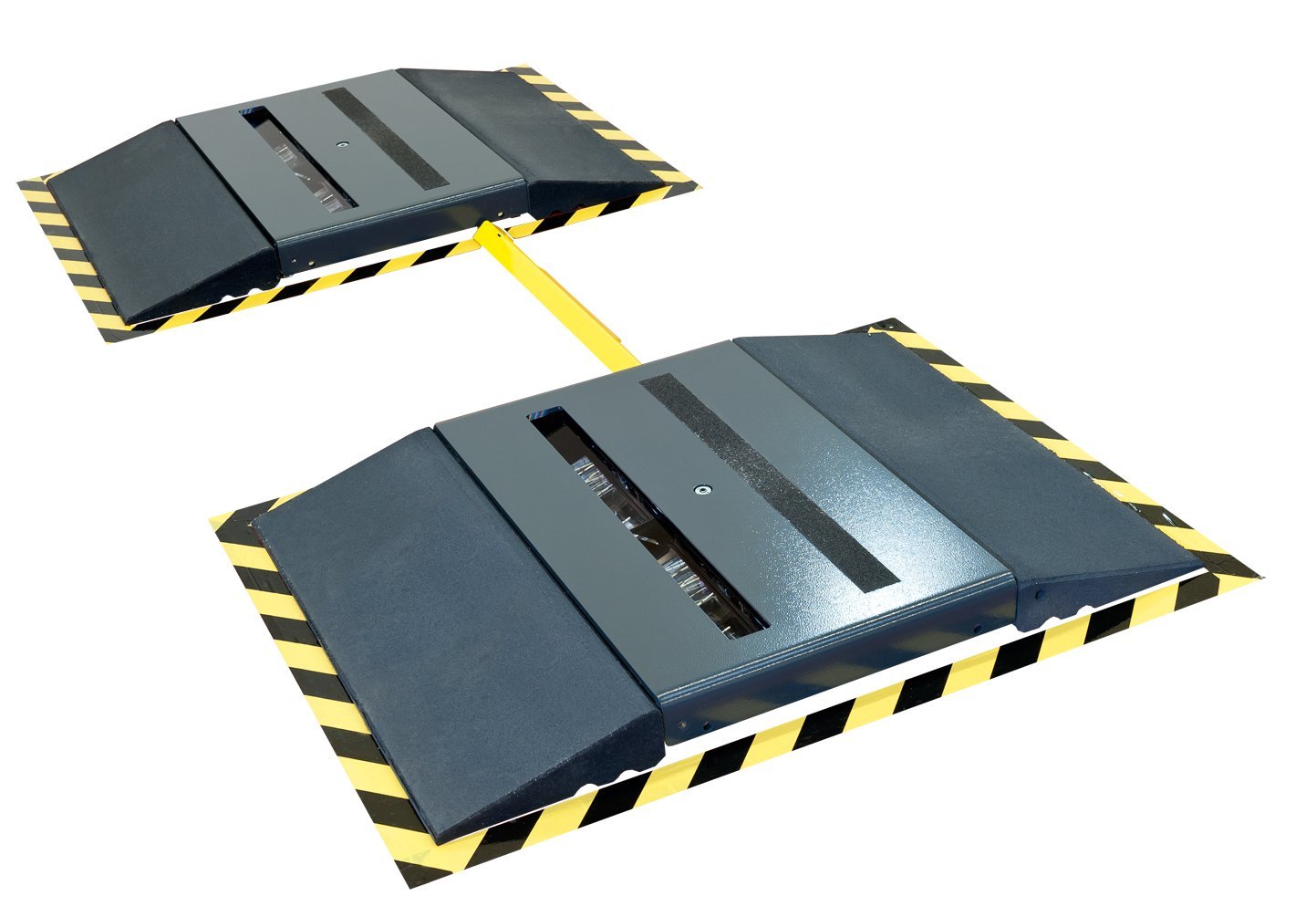

RDS Tyre diagnostic system for above ground / inground installation | without trolley, PC, monitor, mouse and keyboard
Article number: 1 691 200 019
The tyres are the only contact points between a vehicle and the road. The quality of this bonds decides how safely the vehicle can be accelerated and braked. Especially aquaplaning can only be avoided by sufficient tread depth. This is why checking tread wear is a mandatory item of all statutory safety inspection. At the same time, uneven tread wear is a clear indication for a workshop that a wheel alignment should be considered - and that a wheel alignment check should be proposed to the customer.
With the Tyre Diagnostic System (in German "Reifen-Diagnose-System" - RDS), the way the tyres are systematically checked during the vehicle reception is standardized, and thus clearly facilitated. All four wheels are automatically and quickly measured and the result is displayed before the vehicle driver gets out of the car. With the measured tread depths of the tyres immediately available, it is much more easier for the workshop owner to advice the vehicle owner. Positive results given by professional tests, contribute to customer fidelity. The results can be stored in a Windows based system for further references.
The measuring units and the drive-on ramps are anchored to the ground, which makes the installation easy.
For inground installation, the subframe needs to be ordered separately.
ANPR camera can be purchased optionally, depending on above floor or inground installation.

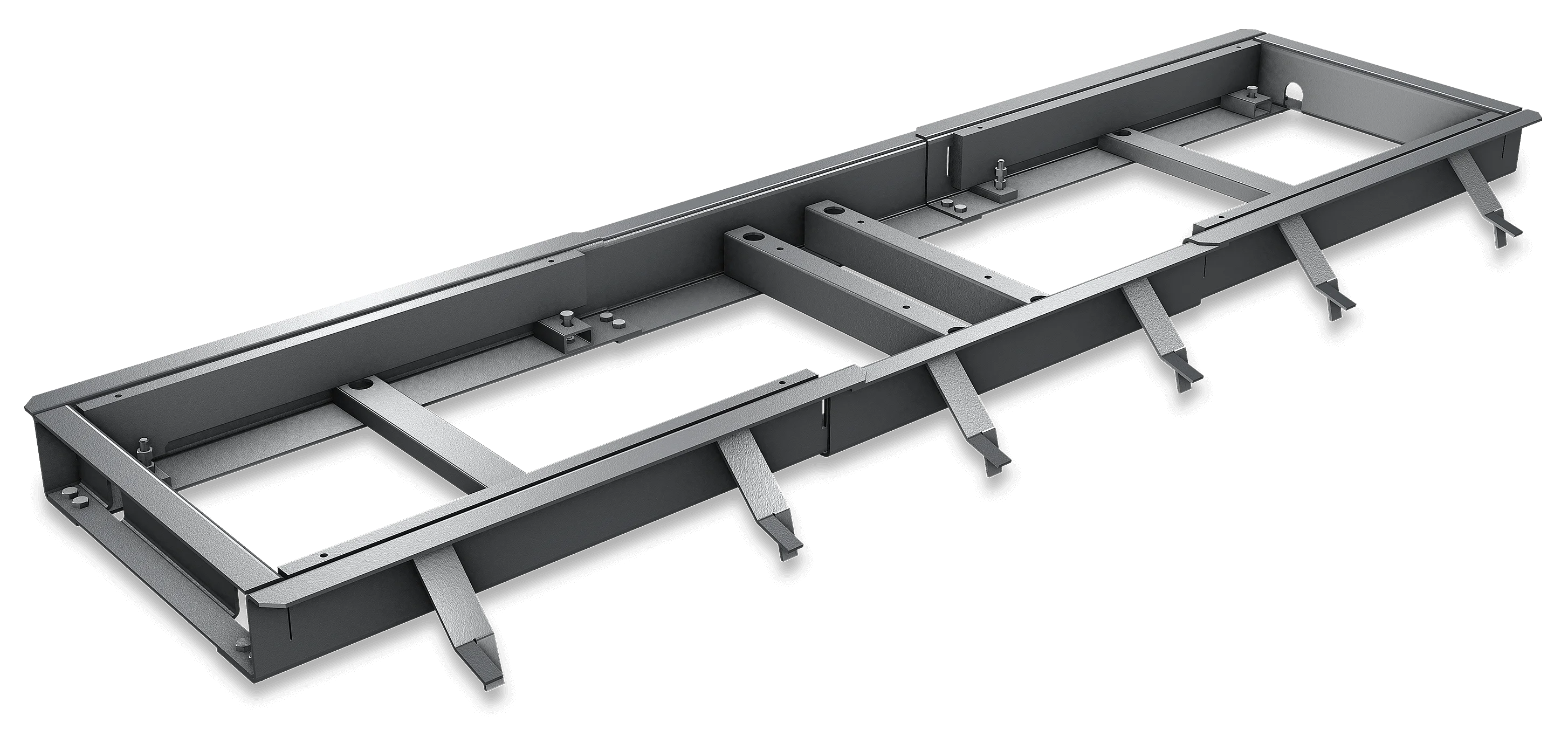

|Foundation frame for Easy Tread and VAS 741083 RDS||1 691 200 010|

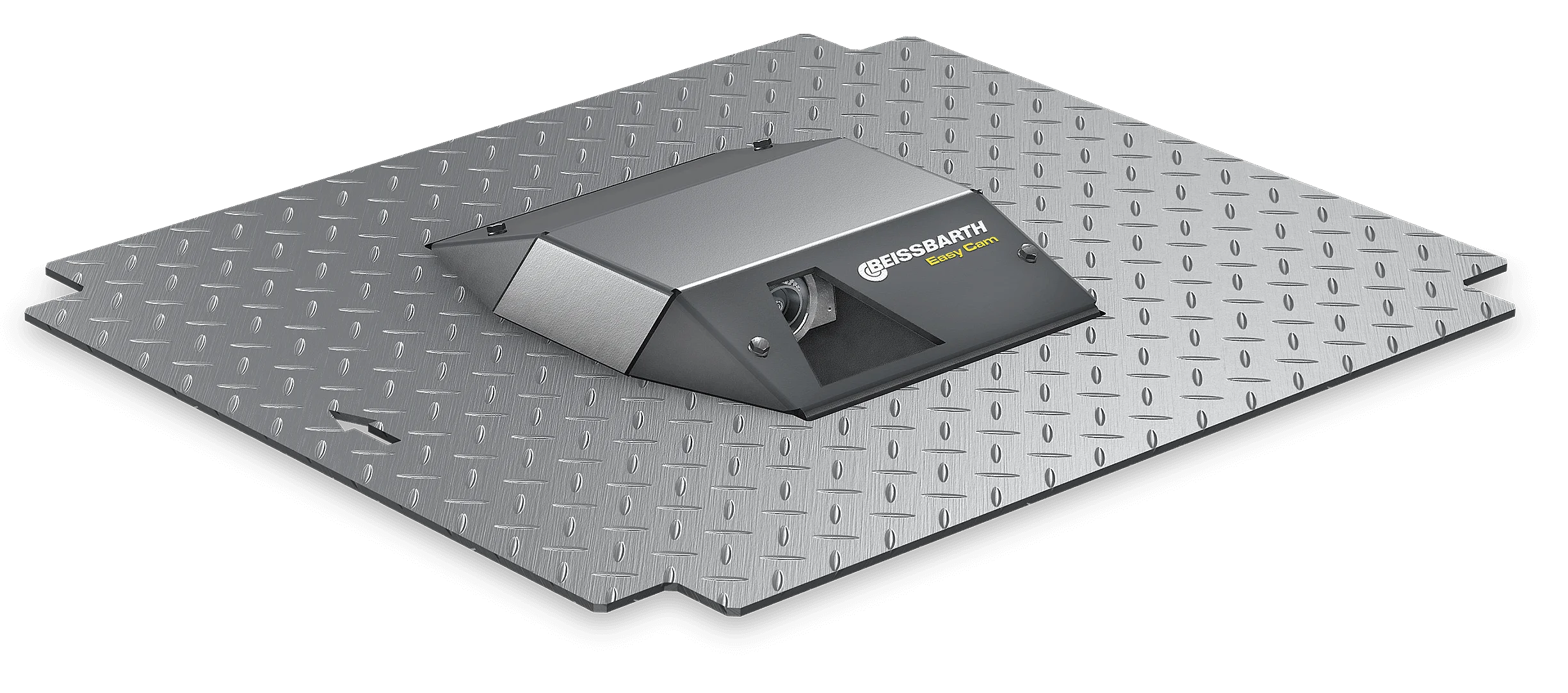

|License plate recognition Easy Cam | Inground||1 691 200 009|

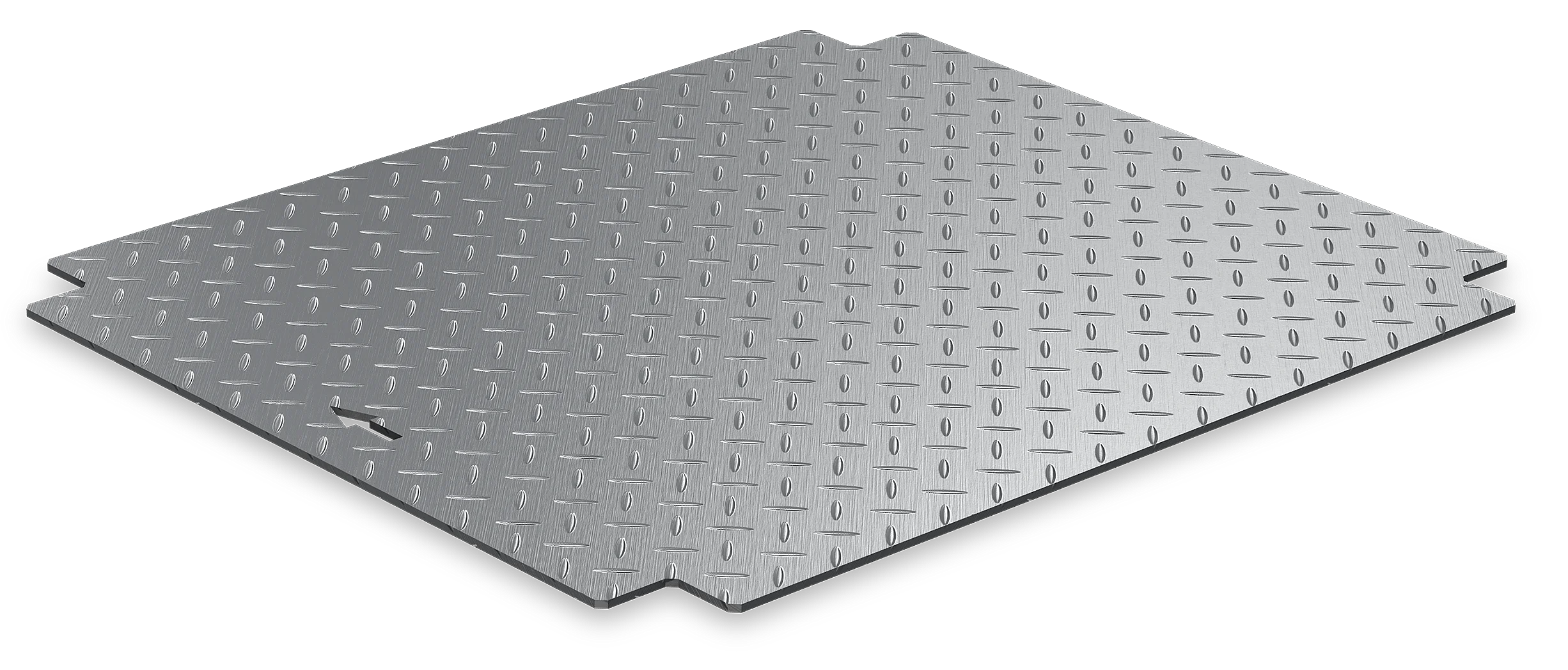

|Centre cover Easy Tread and VAS 741083 RDS||1 691 202 069|

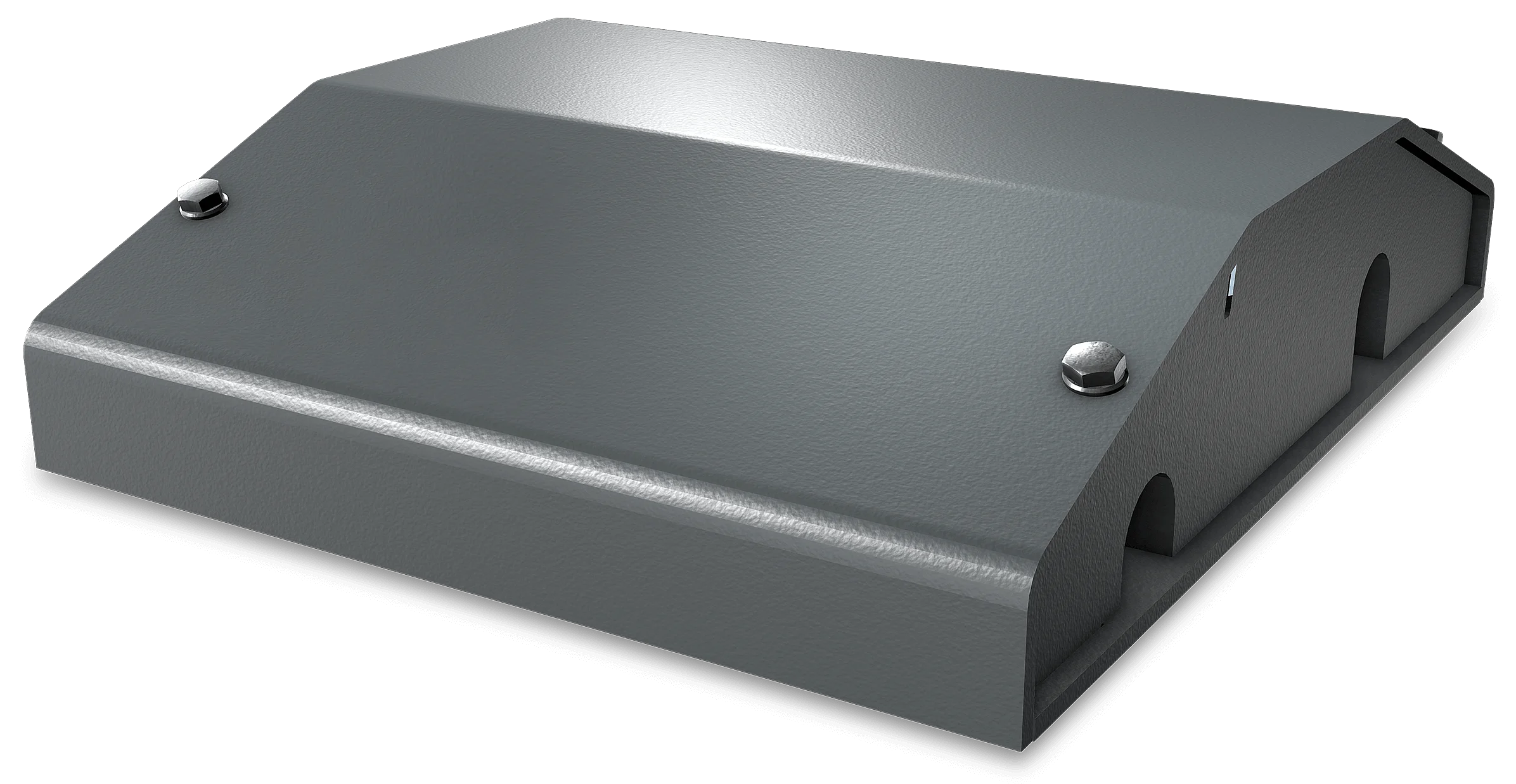

|Cable tunnel | for onground installations of Easy Tread||1 691 201 023|

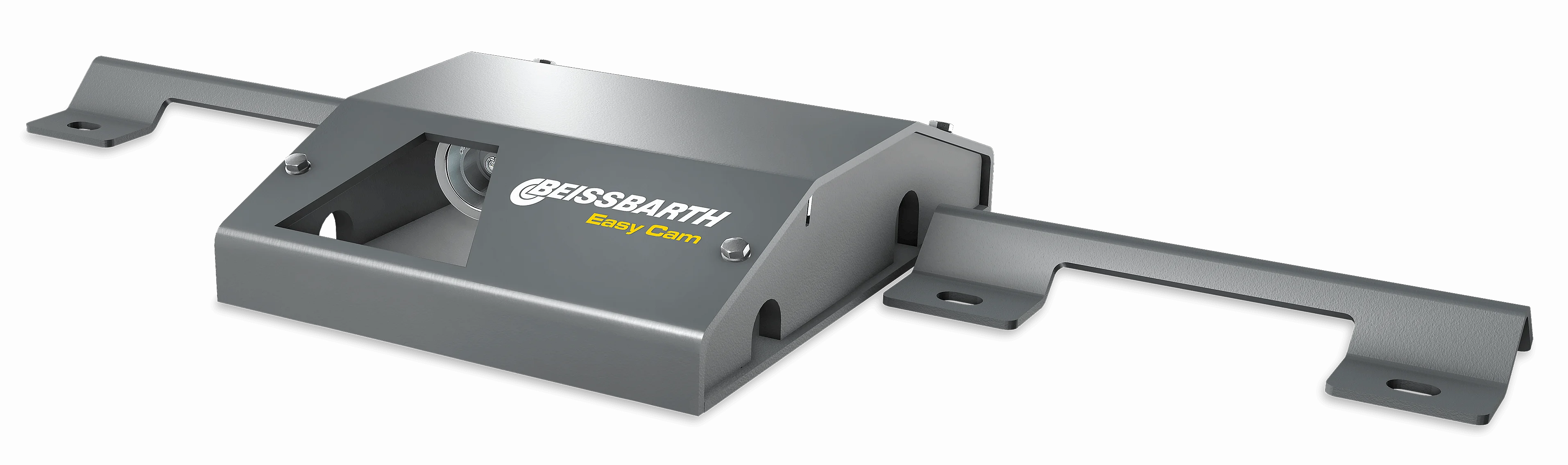

|License plate recognition Easy Cam | Above ground||1 691 200 008|
|Easy Tread - Connectivity Kit||1 691 200 022|
Three cable tunnels needed for onground installations without Easy Cam, only two required for installations with Easy Cam.
Particularly with electric vehicles, high weight and torque cause enormous wear on tires and chassis components. With the automatic tire diagnosis of every vehicle entering the workshop, you not only keep the tire business in your workshop, but also create a basis for strong customer loyalty by ensuring more safety. The immediate evaluation of the tire wear image simultaneously generates service opportunities for wheel alignment and, if necessary, subsequent calibration of driver assistance systems.
The Connectivity Upgrade Kit allows you to seamlessly integrate any number of Easy Tread systems into your workshop network, giving you full control over vehicles

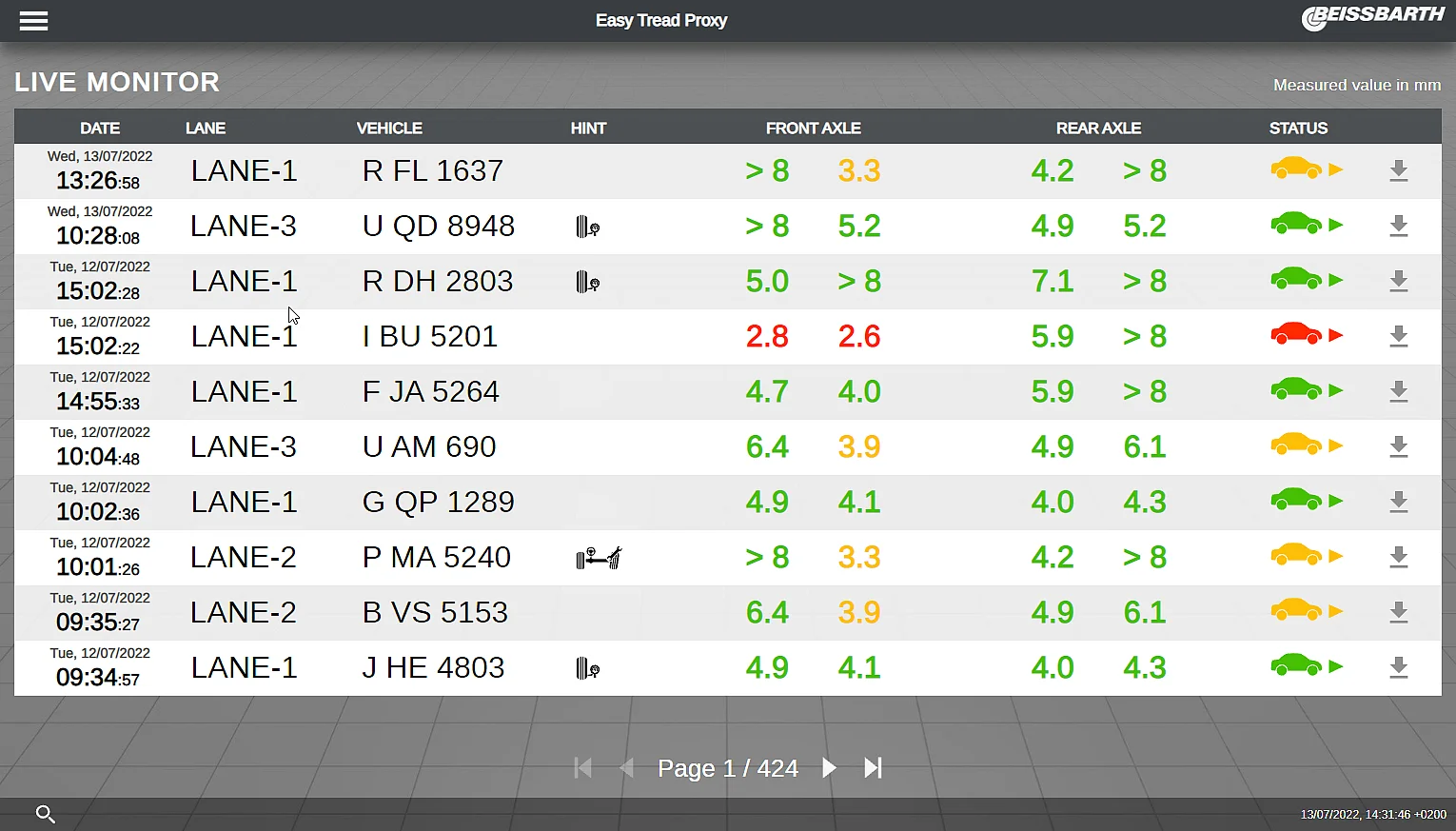

The Live Monitor displays results such as license plate, tread depth, uneven tire wear, potential air pressure problems, as well as statistics from multiple Easy Tread installations. This can be accessed from any device with a web browser. As a result:
Workshop and tire chains take note! Cumulate Easy Tread measurement values even across multiple workshops! Collect crossing information from decentrally spread locations in one central place and increase efficiency in your workshops:
One Connectivity Upgrade Kit is required per Easy Tread. An internet connection is not mandatory.
