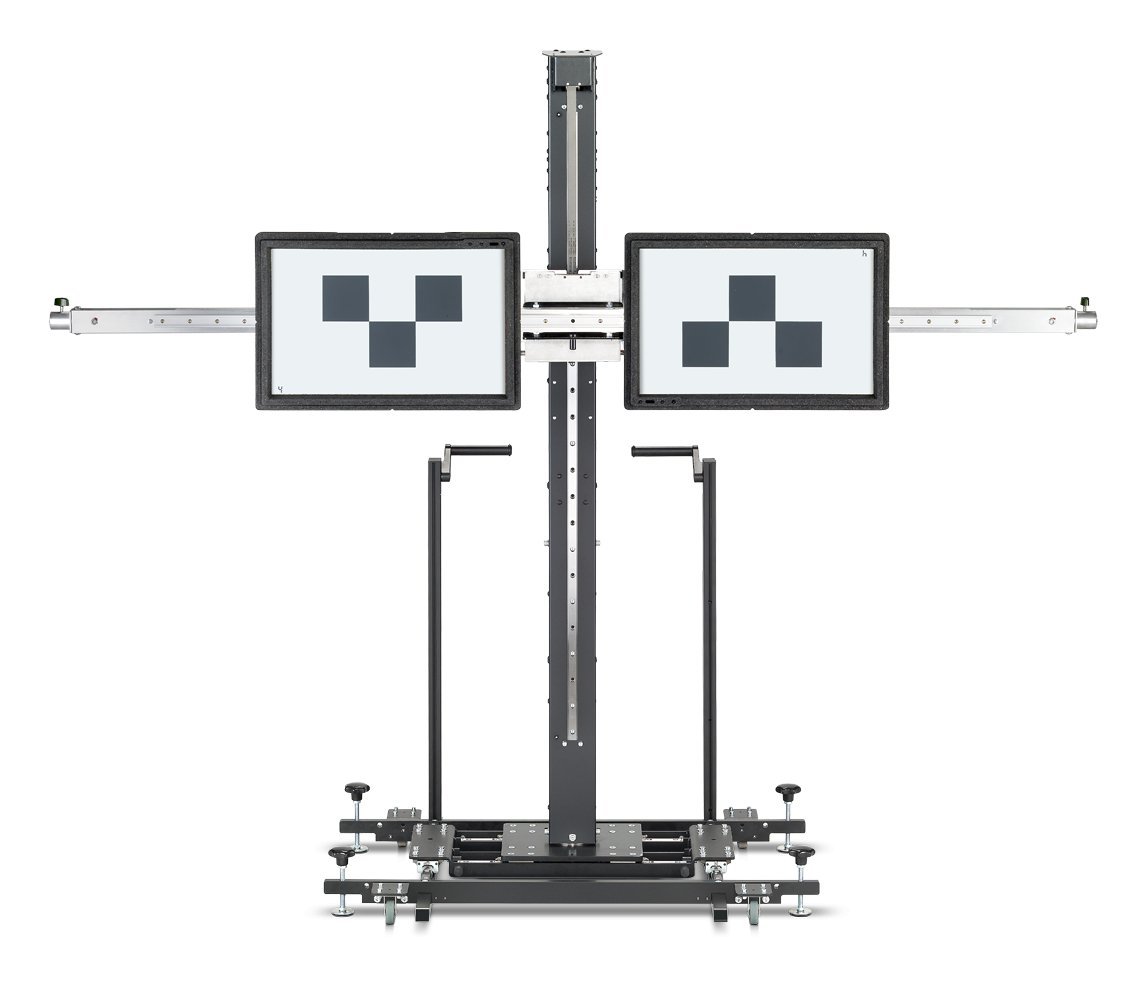

Q.DAS Standard | ADAS Calibration after wheel alignments | 110V Version
Modular solution for ADAS calibration of forward-facing and safety-critical radar, camera, and LIDAR systems. Standard version for workshops with low to medium calibration volumes.
Article number: 8 900 380 020
Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment
Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.
Q.DAS Standard:
- Safety-relevant driver assistance systems: Radar and camera
- Vehicle class: Cars
- Calibration volume in the workshop: low to medium
- Height adjustment: Motorized up to 1700 mm
- Works with all camera calibration targets: Yes
- Supports eTargets: Yes
- Distance adjustment without re-leveling: 200 mm
- Center offset adjustment without re-leveling: 200 mm
Advantages of the Q.DAS system:
1. Digital instead of analog:
- Camera-based positioning via live display
- No Plumb Bobs or measuring tapes
- Full control over entire calibration
- Direct specs instead of manual value transfer*
2. Wheel alignment and ADAS calibration as one process
- No retooling
- No moving of measuring devices
- Permanently ready for use
- Guided instructions for setup and positioning
- Automatic compensation of different installation heights
- Meets highest accuracy requirements of OEMs
3. Modular calibration solution for every workshop
- Free choice of calibration targets and radar mirrors
- Configuration according to calibration volume, budget and space conditions
- No fixed commitment to only one diagnostic tester
- Integrated X-Y slider minimizes leveling
- Motorized height adjustment
Just a few steps to the right system for ADAS calibration
Scope of deliveries:
- 1x Modular Q.DAS frame, without targets or radar mirrors
- 1x Q.mApp software (Android) and license for activation (1 year)
- 1x Digital Bluetooth laser distance gauge
*Costs apply: Requires active Q.mApp license in combination with Q.Lign wheel aligner
US/JP Version with 110V
| Weight | 120 kg |
|---|---|
| Packaging length | 2350 mm |
| Packaging width | 450 mm |
| Packaging height | 530 mm |
| Gross weight | 155 kg |
| eTarget Kit | Digital 15-in-1 solution | 8 900 380 011 |
|---|---|
| 2-in-1 XXL calibration board | for VW front camera and multi-brand radar | Q.DAS | 8 900 381 056 |
| Calibration target set Nissan type 1 | 8 900 381 139 |
| Calibration target set Nissan type 2 | 8 900 381 140 |
| Calibration target set Universal type 2 | 8 900 381 142 |
| Calibration target set Honda type 1 | 8 900 381 143 |
| Calibration target Honda type 2 | 8 900 382 297 |
| Calibration target Honda type 3 | 8 900 382 349 |
| Calibration target set Mitsubishi type 1 | 8 900 381 218 |
| Calibration target Mazda type 1 | 8 900 382 318 |
| Calibration target set Mazda type 2 | 8 900 381 234 |
| Calibration target Toyota type 1 | 8 900 382 287 |
| Calibration target Toyota type 3 | 8 900 382 355 |
| Calibration target Kia / Hyundai type 2 | 8 900 382 320 |
| Calibration target Kia / Hyundai type 3 | 8 900 382 316 |
| Calibration target Mercedes/Infinity type 1 | 8 900 382 312 |
| Calibration target Mercedes / Infinity type 2 | 8 900 382 319 |
| Calibration target Universal type 6S | 8 900 382 571 |
| Calibration target Toyota type 2 | 8 900 382 328 |
| Calibration target Subaru type 3S | 8 900 382 590 |
| Calibration target Subaru type 2S | 8 900 382 608 |
| ACC reflector mirror | for radar calibration | 8 900 381 150 |
| Multi-Target starter kit 1 | 8 900 381 001 |
| Multi-Target starter kit 2 | 8 900 381 002 |
| Q.mApp | License Key 365 | 8 900 388 001 |
