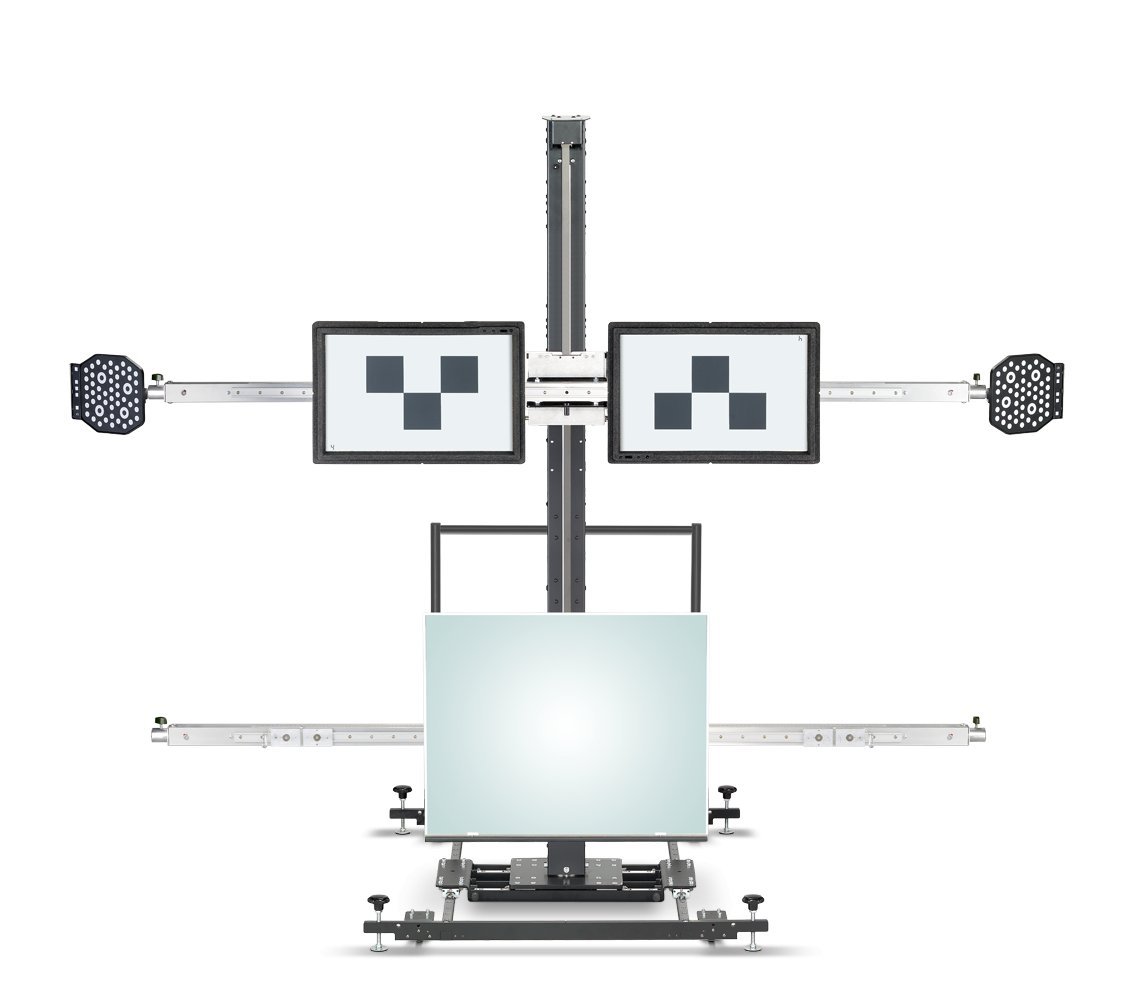

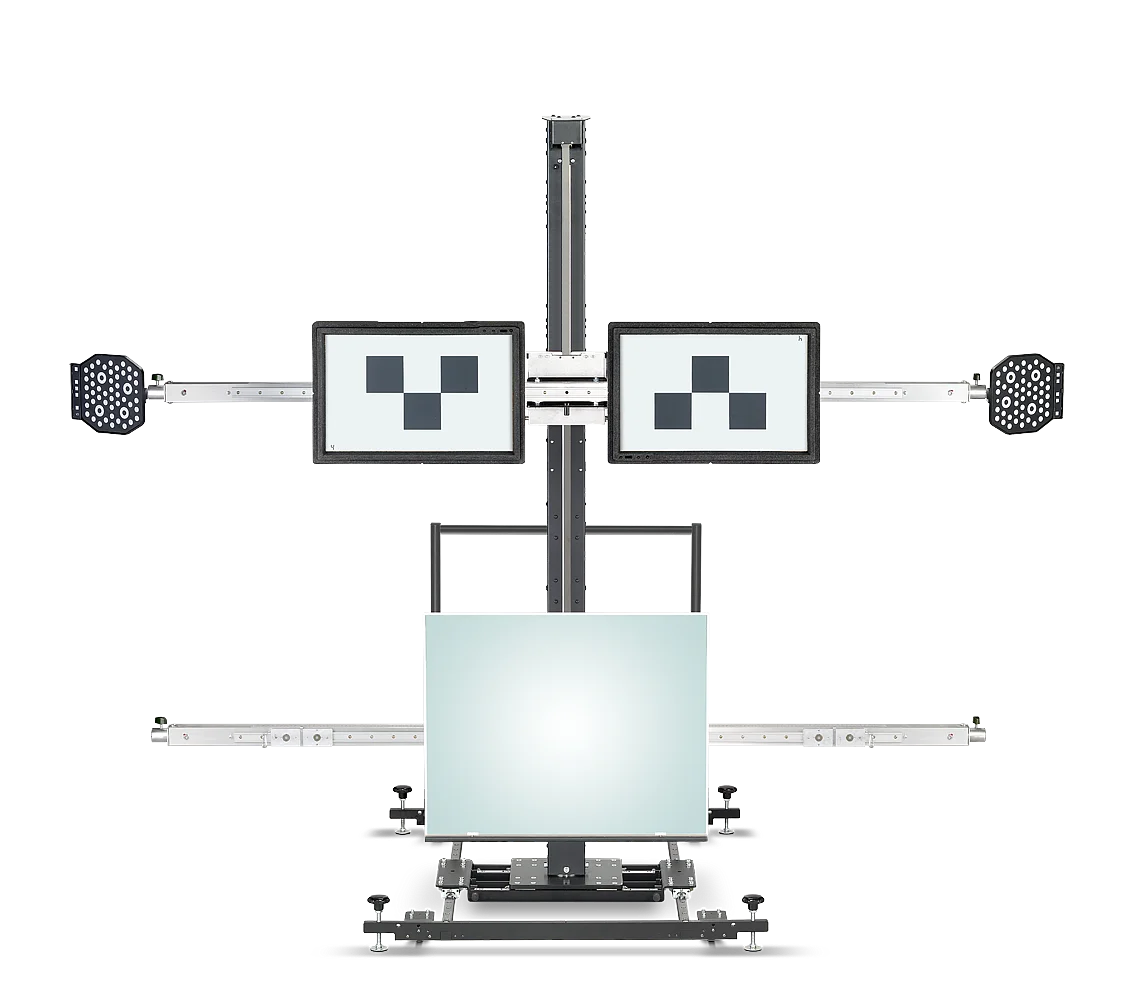

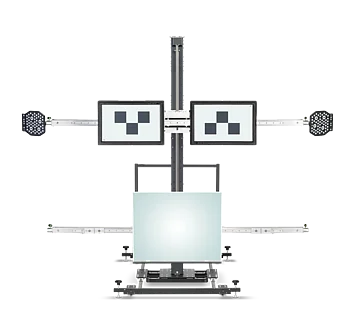

Q.DAS Pro | ADAS Calibration after wheel alignments

Modular solution for ADAS calibration of forward-facing and safety-critical radar, camera, and LIDAR systems. Pro version for workshops with high calibration volumes.

Article number: 8 900 380 012

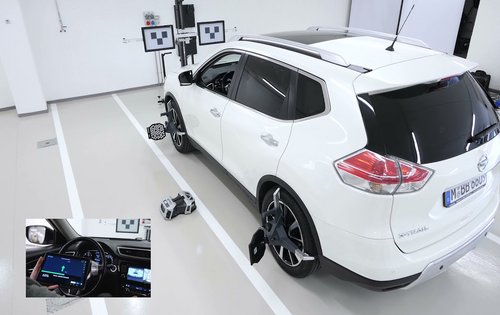

Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment
Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.

Q.DAS Pro:

Safety-relevant driver assistance systems: Radar and camera
Vehicle class: Cars and light commercial vehicles
Calibration volume in the workshop: high
Height adjustment: Motorized up to 2050 mm
Works with all camera calibration targets: Yes
Supports eTargets: Yes
Distance adjustment without re-leveling: 900 mm
Center offset adjustment without re-leveling: 200 mm

Advantages of the Q.DAS system:

1. Digital instead of analog:

Camera-based positioning via live display
No Plumb Bobs or measuring tapes
Full control over entire calibration
Direct specs instead of manual value transfer*

2. Wheel alignment and ADAS calibration as one process

No retooling
No moving of measuring devices
Permanently ready for use
Guided instructions for setup and positioning
Automatic compensation of different installation heights
Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

Free choice of calibration targets and radar mirrors
Configuration according to calibration volume, budget and space conditions
No fixed commitment to only one diagnostic tester
Integrated X-Y slider minimizes leveling
Motorized height adjustment

Just a few steps to the right system for ADAS calibration

Scope of deliveries:

1x Modular Q.DAS frame, without targets or radar mirrors
1x Q.mApp software (Android) and license for activation (1 year)
1x Digital Bluetooth laser distance gauge

*Costs apply: Requires active Q.mApp license in combination with Q.Lign wheel aligner

Weight	157 kg
Packaging length	2350 mm
Packaging width	450 mm
Packaging height	530 mm
Gross weight	187 kg

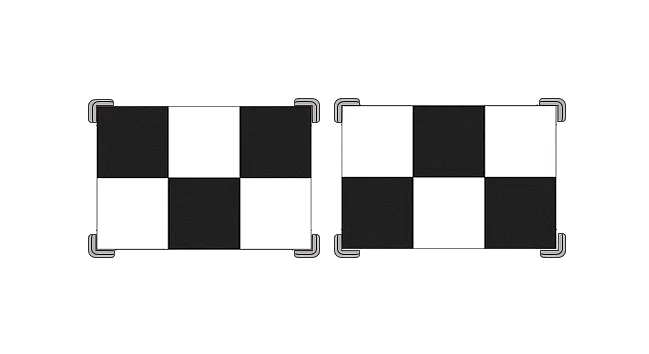

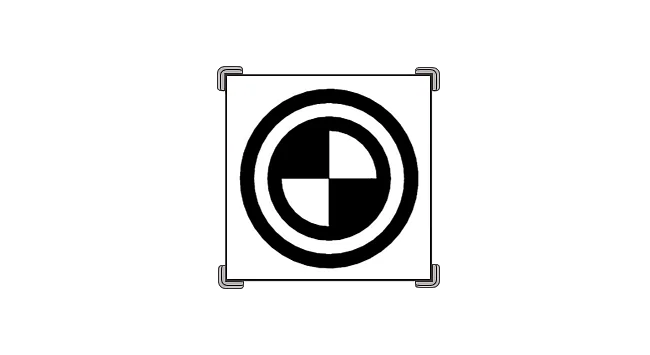

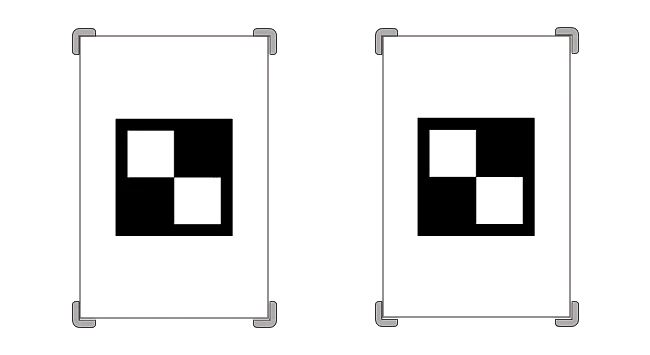

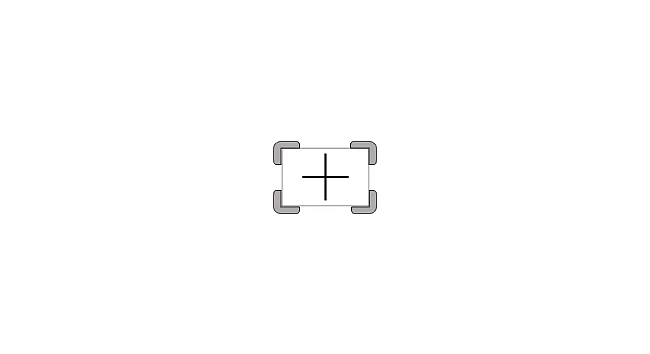

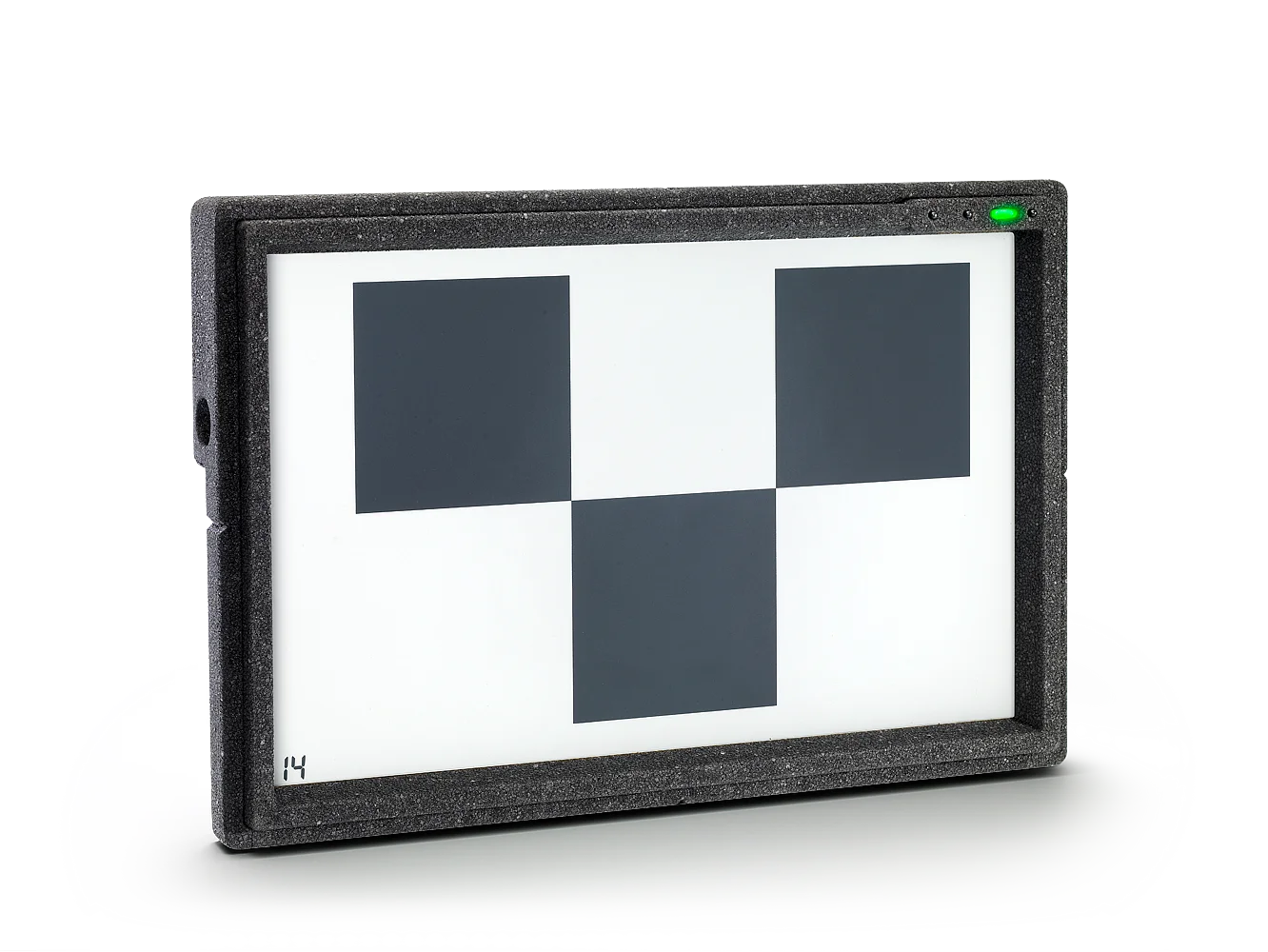

eTarget Kit \| Digital 15-in-1 solution	8 900 380 011

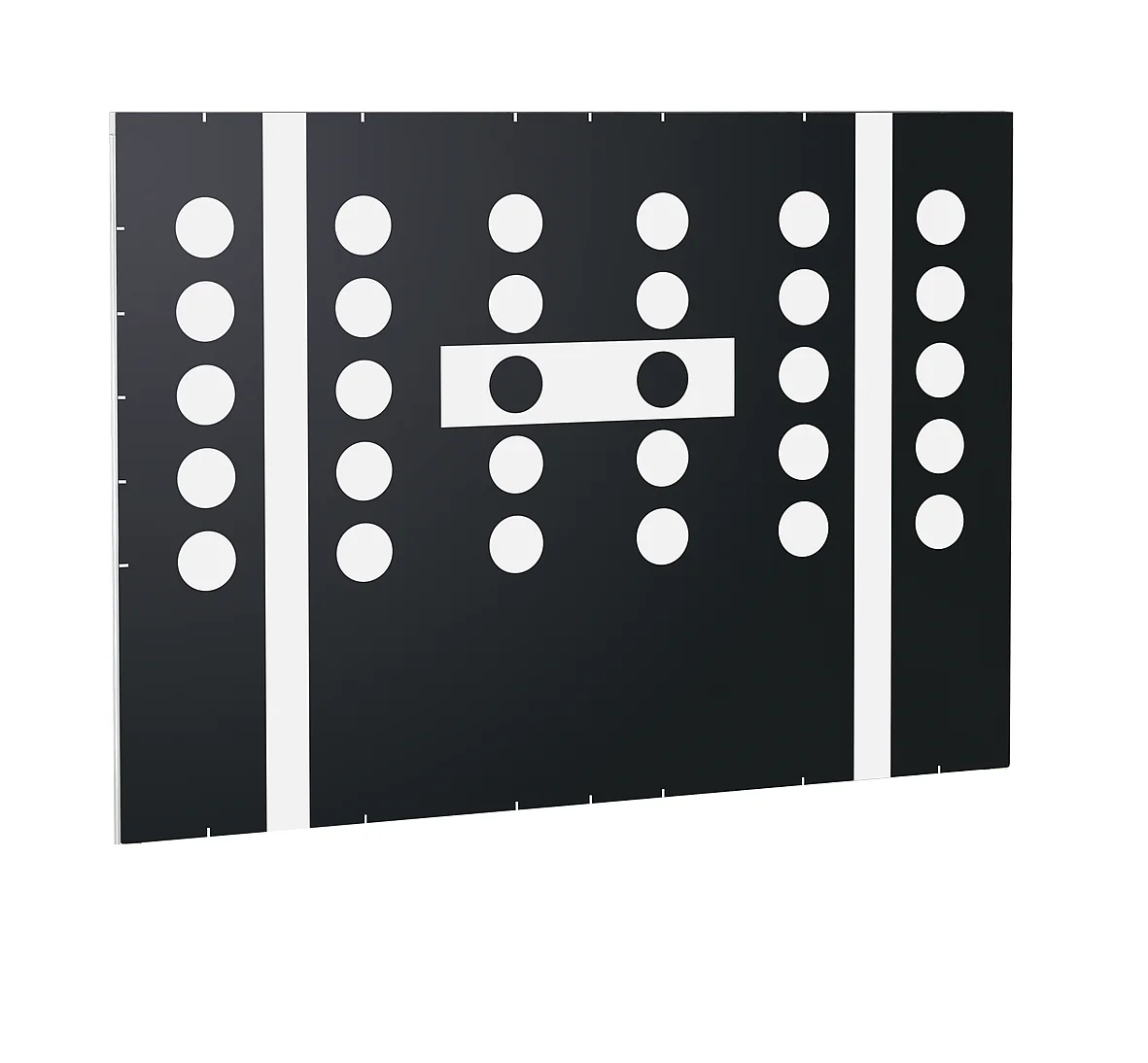

2-in-1 XXL calibration board \| for VW front camera and multi-brand radar \| Q.DAS	8 900 381 056

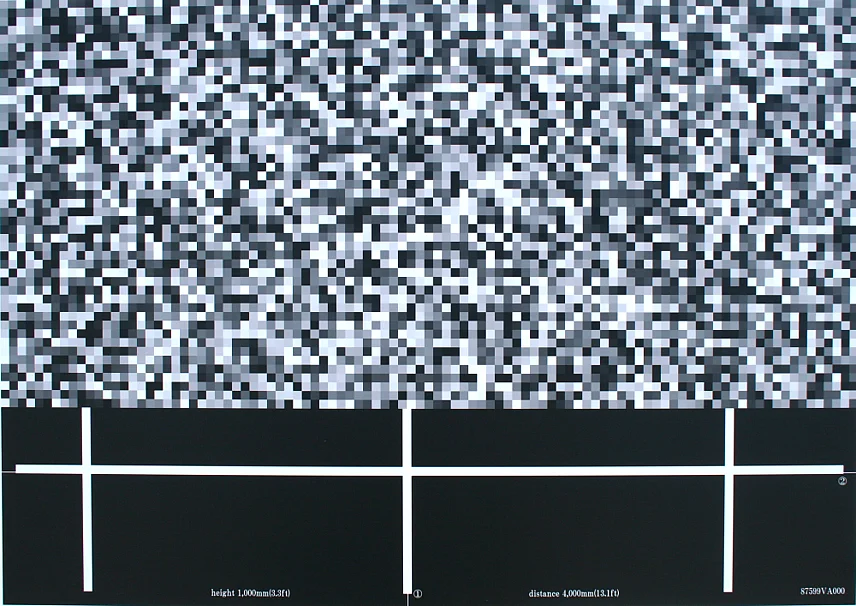

Calibration target set Nissan type 1	8 900 381 139
Calibration target set Nissan type 2	8 900 381 140
Calibration target set Universal type 2	8 900 381 142
Calibration target set Honda type 1	8 900 381 143
Calibration target Honda type 2	8 900 382 297
Calibration target Honda type 3	8 900 382 349
Calibration target set Mitsubishi type 1	8 900 381 218
Calibration target Mazda type 1	8 900 382 318
Calibration target set Mazda type 2	8 900 381 234
Calibration target Toyota type 1	8 900 382 287
Calibration target Toyota type 3	8 900 382 355
Calibration target Kia / Hyundai type 2	8 900 382 320
Calibration target Kia / Hyundai type 3	8 900 382 316
Calibration target Mercedes/Infinity type 1	8 900 382 312
Calibration target Mercedes / Infinity type 2	8 900 382 319
Calibration target Universal type 6S	8 900 382 571
Calibration target Toyota type 2	8 900 382 328
Calibration target Subaru type 3S	8 900 382 590
Calibration target Subaru type 2S	8 900 382 608

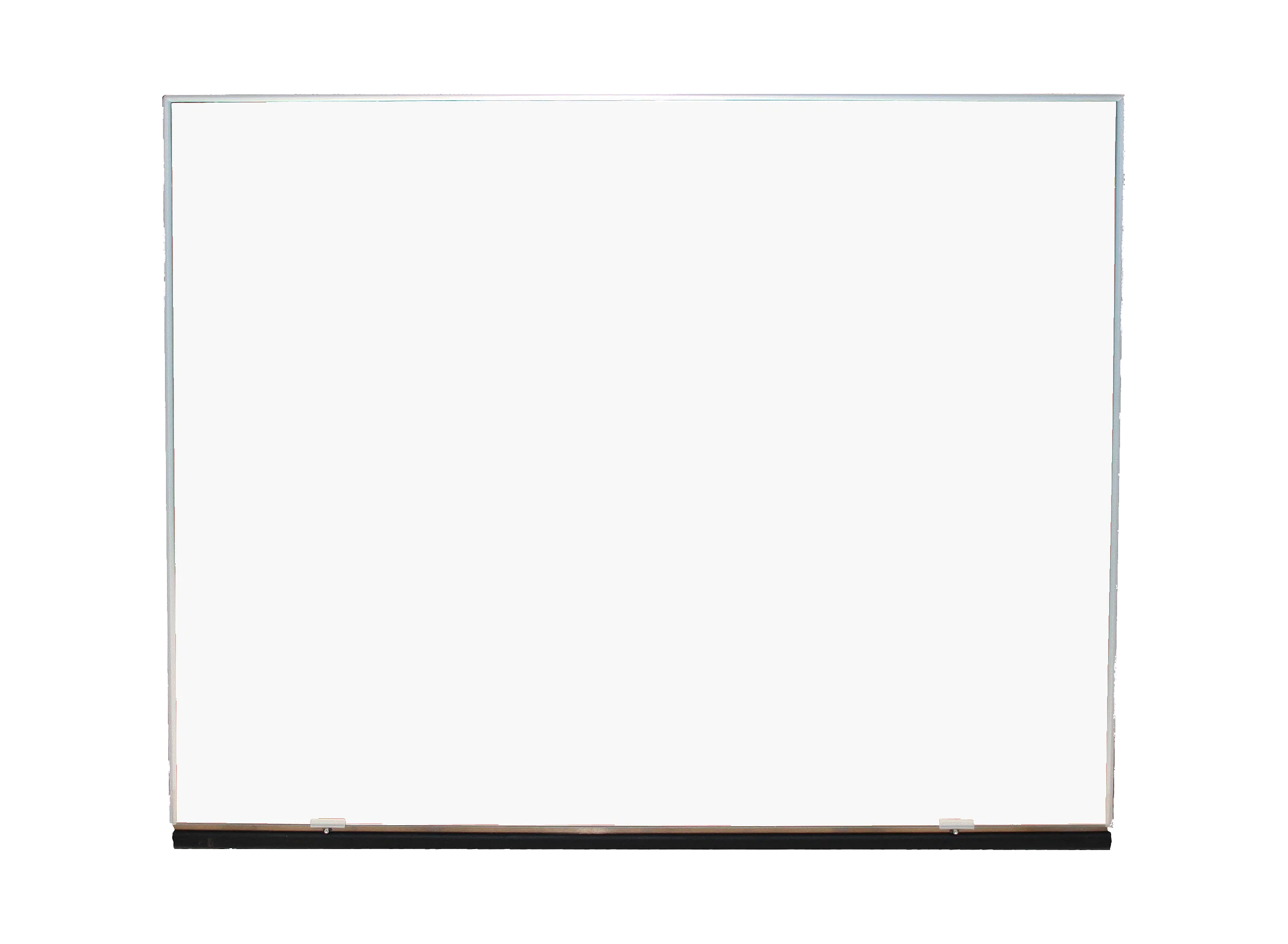

ACC reflector mirror \| for radar calibration	8 900 381 150

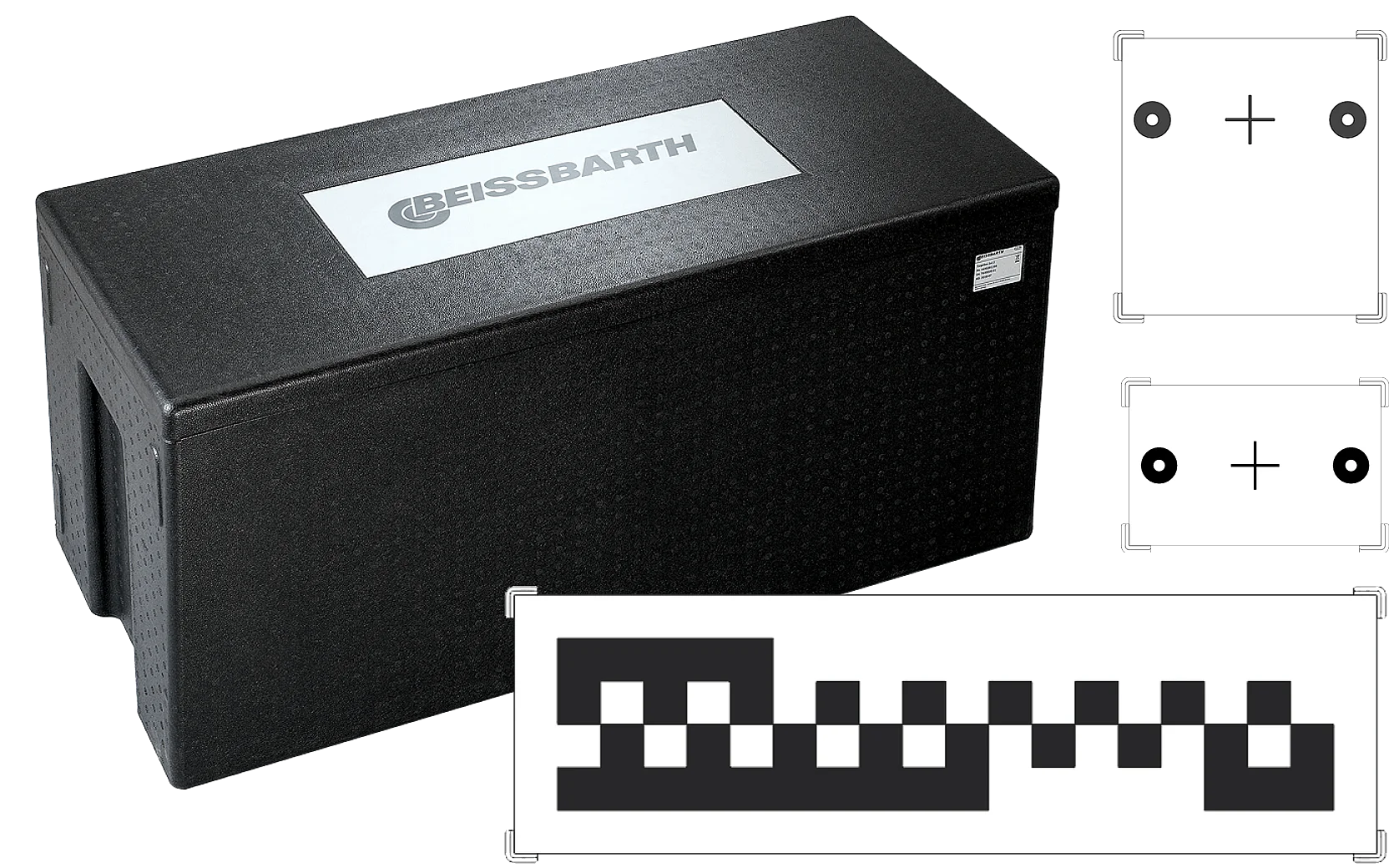

Multi-Target starter kit 1	8 900 381 001
Multi-Target starter kit 2	8 900 381 002
Q.mApp \| License Key 365	8 900 388 001
