Q.DAS Standard | ADAS Calibration after wheel alignments

Modular solution for ADAS calibration of forward-facing and safety-critical radar, camera, and LIDAR systems. Standard version for workshops with low to medium calibration volumes.

Article number: 8 900 380 010

Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment

Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.

Q.DAS Standard:

  • Safety-relevant driver assistance systems: Radar and camera
  • Vehicle class: Cars
  • Calibration volume in the workshop: low to medium
  • Height adjustment: Motorized up to 1700 mm
  • Works with all camera calibration targets: Yes
  • Supports eTargets: Yes
  • Distance adjustment without re-leveling: 200 mm
  • Center offset adjustment without re-leveling: 200 mm

Advantages of the Q.DAS system:

1. Digital instead of analog:

  • Camera-based positioning via live display
  • No plump bobs or measuring tapes
  • Full control over entire calibration
  • Direct specs instead of manual value transfer*

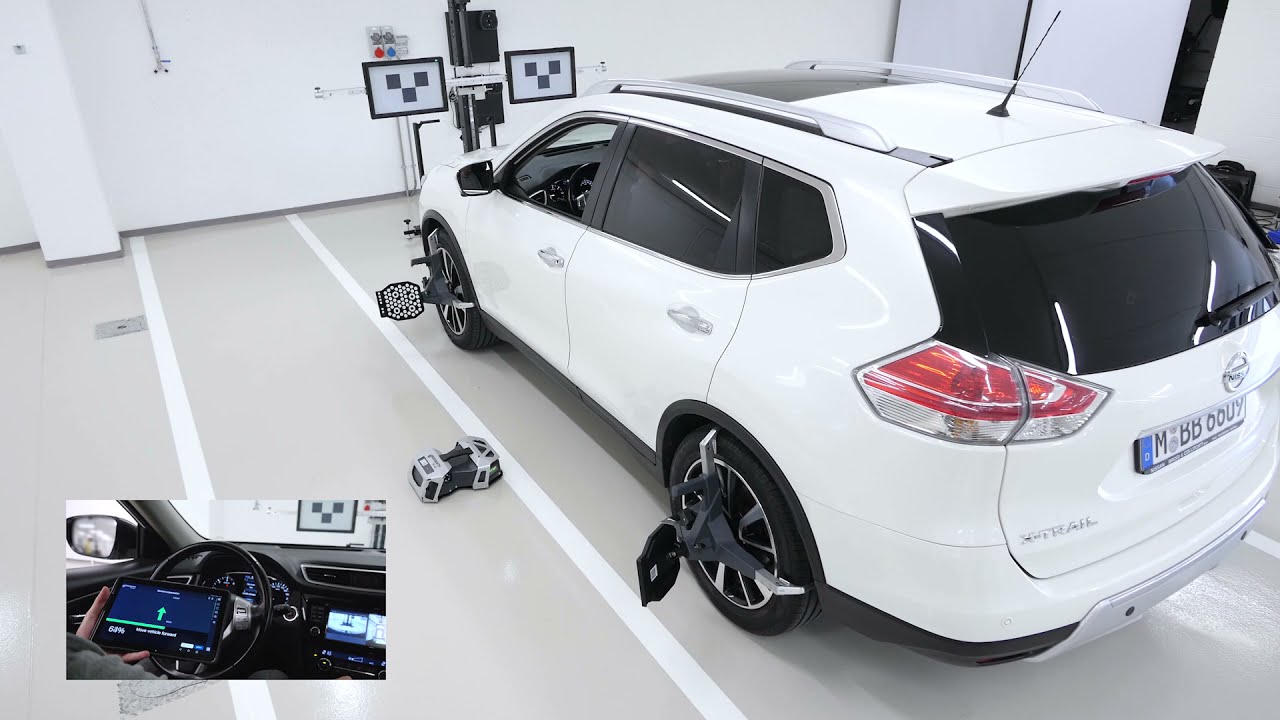

2. Wheel alignment and ADAS calibration as one process

  • No retooling
  • No moving of measuring devices
  • Permanently ready for use
  • Guided instructions for setup and positioning
  • Automatic compensation of different installation heights
  • Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

  • Free choice of calibration targets and radar mirrors
  • Configuration according to calibration volume, budget and space conditions
  • No fixed commitment to only one diagnostic tester
  • Integrated X-Y slider minimizes leveling
  • Motorized height adjustment

Just a few steps to the right system for ADAS calibration

Scope of deliveries:

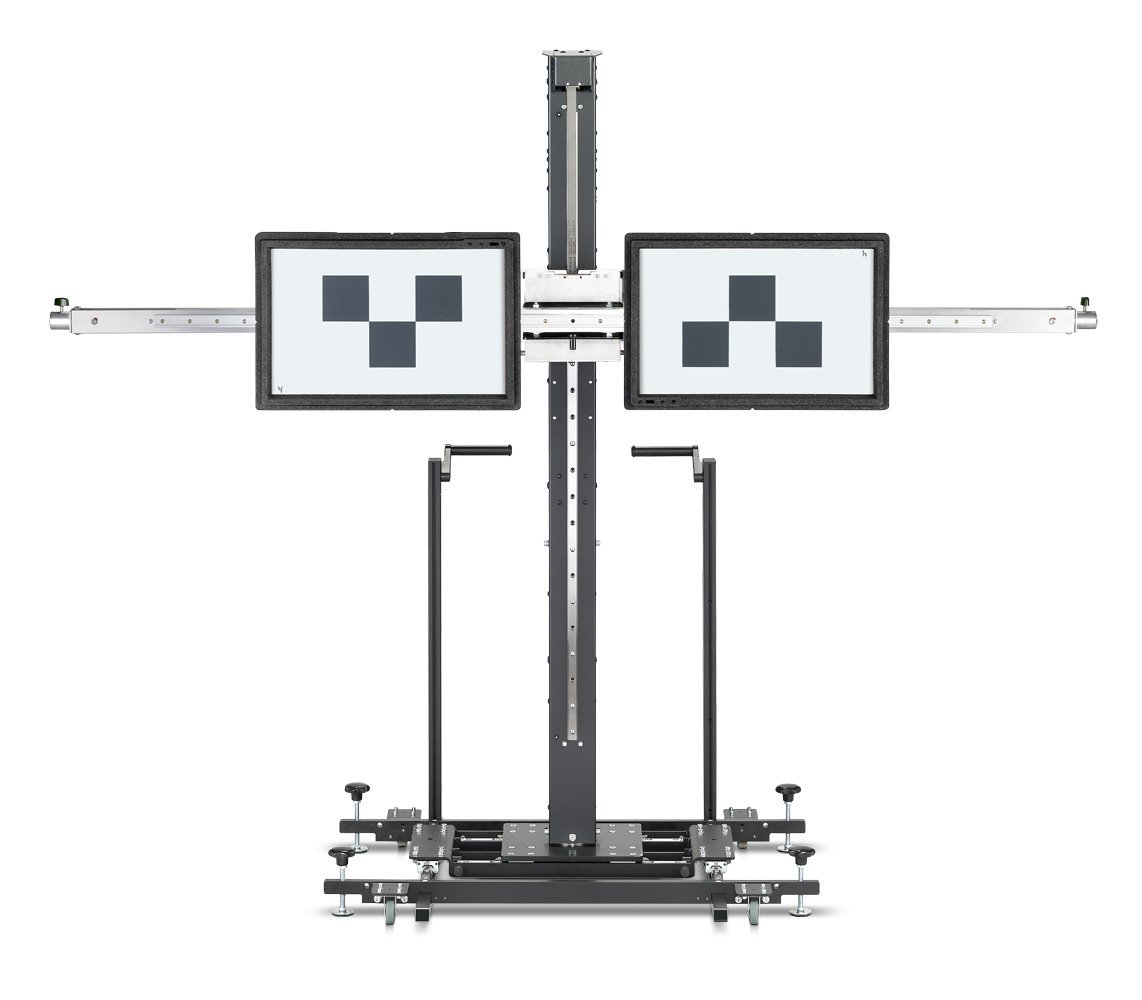

  • 1x Modular Q.DAS frame, without targets or radar mirrors
  • 1x Q.mApp software (Android) and license for activation (1 year)
  • 1x Digital Bluetooth laser distance gauge

*Costs apply: Requires active Q.mApp license in combination with Q.Lign wheel aligner

Weight120 kg
Packaging length2350 mm
Packaging width450 mm
Packaging height530 mm
Gross weight155 kg
eTarget Kit | Digital 15-in-1 solution8 900 380 011
2-in-1 XXL calibration board | for VW front camera and multi-brand radar | Q.DAS8 900 381 056
Calibration target set Nissan type 18 900 381 139
Calibration target set Nissan type 28 900 381 140
Calibration target set Universal type 28 900 381 142
Calibration target set Honda type 18 900 381 143
Calibration target Honda type 28 900 382 297
Calibration target Honda type 38 900 382 349
Calibration target set Mitsubishi type 18 900 381 218
Calibration target Mazda type 18 900 382 318
Calibration target set Mazda type 28 900 381 234
Calibration target Toyota type 18 900 382 287
Calibration target Toyota type 38 900 382 355
Calibration target Kia / Hyundai type 28 900 382 320
Calibration target Kia / Hyundai type 38 900 382 316
Calibration target Mercedes/Infinity type 18 900 382 312
Calibration target Mercedes / Infinity type 28 900 382 319
Calibration target Universal type 6S8 900 382 571
Calibration target Toyota type 28 900 382 328
Calibration target Subaru type 3S8 900 382 590
Calibration target Subaru type 2S8 900 382 608
ACC reflector mirror | for radar calibration8 900 381 150
Multi-Target starter kit 1 8 900 381 001
Multi-Target starter kit 2 8 900 381 002
Q.mApp | License Key 3658 900 388 001
