Headlight testing device MLD 10

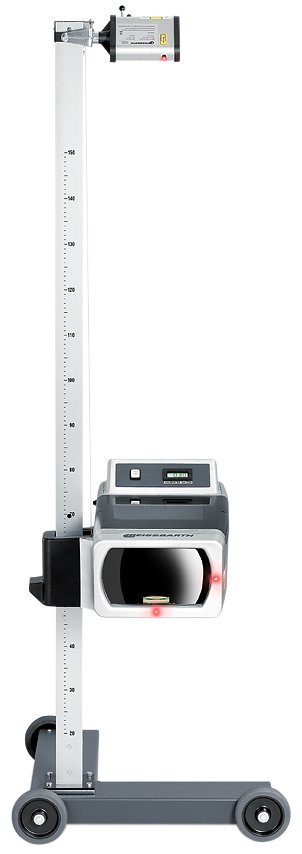

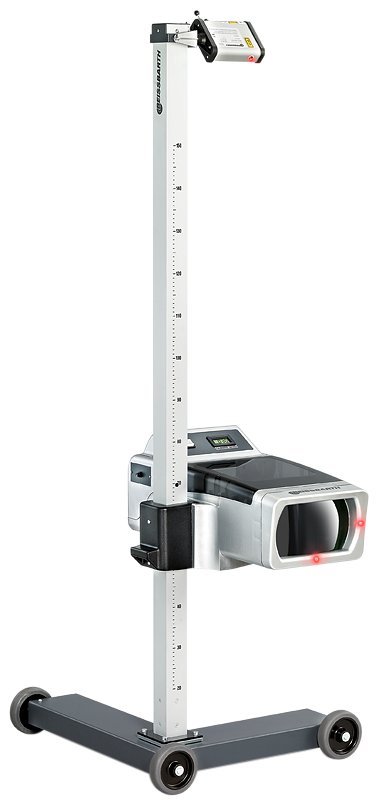

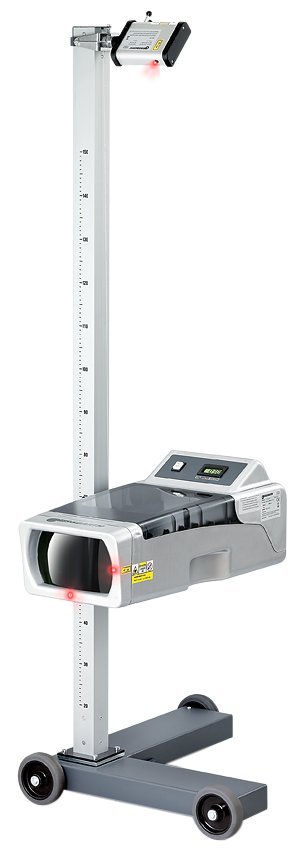

Beissbarth MLD 10 - Analog headlight testing device

Article number: 1 692 104 357

Analog headlight testing device MLD 10: Basis for headlamp testing

  • Cross- and alignment laser with turntable column for precise positioning
  • For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen)
  • All types of vehicles (passenger cars, trucks, motorcycles)
  • All types of headlights (main headlights, fog lamps, auxiliary lamps)
  • Operating panel can be rotated by 180° for different areas of application (e.g. for general inspections or for the adjustment at the workshop)
  • Measuring height (optical center): 25 - 150 cm
  • Intensity measurement: Luxmeter with digital display
  • Two-dimensional spirit level for horizontal leveling of the optical box
  • Levelable 3-Wheel base system fitting for all common rail systems
  • Levelable rail system for above and inground installation (3 m) as optional available accessory
  • Complies with latest legal requirements in Europe


For rail operation a wheelhub shell set is required (item no. 1 692 105 188)

Certificates: CE, TÜV

Weight33 kg
Operating temperature5 - 45 °C
Battery voltage (DC)9 V
Height of light center250 - 1250 mm
Measuring range lowest stand/highest stand0 - -400 mm
Illumination(25m) 0 - 240 lx
Storage temperature-25 - 45 °C
Version- analogue
Packaging length1810 mm
Packaging width660 mm
Packaging height500 mm
Gross weight53 kg
Measuring range low beam left/right300 - -300 mm
Measuring range high beam left/right50 - -300 mm
Relative humidity storage20 - 80 %
Relative humidity, use30 - 60 %
Radiant power alignment laser5 mW
Operating voltage alignment laser3 - 5 V (DC)
Laser class alignment laser3R
Projection alignment laser130° x 0,4 mrad
Laser diode alignment laser635 nm
Laser class cross laser3R
Projection cross laser90° x 0,4 mrad
Laser diode cross laser635 nm
Radiant power cross laser5 mW
Operating voltage cross laser3 - 5 V (DC)
Rail kit 3 m1 692 105 080
Extension kit for rail kit | 1.5 m1 692 105 112
Wheelhub shell for rail system 1 692 105 188
Cover for headlight testing devices1 692 105 079
