Rail kit 3.3 m

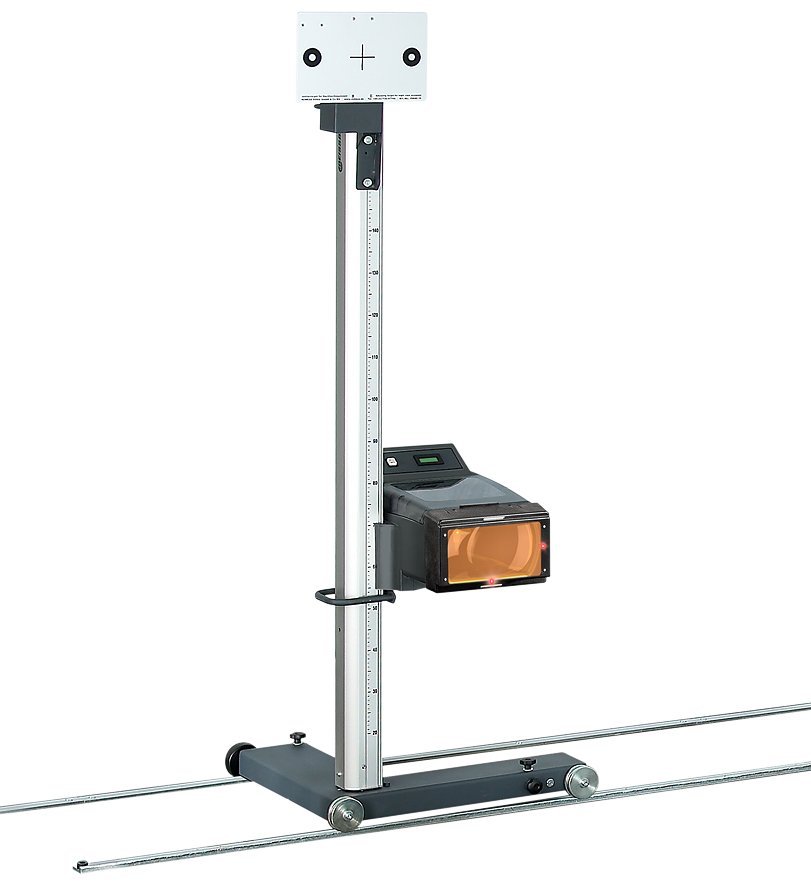

Rail kit for precise headlight adjustment for Mercedes-Benz workshops (3.3 m)
Article number: 1 692 105 134
- Levelable rail system for above and inground installation
- Length: 3.3 meters. 2.5 meters length rail and 0.8 meters length extension
- Complies with the latest requirements placed on test areas in workshops: meets the requirements of vehicle manufacturers as well as the requirements of the general-inspection headlight-test directive
- Height differences of up to 30 mm can be compensated together with the headlight aiming device trolley
- Long lifetime
- High-quality, robust processing
- Precisely guided steel wheels: for precise measurements and adjustments, a one-time alignment with the vehicle is sufficient (time saving!)
- Steel wheels are included in scope of delivery
- Optional expandable (see accessories list)
Scope of delivery
- 1 pc. Guide rail (L-profile): 2.5 m
- 1 pc. Guide rail (L-profile): 0.8 m
- 1 pc. Rail (flat profile): 2.5 m
- 1 pc. Rail (flat profile): 0.8 m
- 1 pc. Guide wheel (swingarm - steel)
- 1 pc. Guide wheel (fixed -steel)
- 1 pc. Running wheel (swingarm - POM)
- 2 pc. rubber buffers as a stop
- Installation material: drill bush, socket head screw, flanged head screw, grub screw, washer
| Length | 3,3 m |
|---|
