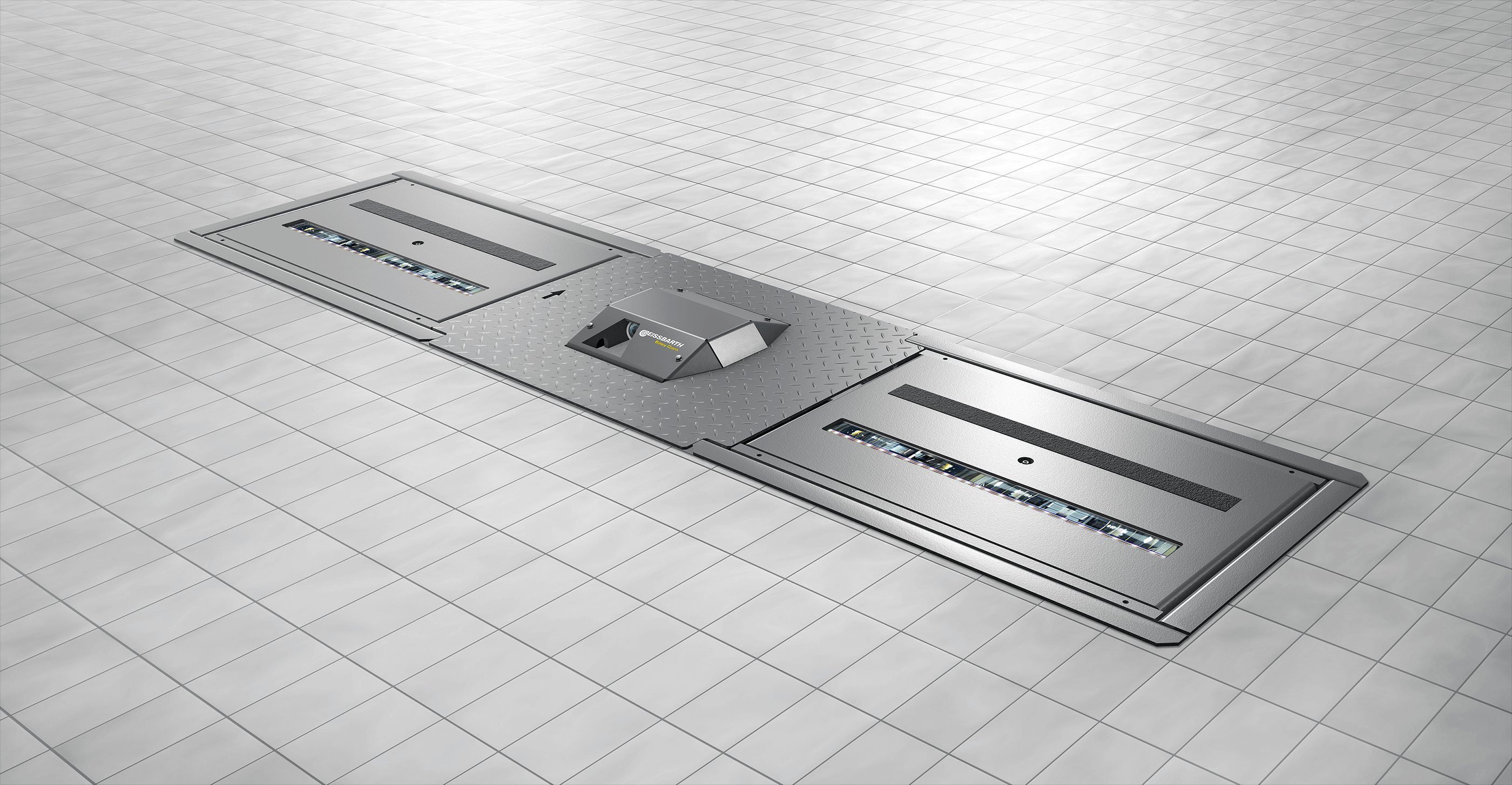

Tyre diagnosis system Easy Tread 2.0 | Inground

Automatic tyre tread measurement system with crossing speed up to 8 km/h | Easy Tread for inground installation | with automatic license plate recognition | Connectivity Kit | Live Monitor | ASA network ready

Article number: 1 691 200 049

NEW: Easy Tread 2.0 comes standard with a connectivity kit to digitize and automate your service lane:

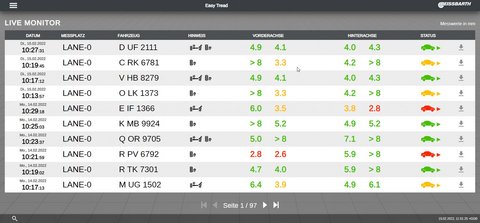

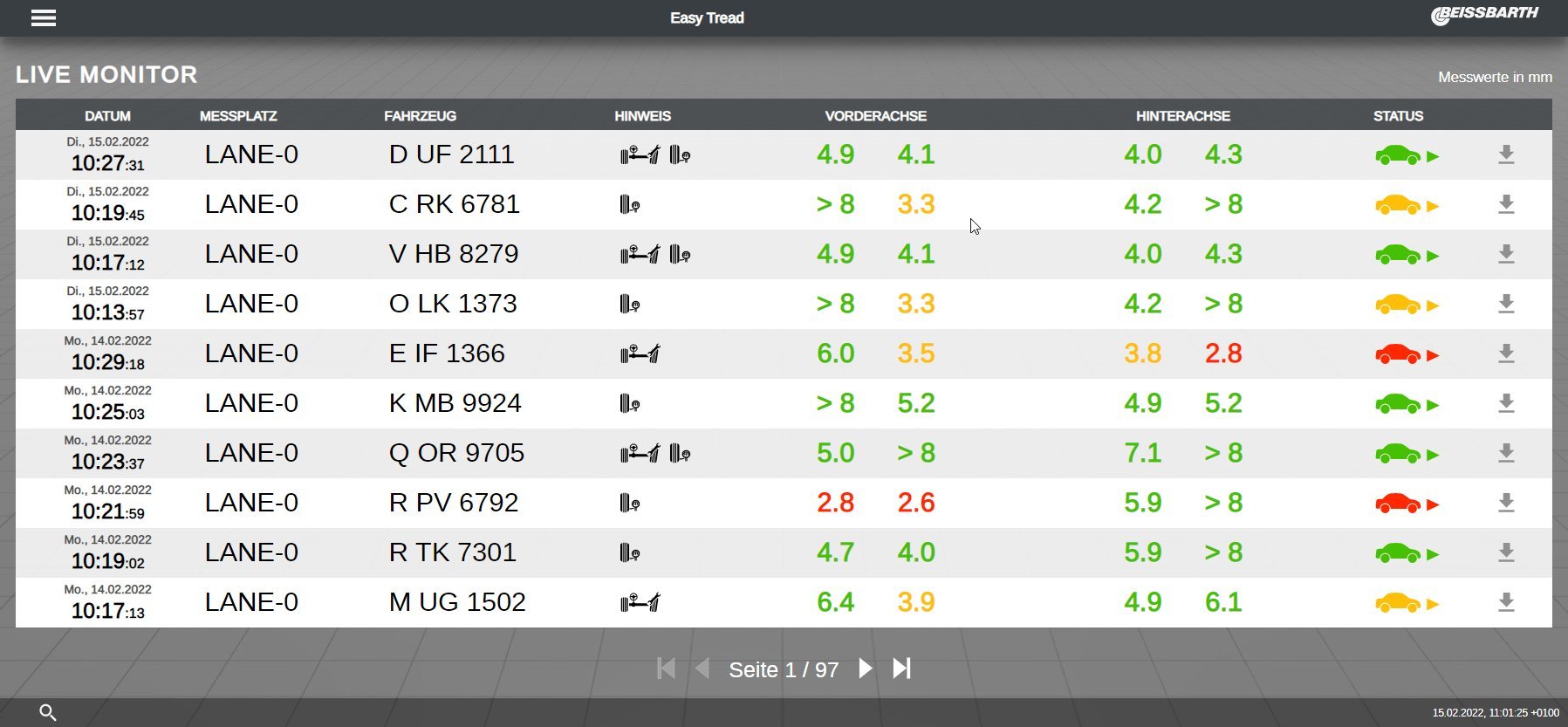

  • Live monitor of all crossings of multiple Easy Treads in the same workshop network
  • 20% faster results
  • Ready for ASA interface
  • Simplified connection to dealer management systems and 3rd party systems
  • Direct connection of monitors and TVs without using the browser
  • Optimized statistic functions

The high weight and torque of electric vehicles causes enormous wear on tires and chassis components. The automatic tire diagnosis of every vehicle entering a workshop allows keeping the tire business inhouse and increasing customer loyalty by. The immediate evaluation of the tire wear pattern simultaneously generates service opportunities for wheel alignment and potentially ADAS calibration.

Easy Tread - Tyre data nonstop

  • Automatic tyre wear and diagnosis within seconds
  • Clear display of wear information and recommended actions

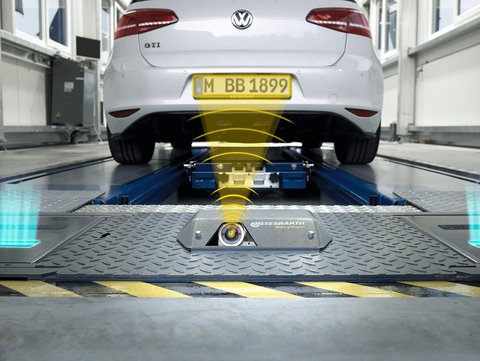

  • Automatic recognition of license plates
  • Crossing speed up to 8 km/h (nonstop)
  • Measurements in two directions (entering and exiting vehicles)
  • High precision thanks to maximum tyre contact area
  • Access measurement results without any PC (TV, tablet, smartphone)
  • Performance statistics to better manage and optimize your workshop's performance
  • No moving parts (low maintenance)
  • Quality Made in Germany

Scope of delivery:

  • Easy Tread modules for inground installation (measurement modules, LAN cables, main switch box)
  • ANPR camera and center cover
  • Installation frame
  • Connectivity Kit

Please note: Completed foundation work is required for installation.

Tyre width max.450 mm
Weight230
Protection classIP 65
Depth1040 mm
Height85 mm
Packaging unit1 Pallet(s)
Electrical connection100 - 230 V | 50 - 60 Hz | 1 ph
Width2245 mm
Maximum load per axle4 t
Operating temperature0 - 40 °C
Track width1080 - 1820 mm
Accuracy± 0,25 mm
Max. speed8 km/h
Packaging length1250 mm
Packaging width850 mm
Packaging height1050 mm
Gross weight258 kg
Country of Origin, customsDE
Number of languages (software)18
PC trolley for Easy Tread1 691 200 023
