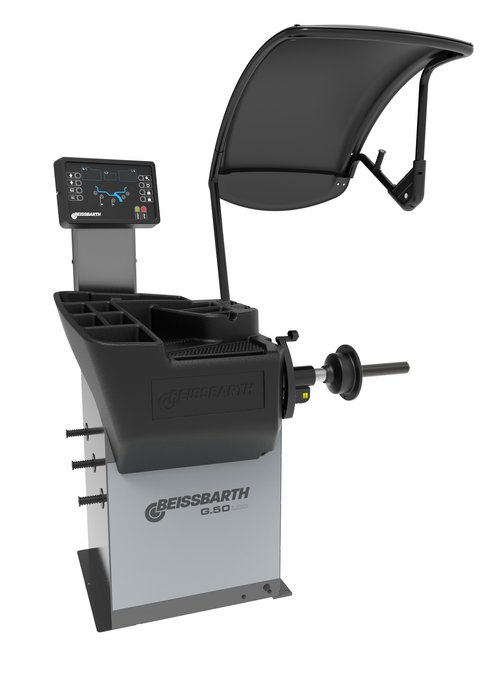

Wheel balancer G.50 LCD

Eliminates vibrations day-in day-out: Wheel balancer for intensive us

Measurement and balancing

Balancing in 4.7 seconds
Automatic stop of the wheel in exact correction position
LED for better visibility when placing weights
Internal line laser for precise positioning of weights
Split program for hiding weights behind different spokes

Wheel data recognition

Automatic data arm for measuring distance and diameter and weight placement
Automatic selection of clip-on and adhesive weight program
Highest measurement accuracy +/- 0.5g

Auto Adaptive Mode

Dynamic tolerance adjustment based on weight and size
Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver

Wheel guard with integrated sonar

Automatic recognition of rim width in steel and aluminium rims
Without manual input with measuring gauge
Closing of wheel guard automatically starts balancing program

Robust LCD control panel:

Easy operation
Built workshop-tough
Independent of user languag

Quick clamping

Mechanical clamping with quick-lock nut
Stable 40mm shaft
Wheel weights up to 75kg
Optional with wheel lift

One Plane Balancing

Eliminates dynamic imbalance with only one weight instead of two
Fewer correction positions on the rim
Less consumption of weights

Get advice now

Find a dealer now

Downloads

Product data sheet

4 cones Ø43-112,5mm
Quick-lock nut Pro Grip 40x4
Clamping cap
Pressure ring
Rubber ring
60g counterweight
Weight pliers

Please note: an upgrade with runout sonar is only possible for G.50 balancers with Touch monitor.

Max. wheel diameter	1117 "
Weight	120 kg
Shaft diameter	40 mm
Measuring speed	100 rpm
Measuring time	4,7 s
Display	LCD
Max. rim width	20 "
Max. rim diameter	30 "
Max. wheel weight	75 kg
Length	1340 mm
Height	1375 mm
Electrical connection	230 V \| 50 - 60 Hz \| 1 ph
Width	1255 mm
Motor power	0,15 kW
Min. rim diameter	10 "
Number of cones	4
Balancing accuracy +/-	0,5 g
Packaging length	1480 mm
Packaging width	1130 mm
Packaging height	1165 mm
Min. rim width	1,5 "
Thread type	40 x 4 TR - Metrisches ISO-Trapezgewinde
Wheel data recording	Semi-automatic
Stackable	2 Piece(s)
Units per 20ft container	13 Piece(s)
Units per 40ft container	30 Piece(s)

Max. wheel diameter	1117 "
Weight	120 kg
Shaft diameter	40 mm
Measuring speed	100 rpm
Measuring time	4,7 s
Display	LCD
Max. rim width	20 "
Max. rim diameter	30 "
Max. wheel weight	75 kg
Length	1340 mm
Height	1375 mm
Electrical connection	230 V \| 50 - 60 Hz \| 1 ph
Width	1255 mm
Motor power	0,15 kW

Min. rim diameter	10 "
Number of cones	4
Balancing accuracy +/-	0,5 g
Packaging length	1480 mm
Packaging width	1130 mm
Packaging height	1165 mm
Min. rim width	1,5 "
Thread type	40 x 4 TR - Metrisches ISO-Trapezgewinde
Wheel data recording	Semi-automatic
Stackable	2 Piece(s)
Units per 20ft container	13 Piece(s)
Units per 40ft container	30 Piece(s)

Wheel Lift | G.Zero | with memory function16925020001692502000
Zero Gravity - The Wheel Lift for Professionals
Make Balancing Easier:
- Pneumatic lifting and lowering of wheels up to 80kg
- Automatic lowering of lift upon closing the wheel guard
- Weightless: Automatic weight compensation for easy and secure clamping
- Memory function: Automatically adjusts to the correct height for the next wheels
- Faster than comparable solutions
- Effortlessly adjustable in height and sideways.
- Low height for easy rolling of heavy tires onto the lift
Specifications:
- Power supply: 230V | 50-60Hz
- Max absorbed power: 0.04kW
- Air supply: 7.5-12bar
- Operating pressure: 7.5bar
- Max. lift height: 472mm
- Max. wheel weight: 80kg
- Weight: 40kg
- Length x width: 855 x 331mm
- Height (fully lowered): 91mm
Compatible with: All Beissbarth wheel balancers. The automatic lowering function when closing the wheel guard requires, in addition to the pneumatic connection, an electronic connection to the wheel balancer. This is only possible with G-Series balancers. When using the wheel lift with older models, raising and lowering is operated via the pedal.
Scope of delivery: 1x Wheel lift
Wheel Lift | AirGo16956010121695601012
Required for: Lifting and lowering the wheel in conjunction with a wheel balancer
Application: Lifting and lowering the wheel via integrated rotating handle. Lift lowers automatically when letting go of the rotating handle.
Compatible with: all Beissbarth wheel balancers
Specifications:
- Air supply: 6-8bar
- Operating pressure: 7bar
- Max. lifting height: 480mm
- Max horizontal travel: 720mm
- Max. wheel weight: 70kg
- Max. wheel diameter: 36"
- Weight: 35kg
- Length x width: 1149 x 549mm
- Height (fully lowered): 115mm
Scope of delivery: 1x Wheel lift
Distance ring 40mm | in combination with light truck cone 169250204716925020281692502028
To be used in combination with light truck cone 1692502047 and spacer 1692502031. 40mm distance ring 1692502028 and spacer 1692502031 are mounted on the inside. Thel ight truck cone is used to lock the wheel from the outside. Spacer can be mounted either way, as long as it fits the inside rim shape.
Cone | for German OEMs | Ø 56.5 / 57 / 66.5 / 70 - 72.5 mm16925020491692502049
- Stepped cone for German OEMs Ø 56.5 / 57 / 66.5 / 70 - 72.5 mm
Light truck cone with 36mm distance ring | for ligh truck wheels with center hole Ø 97-170mm16925020461692502046
Kit for light truck wheels with center hole Ø 97-170mm
Universal 3-4-5-6-hole adapter | Ø 95 - 120 mm16925020371692502037
- Includes double centering cone
- For wheels with/without center hole (Renault, Peugeot, and Citroën)
- Reduces clamping errors to a minimum
