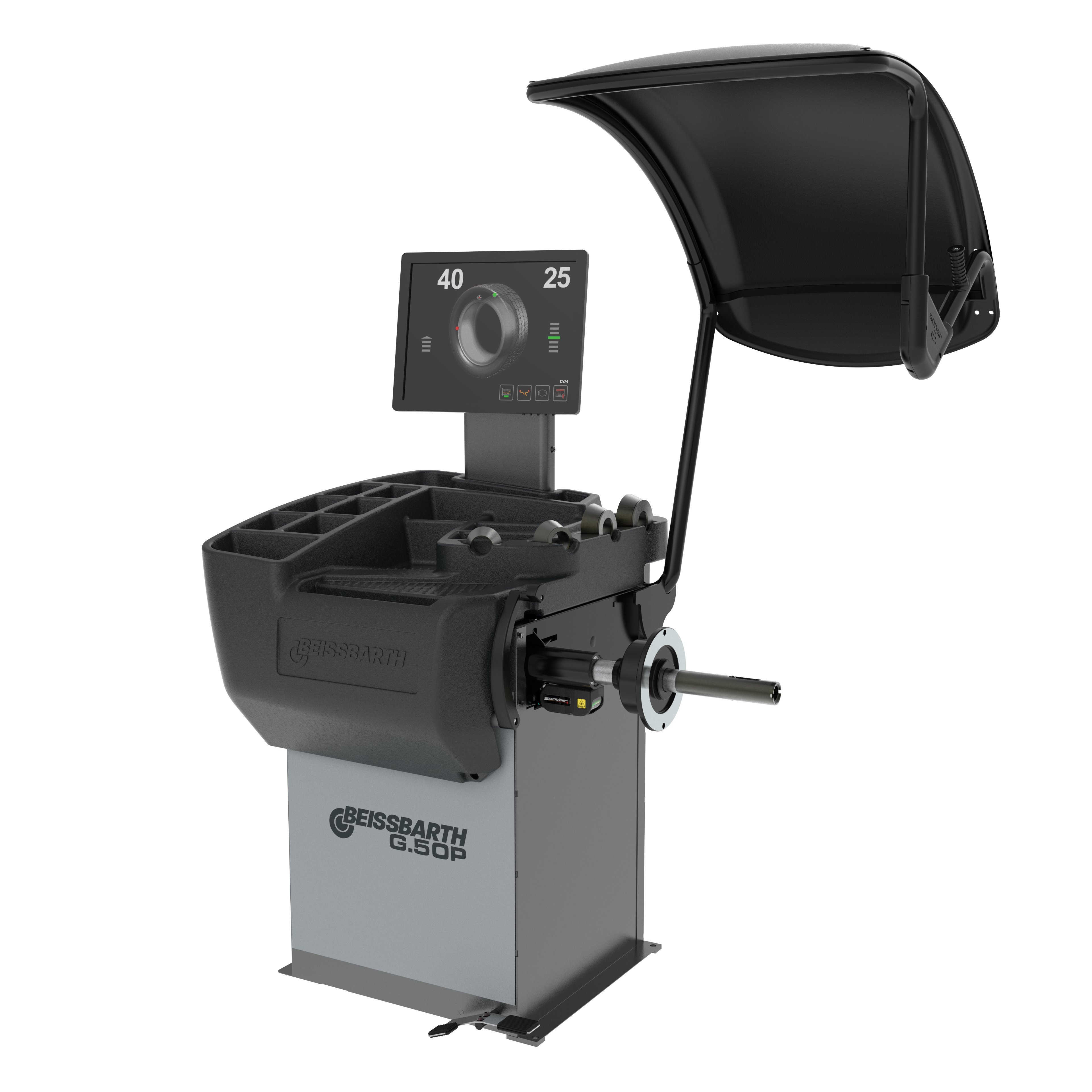

Wheel balancer G.50P

High-volume workshop wheel balancer | pneumatic clamping | automatic data arm | 19" touchscreen | spot laser | wheel guard with sonar for steel and alluminum wheels | auto stop function | One Plane Balancing

Article number: 1 692 501 003

Eliminates vibrations day-in day-out: Wheel balancer for intensive us

Measurement and balancing

  • Balancing in 4.7 seconds
  • Automatic stop of the wheel in exact correction position
  • LED for better visibility when placing weights
  • Internal line laser for precise positioning of weights
  • Split program for hiding weights behind different spokes

Wheel data recognition

  • Automatic data arm for measuring distance and diameter and weight placement
  • Automatic selection of clip-on and adhesive weight program
  • Highest measurement accuracy +/- 0.5g

Auto Adaptive Mode

  • Dynamic tolerance adjustment based on weight and size
  • Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver

Wheel guard with integrated sonar

  • Automatic recognition of rim width in steel and aluminium rims
  • Without manual input with measuring gauge
  • Closing of wheel guard automatically starts balancing program

19" touchscreen monitor

  • Graphical step-by-step illustrations
  • Simplifies correct balancing with guided processes
  • Touchscreen usbale with gloves on

Secure pneumatic clamping

  • Pneumatic clamping with 250kg clamping force
  • Ensures consistent clamping for all four wheel
  • Wheel weights up to 75kg
  • Optional with wheel lift

One Plane Balancing

  • Eliminates dynamic imbalance with only one weight instead of two
  • Fewer correction positions on the rim
  • Less consumption of weights

Upgrade to Pro version (optional): Upgradable with sonar for runout measurement and Hubmatch function.

Scope of delivery

  • 4 cones Ø45-111mm
  • Pneumatic quick-lock sleeve
  • Clamping cap for aluminum rims
  • Pressure ring
  • Rubber ring
  • 60g counterweight
  • Weight pliers
Max. wheel diameter44" | 1117mm
Weight130 kg
Shaft diameter40 mm
Measuring speed100 rpm
Measuring time4,7 s
Display19" Industrial Touchscreen
Max. rim width20 "
Max. rim diameter30 "
Max. wheel weight75 kg
Length1300 mm
Height1770 mm
Electrical connection230 V | 50 - 60 Hz | 1 ph
Width1300 mm
Motor power0,15 kW
Min. rim diameter10 "
Number of cones3
Balancing accuracy +/-0,5 g
Packaging length1480 mm
Packaging width1130 mm
Packaging height1165 mm
Min. rim width1,5 "
Air supply7 - 10 bar
Thread type40 x 4 TR - Metrisches ISO-Trapezgewinde
Wheel data recordingsemi-automatic
Stackable2 Piece(s)
Units per 20ft container13 Piece(s)
Units per 40ft container30 Piece(s)
G.Zero Wheel lift | with memory function1 692 502 000
Eccentricity Diagnostic Upgrade | for G.50 with touch monitor1 692 502 165
3 Cones kit | Ø45-110mm1 692 502 171
3-arm star adapter SR3 | for light trucks | Ø 161 / 170 / 184.15 / 205 / 222.25 / 245 mm1 692 502 038
Spacer sleeve | for use with spacer 16925020291 692 502 029
Distance ring 36mm | in combination with light truck cone 16925020471 692 502 048
Distance ring 40mm | in combination with light truck cone 16925020471 692 502 028
Spacer | in combination with light truck cone 16925020471 692 502 031
Spacer for wide rims | for use with spacer sleeve 16925020291 692 502 036
Cone 4WD | Ø 101 - 119 mm1 692 502 035
Cone | for German OEMs | Ø 56.5 / 57 / 66.5 / 70 - 72.5 mm1 692 502 049
Cone | for truck | 7.9" / 201 - 8.7" / 221 mm1 692 502 032
Cone | for light trucks and pick-ups | Ø 97 - 180 mm1 692 502 047
Cone | for central hole Ø 43 - 69 mm1 692 502 053
Cones kit for Mercedes-Benz1 692 502 030
Cones kit Ø 45 - 111 mm | 6 pcs.1 692 502 043
Cones and clamping kit Passenger car | Ø 45 - 194 mm1 692 502 027
Light truck cone with 36mm distance ring | for ligh truck wheels with center hole Ø 97-170mm1 692 502 046
Motorcycle and scooter adapter | Ø 15 - 35 mm1 692 502 073
Centering bushes kit 2 x Ø 15 / 16 / 17 / 19.05 / 20 / 22 / 25 / 28 mm | 16 pcs.1 692 502 074
Pneumatic clamping kit 1 692 502 172
Large clamping cap | for aluminium rims1 692 502 044
Stud adapter kit 4-hole | Pneumatic | 4 x 98 / 100 / 108 / 110 / 114.3 / 120 / 130 mm1 692 502 065
Typenspannflansch 5-hole | Pneumatic | 5 x 100 / 108 / 112 / 114.3 / 120 / 139.7 / 150 / 160 mm1 692 502 066
Stud adapter kit 5-hole | Pneumatic | for Opel | 105 / 110 / 115 / 118 / 130 mm1 692 502 067
Stud adapter kit 5-hole | Pneumatic | 5 x 98 / 110 / 118 / 120.65 / 127 / 130 / 140 mm1 692 502 068
Universal 3-4-5-6-hole stud adapter | Pneumatic | Ø 75 - 210 mm1 692 502 070
Clip-on studs Conical | 5 x 68 mm1 692 502 063
Clip-on studs Conical | 5 x 103 mm1 692 502 064
Clip-on studs Spherical | 5 x 123 mm1 692 502 062
Universal 3-4-5-6-hole adapter | Ø 95 - 120 mm1 692 502 037
Centering disc Ø 130 mm | for 3-arm star adapter SR31 692 502 041
Centering disc Ø 142 mm | for 3-arm star adapter SR31 692 502 039
Centering disc Ø 161 mm | for 3-arm star adapter SR31 692 502 040
Centering kit for PSA | 5 pcs.1 692 502 050
Centering kit for Renault | 5 pcs.1 692 502 051
Long stud bolt for Peugeot 406 | 1 Set = 5 pcs1 692 502 054
  • Brochure

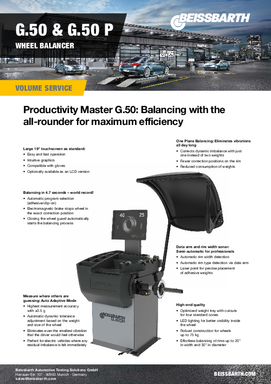

TSE G.50 G.50 Pro Brochure
