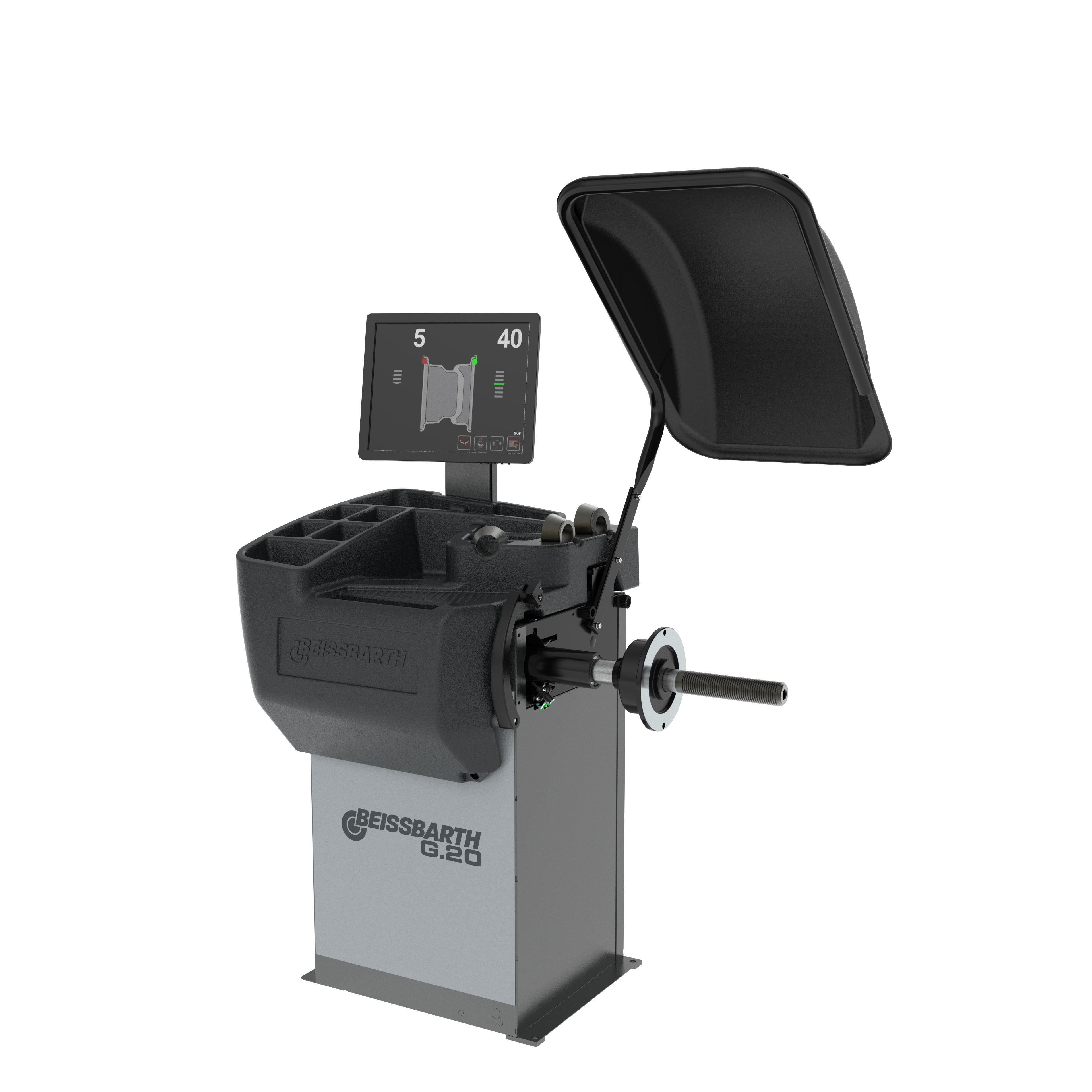

Wheel balancer G.20

Entry-level wheel balancer | mechanical clamping | automatic data arm | 17" touchscreen | Inside line laser | wheel guard with virtual sonar for steel rims

Article number: 1 692 501 000

Precise balancing in tight spaces: Compact car wheel balancer

Measurement and balancing:

  • Balancing in 4.7 seconds
  • Automatic stop of the wheel 15° before correction position
  • LED for better visibility when placing weights
  • Internal line laser for precise positioning of weights
  • Split program for hiding weights behind different spokes

Wheel data recognition:

  • Automatic data arm for measuring distance and diameter and weight placement
  • Automatic selection ofclip-on and adhesive weight program
  • Highest measurement accuracy ±0.5g

Auto Adaptive Mode:

  • Dynamic tolerance adjustment based on weight and size
  • Minimizes remaining imbalance in smaller and lighter wheels
  • Eliminates smallest vibrations noticeable by the driver
  • Especially suitable for electric cars with light wheels

Wheel guard with virtual sonar:

  • Automatic recognition of rim width in steel rims
  • Without manual input with measuring gauge or sonar
  • Closing of wheel guard automatically starts balancing program

17" touchscreen monitor:

  • Graphical step-by-step illustrations
  • Simplifies correct balancing with guided processes
  • Touchscreen usbale with gloves on

Quick clamping:

  • Mechanical clamping with quick-lock nut
  • Stable 40mm shaft
  • Wheel weights up to 75kg
  • Optional with wheel lift

Scope of delivery:

  • 3 cones Ø45-111mm
  • Quick-lock nut
  • Clamping sleeve
  • Spacer
  • Rubber ring
  • 60g counterweight
  • Weight pliers
  • Measuring gauge



Max. wheel diameter36" | 914mm "
Weight110 kg
Shaft diameter40 mm
Measuring speed100 rpm
Measuring time4,7 s
Display17" Industrial Touchscreen
Max. rim width20 "
Max. rim diameter30 "
Max. wheel weight75 kg
Length1100 mm
Height1550 mm
Power supply230 V | 50 - 60 Hz | 1 ph
Width960 mm
Motor power0,15 kW
Min. rim diameter10 "
Number of cones3
Balancing accuracy +/-0,5 g
Packaging length1100 mm
Packaging width700 mm
Packaging height1165 mm
Min. rim width1,5 "
Wheel data recordingsemi-automatic
Stackable2 Piece(s)
Units per 20ft container30 Piece(s)
Units per 40ft container66 Piece(s)
G.Zero Wheel lift | with memory function1 692 502 000
Large clamping cap | for aluminium rims1 692 502 044
Spacer sleeve | for use with spacer 16925020291 692 502 029
Distance ring 40mm | in combination with light truck cone 16925020471 692 502 028
Spacer for wide rims | for use with spacer sleeve 16925020291 692 502 036
Light truck cone with 36mm distance ring | for ligh truck wheels with center hole Ø 97-170mm1 692 502 046
Cone 4WD | Ø 101 - 119 mm1 692 502 035
Cones kit for Mercedes-Benz1 692 502 030
Cones kit Ø 45 - 111 mm | 6 pcs.1 692 502 043
Cones and clamping kit Passenger car | Ø 45 - 194 mm1 692 502 027
Long stud bolt for Peugeot 406 | 1 Set = 5 pcs1 692 502 054
Motorcycle and scooter adapter | Ø 15 - 35 mm1 692 502 073
Spacer | in combination with light truck cone 16925020471 692 502 031
Cone | for central hole Ø 43 - 69 mm1 692 502 053
Cones and clamping kit Truck | Ø 202 / 221 / 281 mm1 692 502 025
Stud adapter kit USA | Manual | 5 x 101.6 / 139.7 / 165.1 mm | 6 x 139.7 / 114.3 mm | 4 x 165.1 / 170 mm | 3 x 130 mm1 692 502 060
Stud adapter kit 4-hole | Manual | 4 x 98 / 100 / 108 / 110 / 114.3 / 120 / 130 mm1 692 502 056
Stud adapter kit SR5 | Manual | 5 x 100 / 108 / 112 / 114.3 / 120 / 139.7 / 150 / 160 mm1 692 502 057
Stud adapter kit 5-hole | Manual | for Opel | 105 / 110 / 115 / 118 / 130 mm1 692 502 058
Stud adapter kit 5-hole | Manual | 5 x 98 / 110 / 118 / 120.65 / 127 / 130 / 140 mm1 692 502 059
Universal 3-4-5-6-hole stud adapter | Manual | Ø 75 - 210 mm1 692 502 061
Universal 3-4-5-6-hole adapter | Ø 95 - 120 mm1 692 502 037
Clip-on studs Conical | 5 x 103 mm1 692 502 064
Clip-on studs Conical | 5 x 68 mm1 692 502 063
Clip-on studs Spherical | 5 x 123 mm1 692 502 062
Centering disc Ø 161 mm | for 3-arm star adapter SR31 692 502 040
Centering disc Ø 130 mm | for 3-arm star adapter SR31 692 502 041
Centering disc Ø 142 mm | for 3-arm star adapter SR31 692 502 039
Centering bushes kit 2 x Ø 15 / 16 / 17 / 19.05 / 20 / 22 / 25 / 28 mm | 16 pcs.1 692 502 074
Universal 3-4-5-6-hole stud adapter | Pneumatic | Ø 75 - 210 mm1 692 502 070
Centering kit for PSA | 5 pcs.1 692 502 050
Centering kit for Renault | 5 pcs.1 692 502 051
Cone | for German OEMs | Ø 56.5 / 57 / 66.5 / 70 - 72.5 mm1 692 502 049
3 Cones kit | Ø45-110mm1 692 502 171
Distance ring 36mm | in combination with light truck cone 16925020471 692 502 048
Cone | for light trucks and pick-ups | Ø 97 - 180 mm1 692 502 047
  • Brochure

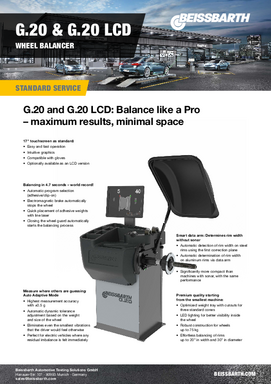

TSE G.20 G.20 LCD Brochure

TSE G.20 G.20 LCD Brochure
