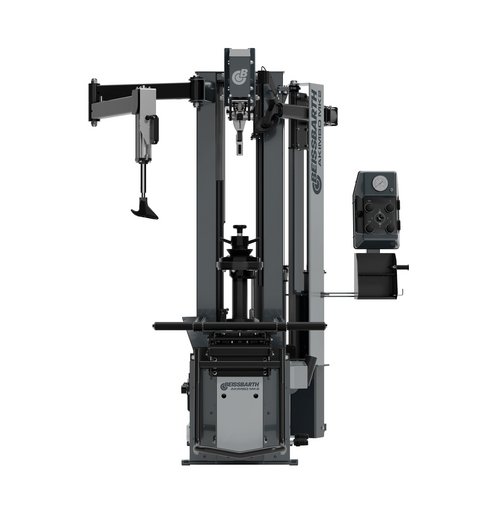

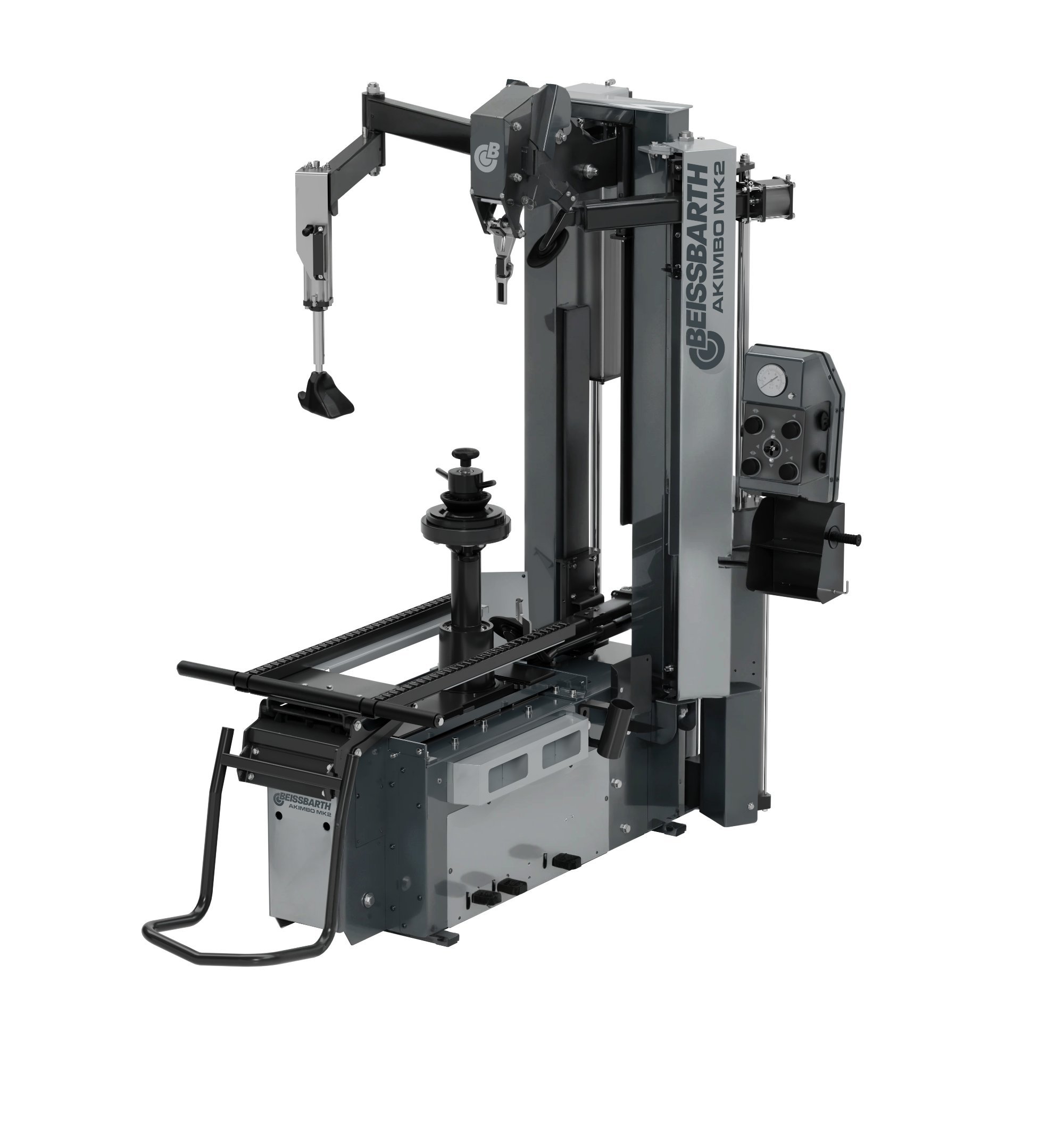

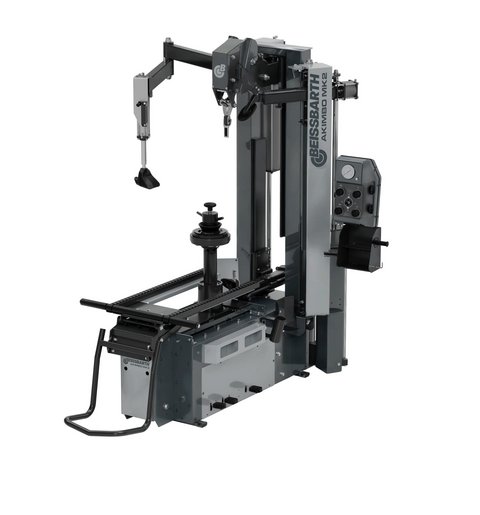

AKIMBO MK2 | WDK

Leverless center-post tyre changer | 10-33" working range | double bead roller discs | laser positioning | integrated wheel lift | pedal inflation | pneumatic assistance arm | including BeadLock Pro | 230V

Article number: 1 692 401 015

Leverless Demounting Group andCenter Post Locking

  • No contact with the rim
  • Center hole clamping ensures firm grip of wheel
  • Mechanical locking pin for high durability
  • Optional clamping adapters for closed center rims

Automatic Adjustment to Rim Size

  • Radial positioning of tools and both bead breaker discs with rim size
  • Guided by laser to prevent tools from damaging rims
  • Infinitely variable from 10 to 33" rims
  • Automatically moves leverless tool and both bead breaking discs out of working zone with press of a button

Maximum Rigidity by Design

  • Double column design prevents torsion and flexing during operation
  • Rail-guided demounting tool and bead breaker discs for maximum stability
  • Industrial components for high durability
  • All tools controlled pneumatically, no Bowden cables

Integrated Center Wheel Lift

  • Lifts wheels directly onto center post
  • No moving or lifting of heavy wheel
  • Allows technician to stay on one side of the machine
  • Automatically descends with release of pedal
  • Supports wheels up to 80kg

Pneumatic Bead Pushing Arm and Double Bead Breaker Discs

  • Premium travelling bead pusher arm to keep bead in drop center during rotation
  • Easier handling of UHP and runflat tyres
  • Pusher arm mounted to column instead of tool arm to prevent tool movements when force is applied
  • Bead breaker discs operated by two independent cylinders for more flexibility

Clean and Intuitive Operating Console:

  • Minimal buttons to reduce complexity
  • Joystick for better control of leverless demounting tool
  • Separate button for rim size adjustment
  • Ergonomic height

BeadLock Pro included:

  • Prevents hard tyres from rotating on the rim
  • Protects TPMS sensors during mounting phase.

Upgrade Options:

  • Tubeless inflation kit
  • Bottom mounting tool for soft tyres

WDK-Approved: Secure mounting and demounting of UHP and runflat tyres

Scope of deliveries:

  • 1x BeadLock Pro
  • 3x upper protection leverless tool
  • 2x lower protection leverless tool
  • 2x rubber protection center post
  • 1x pin for reversed wheels
  • 1x Brush
  • 1x Plastic lever
  • 1x WDK RFT/UHP bead clamp
  • 230V plug
Max. wheel diameter47" | 1200mm
Bead breaker force12000 N
Operating pressure8 - 10 bar
Max. rim diameter33 "
Max. wheel width15" | 380mm
Max. wheel weight80 kg
Length2000 mm
Height1950 mm
Width1300 mm
Power supply230V | 1Ph | 50-60Hz
Motor power1,5 kW
Min. rim diameter10 "
Space requirement width1502 mm
Rotation speed0 - 18 rpm
Number of mounting speedsstufenlos
Clamping device designcentral
Mounting head designWithout tire lever
wdk certificationStandard
Tyre inflationFoot control
Quick inflation system | for Akimbo Mk11 692 402 163
Spacer | for light trucks 1 692 402 215
Rubber protection | for center clamping 1 692 402 214
Cone | for light trucks 1 692 402 213
Flange | for reverse-mounting rims and without central hole 1 692 402 024
BeadLock Pro | with extension 1 692 402 003
Bead clamp 1 692 402 031
Protection for lower mounting tool | 1 pc. | Akimbo1 692 402 177
Lower mounting tool | Akimbo1 692 402 216
Upper protection for mounting tool | 1 pc. | Akimbo1 692 402 173
Lower protection for mounting tool | 1 pc. | Akimbo1 692 402 174
Extension for drive pin | Akimbo1 692 402 166
Protection for drive pin extension | Akimbo1 692 402 183
