Safe inflation of truck tyres of up to 1450m in diameter
Article number: 1 692 402 000

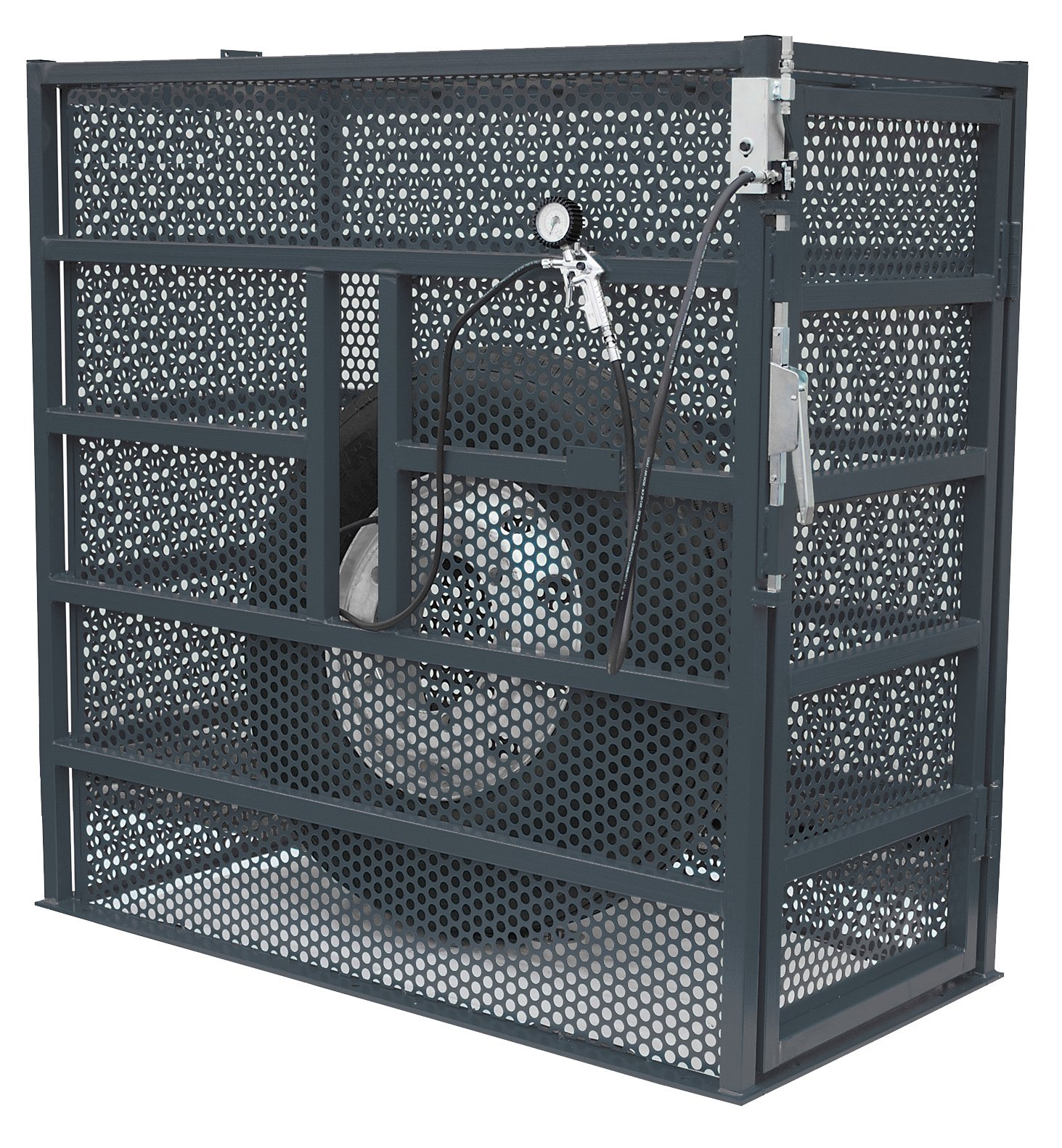

Protects user during inflation of industrial tyres with a diameter of up to 1450mm.
The special type of perforated mesh enclosing the structure minimizes the shock wave which might be generated by a tyre burst.
Scope of delivery:
Note: Electronic inflation control needs to be ordered separately.

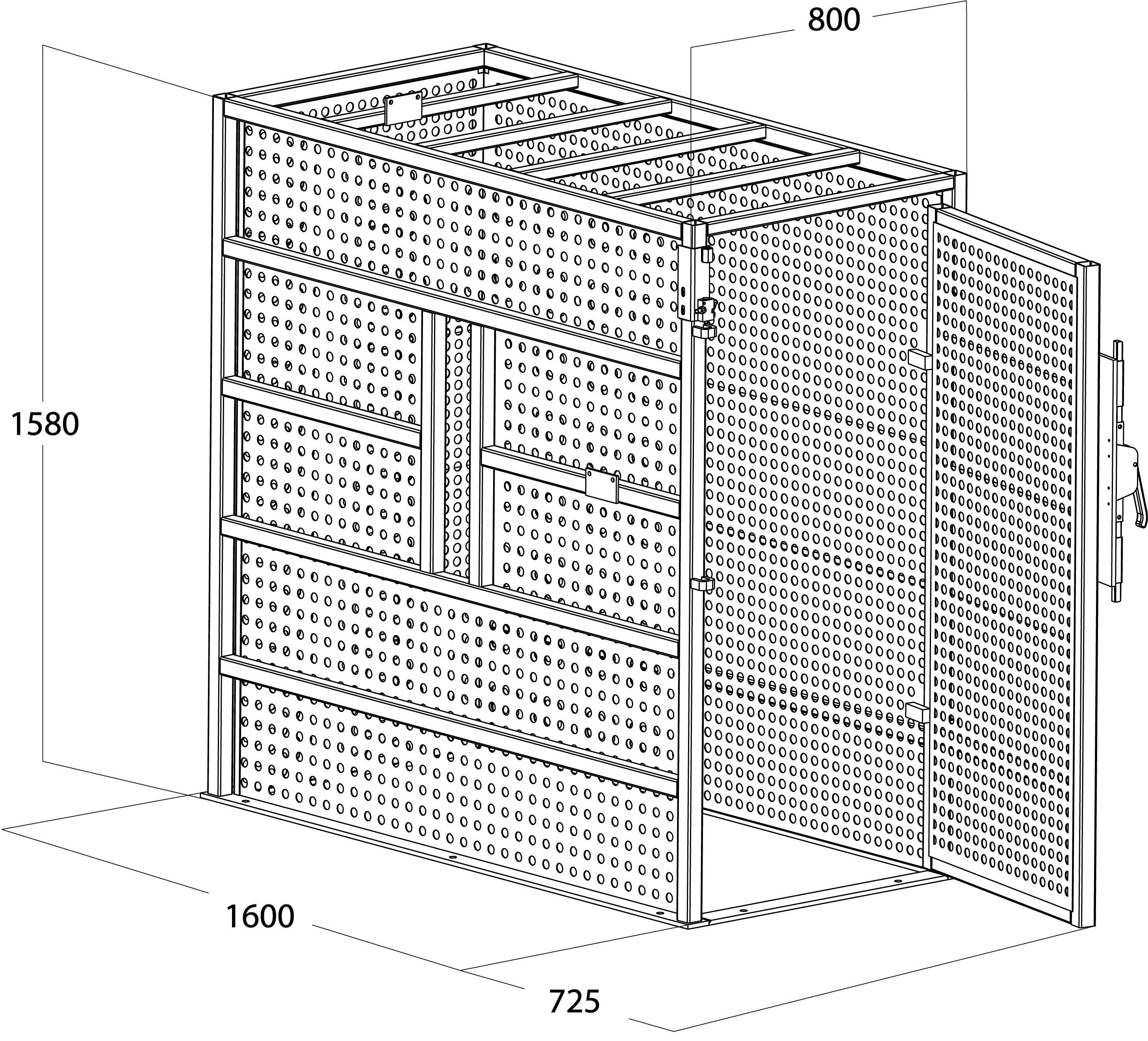

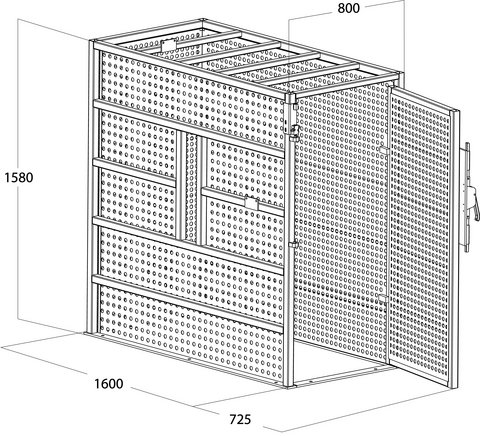

Max. wheel diameter | 1450 mm |
---|---|
Weight | 150 kg |
Max. wheel width | 650 mm |
Length | 1600 mm |
Height | 1580 mm |
Width | 800 mm |
Packaging length | 1650 mm |
Packaging width | 800 mm |
Packaging height | 1700 mm |
Gross weight | 173 kg |
Max. air supply | 10 bar |
Electronic inflation computer | for tyre inflation cage | 1 692 402 013 |
---|
On request, the inflation cage can be equipped with an electronic system which allows a standalone inflating process. The main feature is that once the necessary pressure has been set and the process started, the pressure gauge completes the operation unassisted, leaving the operator free to carry out other tasks. Max pressure: 10bar
For inflaction cage 1692402000
