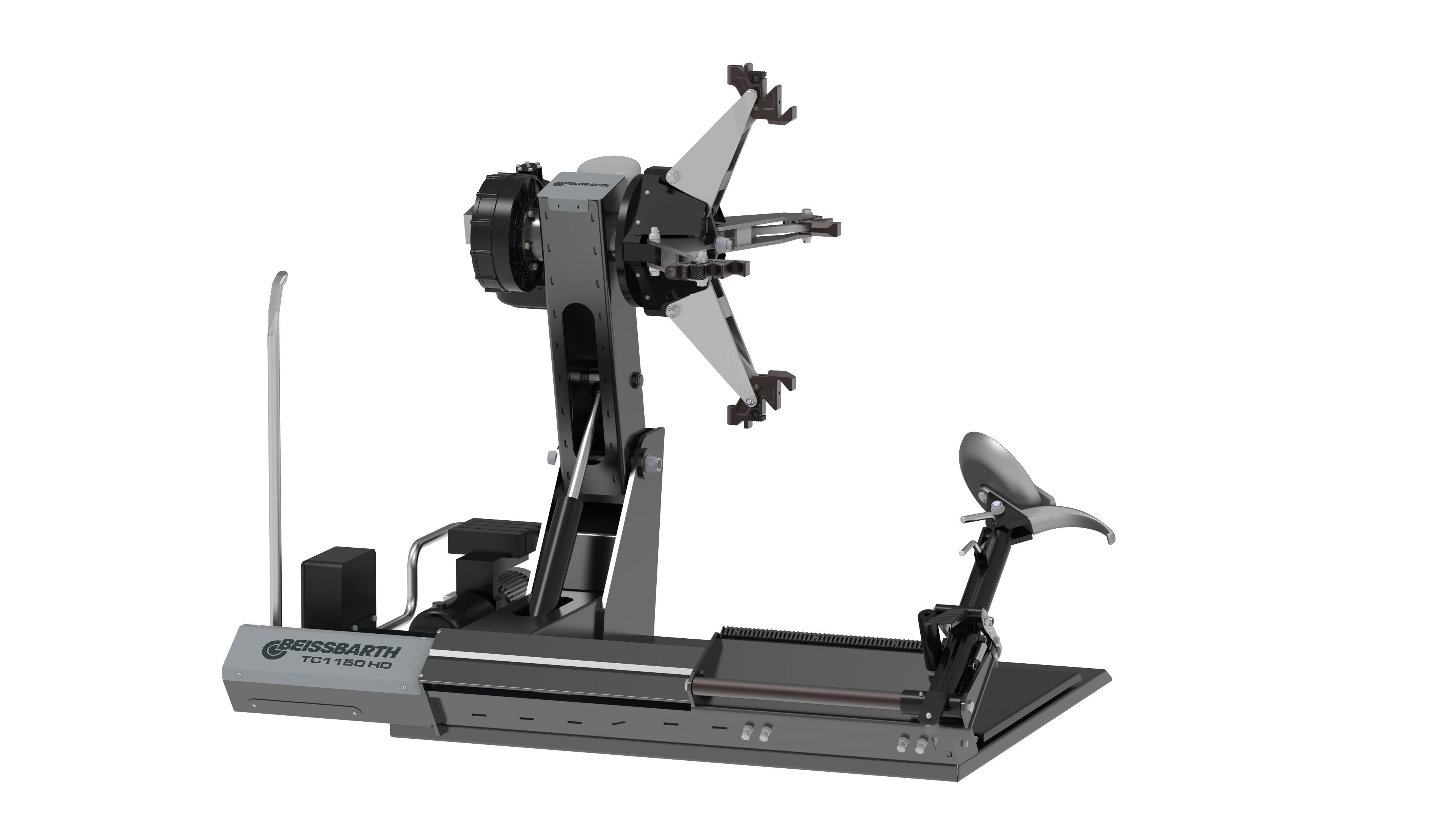

TC1150 HD

Truck tyre changer | 14-42" rim size | extendable up to 56" | 1150mm rim width | 2000kg | 400V

Article number: 1 692 401 009

The TC1150 HD: The ultimate heavy-duty truck tyre changerSelf-centering chuck

  • Four powerful jaws ensure perfect locking on rims of all shapes and profiles
  • Rotates clockwise and anti-clockwise at 4.5 to 9 rpm
  • Opens and closes hydraulically with adjustable pressure
  • Five grip zones, six different possibilities for clamping the rim

Powerful mounting and demounting tool arm

  • Manual adjustment of the tool inclination and direction
  • Simply rotate tool to switch between bead breaking roller and bead extraction
  • Quick and manual movement of the tool arm closer to or further away from the wheel
  • Get the tool arm completely out of the way with one simple move for better access to the wheel
  • Powerful bead breaker with 25,000N force in & out

Robust and intuitive cable remote

  • Joystick 1 (up & down): Wheel up and wheel down
  • Joystick 1 (left and right): Movement of tool carriage
  • Joystick 2: Open and close jaws
  • Left pedal: rotate anti-clockwise
  • Right pedal: rotate clockwise
  • Freely movable inside complete working area

Superior versatility

  • Effortlessly handles rims up to 42" diameter, extendable up to 56"
  • Covers wheels up to 2300mm in diameter and 1150mm in width
  • Built to handle weights up to 2000kg

Note: For maximum safety, holes for floor fixation are pre-drilled in the factory by default.

Scope of deliveries:

  • Truck mounting lever
  • Rim clamp
  • 400V plug

Max. wheel diameter91" | 2300 mm
Weight855 kg
Max. rim diameter42 "
Max. wheel width45" | 1150 mm
Max. wheel weight2000 kg
Length2350 mm
Height860 - 1450 mm
Width1870 mm
Power supply400V | 3Ph | 50Hz
Motor power2,2 - 3 kW
Min. rim diameter14 "
Rotation speed4,5 - 9 rpm
Packaging length1950 mm
Packaging width2250 mm
Packaging height1030 mm
Gross weight1060 kg
Min. diameter of centre bore diameter5" | 122 mm
Number of mounting speedsstufenlos
Bead breaker cylinder force25000N @ 10bar
Stackable2 Piece(s)
Units per 20ft container4 Piece(s)
Units per 40ft container10 Piece(s)
OTR Adapter | 4 pcs. | TC1150HD1 692 402 006
Set internal hole adapter 100mm | TC1150HD1 692 402 007
Protection kit clamping jaws | 4 pcs. | TC1150HD1 692 402 008
Clamp for aluminium rims | Truck1 692 402 010
Rim protection ring | 281mm | for 22,5" aluminium rims1 692 402 011
56" clamping jaw extensions | 4 pcs. | TC1150HD1 692 402 005
  • Brochure

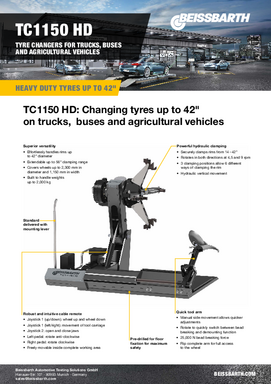

TC1150 HD brochure
