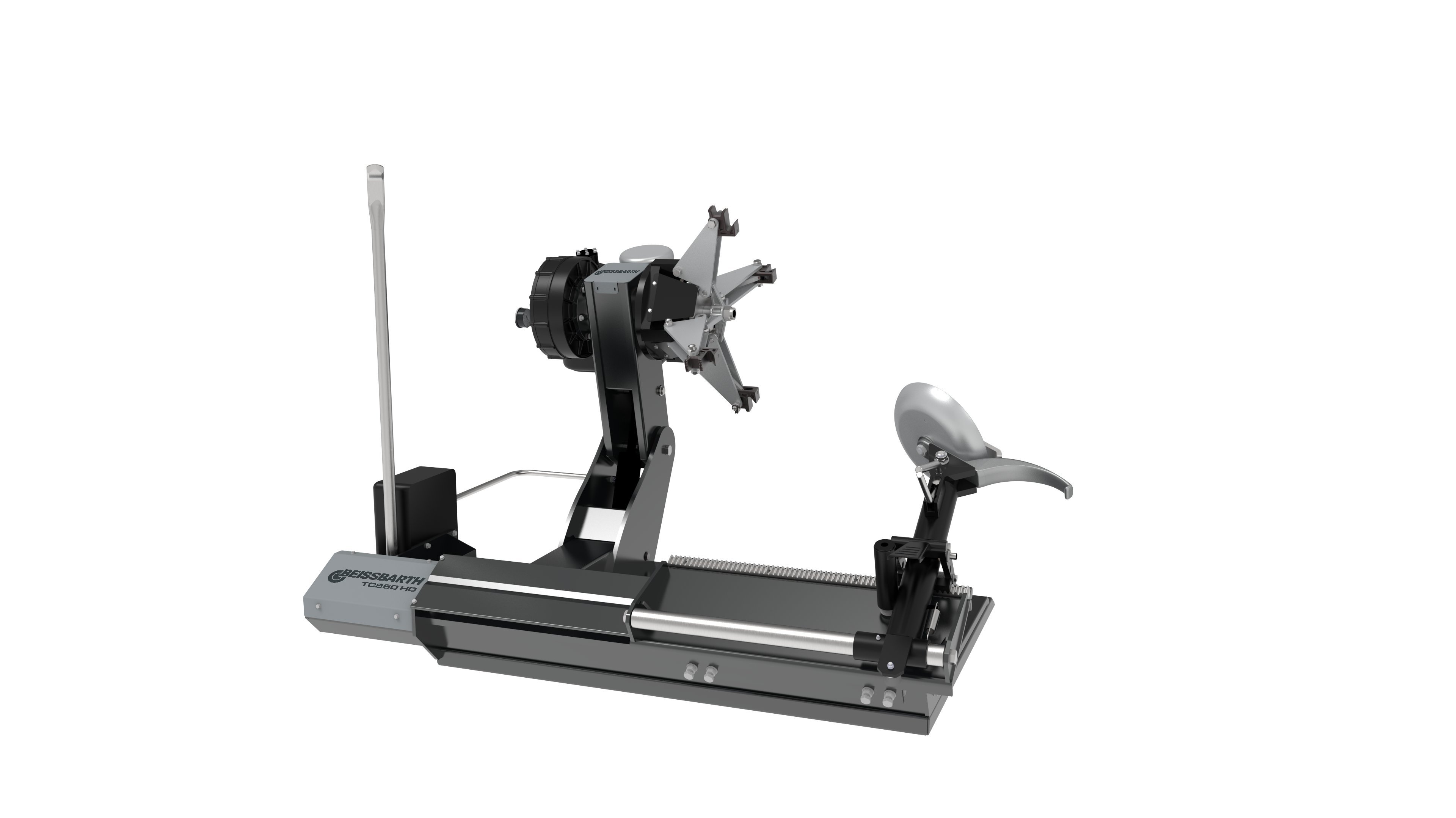

TC850 HD

Truck tyre changer | 14-30" rim size | 850mm rim width | 1200kg | 400V

Article number: 1 692 401 008

The TC850 HD: The Ultimate Heavy-Duty Truck Tyre ChangerSelf-Centering Chuck

  • Four powerful jaws ensure perfect locking on rims of all shapes and profiles
  • Rotates clockwise and anti-clockwise at 7rpm
  • Opens and closes hydraulically with adjustable pressure
  • Three grip zones, six different possibilities for clamping the rim

Powerful Mounting and Demounting Tool Arm

  • Manual adjustment of the tool inclination and direction
  • Simply rotate tool to switch between bead breaking roller and bead extraction
  • Quick and manual movement of the tool arm closer to or further away from the wheel
  • Get the tool arm completely out of the way with one simple move for better access to the wheel
  • Powerful bead breaker with 25,000N force in & out

Robust and Intuitive Cable Remote

  • Joystick 1 (up & down): Wheel up and wheel down
  • Joystick 1 (left and right): Movement of tool carriage
  • Joystick 2: Open and close jaws
  • Left pedal: rotate anti-clockwise
  • Right pedal: rotate clockwise
  • Freely movable inside complete working area

Superior Versatility

  • Effortlessly handles rims up to 30" diameter
  • Covers wheels up to 1640mm in diameter and 850mm in width
  • Built to handle weights up to 1200kg

Note: For maximum safety, holes for floor fixation are pre-drilled in the factory by default.

Scope of deliveries:

  • Truck mounting lever
  • Rim clamp
  • 400V plug

Max. wheel diameter65" | 1640 mm
Weight605 kg
Max. rim diameter30 "
Max. wheel width34" | 850 mm
Max. wheel weight1200 kg
Length1800 mm
Height1095 mm
Width1650 mm
Power supply400V | 3Ph | 50Hz
Motor power1,5 kW
Min. rim diameter14 "
Rotation speed7 rpm
Packaging length1900 mm
Packaging width1520 mm
Packaging height980 mm
Gross weight711 kg
Min. diameter of centre bore diameter5" | 122 mm
Number of mounting speeds1
Bead breaker cylinder force25000N @ 10bar
Stackable2 Piece(s)
Units per 20ft container6 Piece(s)
Units per 40ft container12 Piece(s)
Protection kit clamping jaws | 4 pcs. | TC850HD1 692 402 009
Clamp for aluminium rims | Truck1 692 402 010
Rim protection ring | 281mm | for 22,5" aluminium rims1 692 402 011
  • Brochure

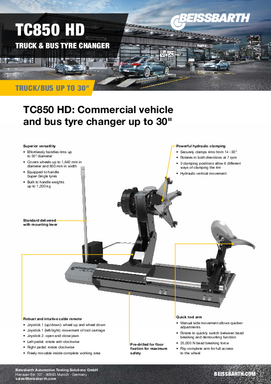

TC850 HD brochure

TC850 HD brochure

Date
2023-09-01
Type
pdf

Product information sheet
