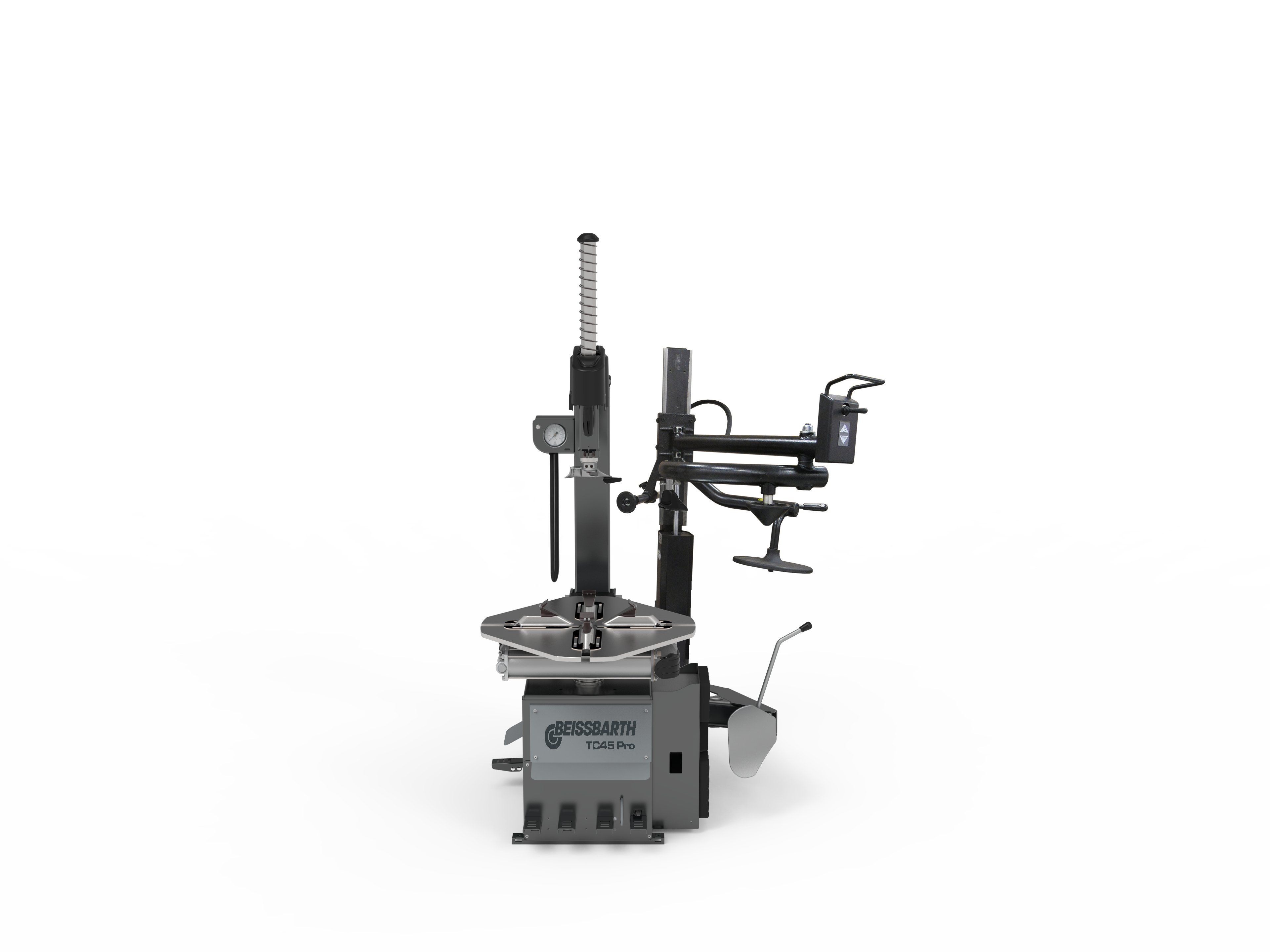

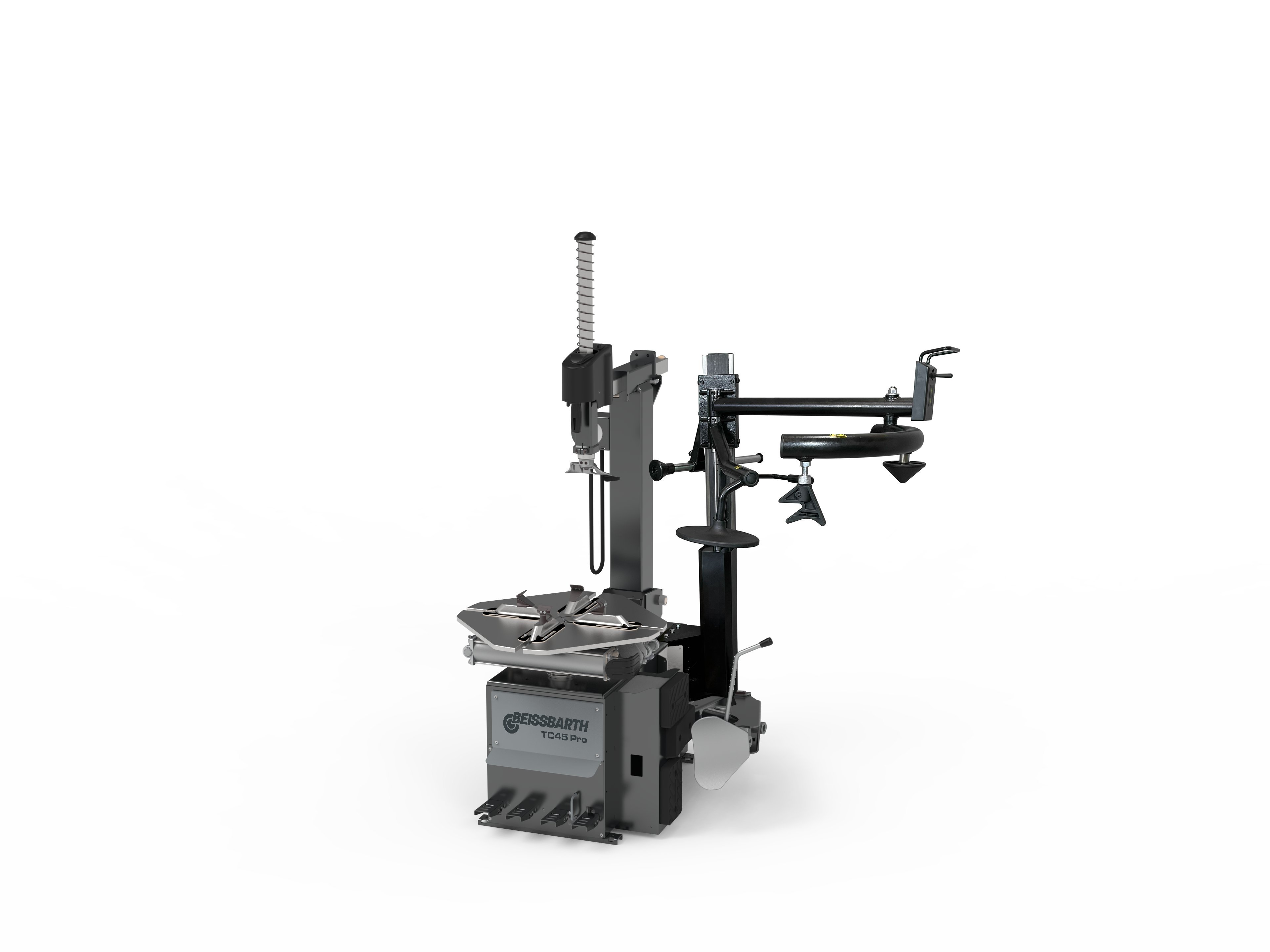

TC45 Pro | WDK

Automatic tilt-back tyre changer | 10-27" working range | 15" standard bead breaker | pedal inflation | TCX.PRO assistance column | WDK | 400V

Article number: 1 692 401 003

Square turntable with automatic centering jaws

  • Clamping range from 10-25"
  • Double 80mm cylinders for maximum clamping power
  • 2 rotation speeds: 8 & 16 rpm
  • Square shape for easier lever use

Robust mounting column and head

  • Easy tilting via pedal
  • Quick vertical and horizontal movement of arm
  • Pneumatic locking

Powerful bead breaker side shovel

  • Quick and effective loosening of the bead
  • Up to 12" tyre width
  • Three-way adjustable blade
  • Controlled via pedal
  • Anti-skid rubber pad protects tyre and rim

Full control with four pedals

  • Pedal control for rotation, side shovel, column tilting, and clamping
  • Removable pedal unit for easier maintenance
  • Safety separator for rotation pedal

High rigidity by design

  • Full metal pedals
  • Powerful 50x50mm horizontal arm
  • Metal front cover

TCX.PRO: entry-level assistance column fully equipped to handle hard UHP and run flat tyres

  • Bead roller to push bead in drop center
  • Travelling bead pusher arm to keep bead in drop center during rotation
  • Bottom disc roller to easily demount heavy, stiff, or wide tyres
  • Rim pressing cone to simplify external clamping on low-profile tyres
  • Simultaneous height adjustment of all tools

WDK-approved: Secure mounting and demounting of UHP and runflat tyres

Upgrade options:

  • Side lift
  • Tubeless inflation kit
  • Roller board

Scope of deliveries:

  • 5x front head protection
  • 2x rear head protection
  • 4x jaw protections
  • WDK lever
  • WDK mounting clamp RFT/UHP
  • WDK rim protector
  • Rim protection for lever
  • Bead breaker blade protection
  • Brush
  • 400V plug

Note: unit comes fully assembled

Max. wheel diameter46" | 1170mm
Bead breaker force2600 N
Operating pressure8 - 12 bar
Max. wheel width15" | 381mm
Length1450 mm
Height1900 mm
Width1030 mm
Power supply400V | 3Ph | 50-60Hz
Motor power0,8 - 1,1 kW
Max. clamping capacity27 "
Max. torque1200 Nm
Space requirement width1450 mm
Space requirement length1850 mm
Rotation speed8 | 16 rpm
Packaging length1050 mm
Packaging width1260 mm
Packaging height2100 mm
Min. clamping capacity10 "
Number of mounting speeds2
Clamping device designClamping plate
Min. inner clamping range12 "
Max. inner clamping range27 "
Min. outer clamping range10 "
Max. outer clamping range24 "
Mounting head designwith tire lever
Mounting arm designmoveable
Mounting column designtiltable
Bead breaker cylinder force25000N @ 10bar
Beda breaker force on shovel13000N @ 10bar
Tyre inflationfoot control
Turntable height670 mm
Bead breaker operationfoot control
Units per 20ft container9 Piece(s)
Units per 40ft container20 Piece(s)
Storage kit | for TC22, TC45 and TC47L1 692 402 014
Rim protector 1 692 402 027
Plastic mounting head | TC22 and TC451 692 402 026
Mounting head | for motorcycles1 692 402 032
Lever | WDK1 692 402 038
Protection | for WDK lever1 692 402 020
Roller bed | for TC22, TC45 and TC47L1 692 402 036
Set clamping jaws | 4 pcs. | for motorcycles1 692 402 033
Set clamping jaws | 4 pcs. | for scooters1 692 402 034
Quick inflation system | for tubeless tires1 692 402 029
Quick change kit for mounting head 1 692 402 025
Bead breaker shovel protection 1 692 402 023
Protection kit mounting tool | 10x front + 10x rear1 692 402 019
Protection kit clamping jaws | 4 pcs | for TC22, TC45 and TC47L1 692 402 021
WIKA inflating gun with pressure gauge 1 692 402 028
BeadLock Pro | with extension 1 692 402 003
Bead clamp 1 692 402 031

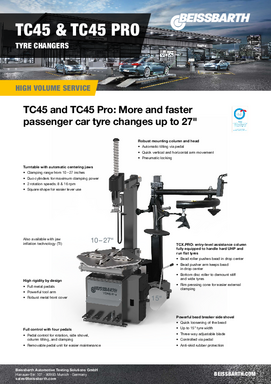

  • Brochure
TC45 TC45 Pro brochure

TC45 TC45 Pro brochure

Date
2023-11-29
Type
pdf

Product information sheet
