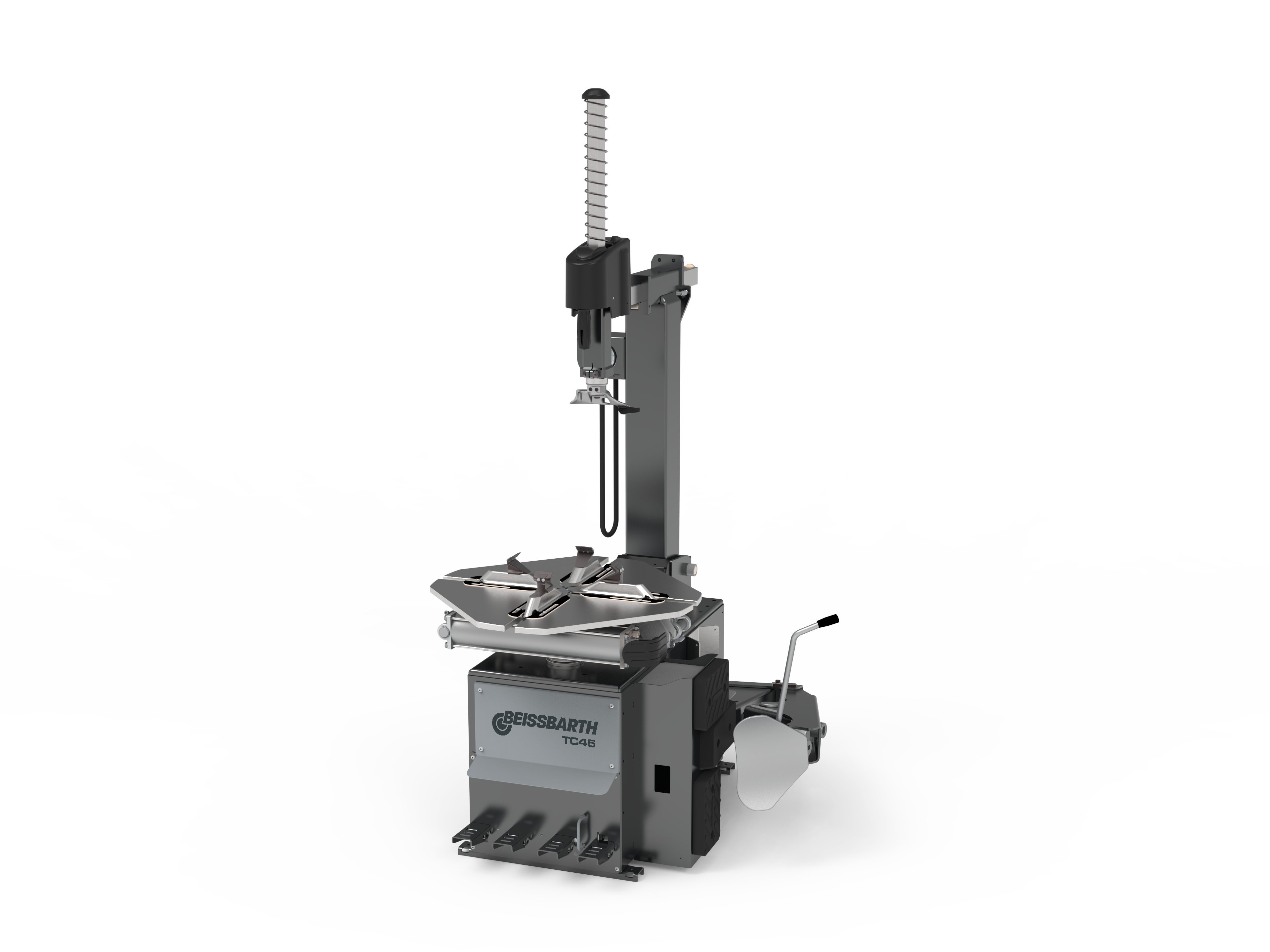

Square turntable with automatic centering jaws
- Clamping range from 10-27"
- Double 80mm cylinders for maximum clamping power
- 2 rotation speeds: 8 & 16 rpm
- Square shape for easier lever use
Robust mounting column and head
- Easy tilting via pedal
- Quick vertical and horizontal movement of arm
- Pneumatic locking
Powerful bead breaker side shovel
- Quick and effective loosening of the bead
- Up to 15" tyre width
- Three-way adjustable blade
- Controlled via pedal
- Anti-skid rubber pad protects tyre and rim
Full control with four pedals plus side inflation pedal
- Pedal control for rotation, side shovel, column tilting, and clamping
- Removable pedal unit for easier maintenance
- Safety separator for rotation pedal
- Side inflation pedal
High rigidity by design
- Full metal pedals
- Powerful 50x50mm horizontal arm
- Metal front cover
Upgrade options:
- TCX.PRO, PRO2 or PRO3 assistance column
- Side lift
- Tubeless inflation kit
- Roller board
Scope of deliveries:
- 5x front head protection
- 2x rear head protection
- Standard lever
- Brush
- 400V plug
Note: unit comes with disassembled pole
| Max. wheel diameter | 1160 mm |
|---|---|
| Operating pressure | 8 - 12 bar |
| Max. wheel width | 381 mm |
| Length | 1450 mm |
| Height | 1900 mm |
| Width | 1030 mm |
| Power supply | 400V | 3Ph | 50-60Hz |
| Motor power | 0,8 - 1,1 kW |
| Max. clamping capacity | 27 " |
| Max. torque | 1200 Nm |
| Space requirement width | 1450 mm |
| Space requirement length | 1850 mm |
| Rotation speed | 8 | 16 rpm |
| Packaging length | 750 mm |
| Packaging width | 1100 mm |
| Packaging height | 1100 mm |
| Min. clamping capacity | 10 " |
| Number of mounting speeds | 2 |
| Clamping device design | Clamping plate |
| Min. inner clamping range | 12 " |
| Max. inner clamping range | 27 " |
| Min. outer clamping range | 10 " |
| Max. outer clamping range | 24 " |
| Mounting head design | With tire lever |
| Mounting arm design | Moveable |
| Mounting column design | Tiltable |
| Bead breaker cylinder force | 25000N @ 10bar |
| Beda breaker force on shovel | 13000N @ 10bar |
| Tyre inflation | Foot control |
| Turntable height | 670 mm |
| Bead breaker operation | Foot control |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 30 Piece(s) |
| Units per 40ft container | 60 Piece(s) |
| Max. wheel diameter | 1160 mm |
|---|---|
| Operating pressure | 8 - 12 bar |
| Max. wheel width | 381 mm |
| Length | 1450 mm |
| Height | 1900 mm |
| Width | 1030 mm |
| Power supply | 400V | 3Ph | 50-60Hz |
| Motor power | 0,8 - 1,1 kW |
| Max. clamping capacity | 27 " |
| Max. torque | 1200 Nm |
| Space requirement width | 1450 mm |
| Space requirement length | 1850 mm |
| Rotation speed | 8 | 16 rpm |
| Packaging length | 750 mm |
| Packaging width | 1100 mm |
| Packaging height | 1100 mm |
| Min. clamping capacity | 10 " |
| Number of mounting speeds | 2 |
| Clamping device design | Clamping plate |
|---|---|
| Min. inner clamping range | 12 " |
| Max. inner clamping range | 27 " |
| Min. outer clamping range | 10 " |
| Max. outer clamping range | 24 " |
| Mounting head design | With tire lever |
| Mounting arm design | Moveable |
| Mounting column design | Tiltable |
| Bead breaker cylinder force | 25000N @ 10bar |
| Beda breaker force on shovel | 13000N @ 10bar |
| Tyre inflation | Foot control |
| Turntable height | 670 mm |
| Bead breaker operation | Foot control |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 30 Piece(s) |
| Units per 40ft container | 60 Piece(s) |
- Storage kit | for TC22, TC45 and TC47L16924020141692402014
- Assistance column | TCX.PRO16924020181692402018
TCX.PRO: entry-level assistance column fully equipped to handle hard UHP and run flat tyres
- Bead roller to push bead in drop center
- Travelling bead pusher arm to keep bead in drop center during rotation
- Bottom disc roller to easily demount heavy, stiff, or wide tyres
- Rim pressing cone to simplify external clamping on low-profile tyres
- Simultaneous height adjustment of all tools
- Assistance column | TCX.PRO216924020171692402017
TCX.PRO2: premium assistance column with compact design to handle hard UHP, run flat and larger tyres Suitable for TC45 and TC47L. Not compatible with TC22
- Pneumatic helper arm | for TCX.PRO2 and PRO316924020161692402016
Not suited for TCX.PRO
- Rim protector 16924020271692402027
- Plastic mounting head | TC22 and TC4516924020261692402026
- Mounting head | for motorcycles16924020321692402032
- Lever | for RFT and UHP tyres16924020371692402037
- Lever | WDK16924020381692402038
- Protection | for WDK lever16924020201692402020
Suitable for 1692402038
- Roller bed | for TC22, TC45 and TC47L16924020361692402036
- Set clamping jaws | 4 pcs. | for motorcycles16924020331692402033
TC22: 14-27"; TC45: 14"-29"
- Set clamping jaws | 4 pcs. | for scooters16924020341692402034
TC22: 8-18"; TC47: 8"-20"
- Quick inflation system | for TC45 and TC47L16924020291692402029
For quick inflation of tubeless tyres
- Quick change kit for mounting head 16924020251692402025
Not suited for leverless machines
- Bead breaker shovel protection 16924020231692402023
- Protection for lever 16924020221692402022
For protection of aluminium rims. Suitable for mounting lever 1692402037
- Protection kit clamping jaws | 4 pcs | for TC22, TC45 and TC47L16924020211692402021
- Protection kit mounting tool | 10x front + 10x rear16924020191692402019
- WIKA inflating gun with pressure gauge 16924020281692402028
- BeadLock Pro | with extension 16924020031692402003
Prevents hard tyres from rotating on the rim and protects TPMS sensors during mounting phase. Includes extension for reversed rim mounting and tyre changes with center clamping.
- Bead clamp 16924020311692402031
