Beissbarth: Q.Lign

Q.Lign | Kit

1690200003

The World’s most innovative Wheel aligner

Q.Lign is our answer to an increasingly digital and fast-paced world: ultra fast, compact, connected

World’s First Web-based wheel aligner

Compact web-based technology creates more space by replacing the need for trolley with PC
Stream-to-X: Directly display the software on any TV, PC, laptop or smartphone
Unleash the full power of connectivity by integrating Q.Lign into your daily workshop processes and systems

Get all the speed you want without compromising on accuracy

Ultra fast software with optimized workflow of the complete alignment process
Q.Grip wheel clamps mounted in seconds, without any rim contact

Full mobility, infinite possibilities

Completely wireless thanks to high performance Li-Ion batteries

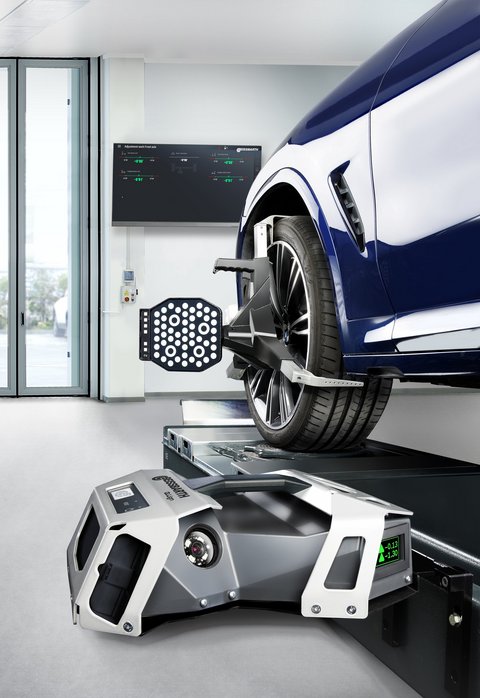

Installation on any alignment lift type, above and inground
Runout compensation in any lift height, from zero to top position
Permanently use the space in front of the lift for headlight testing and ADAS calibration

Work smarter, not harder

Get values the second the targets are recognized to immediately spot vehicles involved in accidents
Measure with any target on any wheel position to save time and eliminate user error
Active lift control: Our recipe for success for straight steering wheels

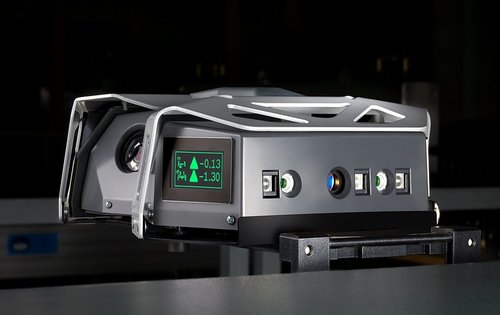

Have the values always in sight from under the vehicle with the four OLED screens on the sensor heads

Putting the customer first

Easy to understand printouts
Theme-based printouts (e.g. accident report) instead of one size fits all
Measurement of all common wheel alignment angles, including vehicle dimensions for easy detection of vehicles involved in accidents

Scope of delivery:

2 compact Q.Lign sensor heads with OLED displays
Display module for direct streaming to TV, PC, laptop or tablet
4 targets with auto-identification
Lift adaption
Key Card for international vehicle specs

Please note: This version allows full customization to the requirements of the installation site. Battery or cable? Trolley or TV? There are already clamps and turnplates available on site? Use this version to design the perfect solution tailored to your customer's needs or for upgrading existing wheel alignment bays. When using the batteries, only the model specified by Beissbarth with the corresponding performance characteristics may be used. Any warranty claims resulting from the use of unsuitable batteries will not be accepted.

Get advice now

Find a dealer now

Downloads

Product data sheet
Broschüren

Weight	31 kg
Packaging unit	1 Pallet(s)
Electrical connection	100 - 230 V \| 50 - 60 Hz \| 1 ph
Individual toe front/rear axle	Ja
Total toe	Ja
Toe-out on turns	Ja
Camber front/rear axle	Ja
Caster	Ja
SAI	Ja
Set-back	Ja
Thrust angle	Ja
Data transmission type	kabellos
Measuring system	3D
Run-out compensation	Ja
Individual toe front axle	Ja
Individual toe rear axle	Ja
Camber front	Ja
Camber rear	Ja
Set-back front axle	Ja
Geometric centre line	Ja
Packaging length	850
Packaging width	550
Packaging height	600
Gross weight	41 kg
Country of Origin, customs	DE
Max. wheel base	5000 mm

Weight	31 kg
Packaging unit	1 Pallet(s)
Electrical connection	100 - 230 V \| 50 - 60 Hz \| 1 ph
Individual toe front/rear axle	Ja
Total toe	Ja
Toe-out on turns	Ja
Camber front/rear axle	Ja
Caster	Ja
SAI	Ja
Set-back	Ja
Thrust angle	Ja
Data transmission type	kabellos
Measuring system	3D
Run-out compensation	Ja

Individual toe front axle	Ja
Individual toe rear axle	Ja
Camber front	Ja
Camber rear	Ja
Set-back front axle	Ja
Geometric centre line	Ja
Packaging length	850
Packaging width	550
Packaging height	600
Gross weight	41 kg
Country of Origin, customs	DE
Max. wheel base	5000 mm

ADAS target boards | for Q.Lign16902000131690200013
For ADAS calibration in combination with Q.Lign. Target boards can be permanently installed on the ADAS calibration tool.
Scope of delivery:
- 2x ADAS target boards (Coding ID #5 and #6)
- 2x target covers
Compatible with BBFAS1000 and most third-party ADAS calibration tool solutions.
Adapter set Q.Grip | for Q.Lign | 4 pcs.16901010101690101010
Q.Grip: The closest you will get to Touchless.
- Mounting of targets in under 5 seconds
- No rim contact, no scratches or damages!
- Instantaneously change between different tyre diameters with our new patented clamping mechanism
- Three arms guarantee safe and precise grip during the complete alignment
- No removal of hubcaps!
- No knob twisting!
- No fixed wheel assignment, position on any wheel!
- Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)
Power connection cable 10 m16902030251690203025
Power connection cable 15 m16902030411690203041
Duo-battery charging station for Q.Lign | incl. accessories16902010691690201069
Battery for Q.Lign | Li-Ion | 99 Wh16902030531690203053
Power supply for Q.Lign Accessories | 19 V RRC16937706481693770648
For battery charging station and emergency power supply box of Q.Lign
Emergency power box for Q.Lign16902010301690201030
- Power supply of sensor heads in case of battery failure
- Mobile use without fixed installation
- Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)
Note: Operation additionally requires the 19 V power supply (1693770648) which is included in the battery-powered Q.Lign scope of deliveries.
Lift adaptation for Q.Lign16902010351690201035
2x required for Q.Lign
Tablet | Android | 10.1"16937706441693770644
Incl. protection case
Wall board for Q.Lign16902010541690201054
Printer for Beissbarth trolleys16937704151693770415
Trolley with 27"monitor | for Q.Lign16902010551690201055
Scope of delivery: - Trolley - Monitor arm - 27" monitor
Mechanical aluminum turntable Standard16905010011690501001
- Very high quality and lifetime in workshop environment
Mechanical aluminum turntable Precision16904010281690401028
- Very high quality and lifetime in workshop environment
- Steel balls for minimal friction and maximum precision
Electronic aluminum turntable without connecting cable | Standard16904010111690401011
- Enables full steering lock on CCD, Touchless and Q.Lign wheel aligner
- Very high quality and lifetime in workshop environment
- Standard turntable without connecting cable
Electronic aluminum turntable without connecting cable | Precision16904010131690401013
- Enables full steering lock on CCD, Touchless and Q.Lign wheel aligners
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
Drive-on ramps for two aluminum turntables16907010521690701052
- Drive-on ramps for turntables including connecting piece and drive off protection
- Enables rolling compensation on lifts without embedded turntables
Protective rubber cover for aluminum turntable16904020011690402001
- Additional protection from dirt and liquids
Connecting cable for electronic turntables16904030011690403001
- Connecting cable between electronic turntables and sensor head
- Enables full steering lock on CCD and Touchless aligner
Drive-on ramps for turntables and sliding plates16904010081690401008
- Set of Drive-on ramps for turntables and sliding plates
- Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
Sliding plate for rear axle | short16904010031690401003
- +/- 10° rotating range
Magnetic clamps for wheel bolts | 75mm16907015081690701508
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
Magnetic clamps for wheel bolts | 100mm16907015211690701521
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
Sliding plate for rear axle | long16904010041690401004
- +/-2.5° rotating range
Self-centering quick clamp for Porsche16903800101690380010
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
Central clamp Porsche Carrera GT16903010021690301002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
Central clamp Porsche 911 GT3 and Turbo16903800021690380002
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
Self-centering quick clamp for Tesla16903801611690380161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
Self-centering quick clamp for Ferrari16903812991690381299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
Quick clamp Mercedes-Benz | OEM16908010021690801002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
Quick clamp BMW | OEM16908010011690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
Distance bolts for quick clamp Mercedes Benz | 100 mm16908010071690801007
- For one quick clamp
Distance bolts for quick clamp BMW | 120 mm16908010031690801003
- For one quick clamp
Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm16904010191690401019
- For one quick clamp
Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.16903111121690311112
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc.16903110891690311089
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
Set softline claws for 1 x Multi-fit clamp | Softline rims16903111641690311164
Set truck claws for 1 x Multi-fit clamp | Truck16903111151690311115
For convex wheels mounted to a double-bearing hub and dually wheels.
Length: 10cm
Extension set for Multi-fit clamps | 23 - 28"16903111131690311113
Dust cover target board | Q.Lign16902021551690202155
Scope of delivery: 1x protective cover
Storage kit | for 4x Q.Grip16908010481690801048
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 Q.Grip clamps. Can be positioned on each side of the vehicle for maximum efficiency.
Storage kit | for 4x MultiFit16908010471690801047
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 MultiFit clamps. Can be positioned on each side of the vehicle for maximum efficiency.
