- Very high quality and lifetime in workshop environment
- Steel balls for minimal friction and maximum precision

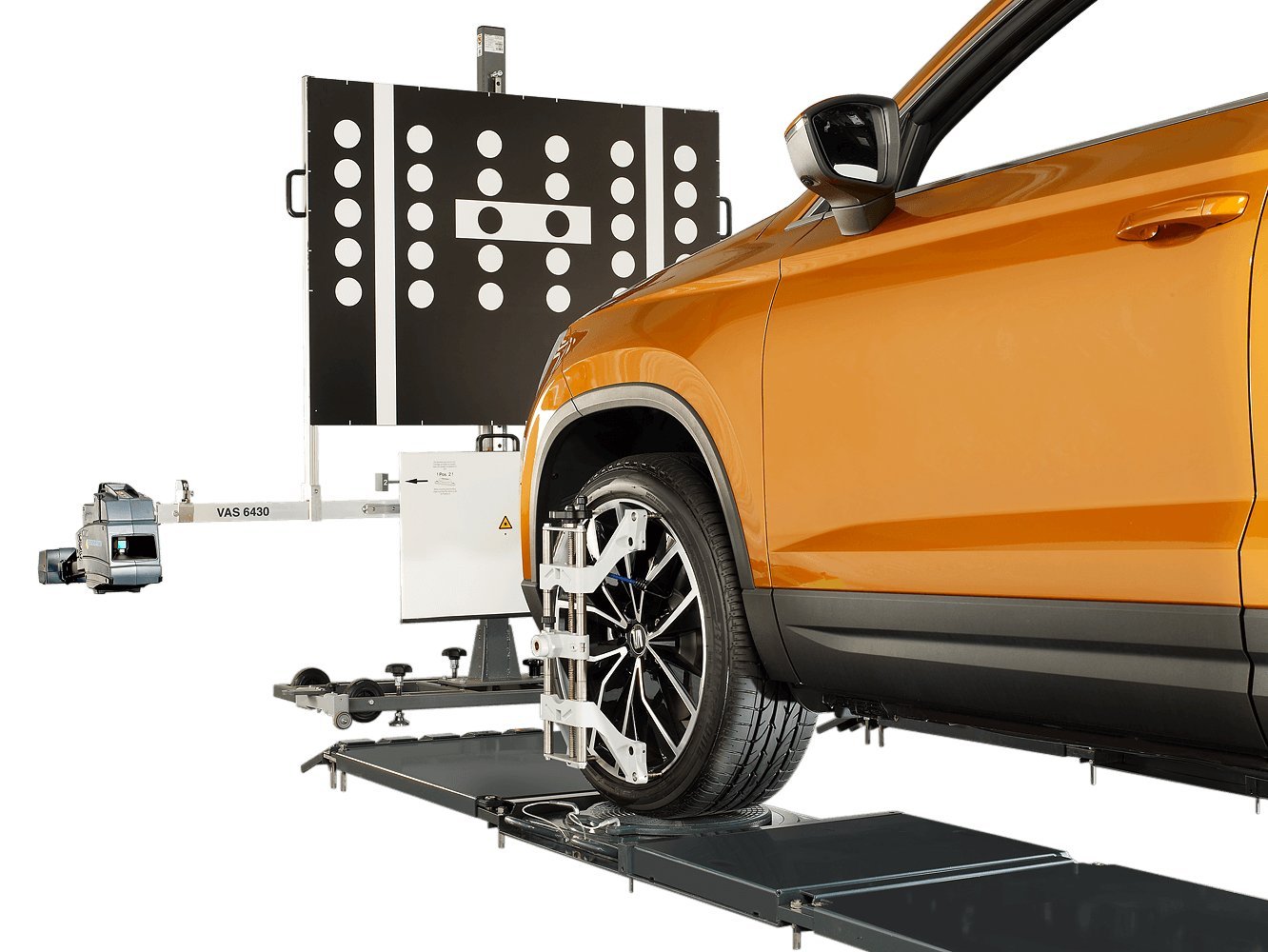

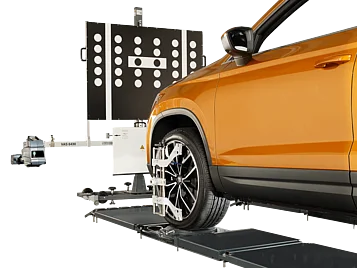

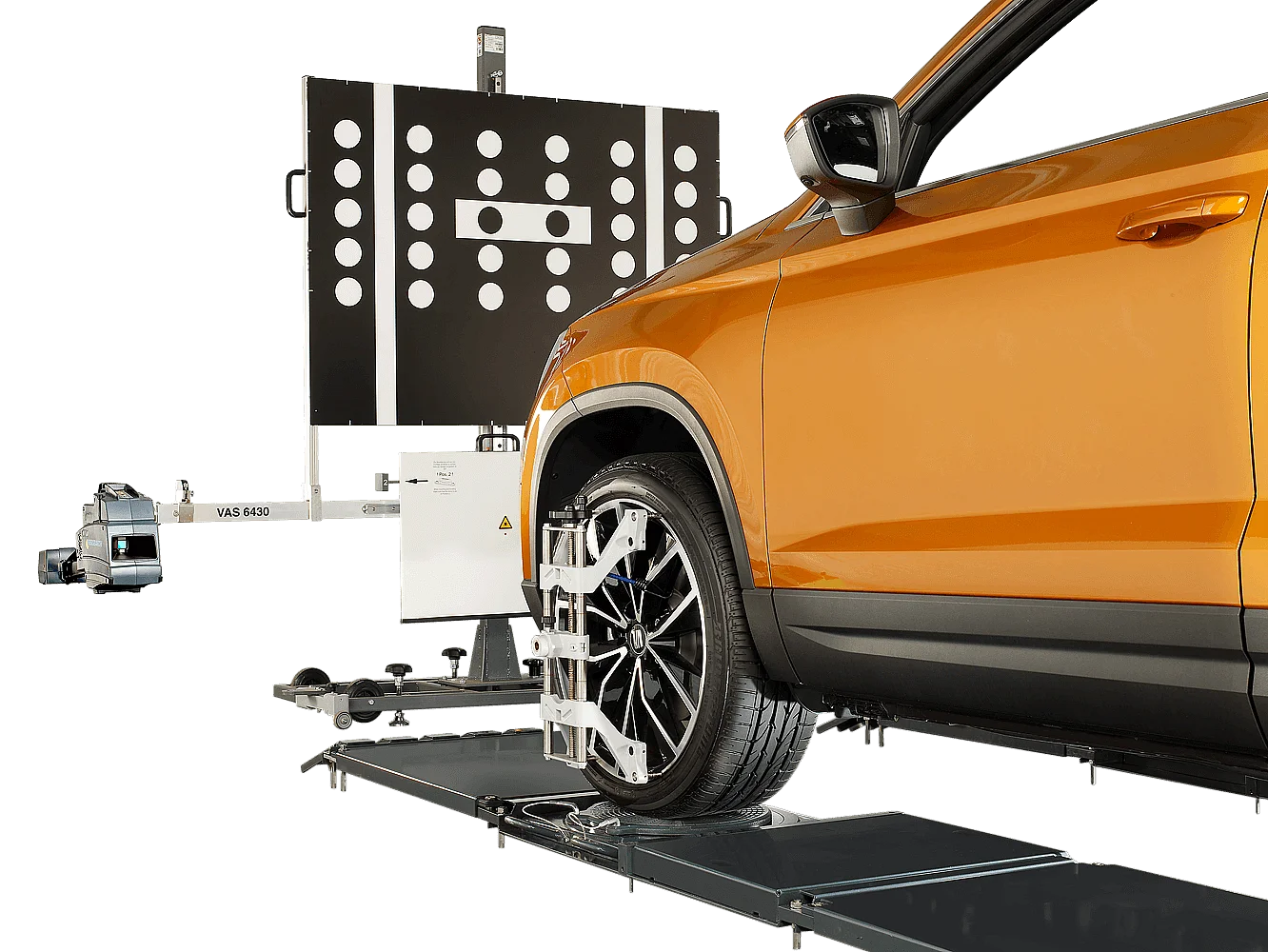

Perfectly integrated into ADAS calibration and head light testing:
- The space in front of the lift can be used for ADAS calibration boards and head light tester
- Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
- No need for extra cameras, cables, or clamps required for ADAS calibration
Best in class: +/- 2 minute accuracy:
- 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
- Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation
- No calibration to a specific lift allows a measurement on any wheel alignment bay
- Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops
- Intelligent and space-saving charging solution that can be mounted on any wall
- Quality made in Germany
- Also available as kit version; ideal for already existing alignment bays
- Data transmission: 433 Mhz
- Sensor head with encoder and battery power
- +Software with SmartTest for direct reception and ADAS calibration option
- Vehicle specs database
- Cabinet without PC
- Brake pedal depressor and steering wheel holder
Please note: Turntables, and wheel clamps need to be ordered separately!
| Weight | 114 kg |
|---|---|
| Packaging unit | 1 Pallet(s) |
| Operating temperature | 5 - 40 °C |
| Measuring system | - CCD |
| Frequency | 433 MHz |
| Storage temperature | -20 - 60 °C |
| Packaging length | 1150 mm |
| Packaging width | 1200 mm |
| Packaging height | 1600 mm |
| Gross weight | 144 kg |
| Relative humidity, use | (40 °C) 10 - 90 % |
| Height cabinet | 1111 mm |
| Width cabinet | 650 mm |
| Depth cabinet | 680 mm |
| Weight | 114 kg |
|---|---|
| Packaging unit | 1 Pallet(s) |
| Operating temperature | 5 - 40 °C |
| Measuring system | - CCD |
| Frequency | 433 MHz |
| Storage temperature | -20 - 60 °C |
| Packaging length | 1150 mm |
| Packaging width | 1200 mm |
| Packaging height | 1600 mm |
|---|---|
| Gross weight | 144 kg |
| Relative humidity, use | (40 °C) 10 - 90 % |
| Height cabinet | 1111 mm |
| Width cabinet | 650 mm |
| Depth cabinet | 680 mm |
- Mechanical aluminum turntable Precision16904010281690401028
- Electronic aluminum turntable without connecting cable | Precision16904010131690401013
- Enables full steering lock on CCD, Touchless and Q.Lign wheel aligners
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
- Protective rubber cover for aluminum turntable16904020011690402001
- Additional protection from dirt and liquids
- Sliding plate for rear axle | short16904010031690401003
- +/- 10° rotating range
- Sliding plate for rear axle | long16904010041690401004
- +/-2.5° rotating range
- Drive-on ramps for two aluminum turntables16907010521690701052
- Drive-on ramps for turntables including connecting piece and drive off protection
- Enables rolling compensation on lifts without embedded turntables
- Drive-on ramps for turntables and sliding plates16904010081690401008
- Set of Drive-on ramps for turntables and sliding plates
- Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
- Extension set for Multi-fit clamps | 23 - 28"16903111131690311113
- Set truck claws for 1 x Multi-fit clamp | Truck16903111151690311115
For convex wheels mounted to a double-bearing hub and dually wheels.
Length: 10cm
- Central clamp Porsche Carrera GT16903010021690301002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
- Central clamp Porsche 911 GT3 and Turbo16903800021690380002
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
- Self-centering quick clamp for Porsche16903800101690380010
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
- Self-centering quick clamp for Tesla16903801611690380161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Self-centering quick clamp for Ferrari16903812991690381299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
- Quick clamp Mercedes-Benz | OEM16908010021690801002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
- Quick clamp BMW | OEM16908010011690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
- Distance bolts for quick clamp Mercedes Benz | 100 mm16908010071690801007
- For one quick clamp
- Distance bolts for quick clamp BMW | 120 mm16908010031690801003
- For one quick clamp
- Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm16904010191690401019
- For one quick clamp
- Precision spoiler adapter Porsche16903010041690301004
- Possible adjustment from 85 - 165 mm
- For use in combination with VAG 1813, VAG 1995 and VAS 6141
- Spoiler adapter 50 mm16904010051690401005
- Spoiler adapter 100 mm16901210011690121001
- Wallboard for sensor heads16903111461690311146
- Space saving solution for charging sensor heads on the wall
- Frees up space in the workshop and safely stores sensor heads when not in use
- Cable set 16904010121690401012
- Emergency cable for power and data transmission of the sensor heads
- Toe press bar for Mercedes Benz16936000011693600001
