Computer interface kit for installation into the new control cabinet, direct connection to the computer via USB cable (up to 1.5 m), USB board for control cabinet, USB cable, ICperfrom Garage Car Software License and Tablet App License (not for test lane)
New! Power-Box for the BD car series

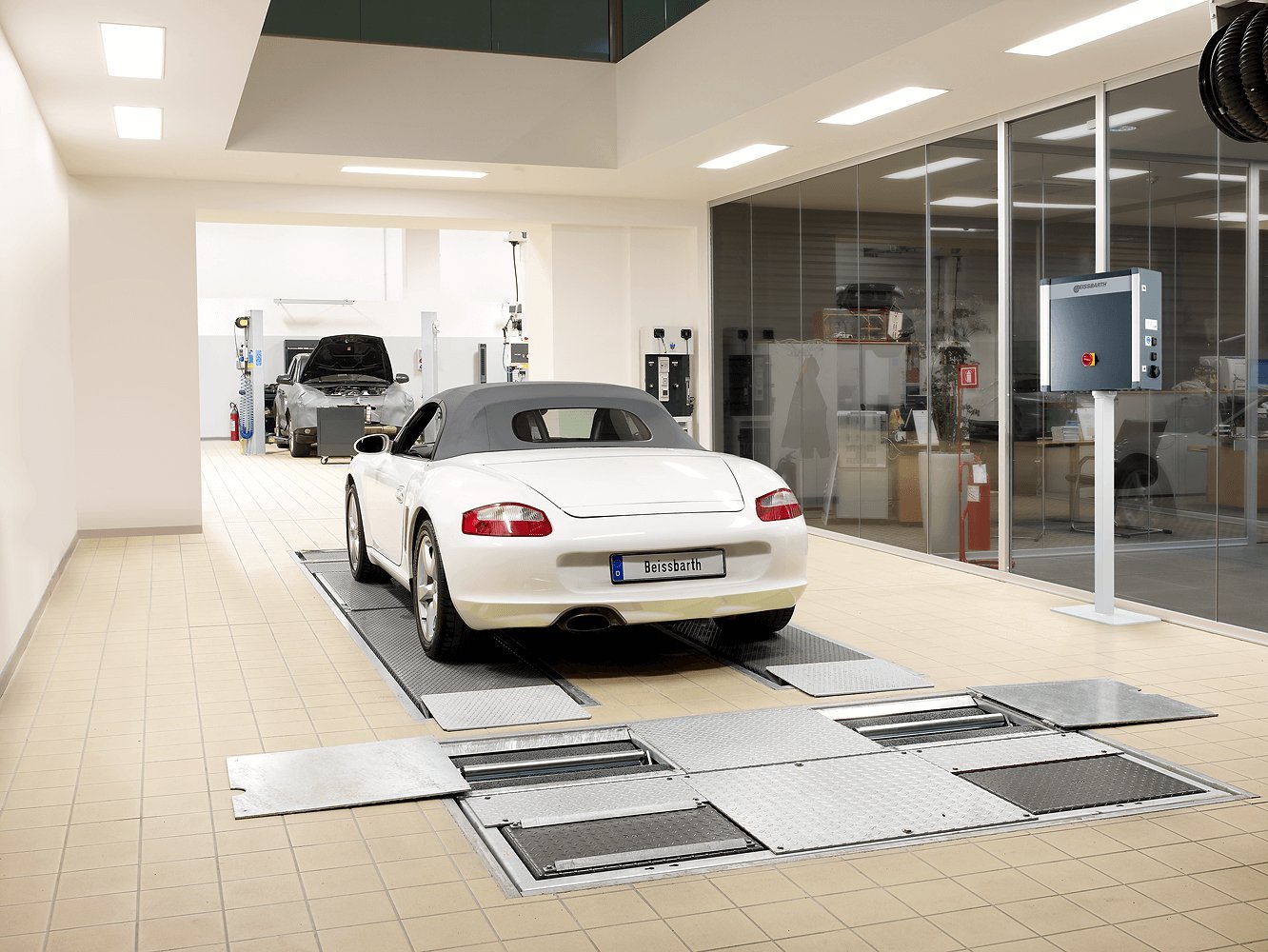

BD car brake testers comply with the guideline and are thus suitable for general vehicle inspections. At the same time, there are modular auxiliaries for diagnoses as well as repair and service tasks at the workshop. Absolutely in line with specific customer requirements, the brake tester can be expanded and turned into a test lane for suspension testing and side slip testing. Operation, visualization and evaluation of the test results are made by means of an analogue display or via PC.
Just use the workshop computer
- The new kits allow additional connectivity options for the BD series. The integrated PC kit is designed for its installation inside the new Power-Box and allows direct linkage to the workshop PC.
More service, more customers
In order to ease and speed up the brake service, the BD car series and the new Bosch Power-Box can be complemented by powerful accessories:
- Column for the Power-Box
- PC trolley
- LCD display set for the display unit
- Professional IR PC kits (integrated or external)
- Pedal-force sensor (wireless version)
- Roller covers
- IR remote control
Access to multiple functions by means of a linked workshop PC

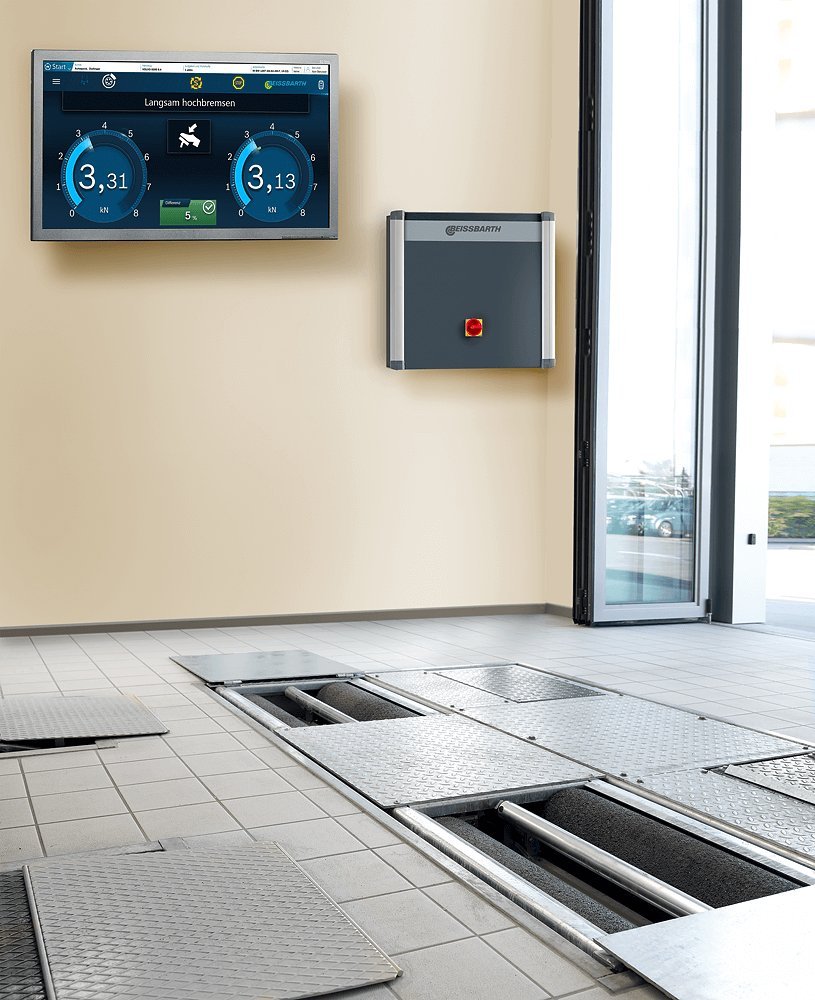

- Visualization of test procedures and results via screen
- Job processing, customer database, statistic evaluation or print and archiving functions can be used to full extent
- Test protocols are printed automatically
- Quick extension and conversion into a test lane is possible
- Analogue display is not required

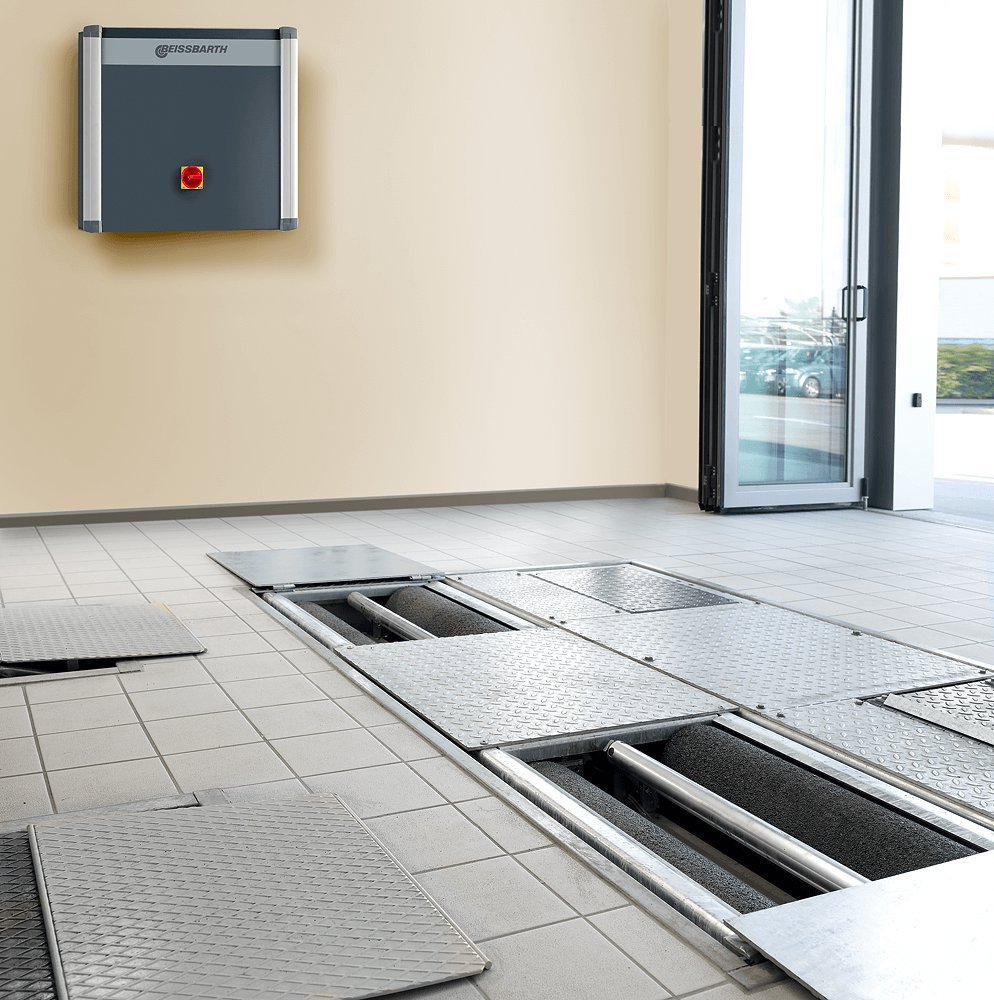

Power-Box for the BD car series
- Compact, robust and service-friendly
- All electronics are compact and safety stowed
- Easily accessible on the wall or on column
- All electronic components are safely stored within a light-weight and easily accessible housing
- 230 V socket for the laptop of the service-technician or tester
- Easily accessible main switch with emergency shutdown
- Integrated door pocket for the technical documentation
- Wall mount (series version) or column (optional)
Four possibilities for PC connections
To operate with PC, one of the following kits is needed
- Integrated ICperform PC-Kit (incl. ICperform Software license and Tablet app license), part No. 1 691 601 964
- External ICperform PC-Kit (incl. ICperform Software license and Tablet app license), part No. 1 691 601 965
- Integrated ICperform PC-Kit with Remote Control (incl. ICperform Software license), part No. 1 691 601 963
- External ICperform PC-Kit with Remote Control (incl. ICperform Software license), part No. 1 691 601 966
Minimum PC requirements: Windows 11 Professional, CPU 3GHz (Intel Pentium Gen 12), 8GB DDR5, 512GB SSD, 6x USB, 1x RS232 (for infrared remote control), 1x LAN
| Max. wheel diameter | 1000 mm |
|---|---|
| Weight | 443 kg |
| Max. rim diameter | 32 " |
| Protection class | IP 54 |
| Length | 660 mm |
| Height | 250 mm |
| Measuring system | DMS |
| Width | 2360 mm |
| Test speed | 5,2 km/h |
| Coefficient of friction dry/wet | 0,8 / 0,7 |
| Roller length | 700 mm |
| Roller elevation | 25 mm |
| Min. rim diameter | 10 " |
| Max. axle weight | 2,5 t |
| Roller diameter | 205 mm |
| Min. test width | 800 mm |
| Max. test width | 2200 mm |
| Packaging length | 2420 mm |
| Packaging width | 820 mm |
| Packaging height | 700 m |
| Gross weight | 473 kg |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 381 mm |
| Max. drive-over load | 4,0 t |
| Height difference upper edge of roller to workshop floor | -10 mm |
| Max. wheel diameter | 1000 mm |
|---|---|
| Weight | 443 kg |
| Max. rim diameter | 32 " |
| Protection class | IP 54 |
| Length | 660 mm |
| Height | 250 mm |
| Measuring system | DMS |
| Width | 2360 mm |
| Test speed | 5,2 km/h |
| Coefficient of friction dry/wet | 0,8 / 0,7 |
| Roller length | 700 mm |
| Roller elevation | 25 mm |
| Min. rim diameter | 10 " |
| Max. axle weight | 2,5 t |
|---|---|
| Roller diameter | 205 mm |
| Min. test width | 800 mm |
| Max. test width | 2200 mm |
| Packaging length | 2420 mm |
| Packaging width | 820 mm |
| Packaging height | 700 m |
| Gross weight | 473 kg |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 381 mm |
| Max. drive-over load | 4,0 t |
| Height difference upper edge of roller to workshop floor | -10 mm |
- Integrated Icperform PC Kit with ICperform Software License and Tablet App License16916019641691601964
- External Icperform PC Kit with Icperform Software License and Tablet App License16916019651691601965
Computer interface kit with BUS cable for larger distances (standard 15 m, optional 30 m), USB box, USB cable, Icperform Garage Car Software License and Tablet App License (not for test lane)
- Integrated Icperform PC kit - IR with IR remote control and ICperform Software License16916019631691601963
Computer interface kit for installation into the new control cabinet, direct connection to the computer via USB cable (up to 1.5 m), USB board for control cabinet, USB cable, remote control and receiver, ICperform Garage Car Software License (not for test lane) | Prerequisite: serial PC interface (COM) for the operation of the receiver
- External Icperform PC kit with IR remote control and Icperform Software License16916019661691601966
PC connection kit with BUS Cable for long distances (standard 15 m, optional 30 m), USB-Box, USB cable, Remote control, ICperform Garage Car Software License (not for test lane) | Prerequisite: serial PC interface (COM) for the operation of the receiver
- Remote control 16917010181691701018
Already available in some of SW Kits, but also can be sold separatly | incl. Battery
- IR receiver 16937700011693770001
Already available in some of SW Kits, but also can be sold separatly
- Extension cable for receiver | 10 m16916030001691603000
Enabels flexibility of the IR receiver position (up to 10 m)
- Remote control and IR Receiver16917013111691701311
incl. Battery
- Testlane PC with a serial interface16918107031691810703
System requirements when using your separate PC:
- Operating system: Windows 7, Windows 10, 64 Bit
- Processor: Celeron 2.7 GHz
- Random access memory: 4 GB
- Hard disk: 500 GB
- Serial port: 2 x RS232 (COM)
- PC cabinet Standard | empty16918112501691811250
Moving trolly enables the best arrangement and positioning of all PC components | Empty trolly! To add PC component you can additionally order 1 691 810 743.
- PC gear pack for PC cabinet Standard16918107431691810743
Full PC equipment | incl. PC, monitor, monitor holder, mouse, keyboard and printer
- Monitor holder 17 - 27"16937408841693740884
Includes only the monitor holder (Monitor not included)
- Monitor holder 22 - 35"16937409111693740911
Includes only the monitor holder (Monitor not included)
- Display RAL 7040 | analog, oval | swivel arm, IR receiver16916017711691601771
- Display RAL 7016 | analog, rectangular | LCD, swivel arm, IR receiver16916017621691601762
- Display RAL 7040 | analog, rectangular | swivel arm, IR receiver16916017761691601776
- Stand column aluminium | RAL 7016 | for TV Monitor / rectangular analog display16918107221691810722
Alternative to wall mounting, mounting solution for TV monitors or square analogue displays | TV adapter for stand column / swivel arm (item no. 1 691 810 722) is also required to attach a TV monitor!
- Stand column RAL 7040 | for TV Monitor / oval analog display16916004701691600470
Alternative to wall mounting, mounting solution for TV monitors or oval analogue displays
- TV Adapter for stand column16918123241691812324
for stand column (1 691 600 470)
- TV adapter for stand column / swivel arm16918123251691812325
TV mount for wall mounting on the swivel arm (item no. 1 691 601 959) or for floor mounting with stand column (item no. 1 691 810 722)
- Swivel arm for TV adapter16916019591691601959
Scope of delivery for all analogue displays | Can also be ordered separately to mount the TV monitor on the wall (Additional TV adapter for stand column / swivel arm (item no. 1 691 812 325) required!)
- Stand column for Power-Box16916014351691601435
Alternative to wall mounting of the Power-Box (included with all brake testers)
- Edge protection for car brake tester | 700 mm16916020001691602000
Edge protection for single brake tester with 700 mm roller length
- Installation frame for car brake tester | 700 mm16916021151691602115
Installation frame for single brake tester with 700 mm roller length
- Drive-over plate swiveling | 700 mm16916010111691601011
Swiveling drive-over plate for roller set with 700 mm (2 pieces)
- Drive-over plate pluggable | 700 mm16916010101691601010
Pluggable drive-over plate for roller set with 700 mm (2 pices)
- Axle load scale 4 sensors16916016061691601606
4 sensors used to determine vehicle axle load. Additionally requires support strips 1691601009 when brake tester is installed without inground frame.
- Support strips for axle load scales | 2 pcs16916010091691601009
This solid support is used to adjust the screws of the axle load weighting sensors. Only required when brake tester is installed without inground frame.
- Pedal force wireless16916014011691601401
- Smooth start 400 V16916014371691601437
for smoother start of brake tester operation | for countries using 400 V
- Cableset 400 V | Power-Box to roller set | 30 m16916014441691601444
Extention cable for connecting the Power-Box to roller set
- Joint play detector GST 651 | 230 V16916500011691650001
- The geometry of the axle to be tested is displaced by moving the test plates of the GST 6xx. This makes it possible to detect impermissible play at joints and wheel bearings or to localise cracks at stub axles for example.
- The GST 651 is only to be used for the inspection of double-track vehicles with a maximum axle load of 4000 kg.
- Remote control over control lamp with control buttons (Ø 60 mm, length 205 mm, incl. Halogen bulb with reflector, GU5,3 / 38°, 12 V / 20 W)
- Joint play detector GST 651 | 400 V16916500001691650000
- The geometry of the axle to be tested is displaced by moving the test plates of the GST 6xx. This makes it possible to detect impermissible play at joints and wheel bearings or to localise cracks at stub axles for example.
- The GST 651 is only to be used for the inspection of double-track vehicles with a maximum axle load of 4000 kg.
- Remote control over control lamp with control buttons (Ø 60 mm, length 205 mm, incl. Halogen bulb with reflector, GU5,3 / 38°, 12 V / 20 W)
- Digital calibration kit for brake tester16916013921691601392
Digital calibration kit with transport suitcase, digital sensor and calibration manual
- Installation frame for play detector GST 65116916510011691651001
- Lifting and lowering device | HUS 104 | for BD 4xxx and QB.4 brake tester | 700mm16916000151691600015
The solution that allows the fully automated lowering and lifting of the axle in and out of the brake tester:
- Ideal for premium vehicles or cars with low ground clearance
- Easier entry and exit of the roller brake tester
- The automatic lowering and lifting respects all necessary safety requirements
Recommended for intensive use in PTI inspection centers:
- Enables a more fluid, faster and simplified procedure
- Increases the safety of the brake tester
- Increases the longevity of mechanical components (reduces undesired shocks and accelerations of the bench)
- Minimizes the risk of spoiler damage in sports cars
- Fully automated
