Truck Brake Tester BD 8000 | 18t | 1100mm | 8-point scale
Article number: 1 691 810 125
BD 8000: The truck brake tester for the most demanding requirements
Maximum performance, zero compromises: the BD 8000
- For trucks with an axle load of up to 18 tons
- Fully galvanized
- Electromagnetic engine brake
- Quartz-coated premium rollers with a length of 1100 mm
Fully equipped with no compromises
- 8-point scale for measuring axle weight and deceleration
- 2 rotation speeds
- 4x4 automatic all-wheel drive detection
- ASA livestream
- Speed sensor
- 50mm roller elevation for precise and safe testing
- Including ICperform software
- Including ICperform tablet app
Display options: analog, digital or mobile
- Analog: Classic display on analog display
- Digital: Full control with ICperform software on your PC
- Mobile: Measurement values directly on the tablet in the driver's seat
ICperform software – analog is so yesterday
- Clarity at first glance: Intuitive and quick to use
- Targeted control of any axle
- Clear display of axle weight, brake force difference, minimum braking, brake pressure per axle, runout, rolling resistance, etc.
- Print and database function
- Networking with other test devices in the test lane
ICperform via tablet app: Test and control without getting out
- No constant getting in and out
- Measurement values directly from the driver's seat
- Convenient control of the entire test procedure
Modularly expandable at any time
- APS3 wireless pressure sensors: wireless measurement of pressure values in truck or trailer braking systems
- BPF 200 wireless pedal force meter: wireless measurement of pedal pressure for repeatable braking
- MSS 8400 quick-track tester: measures axle play and straight-line stability for axle alignment recommendations
- GST8508 and GST8600 joint play testers: quick detection of defects and wear in the wheel suspension
Scope of delivery:

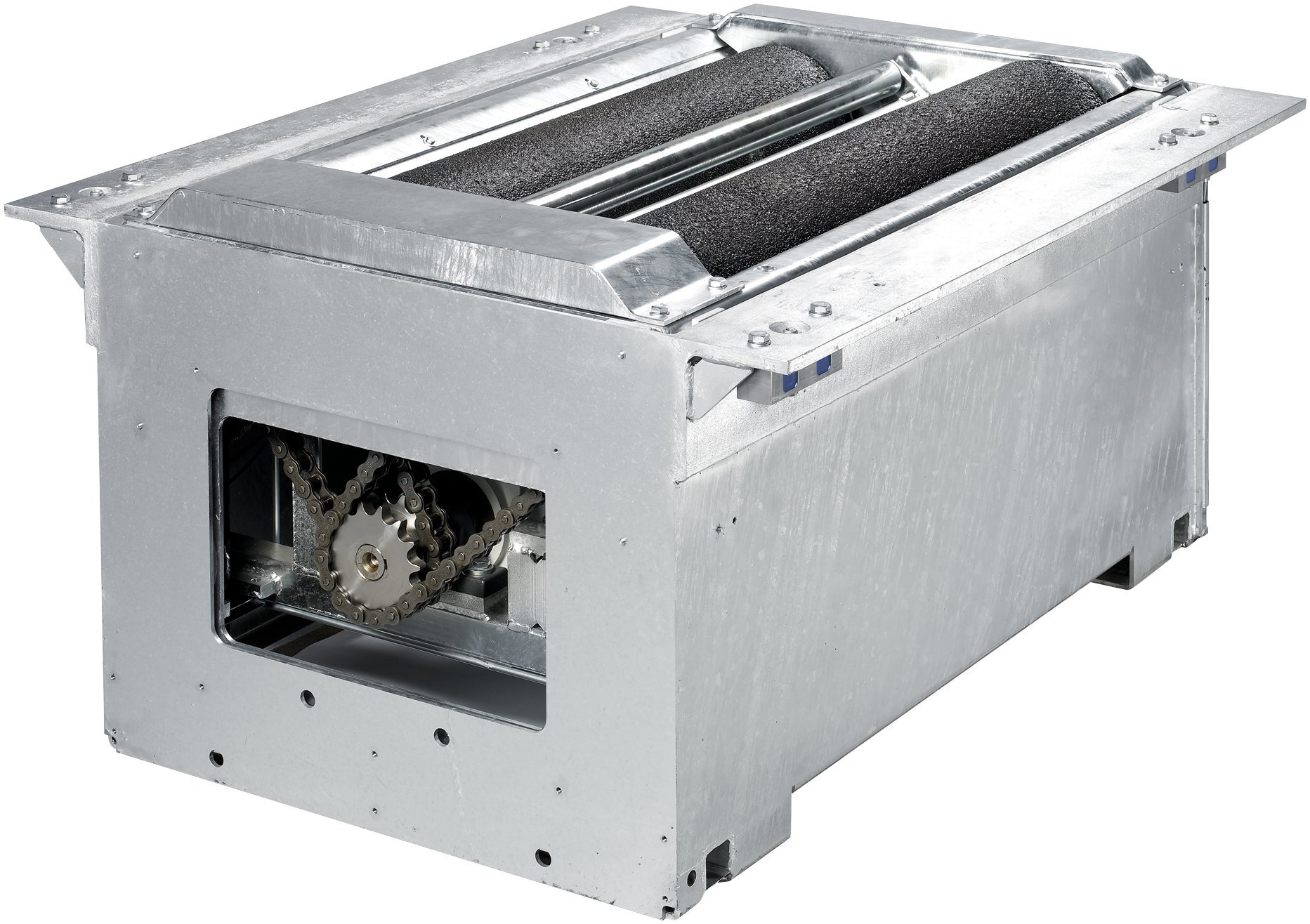

- 2x roller set with weighing function
- Control cabinet incl. ASA livestream
- 30 m cable set
- ICperform software
- ICperform tablet app
Minimum PC requirements: Windows 11 Professional, CPU 3GHz (Intel Pentium Gen 12), 8GB DDR5, 512GB SSD, 6x USB, 1x RS232 (for infrared remote control), 1x LAN. The additional use of a tablet requires a PC with ICperform software and a Wi-Fi network with router.
| Max. wheel diameter | 1200 mm |
|---|---|
| Protection class | IP 54 |
| Length | 1450 mm |
| Height | 782 mm |
| Electrical connection | 400 V |
| Measuring system | - DMS |
| Width | 1140 mm |
| Max. axle load testable | 18 t |
| Coefficient of friction dry/wet | 0,8 / 0,7 |
| Roller length | 1100 mm |
| Roller elevation | 50 mm |
| Roller diameter | 280 mm |
| Min. test width | 900 mm |
| Max. test width | 2900 mm |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 438 mm |
| Weight without lifting device approx. | 750 kg |
| Motor connection cable | 7 x 4 mm² |
| Gear ratio | 1 / 17,27 |
| Test speed (low) | 2,3 km/h |
| Test speed (high) | 4,6 km/h |
| Motor revolution speed (low) | 1450 rpm |
| Motor revolution speed (high) | 2950 rpm |
| Roller revolution speed (low) | 43,4 rpm |
| Roller revolution speed (high) | 87,6 rpm |
| Motor power (low) | 2 x 10 kW |
| Motor power (high) | 2 x 12,5 kW |
| ASA livestream | ja Standard |
| Number of test speeds | 2 |
| Built-in frame BD 8xxx / 1100 mm | separated, with pit | 1 691 810 762 |
|---|---|
| Built-in frame BD 8xxx / 1000/1100 mm | track width 3000 mm | non-separated (w/o pit) | 1 691 810 714 |
| Built-in frame BD 8xxx / 1000/1100 mm | track width 3100 mm | non-separated (w/o pit) | 1 691 810 715 |
| Built-in frame BD 8xxx / 1000/1100 mm | track width 3200 mm | non-separated (w/o pit) | 1 691 810 716 |
| Kit 4x drive-over plates | BD6xxx & BD8xxx | 1000mm & 1100mm | 1 691 810 717 |
| IR remote control Truck | 1 691 810 704 |
| IR Kit Truck | 1 691 810 702 |
| Testlane PC with a serial interface | 1 691 810 703 |
| PC cabinet Standard | empty | 1 691 811 250 |
| PC gear pack for PC cabinet Standard | 1 691 810 743 |
| Monitor holder 17 - 27" | 1 693 740 884 |
| Monitor holder 22 - 35" | 1 693 740 911 |
| Display RAL 7016 | analog, rectangular | LCD, svivel arm, IR receiver | 1 691 810 750 |
| Stand column aluminium | RAL 7016 | for TV Monitor / rectangular analog display | 1 691 810 722 |
| Pit safety PSC2 | cross | 1,5/2,5m | 1 691 810 724 |
| Pit safety PSC2 | cross | 2,5/2,5m | 1 691 810 725 |
| Pit safety PSC1 | long | 15m | 1 691 810 726 |
| Swivel bracket PSC1 | 1 692 100 102 |
| Warn-System for air pressure sensors | 1 691 810 735 |
| Digital calibration kit for brake tester | 1 691 601 392 |
| Air pressure sensors | Truck | APS 3 | 1 693 770 658 |
| ASA/APS3 wireless connection kit | Truck | 433Mhz | 1 693 770 673 |
| Adaptation kit for Semmler Tachocontrol BD8xxx | 18 to | 1 691 810 737 |
| Adaptation kit for tachograph test with proximity switch BD8xxx | 18 to | 1 691 810 736 |
