- Very high quality and lifetime in workshop environment
- Steel balls for minimal friction and maximum precision
Perfectly integrated into ADAS calibration and head light testing:
- The space in front of the lift can be used for ADAS calibration boards and head light tester
- Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
- No need for extra cameras, cables, or clamps required for ADAS calibration
Best in class: +/- 2 minute accuracy:
- 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
- Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation
- No calibration to a specific lift allows a measurement on any wheel alignment bay
- Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops
- Intelligent and space-saving charging solution that can be mounted on any wall
- Quality made in Germany
- Also available as kit version; ideal for already existing alignment bays
- Data transmission: 433 Mhz
PC requirements: 2 x 2,4Ghz CPU, 250GB, 2x USB 2.0, Windows 10/11
- Sensor head with encoder and battery power
- +Software with SmartTest for direct reception and ADAS calibration option
- Vehicle specs database
- Cabinet without PC
- Brake pedal depressor and steering wheel holder
Please note: Turntables, and wheel clamps need to be ordered separately
| Operating temperature | 5 - 40 °C |
|---|---|
| Storage temperature | -20 - 60 °C |
| Packaging length | 1150 mm |
| Packaging width | 1200 mm |
| Packaging height | 1600 mm |
| Gross weight | 144 kg |
| Relative humidity, use | (40 °C) 10 - 90 |
| Measuring system | - CCD |
| Weight | 114 kg |
| Height cabinet | 1111 mm |
| Width cabinet | 650 mm |
| Depth cabinet | 680 mm |
| Packaging unit | 1 Palette(n) |
| Frequency | 433 MHz |
| Operating temperature | 5 - 40 °C |
|---|---|
| Storage temperature | -20 - 60 °C |
| Packaging length | 1150 mm |
| Packaging width | 1200 mm |
| Packaging height | 1600 mm |
| Gross weight | 144 kg |
| Relative humidity, use | (40 °C) 10 - 90 |
| Measuring system | - CCD |
| Weight | 114 kg |
|---|---|
| Height cabinet | 1111 mm |
| Width cabinet | 650 mm |
| Depth cabinet | 680 mm |
| Packaging unit | 1 Palette(n) |
| Frequency | 433 MHz |
-
Mechanical aluminum turntable Precision 1690401028 1690401028
-
Central Clamp VAS 6830 | Porsche 911 GT3 and Turbo ASE 485 233 00 000 ASE 485 233 00 000
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
-
Self-centering quick clamp VAS 6918 for Porsche ASE 485 237 00 000 ASE 485 237 00 000
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
-
Self-centering quick clamp for Tesla 1690380161 1690380161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
-
Self-centering quick clamp for Ferrari 1690381299 1690381299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
-
Quick clamp Mercedes-Benz | OEM 1690801002 1690801002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
-
Quick clamp BMW | OEM 1690801001 1690801001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
-
Distance bolts for quick clamp Mercedes Benz | 100 mm 1690801007 1690801007
- For one quick clamp
-
Distance bolts for quick clamp BMW | 120 mm 1690801003 1690801003
- For one quick clamp
-
Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm 1690401019 1690401019
- For one quick clamp
-
Precision spoiler adapter Porsche 1690301004 1690301004
- Possible adjustment from 85 - 165 mm
- For use in combination with VAG 1813, VAG 1995 and VAS 6141
-
Central Clamp VAG 6828 | Porsche Carrera GT 1690301002 1690301002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
-
Electronic aluminum turntable without connecting cable | Precision 1690401013 1690401013
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
-

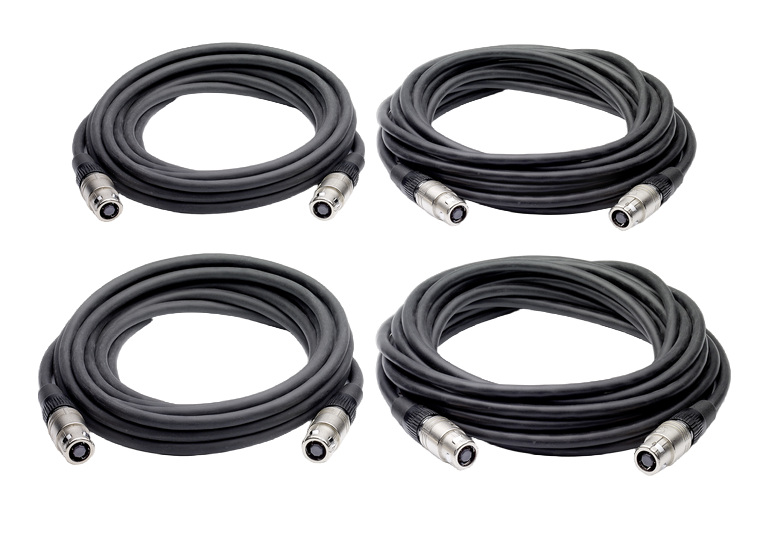

Cable set 1690401012 1690401012
- Emergency cable for power and data transmission of the sensor heads
-
Extension set for Multi-fit clamps | 23 - 28" 1690311113 1690311113
-
Set truck claws for 1 x Multi-fit clamp | Truck 1690311115 1690311115
For convex wheels mounted to a double-bearing hub and dually wheels.
Length: 10cm
-
Wallboard for sensor heads 1690311146 1690311146
- Space saving solution for charging sensor heads on the wall
- Frees up space in the workshop and safely stores sensor heads when not in use
-
Sliding plate for rear axle | short 1690401003 1690401003
- +/- 10° rotating range
-
Sliding plate for rear axle | long 1690401004 1690401004
- +/-2.5° rotating range
-
Protective rubber cover for aluminum turntable 1690402001 1690402001
- Additional protection from dirt and liquids
-
Drive-on ramps for two aluminum turntables 1690701052 1690701052
- Drive-on ramps for turntables including connecting piece and drive off protection
- Enables rolling compensation on lifts without embedded turntables
This product is suitable for two turntables.
-
Drive-on ramps for turntables and sliding plates 1690401008 1690401008
- Set of Drive-on ramps for turntables and sliding plates
- Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
-
Spoiler adapter 50 mm 1690401005 1690401005
-
Spoiler adapter 100 mm 1690121001 1690121001
-
Toe press bar for Mercedes Benz 1693600001 1693600001
