Expand/collapse all

• Printer for Beissbarth trolleys16937704151693770415


• Set 4x wall bracket | Q.Grip16901010771690101077

  Set of 4 wall brackets for storing Q.Grips.


• Set 4x Magnetic clamp for light trucks and RVs | 6x130mm & 6x205mm bolt circles16901010831690101083

  Set of 4 magnetic clamps for light trucks and RVs. Only for bolt circle diameters 6x130mm and 6x205mm. Magnet length: 55mm


• Steering wheel holder 16901022131690102213


• Brake lock 16901022121690102212


• Filling piece (1x) for aluminum turntable16901022111690102211


• Storage kit | for 4x Q.Grip16908010481690801048

  Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 Q.Grip clamps. Can be positioned on each side of the vehicle for maximum efficiency.


• Dust cover target board | Q.Lign16902021551690202155

  Scope of delivery: 1x protective cover


• Magnetic clamps for wheel bolts | 100mm16907015211690701521
  • Quick and gentle attachment on wheel bolts instead of the rim
  • Secure and central hold for ultimate precision
  • Suited for 3/4/5/6 hole rims


• Magnetic clamps for wheel bolts | 75mm16907015081690701508
  • Quick and gentle attachment on wheel bolts instead of the rim
  • Secure and central hold for ultimate precision
  • Suited for 3/4/5/6 hole rims


• Set of Drive-on ramps | for RaceScales16920002211692000221
  • Set of Drive-on ramps for turntables and sliding plates
  • Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
  • Made from recycled rubber granulate
  • Withstands snow, water, salt, oil under normal workshop conditions
  • Temperature stable between -30°C to 80°C
  • Produced free from pollutants according to REACH

  Dimensions:

  • Height: 50mm
  • Width: 495mm
  • Length: 500mm
  • Length rolling surface: 200mm
  • Length slope: 300mm
  • Slope: 8°


• RaceScales | VAS 701009 | Precision turntable with load cells | 433Mhz16904001001690400100

  Electronic corner weight scales: Optimal adjustment of the chassis in connection with the wheel alignment

  The electronic corner weight scales carry out high-precision weight distribution on the vehicle. In connection with the wheel alignment, the chassis can be optimally adjusted. This provides maximum levels of grip and better overall handling of the vehicle.

  By the help of the corner weight scales the static weight distribution as well as the center of gravity optimization are integrated into to wheel alignment process. This not only ensures a stable and levelled working surface for optimal measurement results but also allows the immediate re-adjustment of camber, caster, and toe settings after the change in ride height. In motorsports the RaceScales ensure best race settings of the vehicle for faster lap times.

  Digital corner balance scales:

  • High precision for best measurement results
  • High performance lithium polymer battery, wireless
  • Seamless integration in all common wheel alignment lifts
  • Compatible with all Beissbarth wheel aligners and third-party systems
  • Intuitive software with clear display of measured values
  • Always-on-top mini screen with live values of the four wheel weights

  Software functions for optimal weight distribution:

  • Weight distribution per wheel
  • Weight distribution per axle
  • Difference between front and rear
  • Weight distribution per side
  • Difference between left and right
  • Cross Weight
  • Cross Weight in %
  • Total weight
  • Live center of gravity
  • Weighing protocol with company and customer information

  Features wheel alignment turntables:

  • With steering sensor for maximum steer measurement with CCD, Touchless, and Q.Lign wheel aligner
  • Very high quality and durability
  • Steel balls for reduced friction and higher accuracy
  • Compatible with all common wheel alignment lifts
  • Seamless integration in wheel alignment lifts without fixed rear sliding base


• Adapter set Q.Grip | for Q.Lign | 4 pcs.16901010101690101010

  Q.Grip: The closest you will get to Touchless.

  • Mounting of targets in under 5 seconds
  • No rim contact, no scratches or damages!
  • Instantaneously change between different tyre diameters with our new patented clamping mechanism
  • Three arms guarantee safe and precise grip during the complete alignment
  • No removal of hubcaps!
  • No knob twisting!
  • No fixed wheel assignment, position on any wheel!
  • Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)


• Trolley with 27"monitor | for Q.Lign16902010551690201055

  Scope of delivery: - Trolley - Monitor arm - 27" monitor


• Inground lift adaptation | for Q.Lign | 1x16902011221690201122

  2x required for Q.Lign


• Mounting set for MultiFit (4x) | for wall installation16901010941690101094


• Mounting set for OE quick clamps (4x) | for wall installation16901010901690101090


• Lift Adaptation Extension (1x) | for wide vehicles on narrow lifts16902021731690202173

  Extension for Q.Lign lift adaptation, for measuring wide vehicles on narrow lifts. 2x required per wheel aligner.


• Mouse and keyboard | Wireless16937706341693770634


• Ballast bag 20 kg16937400031693740003

  Used for vehicles that require loading to a specific ride height in order to perform alignment


• Ballast bag 5 kg16937400011693740001

  Used for vehicles that require loading to a specific ride height in order to perform alignment


• Wheel chock set 2 pcs.16920001561692000156

  Scope of delivery:

  • 2 x Wheel chock


• Filling piece for aluminum precision turntable16901020411690102041

  1x Precision filling piece for one precision turntable.
  Required quantity per turntable: 2


• Inclinometer and steering wheel level | Mercedes-Benz16901022311690102231

  Mercedes-Benz Inclinometer Combo-Instrument:

  • Measurement: Measurement of the inclination of the control arm and drive shaft with electronic data transfer of measured values to the wheel aligner.
  • Includes: Includes all mounting adapters for the most common Mercedes-Benz models.
  • Function: After the inclination measurement, the inclinometer is inserted into the steering wheel to monitor the steering wheel position throughout the entire alignment process.
  • Reporting: Automatic transfer of the steering wheel position into the measurement report.

  Included adapters for the following vehicles:


  • Cavity adapter: Mercedes E-Class (on the control arm)

  • Crown adapter: Mercedes A-Class, C-Class, S-Class, E-Class (Type W210 and W211), CLA-Class (Type 117), Citan (Type 415, rear axle only)

  • Angle adapter: Mercedes Vaneo (Type 414, 2001–2005)

  • Measuring adapter: Mercedes Citan (Type 415, front axle only)

  • Adapter plate: Mercedes CLK (Type 208, 1997–2003), C-Class (Type 202, 1993–2001)

  Important: Only compatible with wheel aligner: Q.Lign




  Technical Data:

  • Measuring range: ±45∘ from the horizontal

  • Accuracy: 0.1∘ in the range from 0∘ to ±45∘

  • Repeatability: ±0.1∘

  • Operating temperature range: 0∘C to 50∘C

  • Power supply: 3 x 1.5V AA batteries / Service life approx. 20 hours in normal operation at approx. 50% display brightness

  • Bluetooth: 5.2 Low Energy connectivity

  • Weight: 550 grams (without adapter)


• Bracket set for magnetic clamps (4x) | for wall installation16901010921690101092


• Accessory Cart | for Magnetic Clamps16901011281690101128

  For storing 4x magnetic clamps, brake lock, and steering wheel lock


• Vehicle database update Q.Lign | Key Card16900020221690002022
  • Access to the newest vehicles specs directly from the OEM
  • Authorises the licensing of all IAM vehicle databases for the calender year in which the Key Card has been activated


• Accessory cart | MultiFit clamps16901011291690101129

  For storing 4x MultiFit clamps, brake locks, and steering wheel locks


• Accessory cart | for OE quick clamps16901011271690101127

  For storing 4x OE quick clamps, brake locks, and steering wheel locks


• Mounting set for brake and steering wheel lock (2x) | for wall installation16901010891690101089

• Wall board for Q.Lign16902010541690201054


• Tablet | Android | 10.1"16937706441693770644

  Incl. protection case


• Lift adaptation for Q.Lign16902010351690201035

  2x required for Q.Lign


• Electronic aluminum turntable without connecting cable | Precision16904010131690401013
  • Enables full steering lock on CCD and Touchless aligner
  • Very high quality and lifetime in workshop environment
  • Precision turntable without connecting cable
  • Steel balls for minimal friction and maximum precision


• Extension for vehicles with narrow track width or RVs16907011271690701127

  Extension of the measuring boards:

  • When used with a very narrow vehicle: use 4x extension
  • For motorhomes with a wide body: use 2x extension on rear axle


• Adapter for Consul alignment lifts | for Q.Lign and Easy3D16907013111690701311
  • Used to attach Beissbarth lift adapters to wheel alignment lifts without straight side walls
  • Suitable for Easy 3D lift adapter 1690701231
  • Suitable for Q.Lign lift adapters 1690201122 and 1690201035
  • Fits Beissbarth lifts VLH 4245 and VLH 4345, as well as Consul 4-post lifts with wheel alignment kit


• Drive-on ramps for turntables and sliding plates16904010081690401008
  • Set of Drive-on ramps for turntables and sliding plates
  • Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts


• Drive-on ramps for two aluminum turntables16907010521690701052
  • Drive-on ramps for turntables including connecting piece and drive off protection
  • Enables rolling compensation on lifts without embedded turntables

  This product is suitable for two turntables.


• Protective rubber cover for aluminum turntable16904020011690402001
  • Additional protection from dirt and liquids


• Connecting cable for electronic turntables16904030011690403001
  • Connecting cable between electronic turntables and sensor head
  • Enables full steering lock on CCD and Touchless aligner


• Electronic aluminum turntable without connecting cable | Standard16904010111690401011
  • Enables full steering lock on CCD and Touchless aligner
  • Very high quality and lifetime in workshop environment
  • Standard turntable without connecting cable


• Set truck claws for 1 x Multi-fit clamp | Truck16903111151690311115

  For convex wheels mounted to a double-bearing hub and dually wheels.

  Length: 10cm


• Set softline claws for 1 x Multi-fit clamp | Softline rims16903111641690311164


• Extension set for Multi-fit clamps | 23 - 28"16903111131690311113

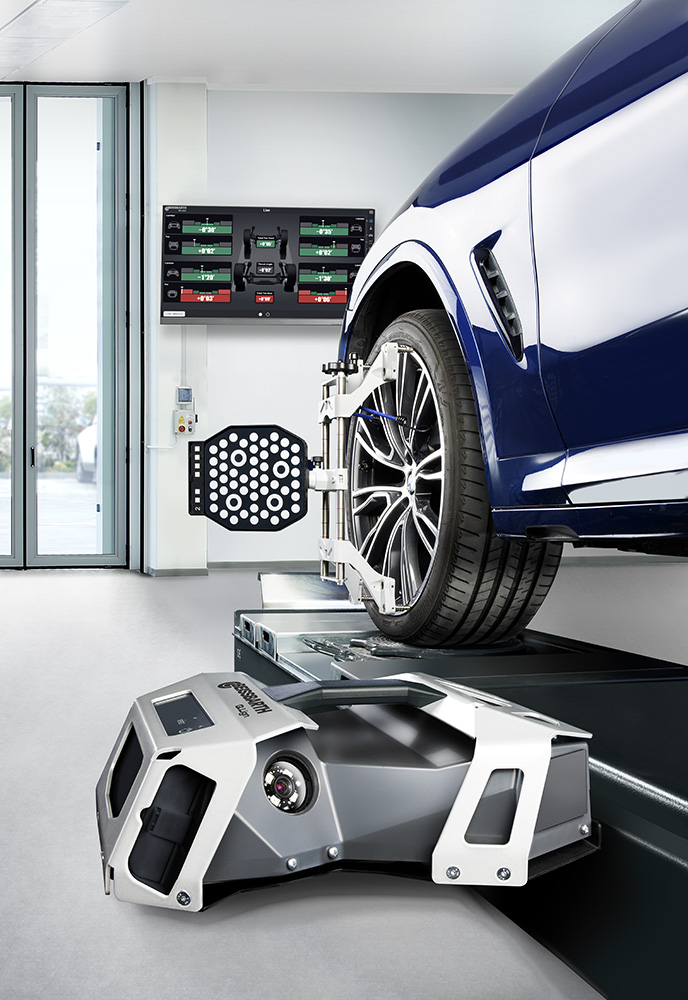

• Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc.16903110891690311089
  • High quality claws for gentle attachment to rims
  • Torque control for strong hold without deforming the rim


• Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.16903111121690311112
  • High quality claws for gentle attachment to rims
  • Torque control for strong hold without deforming the rim


• Central clamp Porsche Carrera GT16903010021690301002
  • Quick and secure mounting on the vehicle
  • Reduces clamping errors
  • Official VW special tool: VAG 6828


• Central clamp VAS 6830 Porsche 911 GT3 and TurboASE 485 233 00 000ASE 485 233 00 000
  • Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
  • Quick and secure mounting on the vehicle
  • Reduces clamping errors
  • Official VW special tool: VAS 6830


• Self-centering quick clamp VAS 6918 for PorscheASE 485 237 00 000ASE 485 237 00 000
  • Attaches to the center hole of the rim
  • Quick and secure mounting on the vehicle
  • Reduces clamping errors
  • Official VW special tool: VAS 6918
  • Not suited for Porsche vehicles with center wheel bolt!


• Emergency power box for Q.Lign16902010301690201030
  • Power supply of sensor heads in case of battery failure
  • Mobile use without fixed installation
  • Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)



  Note: Operation additionally requires the 19 V power supply (1693770648) which is included in the battery-powered Q.Lign scope of deliveries.


• Power supply for Q.Lign Accessories | 19 V RRC16937706481693770648

  For battery charging station and emergency power supply box of Q.Lign


• Battery for Q.Lign | Li-Ion | 99 Wh16902030531690203053


• Duo-battery charging station for Q.Lign | incl. accessories16902010691690201069


• Power connection cable 15 m16902030411690203041


• Power connection cable 10 m16902030251690203025


• Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm16904010191690401019
  • For one quick clamp


• Distance bolts for quick clamp BMW | 120 mm16908010031690801003
  • For one quick clamp


• Distance bolts for quick clamp Mercedes Benz | 100 mm16908010071690801007
  • For one quick clamp


• Quick clamp BMW | OEM16908010011690801001
  • Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
  • Quick and secure mounting on the vehicles
  • For ultimate precision
  • Homologated for BMW
  • Only suited for CCD and Q.Lign systems
  • Für Raddurchmesser bis 850mm
  • For original BMW rims with 4x100mm and 5x120mm pin hole pattern


• Quick clamp Mercedes-Benz | OEM16908010021690801002
  • Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
  • Quick and secure mounting on the vehicles
  • For ultimate precision
  • Only suited for CCD and Q.Lign systems
  • For wheel diameters up to 850mm
  • For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm


• Self-centering quick clamp for Ferrari16903812991690381299
  • Attaches to the center hole of the rim
  • Quick and secure mounting on the vehicle
  • Reduces clamping errors
  • Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)


• Self-centering quick clamp for Tesla16903801611690380161
  • Attaches to the center hole of the rim
  • Quick and secure mounting on the vehicle
  • Reduces clamping errors


• Mechanical aluminum turntable Standard16905010011690501001
  • Very high quality and lifetime in workshop environment
