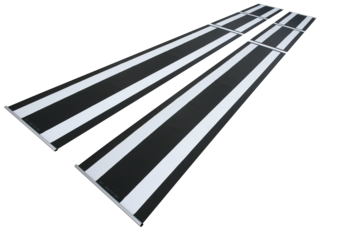

| 360° Umfeldkamera Kalibriermatten

Original Calibration Mats for Precise 360° Surround View Camera Calibration

360° Surround View System: Precision from a Bird’s-Eye Perspective
The 360° camera system (Surround View) ensures maximum safety during maneuvering. Four cameras—located at the front, rear, and side mirrors—provide image signals that a central control unit combines in real-time into a seamless Top-View. The display shows the vehicle as if a camera were filming from a height of 20 meters.

Precision through Professional Calibration
To ensure a distortion-free perspective, all cameras must be perfectly synchronized. Using state-of-the-art diagnostic hardware and specialized calibration mats, we ensure that the system delivers geometrically correct data and that transitions between cameras are displayed seamlessly.

Manufacturer-Compliant Calibration with VAS 721 001:

• Durable Performance: UV-resistant, long-lasting, and resistant to fuels and lubricants
• High Stability: Crease-free calibration mats made of robust material for reliable and precise calibration
• User-Friendly: Clamping rails for easy and convenient rolling
• Professional Storage: Includes a cylindrical bag for proper storage

Dimensions: 8000mm x 800mm.

Important Note:
When calibrating the surround view camera on a wheel alignment lift, ensure that the height difference between the vehicle's contact surface and the calibration mats is <10mm. Otherwise, correct calibration is not possible!
