Spare part for the VAS 6430/12 laser scanner calibration board. The VAS 6430/12-1 precision mount is required to hold the VAS 6350/3A line laser in conjunction with the VAS 6430/12 calibration board.
The VAS 6430/12 calibration board is used for the calibration of LiDAR sensors and is attached to the VAS 6430/1A base frame. LiDAR sensors were first installed in the Audi A8 (2018) and are increasingly required to support autonomous driving functions.

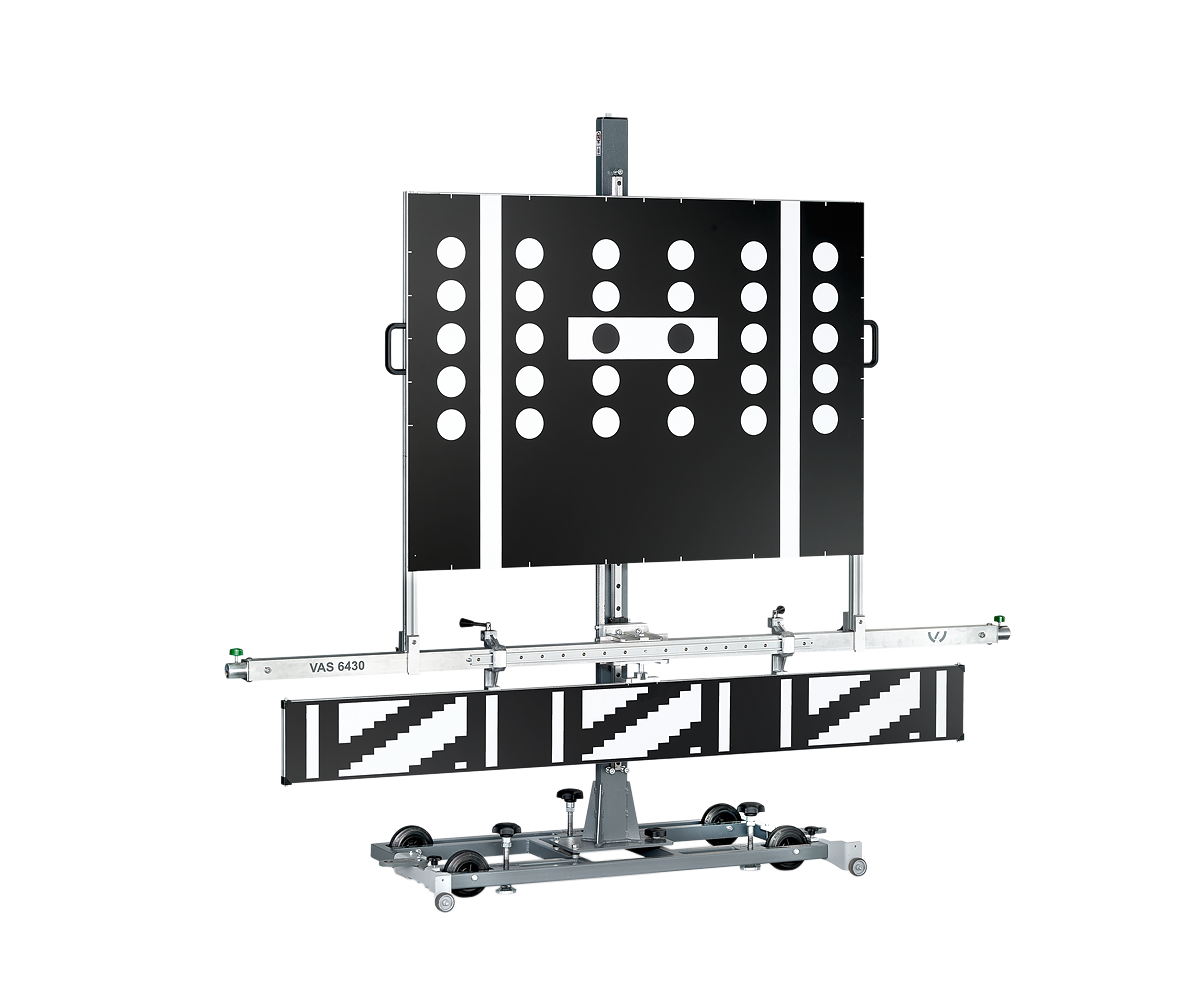

For calibration, the VAS 6430/12 is mounted on the crossbar of the VAS 6430/1A base frame, including the VAS 6430/12-2 laser mount. The VAS 6350/3A laser is inserted into this mount to perform the positioning relative to the LiDAR sensor. The actual software calibration is performed via the diagnostic tester.
Since the other calibration adapters must be stowed away while using the VAS 6430/12, two wall brackets are included in the scope of delivery. These can be used to store either both radar calibration adapters (VAS 6430/3 and VAS 6430/10) or the VAS 6430/12.
Important: Procurement is carried out exclusively through authorized Volkswagen Group distribution channels.

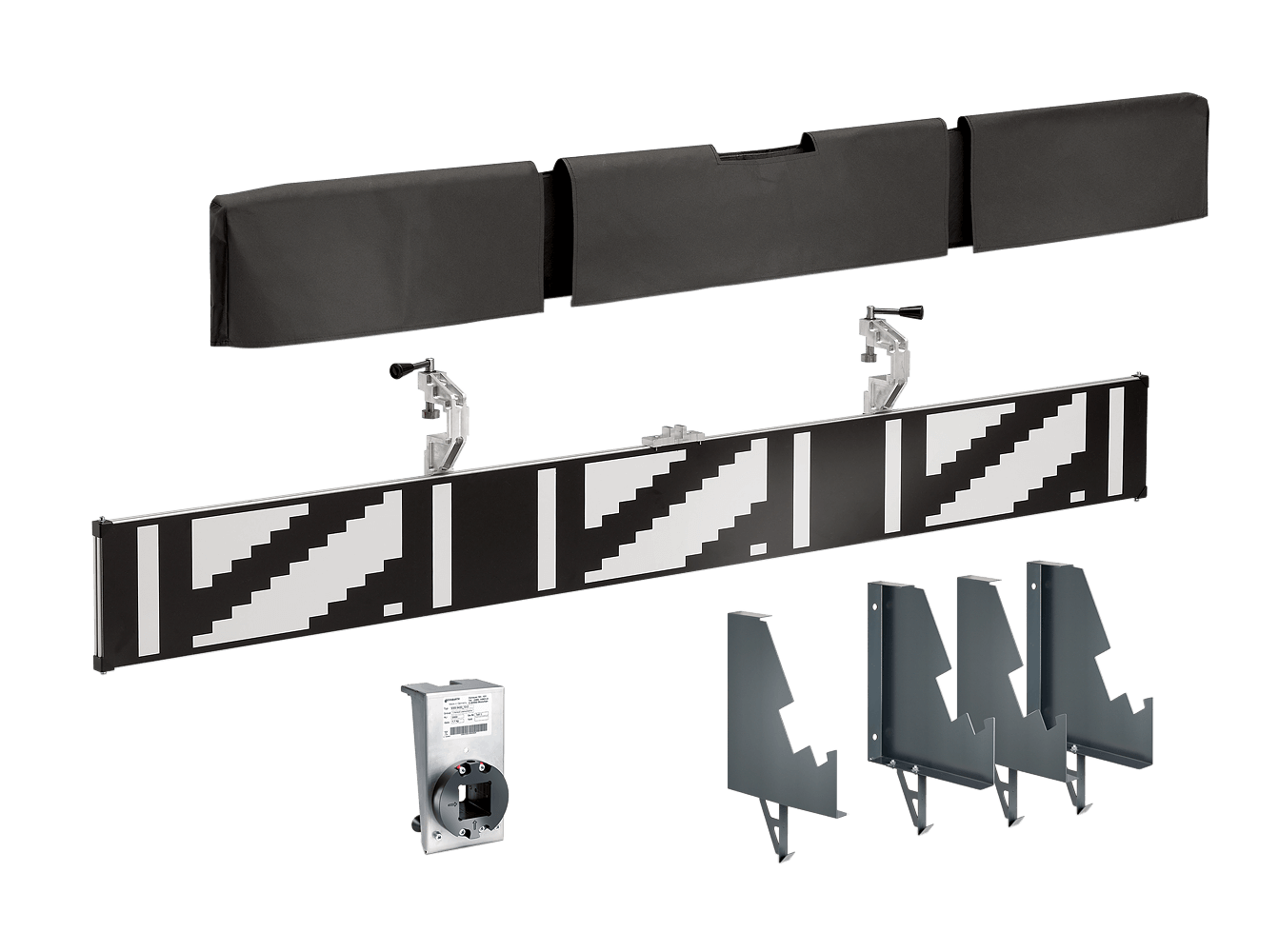

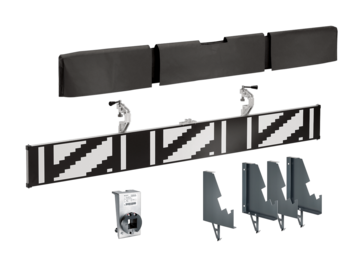

- 1x LiDAR calibration board VAS 6430/12
- 1x Mount VAS 6430/12-1 (for laser VAS 6350/3A)
- 1x Wall bracket set VAS 6430/12-2
- 1x Cover VAS 6430/12-3
- 1x Installation and operating instructions

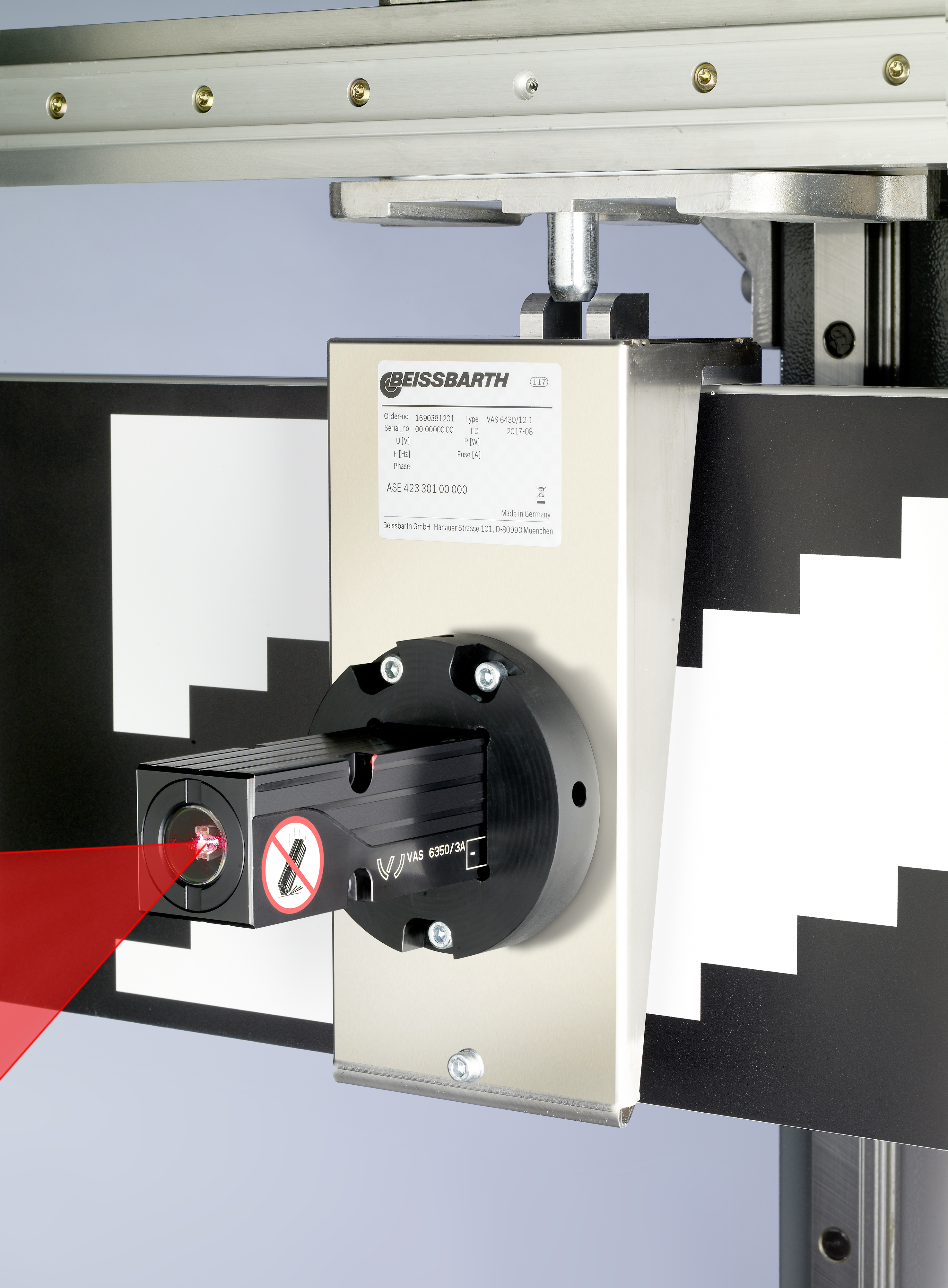

- VAS 6430/12-1 | Laser MountASE 423 301 00 000ASE 423 301 00 000
- VAS 6430/12-2 | Wall Bracket SetASE 423 302 00 000ASE 423 302 00 000

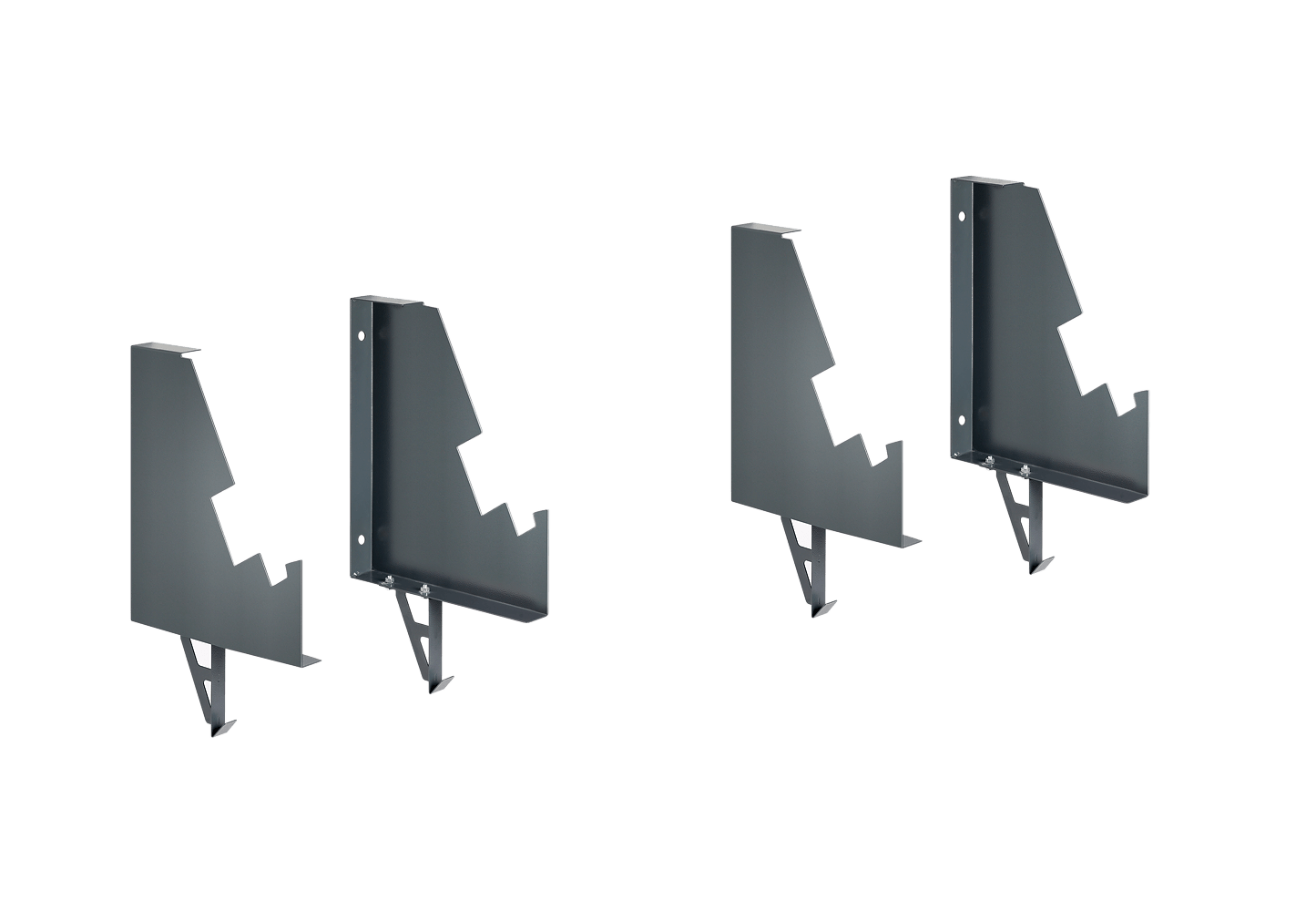

Spare part for the VAS 6430/12 laser scanner calibration board. The VAS 6430/12-2 wall bracket is used for storing the VAS 6430/12 calibration board or for the ACC reflective mirrors (VAS 6430/3 and VAS 6430/10) when they are not required.

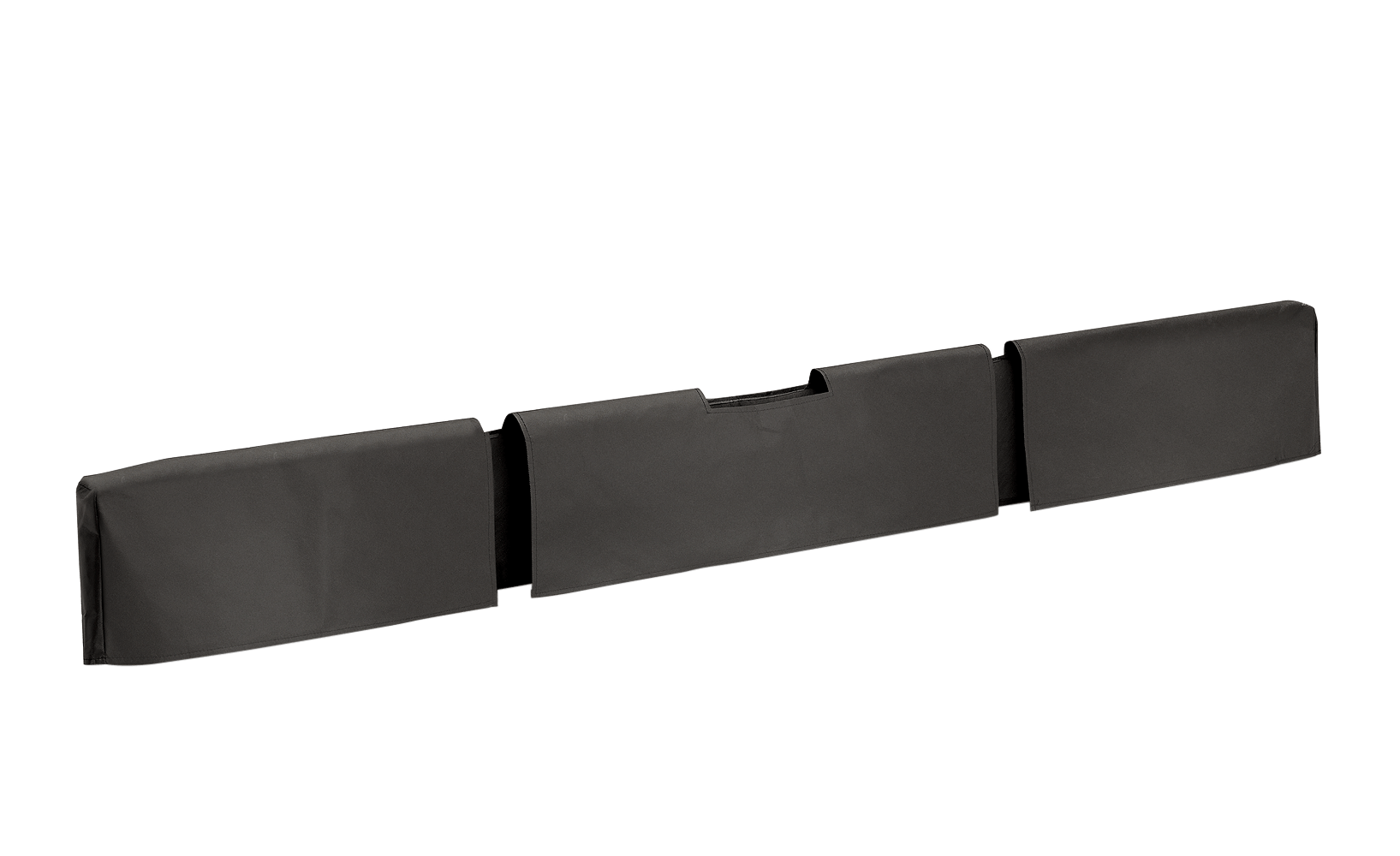

- VAS 6430/12-3 | Dust CoverASE 423 303 00 000ASE 423 303 00 000
Spare part for the VAS 6430/12 laser scanner calibration board. The VAS 6430/12-3 cover is used to protect the VAS 6430/12 calibration board.
