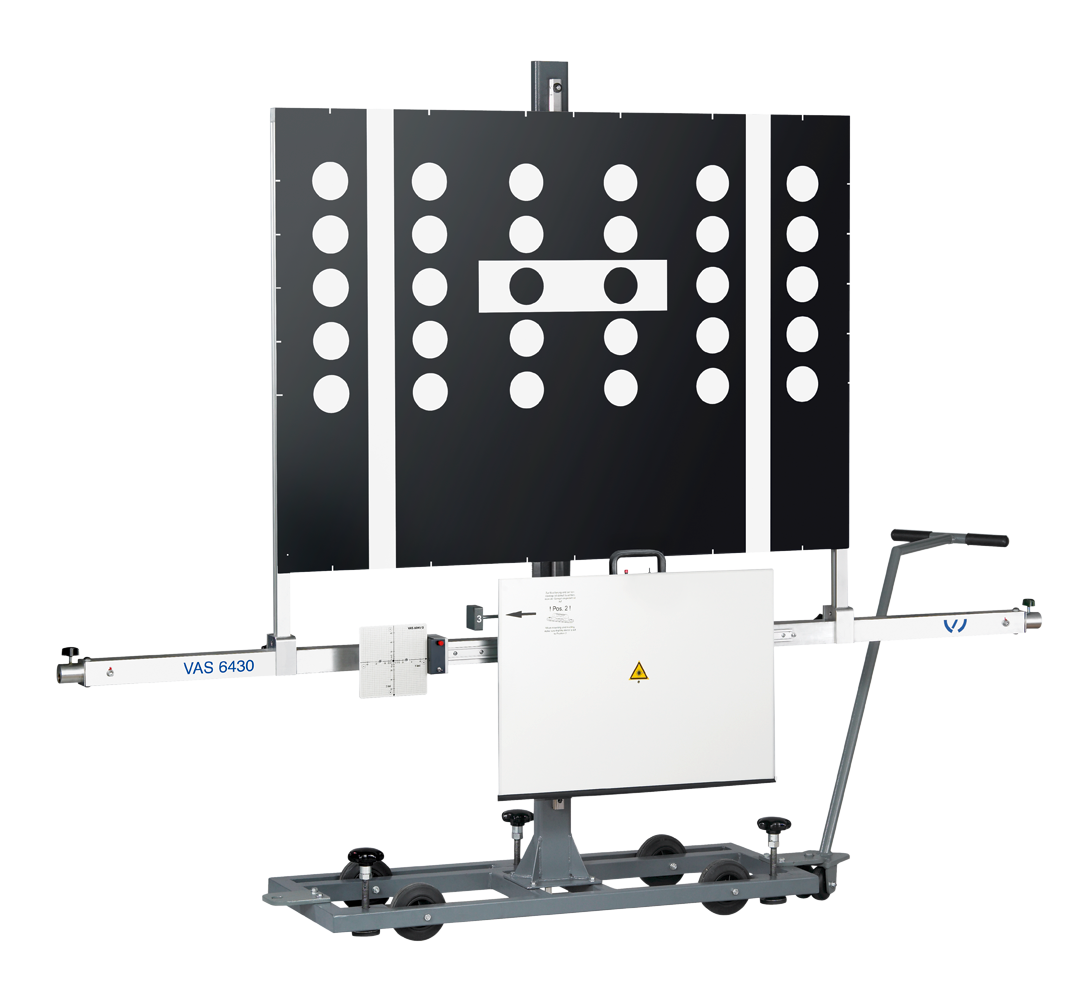

| Calibration Fixture Base Frame

Il VAS 6430/1A costituisce il basamento dell'attrezzatura di calibrazione VAS 6430. Tutti gli adattatori per la calibrazione dei sistemi di assistenza alla guida rivolti in avanti per il Gruppo VW vengono montati sul basamento VAS 6430/1A.
Two options are available for installing the calibration fixture in the workshop:

• The VAS 6430/8 mobile base frame for flexible positioning.
• The VAS 6430/7 stationary base frame with an XY rail system.

If front camera calibrations are performed on an above-ground lift, the VAS 6430/9 adapter must also be used. This serves as height compensation, as the front camera is installed very high on some transporters and light commercial vehicles (LCVs).

Older VAS 6041 (for ADR) and VAS 6190 (for ACC) calibration fixtures can be retrofitted using this base frame.

Important: Procurement is carried out exclusively through authorized Volkswagen Group distribution channels.
