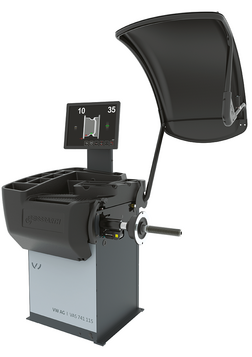

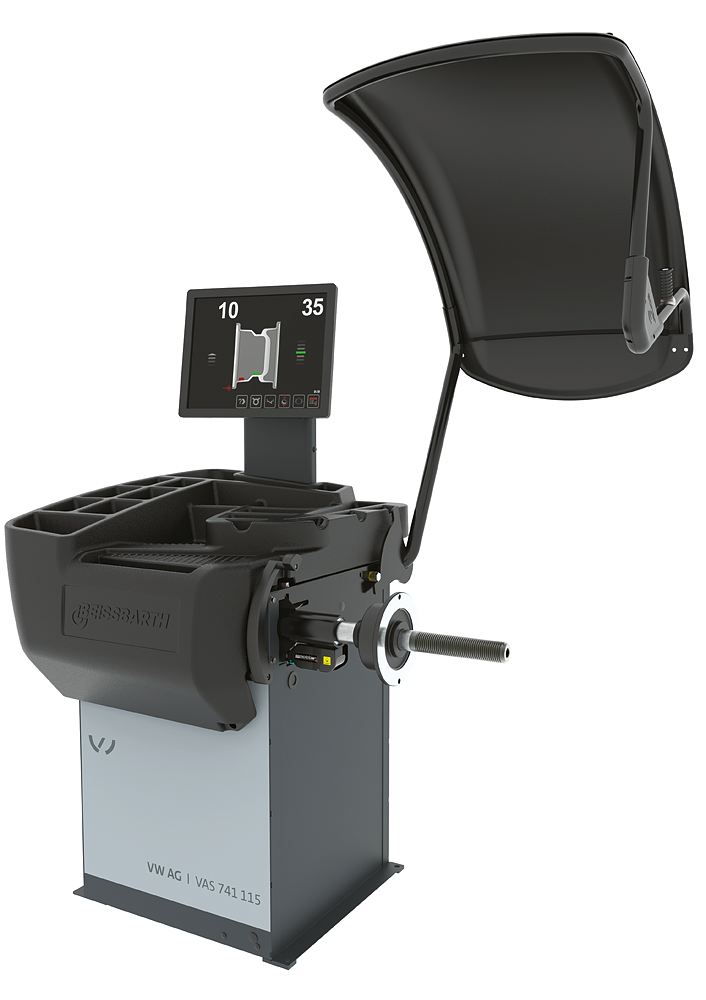

Eliminates vibrations day-in day-out: Wheel balancer for intensive us
Measurement and balancing
- Balancing in 4.7 seconds
- Automatic stop of the wheel in exact correction position
- LED for better visibility when placing weights
- Internal line laser for precise positioning of weights
- Split program for hiding weights behind different spokes
Wheel data recognition
- Automatic data arm for measuring distance and diameter and weight placement
- Automatic selection of clip-on and adhesive weight program
- Highest measurement accuracy +/- 0.5g
Auto Adaptive Mode
- Dynamic tolerance adjustment based on weight and size
- Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver
Wheel guard with integrated sonar
- Automatic recognition of rim width in steel and aluminium rims
- Without manual input with measuring gauge
- Closing of wheel guard automatically starts balancing program
19" touchscreen monitor
- Graphical step-by-step illustrations
- Simplifies correct balancing with guided processes
- Touchscreen usbale with gloves on
Quick clamping
- Mechanical clamping with quick-lock nut
- Stable 40mm shaft
- Wheel weights up to 75kg
- Optional with wheel lift
One Plane Balancing
- Eliminates dynamic imbalance with only one weight instead of two
- Fewer correction positions on the rim
- Less consumption of weights
Upgrade to Pro version (optional): Upgradable with sonar for runout measurement and Hubmatch function.
- 4 cones Ø43-112,5mm
- Quick-lock nut Pro Grip 40x4
- Clamping cap
- Pressure ring
- Rubber ring
- 60g counterweight
- Weight pliers
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1480 mm |
| Packaging width | 1130 mm |
| Packaging height | 1165 mm |
| Length | 1300 mm |
| Height | 1770 mm |
| Width | 1300 mm |
| Max. wheel diameter | 1117 mm |
| Max. rim diameter | 30 " |
| 10 " | |
| Weight | 120 kg |
| Motor power | 0,15 kW |
| Max. rim width | 20 " |
| Max. wheel weight | 75 kg |
| Measuring speed | 100 U/min |
| Measuring time | 4 s |
| 0 g | |
| Min. rim width | 1 " |
| Shaft diameter | 40 mm |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Stackable | 2 Stück |
| 13 Stück | |
| Units per 40ft container | 30 Stück |
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1480 mm |
| Packaging width | 1130 mm |
| Packaging height | 1165 mm |
| Length | 1300 mm |
| Height | 1770 mm |
| Width | 1300 mm |
| Max. wheel diameter | 1117 mm |
| Max. rim diameter | 30 " |
| 10 " | |
| Weight | 120 kg |
| Motor power | 0,15 kW |
| Max. rim width | 20 " |
|---|---|
| Max. wheel weight | 75 kg |
| Measuring speed | 100 U/min |
| Measuring time | 4 s |
| 0 g | |
| Min. rim width | 1 " |
| Shaft diameter | 40 mm |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Stackable | 2 Stück |
| 13 Stück | |
| Units per 40ft container | 30 Stück |
- Flange extension | Off-Road wheels a rims with high ET16959016671695901667

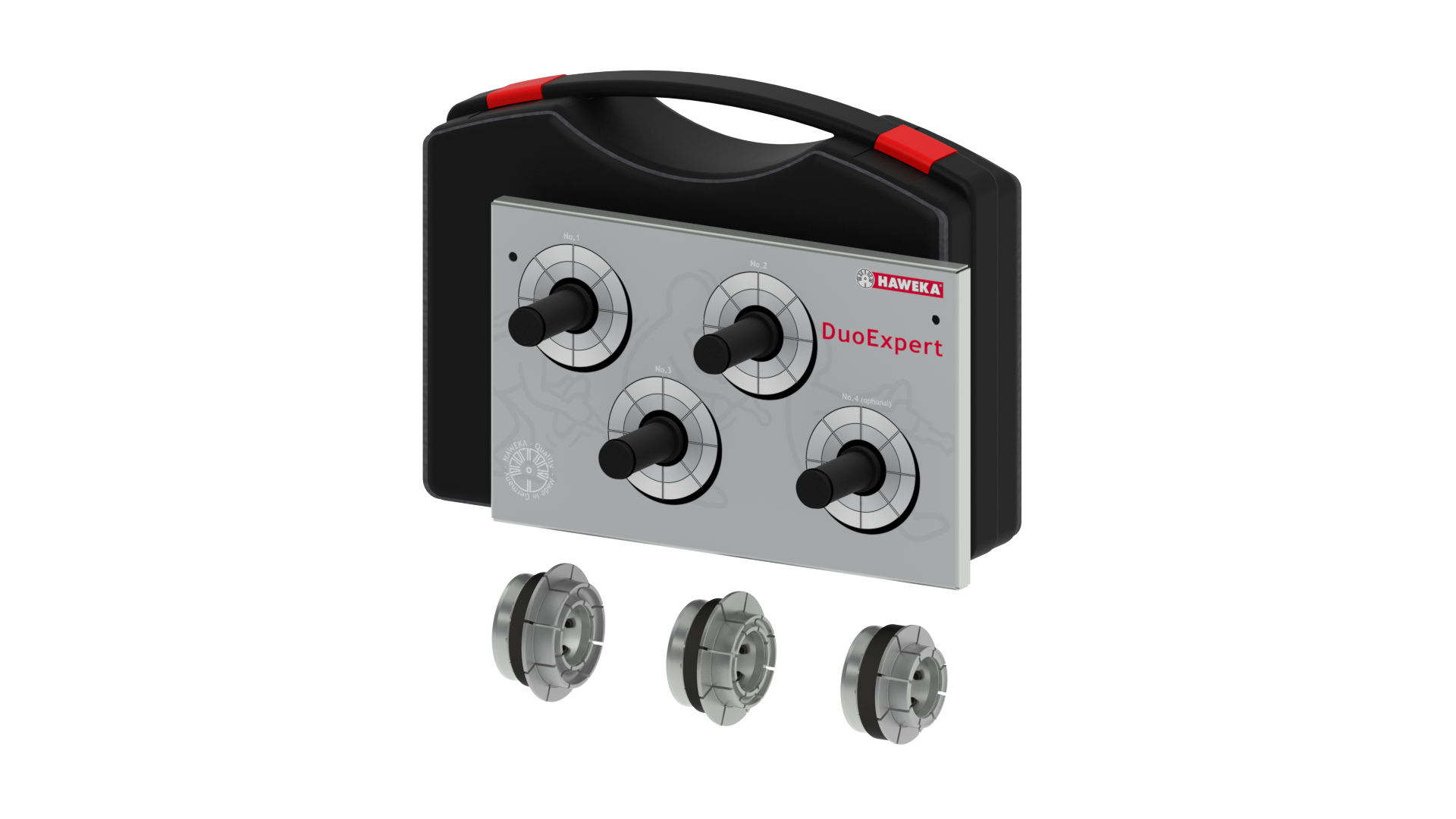

- DuoExpert Collet Set | Set of 3 | 54 - 78 mm16956566981695656698
Center Bore Diameter: 54–78 mm
Clamping Type: Manual / Pneumatic
For Wheel Type: Passenger Cars
Required For: Mounting via the wheel center bore. Covers approximately 95% of common passenger cars.
Application: Wheels should be clamped from the inside using the cone.
Use In Combination With: Stand-alone (optimal results with type-specific clamping plate or Quick Plate)
Quantity: 1 Set with 3 collets
Required Quantity per Wheel: 1
Not Suitable For: Wheels without a center bore

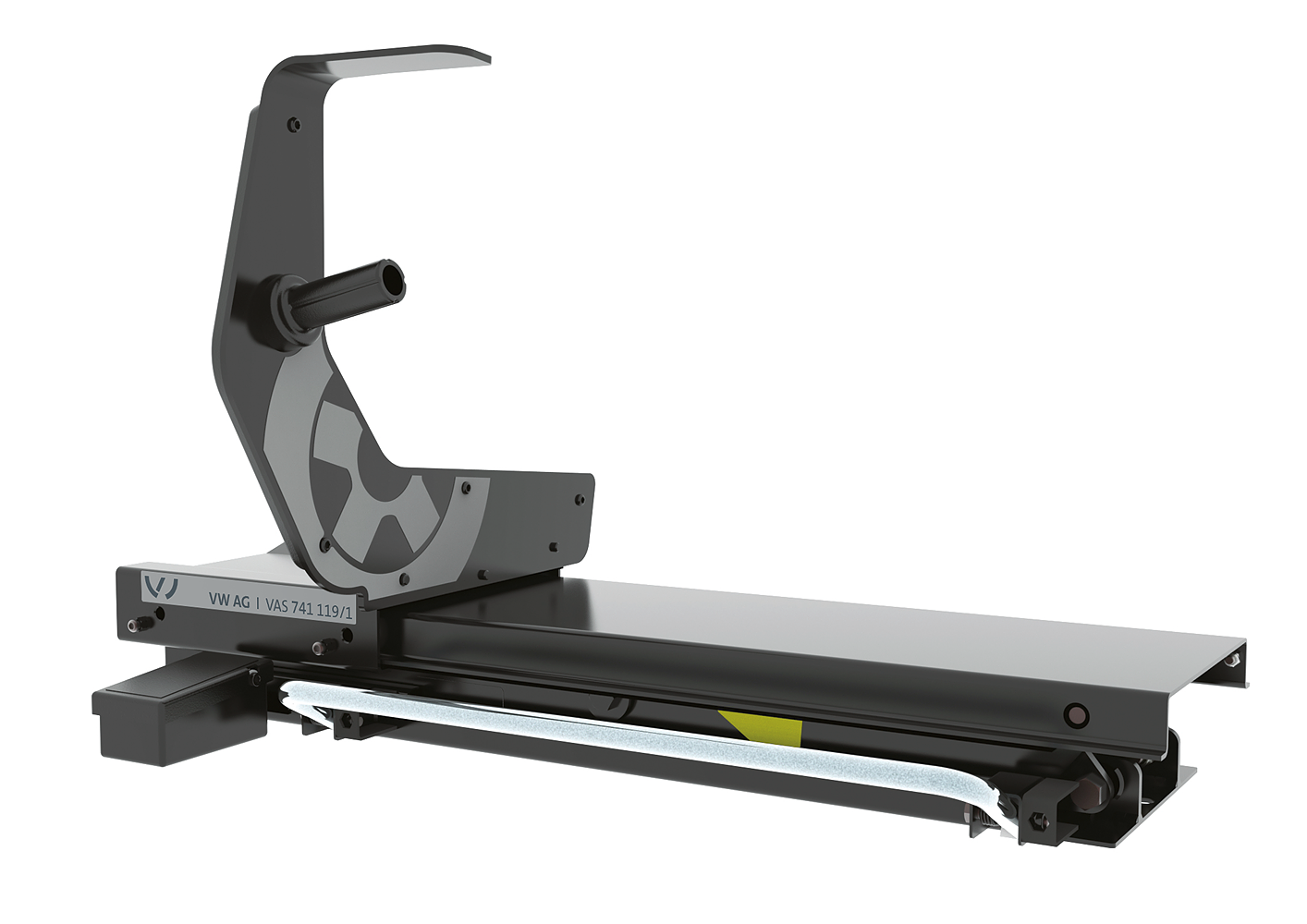

- Wheel lift VAS 741 119/1 | with memory function16925021911692502191
Zero Gravity - The Wheel Lift for Professionals
- Pneumatic lifting and lowering of wheels up to 80kg
- Automatic lowering of lift upon closing the wheel guard
- Weightless: Automatic weight compensation for easy and secure clamping
- Memory function: Automatically adjusts to the correct height for the next wheels
- Faster than comparable solutions
- Effortlessly adjustable in height and sideways.
- Low height for easy rolling of heavy tires onto the lift
Suitable for all Beissbarth wheel balancers. Requires pneumatic and electronic connection to the wheel balancer.

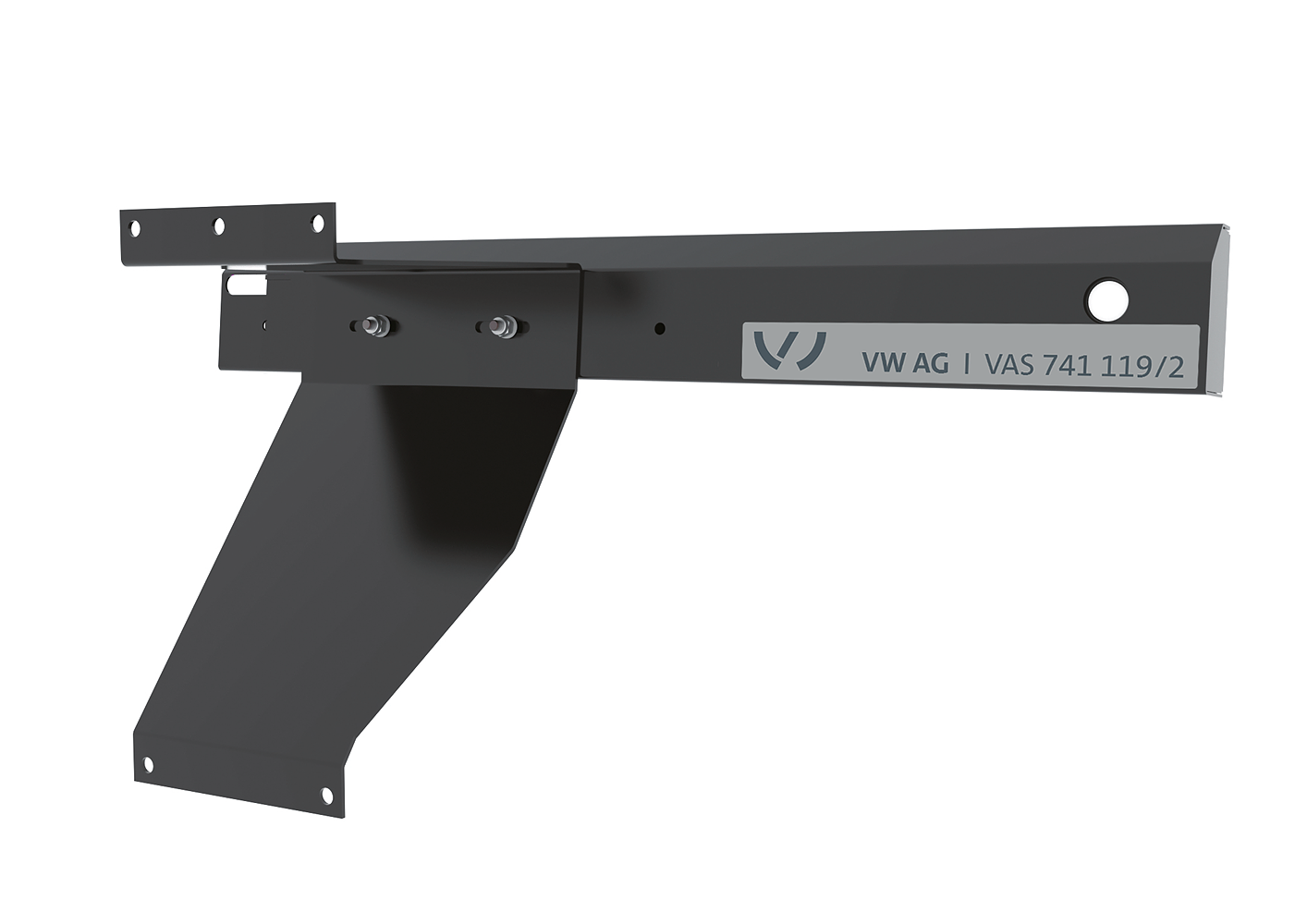

- Eccentricity Diagnostic Upgrade VAS 741 119/2 | for VAS 741 115 and VAS 741 11916925022071692502207
Diagnostic upgrade with a rear sonar to enable eccenticity measurements. This advanced feature determines the roundness of the wheel assembly when rotating. Additionaly, the newly unlocked Hubmatching feature allows rotating the tyre on the rim to minimize total imbalance before applying correction weights.
- QuickPlate | 5-Holes | 96 - 186 mm | 48mm & 58mm16956552961695655296
- Large clamping cap | for aluminium rims16925020441692502044
Large plastic cap with Polyurethane ring to protect aluminium rims.
