Set che include anello distanziatore (36 mm) e spessore in poliammide (35 mm).

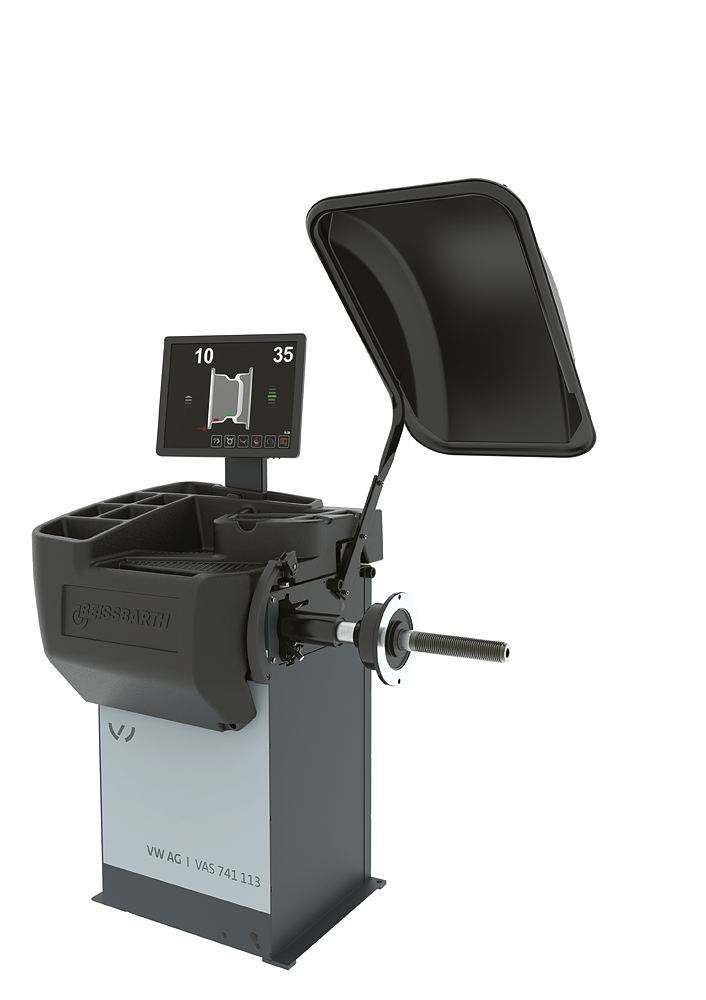

Precise balancing in tight spaces: Compact car wheel balancer
Measurement and balancing:
- Balancing in 4.7 seconds
- Automatic stop of the wheel 15° before correction position
- LED for better visibility when placing weights
- Internal line laser for precise positioning of weights
- Split program for hiding weights behind different spokes
Wheel data recognition:
- Automatic data arm for measuring distance and diameter and weight placement
- Automatic selection ofclip-on and adhesive weight program
- Highest measurement accuracy +/- 0.5g
Auto Adaptive Mode:
- Dynamic tolerance adjustment based on weight and size
- Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver
Wheel guard with virtual sonar:
- Automatic recognition of rim width in steel rims
- Without manual input with measuring gauge or sonar
- Closing of wheel guard automatically starts balancing program
17" touchscreen monitor:
- Graphical step-by-step illustrations
- Simplifies correct balancing with guided processes
- Touchscreen usbale with gloves on
Quick clamping:
- Mechanical clamping with quick-lock nut
- Stable 40mm shaft
- Wheel weights up to 75kg
- Optional with wheel lift
- 4 cones Ø43-112,5mm
- Quick-lock nut ProGrip 40x4
- Clamping cap
- Pressure ring
- Rubber ring
- 60g counterweight
- Weight pliers
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1100 mm |
| Packaging width | 700 mm |
| Packaging height | 1165 mm |
| Length | 1100 mm |
| Height | 1550 mm |
| Width | 960 mm |
| Max. wheel diameter | 914 mm |
| Max. rim diameter | 30 " |
| 10 " | |
| Weight | 110 kg |
| Motor power | 0,15 kW |
| Max. rim width | 20 " |
| Max. wheel weight | 75 kg |
| Measuring speed | 100 U/min |
| Measuring time | 4 s |
| 0 g | |
| Min. rim width | 1 " |
| Shaft diameter | 40 mm |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Stackable | 2 Stück |
| 30 Stück | |
| Units per 40ft container | 66 Stück |
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1100 mm |
| Packaging width | 700 mm |
| Packaging height | 1165 mm |
| Length | 1100 mm |
| Height | 1550 mm |
| Width | 960 mm |
| Max. wheel diameter | 914 mm |
| Max. rim diameter | 30 " |
| 10 " | |
| Weight | 110 kg |
| Motor power | 0,15 kW |
| Max. rim width | 20 " |
|---|---|
| Max. wheel weight | 75 kg |
| Measuring speed | 100 U/min |
| Measuring time | 4 s |
| 0 g | |
| Min. rim width | 1 " |
| Shaft diameter | 40 mm |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Stackable | 2 Stück |
| 30 Stück | |
| Units per 40ft container | 66 Stück |
- Flange extension | Off-Road wheels a rims with high ET16959016671695901667
- DuoExpert Collet Set | Set of 3 | 54 - 78 mm16956566981695656698
Center Bore Diameter: 54–78 mm
Clamping Type: Manual / Pneumatic
For Wheel Type: Passenger Cars
Required For: Mounting via the wheel center bore. Covers approximately 95% of common passenger cars.
Application: Wheels should be clamped from the inside using the cone.
Use In Combination With: Stand-alone (optimal results with type-specific clamping plate or Quick Plate)
Quantity: 1 Set with 3 collets
Required Quantity per Wheel: 1
Not Suitable For: Wheels without a center bore
- Wheel lift VAS 741 119/1 | with memory function16925021911692502191
Zero Gravity - The Wheel Lift for Professionals
- Pneumatic lifting and lowering of wheels up to 80kg
- Automatic lowering of lift upon closing the wheel guard
- Weightless: Automatic weight compensation for easy and secure clamping
- Memory function: Automatically adjusts to the correct height for the next wheels
- Faster than comparable solutions
- Effortlessly adjustable in height and sideways.
- Low height for easy rolling of heavy tires onto the lift
Suitable for all Beissbarth wheel balancers. Requires pneumatic and electronic connection to the wheel balancer.
- QuickPlate | 5-Holes | 96 - 186 mm | 48mm & 58mm16956552961695655296
- Large clamping cap | for aluminium rims16925020441692502044
Large plastic cap with Polyurethane ring to protect aluminium rims.
