Mounting type: Manual / Pneumatic
Suitable for wheel type: Passenger car / light truck
Required for: Extending the flange plate for off-road wheels or wheels with a high offset to prevent contact with the wheel balancer housing.
Application: The spacer ring is attached to the flange plate using three magnetic pins. The spacer sleeve is mounted on the balancing shaft in front of the centering cone and wheel.
Quantity: 1
Required quantity per wheel: 1
Not suitable for: Wheels without a center bore

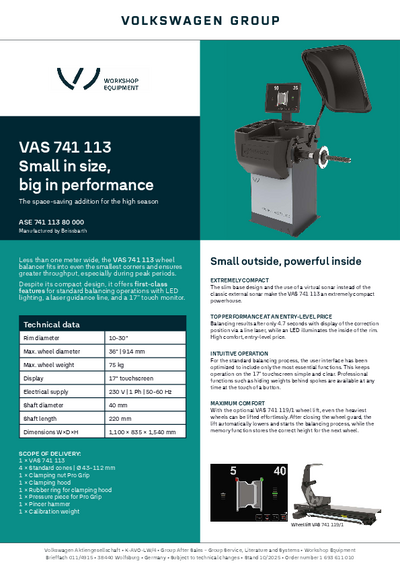

Precise balancing in tight spaces: Compact car wheel balancer
Measurement and balancing:
- Balancing in 4.7 seconds
- Automatic stop of the wheel 15° before correction position
- LED for better visibility when placing weights
- Internal line laser for precise positioning of weights
- Split program for hiding weights behind different spokes
Wheel data recognition:
- Automatic data arm for measuring distance and diameter and weight placement
- Automatic selection ofclip-on and adhesive weight program
- Highest measurement accuracy +/- 0.5g
Auto Adaptive Mode:
- Dynamic tolerance adjustment based on weight and size
- Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver
Wheel guard with virtual sonar:
- Automatic recognition of rim width in steel rims
- Without manual input with measuring gauge or sonar
- Closing of wheel guard automatically starts balancing program
17" touchscreen monitor:
- Graphical step-by-step illustrations
- Simplifies correct balancing with guided processes
- Touchscreen usbale with gloves on
Quick clamping:
- Mechanical clamping with quick-lock nut
- Stable 40mm shaft
- Wheel weights up to 75kg
- Optional with wheel lift
- 4 cones Ø43-112,5mm
- Quick-lock nut ProGrip 40x4
- Clamping cap
- Pressure ring
- Rubber ring
- 60g counterweight
- Weight pliers
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1100 mm |
| Packaging width | 700 mm |
| Packaging height | 1165 mm |
| Length | 1100 mm |
| Height | 1550 mm |
| Width | 960 mm |
| Max. wheel diameter | 914 mm |
| Max. rim diameter | 30 Inch |
| Min. rim diameter | 10 Inch |
| Weight | 110 kg |
| Motor power | 0,15 kW |
| Max. rim width | 20 Inch |
| Max. wheel weight | 75 kg |
| Measuring speed | 100 rpm |
| Measuring time | 4 s |
| Balancing accuracy +/- | 0 g |
| Min. rim width | 1 Inch |
| Shaft diameter | 40 mm |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 30 Piece(s) |
| Units per 40ft container | 66 Piece(s) |
| Electrical connection | 230 V | 50 - 60 Hz | 1 ph |
|---|---|
| Packaging length | 1100 mm |
| Packaging width | 700 mm |
| Packaging height | 1165 mm |
| Length | 1100 mm |
| Height | 1550 mm |
| Width | 960 mm |
| Max. wheel diameter | 914 mm |
| Max. rim diameter | 30 Inch |
| Min. rim diameter | 10 Inch |
| Weight | 110 kg |
| Motor power | 0,15 kW |
| Max. rim width | 20 Inch |
|---|---|
| Max. wheel weight | 75 kg |
| Measuring speed | 100 rpm |
| Measuring time | 4 s |
| Balancing accuracy +/- | 0 g |
| Min. rim width | 1 Inch |
| Shaft diameter | 40 mm |
| Thread type | 40 x 4 TR - Metrisches ISO-Trapezgewinde |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 30 Piece(s) |
| Units per 40ft container | 66 Piece(s) |
-
Universal Distance Ring (L=36mm) | Including Spacer Sleeve (L=35mm) | for Off-Road Wheels a Rims With High ET 1695901667 1695901667
-
DuoExpert Collet Set | Set of 3 | 54 - 78 mm 1695656698 1695656698
Center Bore Diameter: 54–78 mm
Clamping Type: Manual / Pneumatic
For Wheel Type: Passenger Cars
Required For: Mounting via the wheel center bore. Covers approximately 95% of common passenger cars.
Application: Wheels should be clamped from the inside using the cone.
Use In Combination With: Stand-alone (optimal results with type-specific clamping plate or Quick Plate)
Quantity: 1 Set with 3 collets
Required Quantity per Wheel: 1
Not Suitable For: Wheels without a center bore
-
Wheel lift VAS 741 119/1 | with memory function 1692502191 1692502191
Zero Gravity - The Wheel Lift for Professionals
- Pneumatic lifting and lowering of wheels up to 80kg
- Automatic lowering of lift upon closing the wheel guard
- Weightless: Automatic weight compensation for easy and secure clamping
- Memory function: Automatically adjusts to the correct height for the next wheels
- Faster than comparable solutions
- Effortlessly adjustable in height and sideways.
- Low height for easy rolling of heavy tires onto the lift
Note: The automatic lowering function upon closing the wheel guard requires both a pneumatic and an electronic connection to the wheel balancer. This is only compatible with Beissbarth wheel balancers VAS 741 113, VAS 741 115 and VAS 741 119.
-
QuickPlate | 5-Holes | 96 - 186 mm | 48mm & 58mm 1695655296 1695655296
Mounting type: Manual / Pneumatic
For wheel type: Passenger car / Light truck wheels with 5-lug bolt pattern
Required for: Clamping the wheel externally through the five bolt holes
Application: Wheels are centered and mounted externally through the bolt holes using the QuickPlate.
For use with:- ProGrip quick clamping nut and pressure ring
- Threaded handle (1692502209) for pneumatic clamping
Quantity: 1
Required quantity per wheel: 1
