Swiveling drive-over plate for roller set with 700 mm (2 pieces)
QB.4 - the new benchmark in brake testing
Real-time control via smartphone or tablet
- Ready for mobile Android devices by default
- No cabinets, PCs, or license costs required
- Optional classic display by choice: analog, digital, or TV
No compromise on quality
- Standard motor brake
- Frame and base unit hot galvanized
- Long-lasting premium-coated rollers for high grip and low tire consumption
- Reinforced bearings and high-quality 3.7 kW motors
Next-level power box
- All electronic components safely placed outside roller set
- Flexible display options, no Windows PC needed
- RJ45 Ethernet with ASA Livestream v1.2 interface as standard
Brake testing made easy
- Automatic testing procedure
- No need for remote control
- Automatic detection for all-wheel drive
- Program for electronic parking brakes
- Optional upgrade with 4-point axle weight scales
- Fits in all common foundations
Included as standard. Where others charge extra:
- Motor brake: Increases motor lifespan, simplifies driving axle out of the brake tester
- Galvanized critical components: Protects against corrosion, increases service life
- All-wheel drive detection: Ideally equipped for all-wheel drive and electric vehicles
- Premium-coated rollers: Maximum grip, minimum abrasion
- App use: Replaces complete analog display and PC
- Brake tester with 700mm rollers
- QB.4 control cabinet with ASA Livestream v1.2
- Android app
- Cable set 15m
| Pit Dimensions (L x W x D) | 2380 x 760 x 260 mm |
|---|---|
| Electrical connection | 3 x 400 V | 50 - 60 Hz |
| Packaging length | 2420 mm |
| Packaging width | 820 mm |
| Packaging height | 800 mm |
| Gross weight | 469 kg |
| Max. wheel diameter | 1000 mm |
| Measuring system | DMS |
| Roller length | 700 mm |
| Roller elevation | 25 mm |
| Roller diameter | 205 mm |
| Min. test width | 800 mm |
| Max. test width | 2200 mm |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 381 mm |
| Max. axle load testable | 2 t |
| Test speed | 5 km/h |
| Max. drive-over load | 4 t |
| Height difference upper edge of roller to workshop floor | -10 mm |
| Motor power | 2 x 3,7 kW |
| Power cable length | 15 m |
| ASA livestream | ja Standard |
| Pit Dimensions (L x W x D) | 2380 x 760 x 260 mm |
|---|---|
| Electrical connection | 3 x 400 V | 50 - 60 Hz |
| Packaging length | 2420 mm |
| Packaging width | 820 mm |
| Packaging height | 800 mm |
| Gross weight | 469 kg |
| Max. wheel diameter | 1000 mm |
| Measuring system | DMS |
| Roller length | 700 mm |
| Roller elevation | 25 mm |
| Roller diameter | 205 mm |
| Min. test width | 800 mm |
| Max. test width | 2200 mm |
|---|---|
| Min. wheel diameter | 320 mm |
| Roller axle distance | 381 mm |
| Max. axle load testable | 2 t |
| Test speed | 5 km/h |
| Max. drive-over load | 4 t |
| Height difference upper edge of roller to workshop floor | -10 mm |
| Motor power | 2 x 3,7 kW |
| Power cable length | 15 m |
| ASA livestream | ja Standard |
-
Drive-over plate swiveling | 700 mm 1691601011 1691601011
-
Connecting Cable for Digital & Analog Display | QB.4 | 25m 1691403112 1691403112
25m cable set to connect the digital and analog display to the control cabinet.
-
Cable Set | QB.4 | 400V | 30m 1691401108 1691401108
30m cable set to connect the roller brake tester and the control cabinet
-
Wall bracket | VESA 400x400mm 1691401107 1691401107
Holds TVs with VESA-mount 400x400mm. Swivable.
-
Pedal force meter | QB.4 1691403101 1691403101
Measure pedal force and transmits data wirelessly at 433Mhz. The pedal force meter allows the application of the same pedal force across multiple measurements. This is particularly useful for all-wheel-drive vehicles when left and right wheels are tested individually.
- Measuring range: up to 1,000N
- Resolution: 1N
- Frequency: 433Mhz (8 channels)
- Battery: Rechargeable with 600mAh capacity (12h runtime)
- Dimensions (L x W x H): 106 x 60 x 50mm
- Protection class: IP56
- Temperature range: 0 to 50°C
-

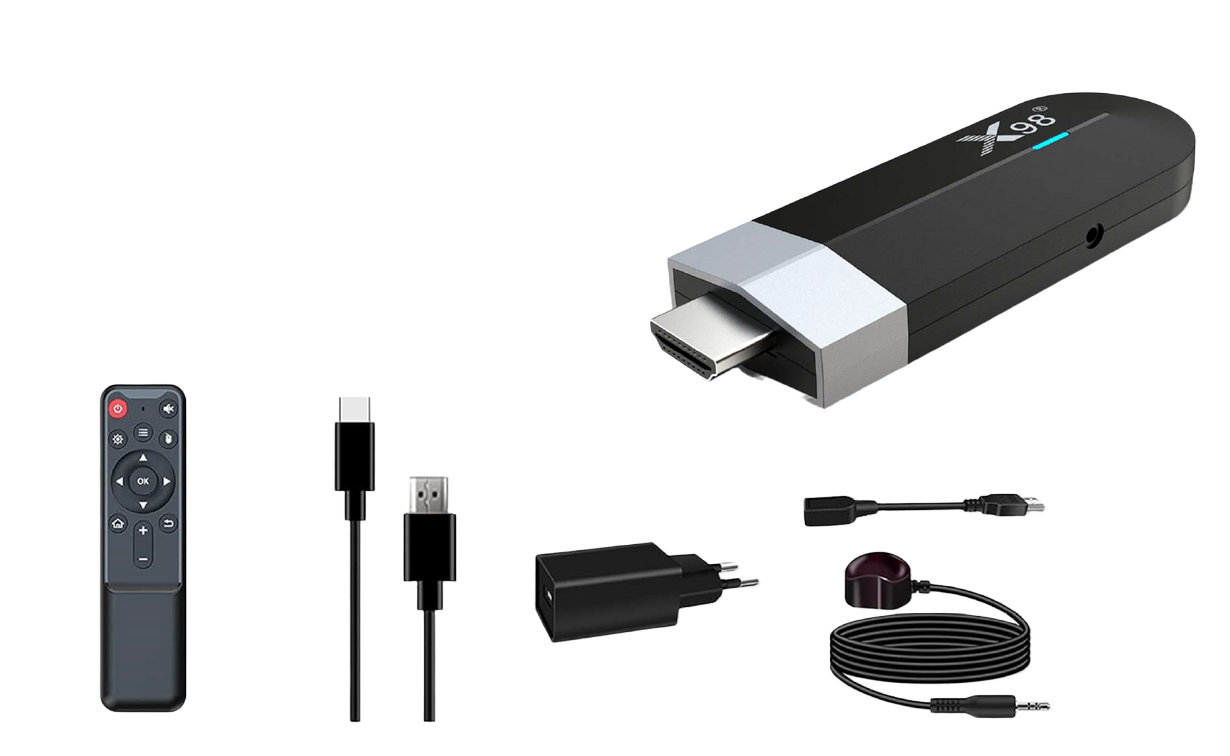

TV display kit | QB.4 1691403100 1691403100
Used for displaying the braking force on a TV. The QB.4 Android app runs on an Android stick that is plugged directly into the TV. The app is operated via a small remote control. This means that any television can be used to display and control the app, without any licenses, activations or intermediate PCs. Includes power supply unit, remote control and accessories.
Important: TV not included!
-
Digital Display with wall bracket | QB.4 1691401101 1691401101
For those who prefer digital values. Braking forces left and right are shown in Newtons. In the middle, the difference between left and right in percent. Includes wall bracket, mounting material, power supply unit and 15m connection cable. No additonal accessories required.
L x W x H: 900 x 350 x 200 mm
Weight: 13 kg
-
Analog Display with wall bracket | QB.4 1691401100 1691401100
The classic way to display braking forces. Consisting of two pointers, each with a scale up to 8kN for left and right brake force as well as a difference display in percent. Includes wall bracket, mounting material, power supply unit and 15m connection cable. No additonal accessories required.
3 LEDs: On/Off, Automatic ready Yes/No, Notification
L x W x H: 890 x 510 x 150 mm
Weight: 13 kg
-
Lifting and lowering device | HUS 104 | for BD 4xxx and QB.4 brake tester | 700mm 1691600015 1691600015
The solution that allows the fully automated lowering and lifting of the axle in and out of the brake tester:
- Ideal for premium vehicles or cars with low ground clearance
- Easier entry and exit of the roller brake tester
- The automatic lowering and lifting respects all necessary safety requirements
Recommended for intensive use in PTI inspection centers:
- Enables a more fluid, faster and simplified procedure
- Increases the safety of the brake tester
- Increases the longevity of mechanical components (reduces undesired shocks and accelerations of the bench)
- Minimizes the risk of spoiler damage in sports cars
- Fully automated
-
Tablet | Android | 10.1" 1693770644 1693770644
Incl. protection case
-
Smooth start 400V 1691601437 1691601437
For a smoother start of the brake tester. For car brake testers of the BD6xx, BD4xxx, and QB.4 series with a 400V control cabinet.
-
Support strips for axle load scales | 2 pcs 1691601009 1691601009
This solid support is used to adjust the screws of the axle load weighting sensors. Only required when brake tester is installed without inground frame.
-
Axle load scale 4 sensors 1691601606 1691601606
4 sensors used to determine vehicle axle load. Additionally requires support strips 1691601009 when brake tester is installed without inground frame.
-
Installation frame for car brake tester | 700 mm 1691602115 1691602115
Installation frame for single brake tester with 700 mm roller length
-
Edge protection for car brake tester | 700 mm 1691602000 1691602000
Edge protection for single brake tester with 700 mm roller length
-
Converter Kit Brake Tester | for MAHA inground frame 2,34 to 2,38m 1691601326 1691601326
Converter Kit for Beissbarth passenger car brake testers to fit them into an existing MAHA inground frame. Suitable for installation widths from 2.34 to 2.38m. Compatible with all Beissbarth BD4 and QB.4 series brake testers.
