Trolley with PC, monitor, mouse, and keyboard (no printer included)
NEW: Easy Tread 2.0 comes standard with a connectivity kit to digitize and automate your service lane:
- Live monitor of all crossings of multiple Easy Treads in the same workshop network
- 20% faster results
- Ready for ASA interface
- Simplified connection to dealer management systems and 3rd party systems
- Direct connection of monitors and TVs without using the browser
- Optimized statistic functions
The high weight and torque of electric vehicles causes enormous wear on tires and chassis components. The automatic tire diagnosis of every vehicle entering a workshop allows keeping the tire business inhouse and increasing customer loyalty by. The immediate evaluation of the tire wear pattern simultaneously generates service opportunities for wheel alignment and potentially ADAS calibration.

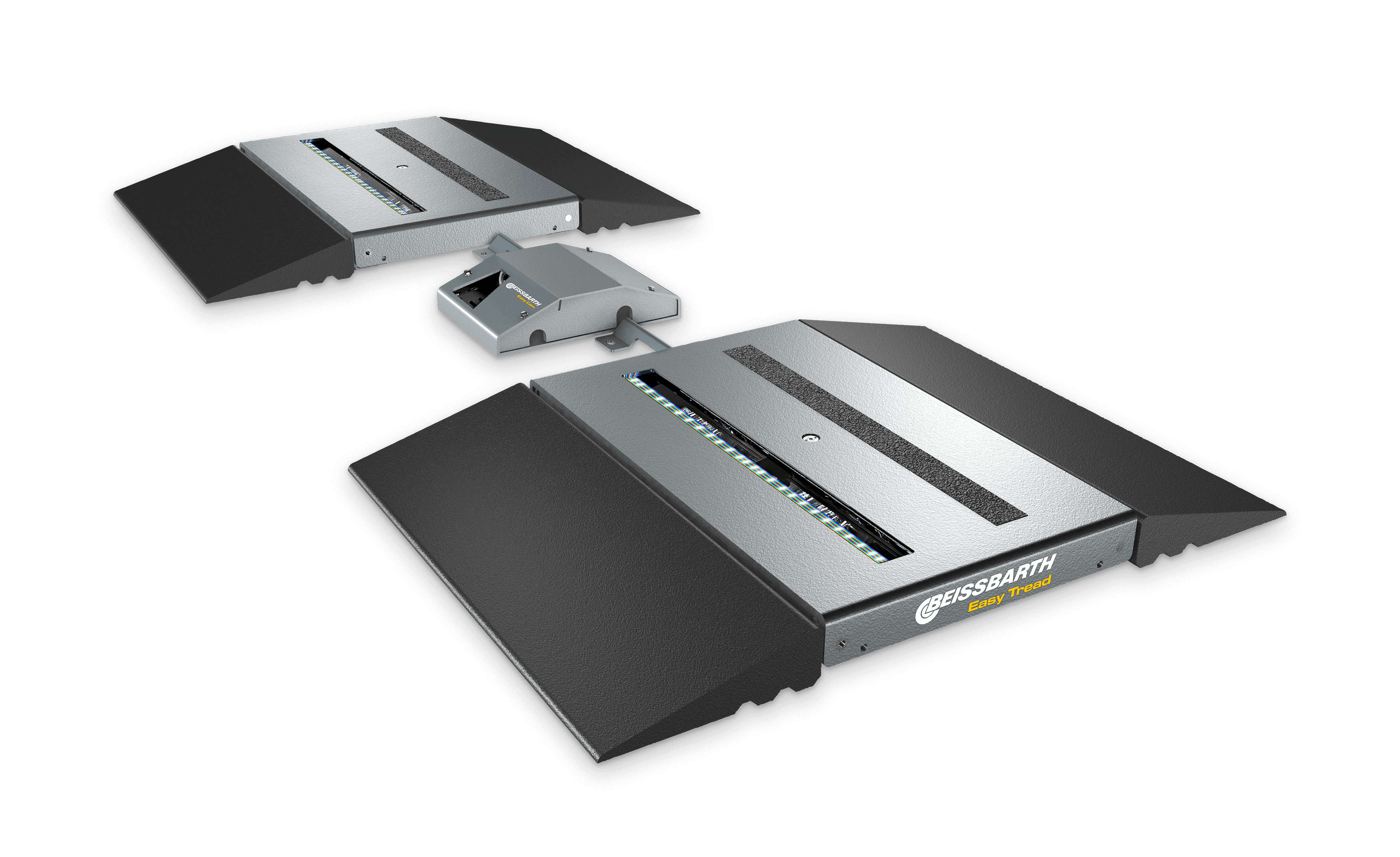

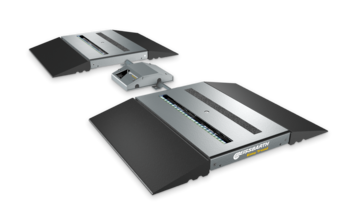

Easy Tread - Tyre data nonstop
- Automatic tyre wear and diagnosis within seconds
- Clear display of wear information and recommended actions
- Automatic recognition of license plates
- Crossing speed up to 8 km/h (nonstop)
- Measurements in two directions (entering and exiting vehicles)
- High precision thanks to maximum tyre contact area
- Access measurement results without any PC (TV, tablet, smartphone)
- Performance statistics to better manage and optimize your workshop's performance
- No moving parts (low maintenance)
- Quality Made in Germany
Scope of delivery:
- Easy Tread modules for above ground installation (measurement modules, LAN cables, main switch box)
- ANPR camera
- Connectivity Kit
- Drive-on ramps
| Tyre width max. | 450 mm |
|---|---|
| Weight | 160 kg |
| Protection class | 65 |
| Depth | 1040 mm |
| Height | 85 mm |
| Packaging unit | 1 Pallet(s) |
| Electrical connection | 100 - 230 V | 50 - 60 Hz | 1 ph |
| Width | 2245 mm |
| Test width min. - max. | 895-2095 mm |
| Maximum load per axle | 4 t |
| Working temperature | 0 - 40 °C |
| Accuracy | ± 0,25 mm |
| Max. speed | 8 km/h |
| Packaging length | 850 mm |
| Packaging width | 550 mm |
| Packaging height | 1250 mm |
| Gross weight | 168 kg |
| Country of Origin, customs | DE |
| Number of languages (software) | 18 |
| Tyre width max. | 450 mm |
|---|---|
| Weight | 160 kg |
| Protection class | 65 |
| Depth | 1040 mm |
| Height | 85 mm |
| Packaging unit | 1 Pallet(s) |
| Electrical connection | 100 - 230 V | 50 - 60 Hz | 1 ph |
| Width | 2245 mm |
| Test width min. - max. | 895-2095 mm |
| Maximum load per axle | 4 t |
| Working temperature | 0 - 40 °C |
|---|---|
| Accuracy | ± 0,25 mm |
| Max. speed | 8 km/h |
| Packaging length | 850 mm |
| Packaging width | 550 mm |
| Packaging height | 1250 mm |
| Gross weight | 168 kg |
| Country of Origin, customs | DE |
| Number of languages (software) | 18 |
- PC trolley for Easy Tread16912000231691200023
- Cable tunnel | for onground installations of Easy Tread16912010231691201023
- Cable tunnel to be used as cable bridge for the gaps between the ANPR camera housing and the Easy Tread modules (left and right) as well as roll-over protection for lateral cable outlets
