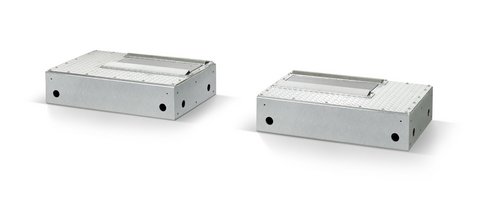

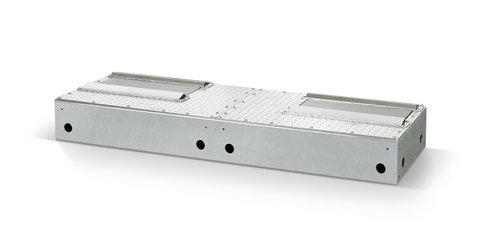

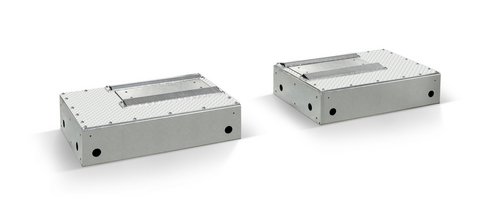

Suspension tester SA 650 | Passenger cars | 13t drive-over load | EUSAMA | 400V

Special accessory for series BD 5xxx and BD 8xxx brake tester | for checking the technical condition of suspension elements on passenger cars in a truck test lane

Article number: 1 691 620 501

Scope of delivery:

  • Suspension tester
  • Power supply cable
  • Fastening materials

Note: For pit installations, the maximum possible test width is 2400mm.

Weight660 kg
Protection class54 IP
Length800 mm
Height285 mm
Electrical connection3 x 400 V | 50 - 60 Hz
Measuring systemDMS-Technik
Max. sound pressure level≤70 dB(A)
Width1160 (2320) mm
Max. axle load testable2,0 t
Test width min. - max.800 - 2200 mm
Exciter stroke6 mm
Test frequency25 Hz
Motor power2 x 2,5 kW
Engine speed1360 rpm
Supply lead5 x 2,5 mm²
Fuse rating of power supply3 x 20 A / „C" 3-polig
Test principleEUSAMA
Test plate length265 mm
Test plate width700 mm
Power factor (cos φ)0,75
Test plate height42 mm
Max. drive-over load13 t
Pit edge protection | SA 650 | test lane1 691 622 121
Pit edge protection | SA 650 | pit1 691 621 523
